Monitoring & Metering

THE NEW U1000-WM (WALL MOUNT) IS A SIGNIFICANT ADDITION TO THE MICRONICS ULTRAFLO RANGE OF CLAMP-ON, HEAT/ENERGY AND FLOW METERS

U1000 Heat/Energy and Flow meters are now available in the original pipe-mounted or new wallmounted, display & keyboard format with an extended pipe range!

The U1000MKII is a “Best Value” Clamp-on, Ultrasonic heat meter alternative to traditional inline energy meters, for energy management and billing applications in domestic and commercial, district or shared heating or cooling systems, which offers significant installation cost and dry maintenance benefits over traditional in-line products. And the new U1000 Wall Mount version offers the alternative of Clamp-on pipemounted flow and temperature sensors but with a wall or control panel, display and keyboard plus an extended range to cover larger pipe size applications.

Micronics has built on its success with the ULTRAFLO U1000 heat/energy & flow meter range to develop a WM (Wall Mount) version, which extends the pipe size to cover applications from 25mm – 225mm (8”) OD pipe and the temperature range to 135°C.

And whilst the U1000MKII-WM can still be used as a stand-alone product, in the all important area of connectivity the new product supports optional Mbus or Modbus RTU slave and RS485 serial communications for aM&T or BEMs systems.

Still simple to install: connect power and enter the pipe inside diameter, adjust the sensors and clamp-on the pipe with no specialist skills or tools required but now with the added flexibility of an alternative wall or panel mounted keyboard and display and a wider range of application the U1000 MKII heat/ energy and flow meters continue to offer a “Best Value” clamp-on non-invasive alternative to traditional in-line meter installation, with no drain-down required plus dry servicing, providing minimum downtime and maximum availability.

For further information on this product or the Micronics range call Micronics on +44(0)1628 810456, visit www.micronicsflowmeters.com or take a look on YouTube.

A HOLISTIC APPROACH TO ENERGY SAVING

The Covid-19 breakout and subsequent lockdowns have been a reality for the UK for more than a year now. Many of us, from office workers to children and students were forced to move our operations into our homes. This change has left most public buildings empty, which in theory should mean less overall energy utilisation. But did you know that 40% of all energy usage happens at night, when nobody is in anyway? Here at Chauvin Arnoux, we take a holistic approach to energy saving, so in this article we come to the aid of facilities managers by showing them the best ways of keeping on top of energy costs effectively.

ENERGY MANAGEMENT TIPS

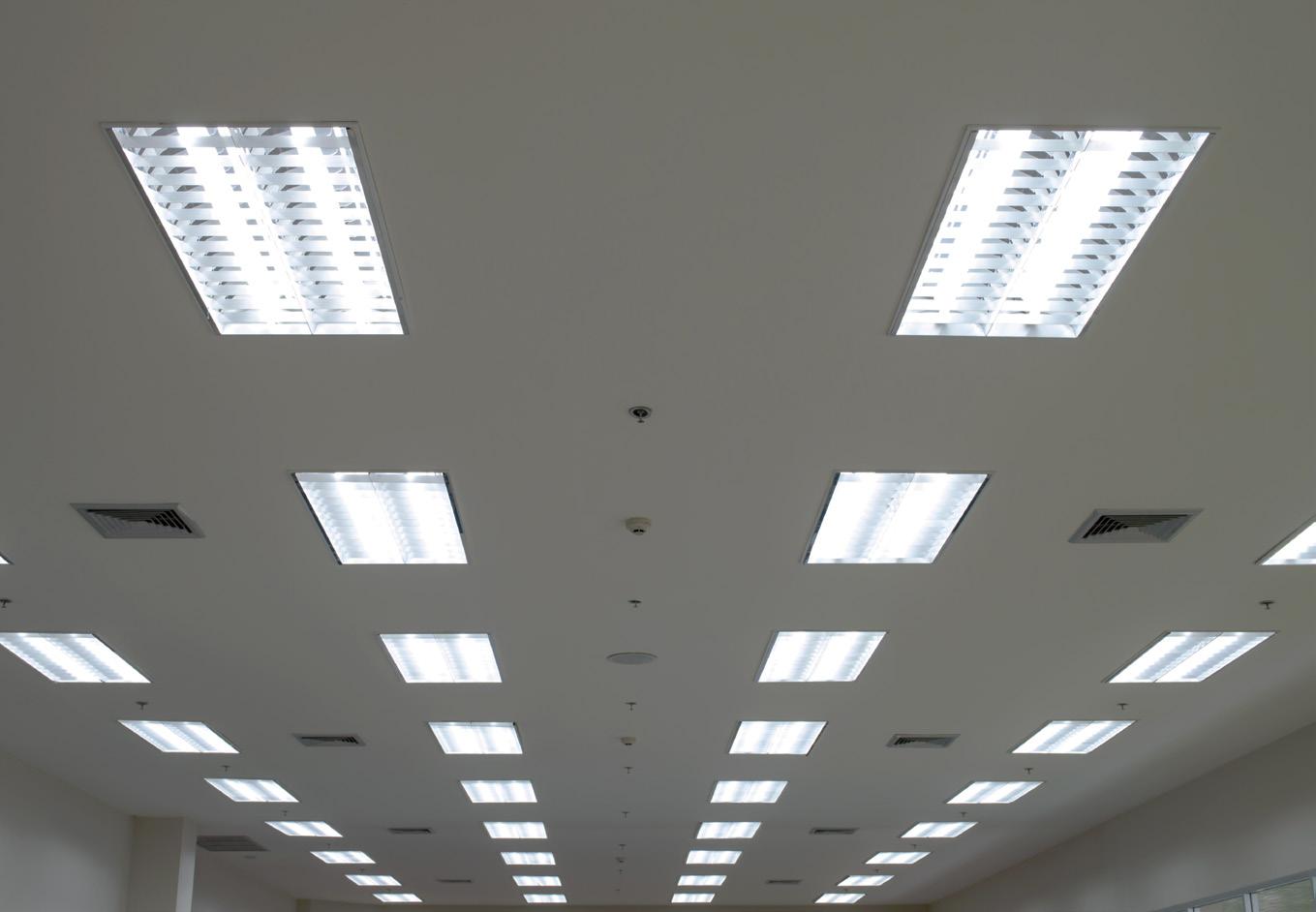

For many organisations, lighting is perceived as a tiny fraction of their energy bills, but in reality, it actually accounts for up to 40% of a building’s electricity consumption. One very effective way of creating savings in this department is to switch to LED light sources, which use 80% less energy than incandescent lamps for the same light output.

Another important issue that involves heating and office equipment is out-of-hours usage. A recent British Gas survey of 6,000 small- and mediumsized businesses that had smart meters found that no less than 46% of their energy use was outside their normal business hours, and there’s no reason to believe that the figure would be significantly different for public sector organisations. Some out-of-hours energy use is of course, necessary and unavoidable, but once non-essential usage has been identified, big savings can often be achieved by measures as simple as installing time switches.

SPACE HEATING AND ENVIRONMENTAL CONDITIONS

Motors consume about two-thirds of the energy used by UK industry. Of course, your organisation may not be industrial and, therefore, it would be easy to assume you don’t need to worry about motors. Yet motors are everywhere, not least driving fans in

air-conditioning systems and pumps for boilers and water supply. If they were installed a while ago, chances are that those motors have ordinary starters which means the motors are either stopped or running at full speed. This can be very wasteful.

Most fans in air conditioning systems only need to operate at full speed on a few really hot summer days. For the rest of the year, their speed could be reduced to 80% or less, without affecting building comfort levels. And this would mean big savings, because at 80% of full speed, a fan uses only 50% of the energy it uses at full speed. Fitting variable speed drives that will allow speed to be continuously controlled from zero to maximum is therefore a very worthwhile investment.

LOOKING AFTER THE PLANET

Good ventilation, or at least good circulation of air, is necessary to prevent the build-up of carbon dioxide, but also necessary during the pandemic. But a poorly designed ventilation system can lead to draughts that unnecessarily remove heat from the building. The solution is to monitor airflow, carbon dioxide levels, temperature and humidity. The information provided by them will allow air quality to be optimised while minimising unnecessary loss of heat.

CASE STUDY: saving energy in a typical school

When invited to help create an energy strategy at a secondary school in Kent, the Chauvin Arnoux team started by logging the usage readings over an eleven-day period, which also included the half term holidays, a week of term time and a weekend. What they found was that the total energy consumed in the period came to just over £2,000, which meant an annual electricity bill of around seventy thousand pounds. But even at the weekend, when there was no activity on the premises, there was still a load of around 30 A per phase.

Another important finding from the investigation was that harmonics were unexpectedly high, which is actually a common problem given the proliferation of non-linear loads in our fast-moving

FINAL WORDS

The pandemic has brought many changes for all of us, and in virtually all industry sectors. However, saving money, reducing energy consumption and supporting the environment, are more important than ever. The one common thread that unites all effective technological world. In this case, the data showed that the third- and fifth-order harmonics were dominant. Third-order harmonics are typically caused by personal computers, office equipment and electronic lighting, while in this installation the fifthorder harmonics were probably being caused by servers and UPS systems. The easiest solution to this problem was to simply educate staff to turn off lighting and equipment at the end of the day or even install systems to turn it off automatically.

methods of energy management is the need to measure – after all, what doesn’t get measured, doesn’t get managed! So make sure to call on the experts at Chauvin Arnoux and follow their tips on holistic energy saving solutions for your organisation! www.chauvin-arnoux.co.uk
