2016 housing of the indigenous WARLI tribe living on the hillocks near dahanu, maharashtra (team work). To study the everyday life and vernacular architecture. 2018 LIK documentation of Anand Bhawan, Allahabad (team work). House of Nehru Family, built in 1930. The small residence became the home of Indian National Congress during national movements and also temporary home of Gandhi. inking of some parts done by me.

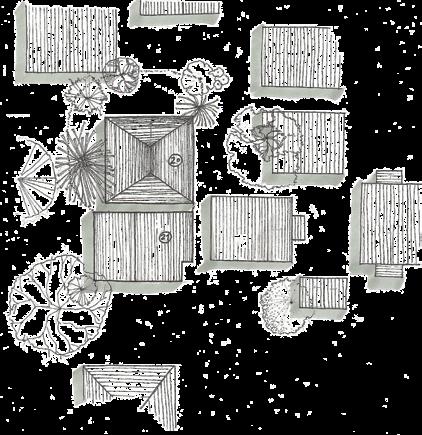

plan section

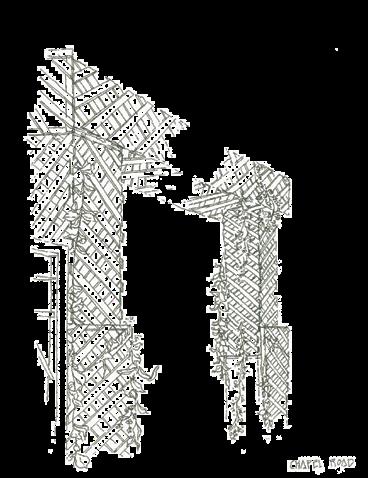

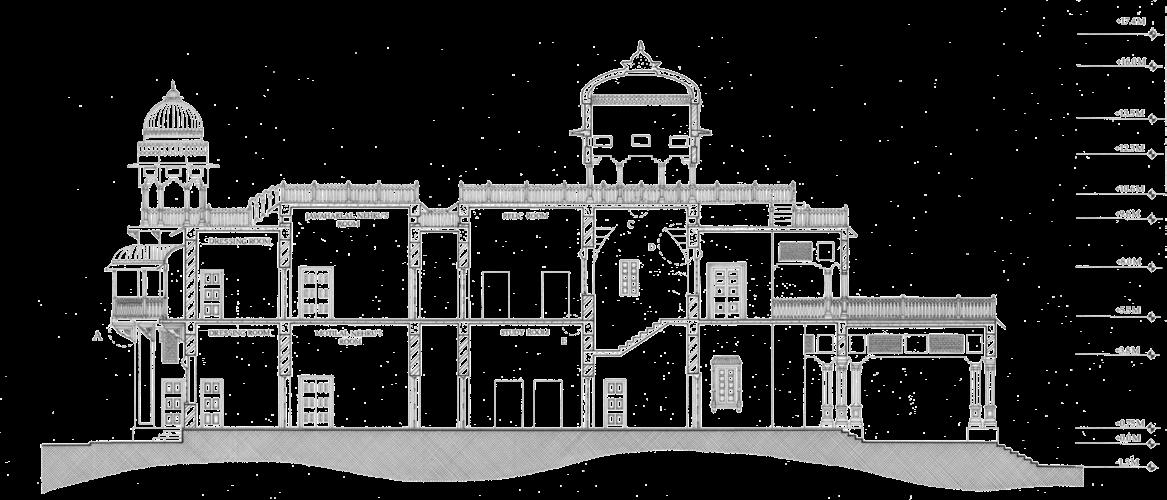

2017 LIK documentation of Naggar Castle, kullu, himachal pradesh (team work). The use of local materials and traditional practices to withstand the earthquakes which are frequent in mountains. Kath - Kuni architecture : the use of stone and wood to make the structure flexible to absorb seismic forces. line work done by me.

Storage space obove the toilet slab.

Cut out in slab for light to penetrate from terrace.

section

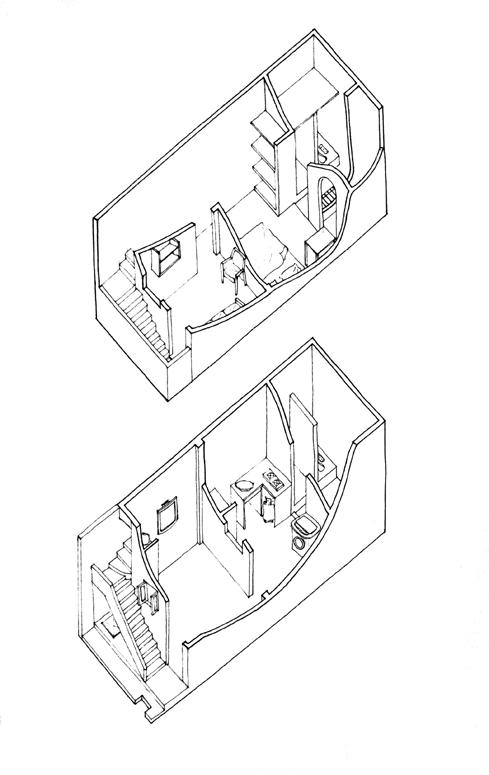

2018 documentation of Aranya low - cost & affordable Housing , indore, madhya pradesh (team work). Community housing by Ar. B. V. Doshi initiated in 1983 and continued by the people is an example of incremental housing made for people of various income groups especially with less financial support. elevation & iso done by me - freehand drawing.

End of the plot is divided into toilet and washing area.

Water tank in front area of the plot. Kitchen used as a storage room partially.

Common living room for family to eat together, therefore kept empty of furnitures.

Pedestrian street

house of a family with lower income

ink ~ ink pen ~ dip pen water color ~ color pencils rotring pens ~microns charcoal & hand pencils ~ powder ~ twigs ~ sticks photoshop
