Site Analysis

The least amount of rainfall occurs in April. The greatest amount of precipitation occurs in August, with an average rainfall of 180mm.

site location:

rohini, new delhi

Proposed Site for Sports Complex is in Sector-34, R ohini, New Delhi along the Tuglak Road and opposite to D.D.A Flats and adjacent to the plotted land for housing in the south-west.

The Site measures an area of 53.6 acres which is selected for the sports complex.

Site is accessible from NH-44 earlier known as NH-7 which is a major north-south highway. It is linked to Khera Kalan Road and towards the Tuglak Road on which the site is located.

Monthly distribution of rainfall

Wind rose chart

Architectural Character

The temprature are highest on average in May, at around 33 C. The lowest temprature is recorded in January at 8 C.

The climate of the site is Subtropical climate. Elongated plans with with elongated face towards the windward side can help in cross-ventilation.

Flowing primarily from north-west to south-east there is cross ventilation across the site. The placement of blocks should be at 30-45 degree angle to the wind direction can further enhance ventilation.

Title: SPORTS COMPLEX, SEC-34, ROHINI, NEW DELHI

Description: To provide recreational and healthy environment to the people and take sports to those sections of the society which cannot afford membership of prestigious clubs and those who would like to associate with ‘clubs’ totally devoted to sports.

Monthly distribution of temprature

connectivity:

• airport proximity: indira gandhi international airport is approximately 41.9km from the proposed site.

• railway: new delhi railway station is 26km from the proposed site.

• isbt: proposed site is 25.2 km from the nearest bus stand isbt (kashmere gate).

site images

The architecture style in Delhi is contemporary architecture. The materials being used are mainly concrete and glass. Since, Delhi has a subtropical climate a large number of openings and windows have been provided for cross ventilation and circulation of air.

Solar passive techniques are also ussed to minmize the solar heat gain of he building.

An atom is the basic unit which when connected further,makes a larger system. Similarly,the placement of blocks is done in axial manner,with connectivity to each facility like an atom. A sense of openess can be felt in the sports complexthrough design.

The axial organization taken for the public area where view point atcs as a focus point of the plan. Using the local materials for construction building a climateresponsive building and a sustainable environment.

Sustainability In Design Achieved Through

With the help of sustainable construction and the use of non-toxic materials, many future benefits are being realised.

DESIGN FEATURES:

Because a lot of water is needed in stadiums to water and prepare the real grass pitches, clean the venue or for sanitary reasons, water consumption in stadiums are very high. When considering how to reduce water consumption, green initiatives such as rainwater harvesting and recycling can be considered.

energy preservation water preservation low pollution financial benefits a. Recreational area

Nowadays, more and more stadiums are built with healthier, more sustainably-sourced and recycled materials, such as wood, plastic and paper. With the help of using greener building materials that help fight global resource depletion, the amount of waste and pollution in the environment is reduced and the destructive impacts of construction are minimised.

Various patches of earth are created in the central plaza. Trees are planted for shade and temprature regulation. This conncets the central plaza binding the whole space, creates a sense of openness for the people sitting on the benches and in the plaza. Enhancing the surrounding vistas.

Design Development 01

In order to reduce the use of energy, more and more stadiums are being made to conserve energy consumption, and even being equipped with solar and wind power to provide them with an alternative energy source.

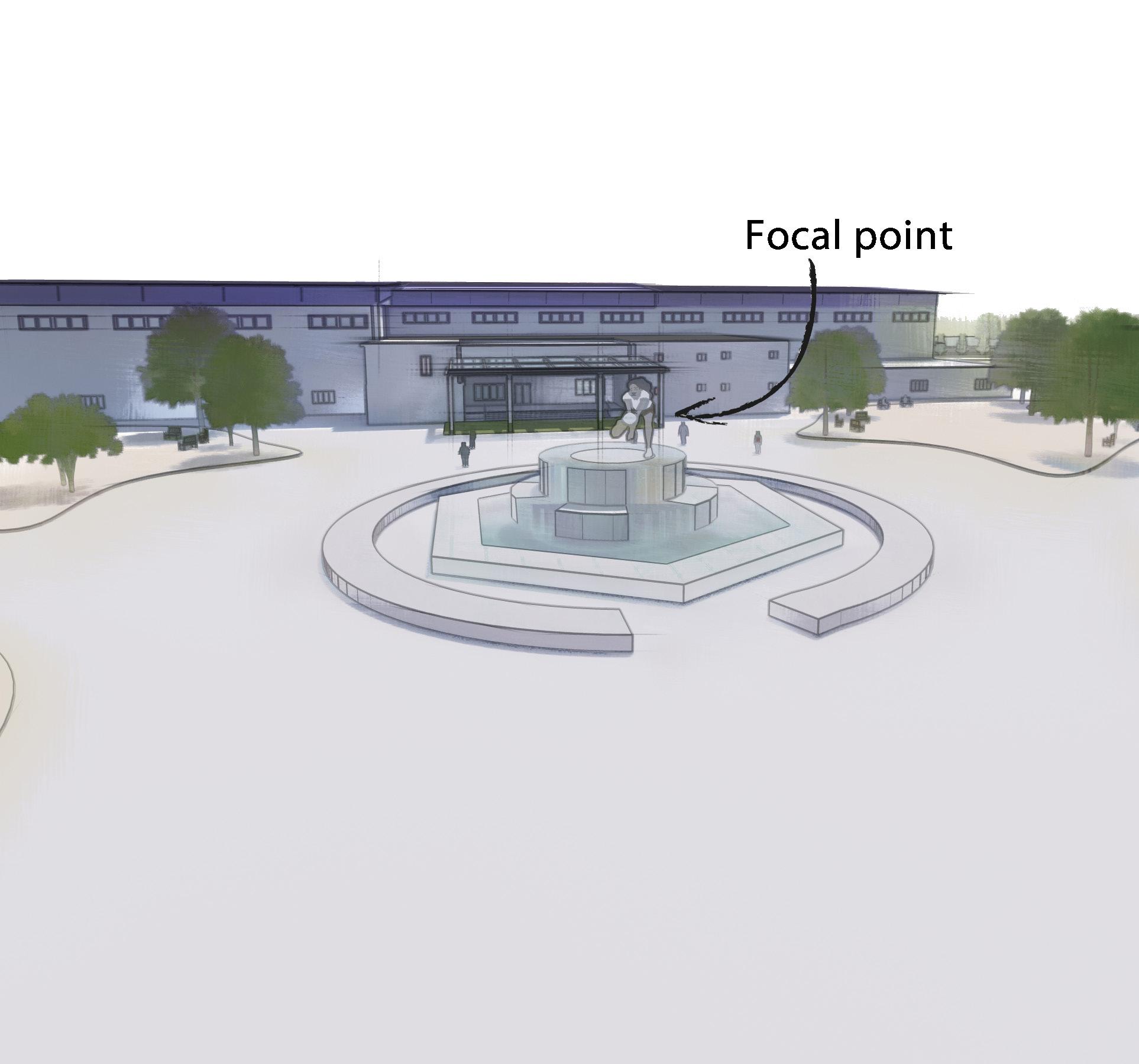

b. Fountain

The fountain acts as a focal point in the central plaza, that draws attention and is in context to the site i.e a sports complex. Green spaces conncet the plaza along with the focal point and bind all the elements together.

B y choosing greener and longer-lasting materials for stadiums, environmentally-friendly projects will be cheaper in the long run when the maintenance and operation of the buildings are taken into account. Moreover, the value of the project can actually increase over time, while the costs of water, energy, maintenance and insurance premiums can decrease.

Title: SPORTS COMPLEX, SEC-34, ROHINI, NEW DELHI

Description: To provide recreational and healthy environment to the people and take sports to those sections of the society which cannot afford membership of prestigious clubs and those who would like to associate with ‘clubs’ totally devoted to sports

ZONING GUIDES THE FORM

BASIC MASSING 04

BREAKING THE VOLUMES AND ORIENTING ACCORDING TO WIND DIRECTION

ESTABLISHING A CONNECTION AND LINKING THE VOLUMES THROUGH LANDSCAPE

TOTAL BUILT UP AREA ACHIEVED = 39,456 SQM

SITE AREA = 2,31,325 SQM (53.6 ACRES)

PERMISSIBLE GROUND COVERAGE = 25%

ACHIEVED GROUND COVERAGE = 17%

PERMISSIBLE F.A.R. = 0.4

ACHIEVED F.A.R. = 0.19
