COMPACT AND MANEUVERABLE LARGE PLANER

SAVE MONEY AND TIME

CRUSHER BUCKET

Jaw crusher for mini or midi excavators. When installed on your mini or midi excavator, it crushes any type of inert material.

REDUCE >> REUSE >> RECYCLE

See the whole product range on:

MBCRUSHER.COM

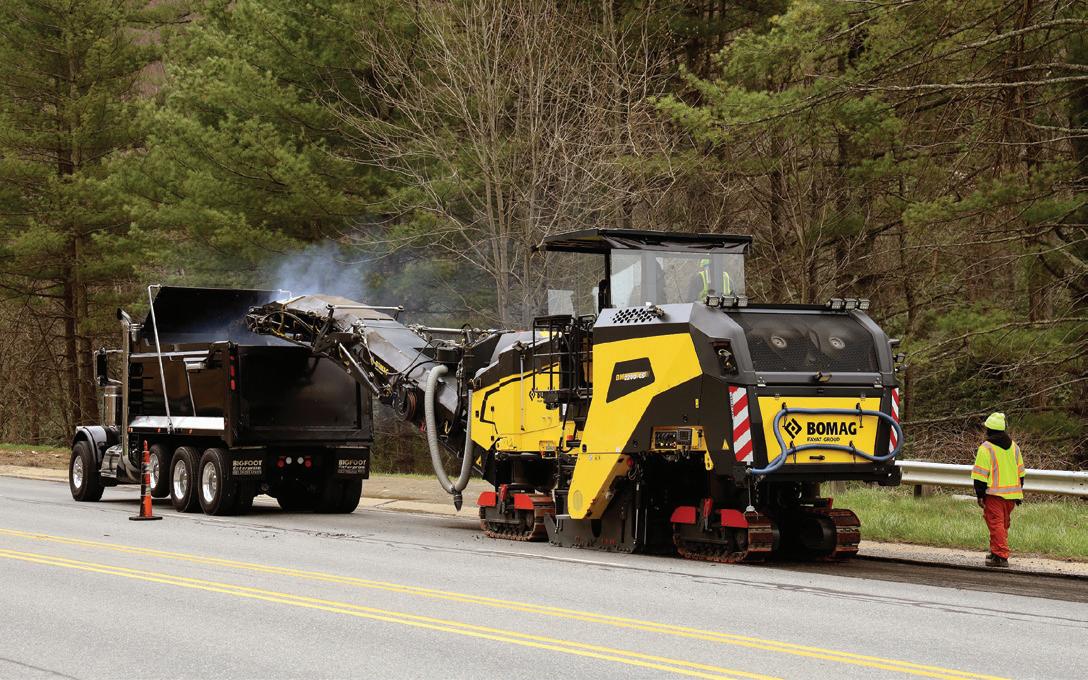

info@mbcrusher.com T he new BOMAG BM 2200/65 large planer is lighter, more compact, and maneuverable. A modest 58-inch (11,473 mm) milling radius improves machine productivity in the field, increasing efficiency in tight-radius applications like small roundabouts and culs-de-sac. Its conveyor offers a 16-foot (4,880-mm) discharge height plus larger, 130-degree conveyor slewing angle – 65 degrees left or right of centre – allowing material to be efficiently discharged into trucks on both sides of the mill. To facilitate transport, the conveyor retracts to a length 23.6 inches (600 mm) shorter than previous designs.

Meeting Tier 4 Final/Stage V emissions standards, the mill’s 630-hp (470 kW) engine effectively matches power with milling speed for greater operating efficiency. The slim profile of the advanced BOMAG BMS15L quick-change cutting tooth holder system reduces resistance and delivers up to 20 percent fuel savings. Offering a range of milling drum designs and the choice of three different rotor speeds to tailor rotor speed to the job, the BM 2200/65 planer can be used on a wide range of asphalt and concrete milling applications.

Intuitive operation is the hallmark of the new 60,296-pound (27,350 kg) BM 2200/65 half-lane mill. To simplify milling control, BOMAG Easy Cut technology automatically regulates the height of the rear drive, so the rear of the machine follows the front to its set depth, making the operator’s work simpler. BOMAG Easy Level clearly displays grade and slope settings on the large 7-inch (177.8-mm) display, and settings are quickly changed with minimal screen navigation.

Designed for comfort and efficiency, the BM 2200/65’s vibration-isolated operator’s station delivers comfortable operation from either a seated or standing position. Additional cushioning at the platform’s standing areas help to ensure fatigue-free operation. Stepless platform side-shift up to 7.8 inches (200 mm) provides excellent visibility to the right cutting edge and side plate, allowing the operator to hold the milling line. Minimal navigation with limited submenus to get to machine parameters delivers intuitive, efficient operation.
