AR2034 Detailing and Communicating Architecture

AR2034

Detailing and Communicating Architecture

Focus

Constructing and Specifying

Unit Assistant

Neel Jain

3rd Year

Aashvi Trivedi Aditi Shah Baidehi Rej Deepak Varma Dhrumin Patel Ishaan Mahajan Jay Patel Naomi Mehta Raj Kansara Repalle Sajanish Snehil Tripathi Yukta R A Sankalpa

This studio investigated the relationship between structure and material as a primary basis in the making of architecture. It prepared students to develop a design ability in which the search for systems of space becomes intrinsic to the search for systems of structure.

The studio assumed that structure is abstract and diagrammatic and therefore it constitutes immense possibility for diverse and numerous forms. In this light, material is merely temporal and one material can be replaced by another in the same structural system. The realization of form that is perceptible is eventually realized through the organization of material in space. This organization of material in space creates two sets of spaces: one that is around the organized material and the other that the material itself occupies.

This semester students predominantly dealt with and detailed out the latter as an outcome of principles of form deriving. The students produced models and prototypes highlighting structural and constructional aspects of their design as well as a set of technical drawings for execution

Fig 1

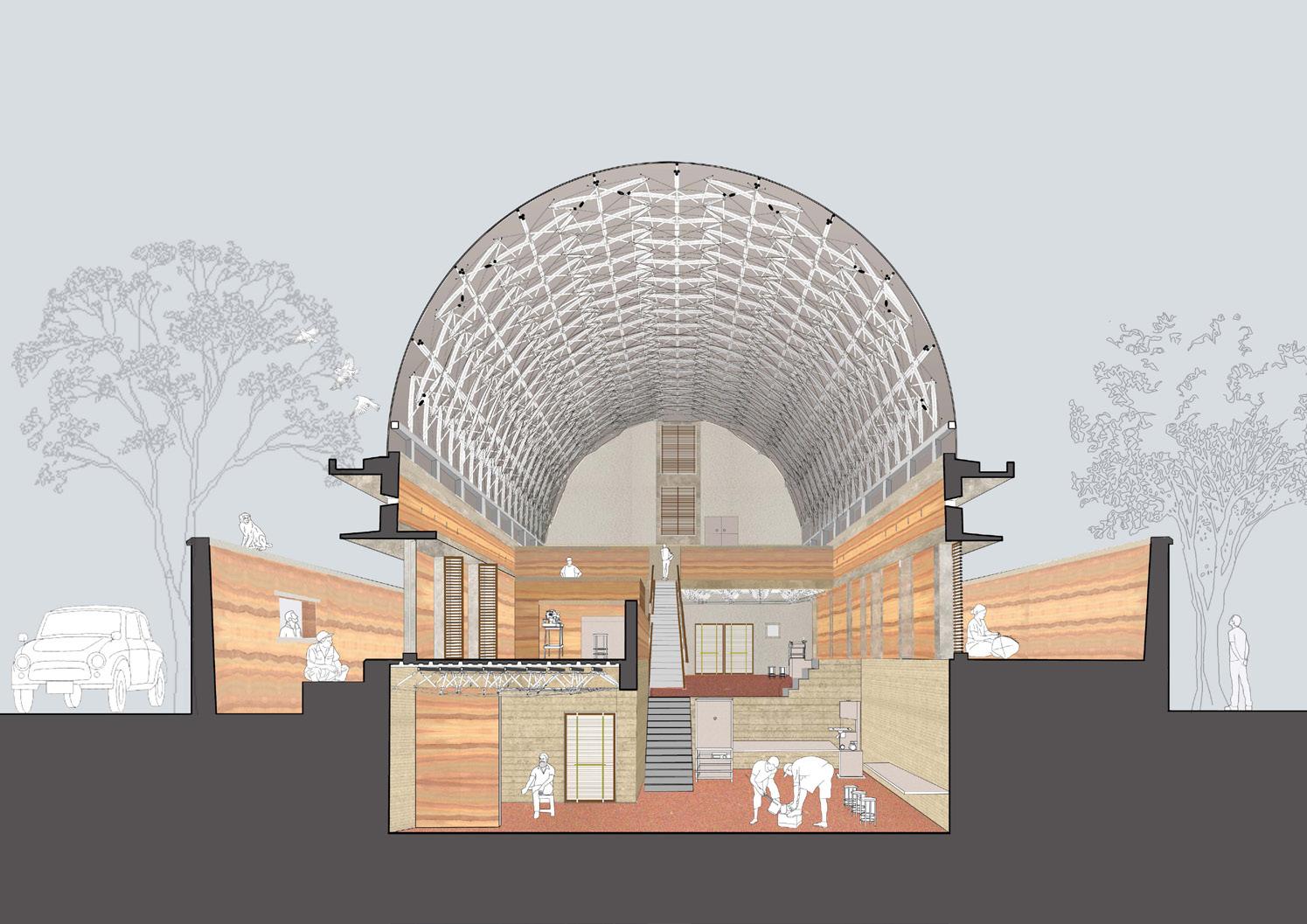

Architecture UG Level-2 Fig 1 Naomi Mehta Wall Section Fig 2 Aashvi Trivedi Mechanism Model Fig 3 Naomi Mehta Mechanism Model Fig 4 Sajanish Repalle Mechanism Model Fig 5 Naomi Mehta Plans and Section Fig 6 Deepak Nadimpalli Assembly and Details Fig 7 Deepak Nadimpalli Wall Section
