AR2033 Span and Space: Exploring Tectonics in Architecture

AR2033

Span and Space: Exploring Tectonics in Architecture

Focus

Vizualizing and Communicating

Unit Assistant

Pratik Bagul

2nd Year

Aryan Choudhury Mathew Jayash Shreya Joseph

3rd Year

Diwan Heena Mistry Shiv Aangi Shah Adarsh Reddy Arushi Goyal Khyati Goswami Manali Kapadia Ritika Doijode Samyuktha N P Varshil Changani Ved Patel Yajurva Jagad V R Shah Mangesh Belsare

“Tectonics” in architecture is achieving the expressive qualities through construction and maneuvering of forces in structure such that the entity created cannot be defined by only structure and construction. In achieving tectonics, selection, organization and manipulation of form plays an important role in the design process. Architects need to equip themselves to exploit the potential of various materials and methods, for which conceptual understanding of structural systems and form is very essential.

This studio equipped students to handle advances in material and technology to achieve meaningful forms in such a way that this process was seen to become a major design determinant. The studio aimed at imparting the basic knowledge of local and global forms with respect to structural actions. It dealt with the association of space and tectonics by developing the understanding of material, form and structure in such a way that students used this understanding in their design to integrate the structure and construction along with spatial qualities to achieve tectonic expression. At the end of the studio, students had evolved the ability to compose structure, construction and spatial expression to a level of “Tectonics”.

Fig 1 Fig 2

Fig 3

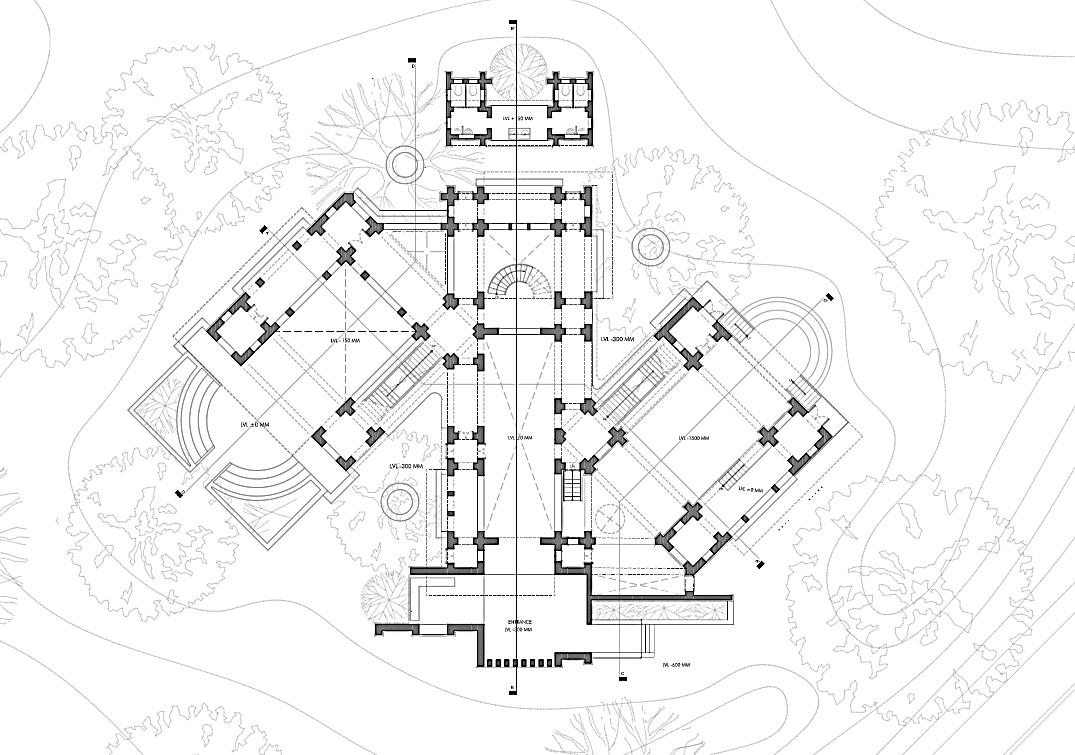

Fig 1 Adarsh Reddy Drawings of 45m3 module Fig 2 Yajurva Jagad Sketch of part section showing activities Fig 3 Shreya Joseph Longitudinal section of design in process Fig 4 Shreya Joseph Organizational plan showing activities for caravan Fig 5 Ved Patel Site plan showing context Fig 6 Ved Patel 1:100 Organizational model Fig 7 Yajurva Jagad Sketch for study of natural object ’turtle shell’ Fig 8 Vritika Doijode Sketch for study of natural object ’Venus’ flower basket’ Fig 9 Adarsh Reddy Exploration of 45m3 module in steel and RCC Fig 10 Yajurva Jagad Exploration of 45m3 module in Brick and RCC Fig 11 Mathew Jayesh Exploration of 45m3 module in steel and RCC Fig 12 Adarsh Reddy Process plan of organization and activities with part plan and section Fig 13 Adarsh Reddy Exploration model of 45m3 module in steel and RCC Fig 14 Adarsh Reddy Exploration model of 45m3 module in brick and RCC Fig 15 Varshil Changani Exploration model of 45m3 module in brick and RCC Fig 16 Shreya Joseph Detail Wall section drawing at 1:20 Fig 17 Mathew Jayesh Exploded axonometric part section Fig 18 Yajurva Jagad Structural loading diagram for organization Fig 19 Varshil Changani Wall section model at 1:20 Fig 20 Arushi Goyal Wall section model at 1:20 Fig 21 Ved Patel Wall section model at 1:20 Fig 22 Yajurva Jagad Detail Wall section sketch at 1:20 Fig 23 Mathew Jayesh Organization of spaces in plan at 1:100 Fig 24 Yajurva Jagad Organization of spaces in plan at 1:100 Fig 25 Adarsh Reddy Organization of spaces in section at 1:100
