Broadcasters worldwide use Fischer Connectors’ innovative connectors and cable assembly solutions to overcome their challenges and achieve top performance.

BROADCAST MADE EASY

Broadcasters worldwide use Fischer Connectors’ interconnection and cable assembly solutions to overcome their challenges and achieve top performance. Known for their reliability, precision and resistance, the products of Fischer Connectors, a pioneer and worldwide leader in circular pushpull connectors, have a proven track record in diverse broadcasting fields requiring faultless quality. The company’s innovative products are used throughout the media industry and are suited to any broadcast, audio and video applications.

Meeting Broadcasters’ Specific Needs Broadcasters face all kinds of connectivity challenges, such as linking TV cameras to signal transmitting devices in a TV studio or on location, integrating complex movie production systems in harsh environments and optimising onsite equipment to provide power, lighting and signal transmission.

What they demand is high-performance, reliable equipment. Fischer Connectors’ 1051 HD Triax Pro+ connectors link HD video cameras and related equipment dependably. Its plug-and-play circular connector and cabling solutions include fibre optic signal and power connectors, plus options for connecting the camera control unit (CCU) to cameras, equipping outside broadcasting (OB) vans, and connecting fibre media converters. And when broadcasters need to reduce the size and weight of their equipment while guaranteeing signal quality, Fischer Connectors’ miniature connectors come handy.

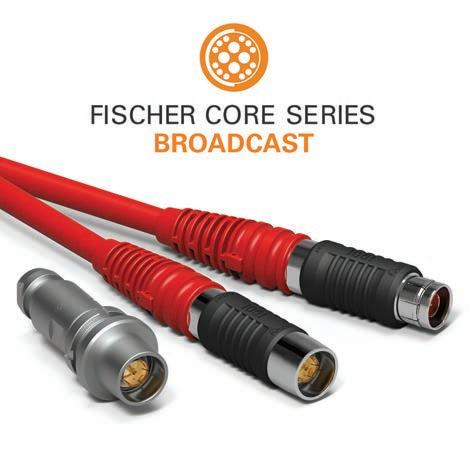

Connectors and Cable Assembly Solutions for Broadcast Applications • Fischer FiberOptic Series and Fischer Core Series Broadcast (1051 HD Triax

Pro+) for all your audio-video needs. • Easy to clean, maintain and store.

• Simple, quick installation to save time. • Watertight IP68 for inside and outside coverage. • Rugged and reliable. • Engineered for easy field repair. • Lightweight, miniature design suited for portable devices. • Fischer MiniMax Series, to combine signal and power in a single connector.

Industry Standard The Fischer Core Series Broadcast 1051 Triax HD Pro+ is a recognised industry standard for both studio and outside broadcasting. In 2010 it won the ‘Best of IBC’ award for innovation and costefficiency. It’s the user-friendly choice for connecting cameras and the production area, be it a TV studio or an OB van, over long distances. It offers: • Long transmission distance. • Low cost of ownership. • Easy maintenance.

Robust Optical Performance and Easy Cleaning with Plug-andPlay Fibre Optic Solutions The Fischer FiberOptic Series connectors and pre-configured reels are ideal for indoor, outdoor and extreme applications when performance and reliability are key, offering the perfect plug-and-play solution for field broadcasting activities. This new technology gives you the stability you need for a highquality optical link, plus: • Unmatched device protection.

FISCHER CONNECTORS

Fischer Connectors has been designing, manufacturing and distributing high-performance connectors and cable assembly solutions for more than 60 years. Known for their reliability, precision and resistance to demanding and harsh environments, Fischer Connectors’ products are commonly used in fields requiring faultless quality, such as broadcast, telecommunication, medical equipment, industrial instrumentation, measuring and testing devices and military forces worldwide. Primary design and manufacturing facilities are located in Saint-Prex, Switzerland, with subsidiaries and distributors located worldwide. • Easy field cleaning. • Easy mating with its push-pull locking system. In 2013 the Fischer FiberOptic Series received a ‘Best of IBC’ award in the category production and infrastructure. It maintains stable, high-quality optical links indoors or outdoors. IP67 sealing unmated (IP68 mated) provides unmatched device protection, ensuring suitability even for harsh environments. The removable sleeve holder and push-pull locking system make them easy to connect, disconnect and disassemble for quick, efficient field cleaning. You can choose from fibre optic solutions (with two or four optical channels) and fibre optic hybrid solutions (with two fibre channels and two electrical contacts) saving space, time and money.

Coupled with their new accessories unveiled at IBC 2015, the Fischer FiberOptic Series pre-configured reels make fibre optic deployment and transmission testing in the field as easy as child’s play. They’ve been designed to simplify technical support teams’ lives by facilitating fibre optic deployment (daisy chaining) and transmission testing in the field (loopback).

High Density, Signal & Power in One Miniature Connector When it comes to miniaturising broadcasters’ equipment while guaranteeing signal quality, the Fischer MiniMax Series connectors and cable solutions come handy. Awarded ‘Best of 2015’ by TM Broadcast International magazine, the Series fulfills all of the requirements of the HDMI protocol and can be used for audio/video applications, such as HDMI-compliant source devices as display controller, a compatible computer monitor, video projector, digital television, or digital audio device.

A compact, rugged power and signal solution with a high data rate, means less connector, a smaller housing and lighter equipment. • Up to 45% smaller and 75% lighter. • Greater reliability, even in harsh environments (IP68 mated and unmated). • Available in 19 and 24 contacts.

With a screened twisted pairs cable, these connectors have also been tested as belonging to Class Ea of ISO/IEC 11801, and can thus be used for applications such as 10Gigabit Ethernet, Firewire or Power over Ethernet.

Thanks to Fischer Connectors’ extensive portfolio, the company can design a unique solution for your application. For rugged applications when weight matters, for example, by packing more functionality into smaller devices,theFischerUltiMateSeriesovercomes space and weight restrictions, giving designers more flexibility. Their lightness, high density, IP68 sealing, colour coding and reliability meet the stringent requirements of varied broadcasting applications. CONTACT

Fischer Connectors Ch. du Glapin 20 CH-1162 Saint-Prex Switzerland

Tel: +41 21 800 95 95 Email: mail@fischerconnectors.ch Website: www.fischerconnectors.com

Fibre optic deployment and transmission testing in the field as easy as child’s play: when it comes to capturing HD images in the field, the trend is towards plug-and-play fibre optic solutions. In enabling broadcasters to save setup, field deployment and testing time, the Fischer FiberOptic turnkey solutions give more modularity, more flexibility and more value for money.
