Assembly

ASSEMBLY

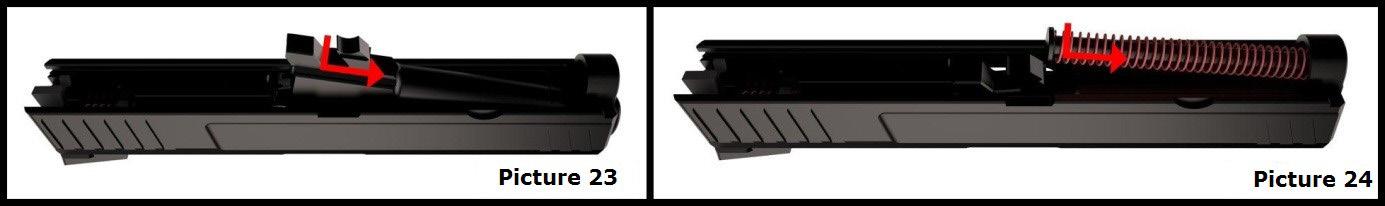

• Place the barrel inside of the slide (See Picture 23). • Place recoil spring and guide rod underneath the barrel and into the slide and barrel notch as pictured (See Picture 24). • Put the slide group into the rails on the frame (See Picture 25). • Pull the slide back to the end of the receiver and push the slide stop up until the slide is caught. • Then rotate the take down lever counter clockwise (See Picture 26).
