ASSEMBLY INSTRUCTIONS

Tools Required For Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended for two or more people to assemble this machine to avoid possible injury.

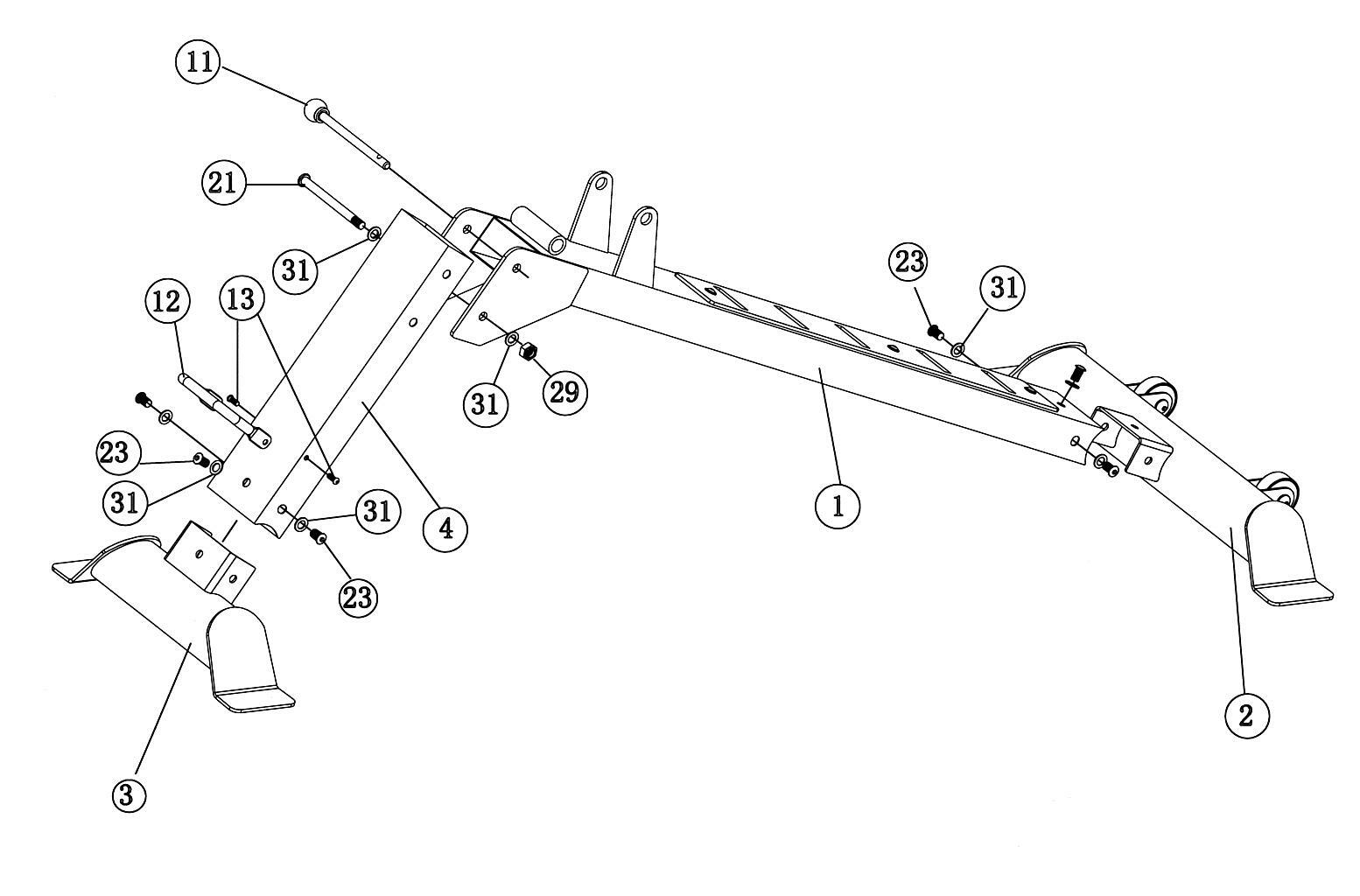

STEP 1 (See Diagram 1)

A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Attach the Front Post (#4) to the Front Stabilizer (#3). Secure it with three M10 x 5/8” Allen

Bolts (#23) and three Ø ¾” Washers (#31). C.) Attach the Main Seat Support (#1) to Front Post. Secure the lower hole with one M10 x 4 ¾”

Allen Bolt (#21), two Ø ¾” Washers (#31), and one M10 Aircraft Nuts (#29). Secure the upper hole with a Lock Pin (#11) into the upper hole. D.) Attach the Main Seat Support to the Rear Stabilizer (#2). Secure it with three M10 x 5/8”

Allen Bolts (#23) and three Ø ¾” Washers (#31). E.) Securely tighten all nuts and bolts. F.) Attach the Handle (#12) to the Front Post. Secure it with two M6 x 5/8” Allen Bolts (#13). G.) Fold the Font Post by pulling out the Lock Pin (#11), fold down the Front Post, and then reinsert the Lock Pin.

DIAGRAM 1

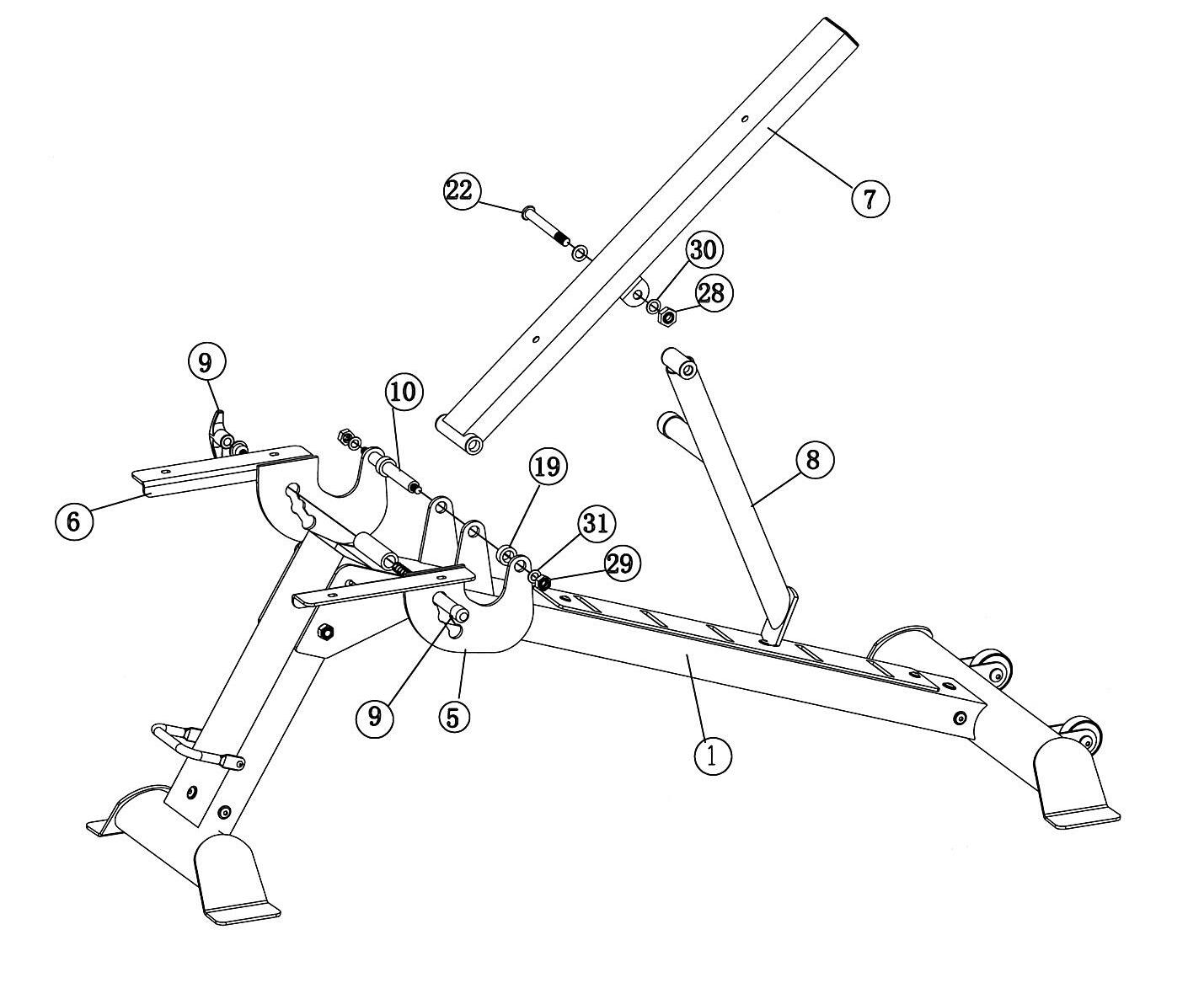

A.) Attach the two Ø 5/8” x Ø 1” Bushings (#19) to the holes on the open bracket on the Main

Seat Support (#1). Attach the Left & and Right Seat Bracket (#5 & #6) to the open bracket.

Attach the pivot on the Backrest Support (#7) inside the opening. B.) Align the holes. Secure them together with one Axle (#10), two Ø ¾” Washers (#31), and two M10 Aircraft Nuts (#29). Do not over tighten the Nuts. Make sure the Backrest

Support can swivel freely.

C.) Remove the T-shaped head from the T-shaped Pull Pin (#9). Remove the Nut from the Pull

Pin. D.) Insert the Spring and the Pull Pin through the open slot on Left Seat Bracket (#5) and through the pivot on Main Seat Support. Thread back the Nut to the Pull Pin, push the Pull

Pin through the open slot on the Right Seat Bracket (#6). Thread the T-shaped head back to the Pull Pin. Pull the T-shaped Pull Pin, and then adjust the Seat bracket to desired position, and then release the Pull Pin to lock the Seat Brackets in position. E.) Attach the pivot on the Incline Support (#8) to the open bracket on the back of Backrest

Support. Secure it with one M12 x 3” Allen Bolt (#22), two Ø 1” Washers (#30), and one M12

Aircraft Nut (#28). Do not over tighten the Nut and Bolt. Make sure the Incline Support

can swivel freely.

DIAGRAM 2

A.) Attach the Seat Pad to the Left & Right Seat Bracket (#5 & #6). Secure them with four M6 x ¾” Allen Bolts (#25) and four Ø ½” Washers (#33). B.) Attach the Backrest Board to the Backrest Support (#7). Secure it with two M8 x 1 ¾” Allen

Bolts (#26) and two Ø 5/8” Washers (#32). C.) Use the handle on Incline Support (#8) to move the Incline Support to selected open slot on

Main Seat Support (#1) to obtain the desired Backrest Incline.

DIAGRAM 3
