COVER STORY Trusty Companions

Ruger’s PC Carbine & Security-9 Pistol

Taking a cue from the cowboys of yesteryear, Ruger has developed two new guns in 9 mm Luger —a takedown carbine and a compact pistol— that share a magazine. What’s more, the carbine also accepts other Ruger pistol magazines along with those for Glocks. It’s a match that proves the companion-gun concept is alive and well in the modern age.

uring the latter part of the 19th century, it was not uncommon for cowboys to pack both a singleaction revolver and a lever-action carbine—each chambered for the same ammunition. Back then, that typically meant a rimmed cartridge such as .44-40 Win. carried on gun belts and bandoleers. It was an eminently sensible system by virtue of the fact that it simpli ed the user’s ammunition supply.

Nearly 150 years later, the concept still makes a lot of sense, depending on the circumstances, especially since most defensive rearms now feed from convenient detachable-box magazines. That development alone has simultaneously revolutionized the carriage of extra ammunition and the quick reloading of rearms. Previously, ne motor skills and ingrained muscle memory were required to successfully pluck those rimmed cartridges singly from their leather loops and shove them, one by one, into chambers or tubular magazines—often while under pressure. And while it’s true that some 21st century shooters still enjoy the nostalgia such guns recall—a point not lost on Ruger, which still offers many single-action revolver models— most of today’s buyers are more interested in modern guns designed for personal defense. That is a point of which the company is also keenly aware.

Two such models that exemplify that conviction are entirely new designs, yet were somewhat informed by ground the company plowed in the not-too-distant past. The rst is a pistol-caliber, semi-automatic long gun chambered in 9 mm Luger and appropriately labeled as the PC Carbine, and the second is a likechambered compact, semi-automatic pistol called the Security-9. Both names are evocative of past Rugers that enjoyed success among scores of shooters. One, the Ruger Police Carbine (February 1997, p. 40.), was chambered in either 9 mm Luger or .40 S&W and shared magazines with like-chambered pistols from the rm’s original P Series. The other, the Security-Six revolver (January 1985, p. 26), was also, coincidentally, manufactured in 9 mm Luger using full-moon clips, although the bulk of its production was in .38 Spl. and .357 Mag.

But as with all families, any similarity in name is often more than made up for by a disparity in traits. And so it is with the latest Rugers. Whereas the former Police Carbine was compatible only with magazines from the company’s sole line of extant center- re pistols, the new PC Carbine accepts magazines from three current Ruger pistol lines: the SR Series and Security-9—which, curiously, are not interchangeable between their host pistols—and the American. Even more compelling, the PC Carbine is also capable of being fed from the now-ubiquitous Glock-pattern magazine. And since the new Security-9 pistol is, of course, fed from a detachable-box magazine (in its case, one holding 15 rounds), it allows for quicker reloads than any revolver—even one using moon clips.

What the two newest Rugers really share, though, is the company’s strength of bringing together the latest in manufacturing technology, features and design to optimize rearms for their intended purposes—in these cases, keeping law-abiding armed citizens safe from the deadly threats inherent to modern life. Whether its engineers accomplished their speci c goals in designing and building the PC Carbine and Security-9 should become clear after careful consideration of the separate reviews that follow.

The Ruger PC Carbine

BY BRIAN C. SHEETZ, Senior Executive Editor

The pistol-caliber carbine concept seems either to attract or repel depending on how those considering it perceive such a gun’s role. Detractors question why someone would want an arm with the bulk and weight of a ri e but possessed of only a pistol’s power. Looking at it from the opposite position, however, supporters suggest that such a carbine’s longer barrel enhances the velocity, and, thus, energy and lethality of most handgun cartridges. Also, being a shoulder-mounted arm with diminished recoil compared to true ri es, and having a longer sight radius than a pistol—not to mention accommodations for red-dot or magni ed optics—make it far easier for most shooters to score hits with than any handgun. Its lesser recoil also increases its ability to make accurate repeat shots rapidly—all of which makes it potentially easier to master by a greater range of users. In any case, it’s probably best to see the pistolcaliber carbine not as a ri e replacement, but as a pistol force-multiplier.

Ruger’s latest take on the concept, the PC Carbine, wisely applies several notable improvements to the company’s previous effort. For one, the PC’s method of operation, like its predecessor, is fundamentally a blowback design, though the mechanism is much improved and greatly simpli ed. In addition, the PC borrows from Ruger’s phenomenally successful Model 10/22 semi-automatic rim re carbine not only in some aspects of its general layout, and even in a few

The new PC Carbine disassembles into basic subassemblies by way of three captive screws. The bolt assembly is pictured in detail (inset, above r.) to show its head and tungsten dead-blow weight (arrow). Inserts for Glock and Ruger magazines (above l.) simply drop in.

speci c trigger group components, but, most notably, in its mimicking of the Takedown version’s ability to be quickly and easily separated into two compact sections. Perhaps most importantly, in terms of its market appeal, the PC, with a simple swapping out of magazine well inserts, can be quickly converted to accept Glock-pattern 9 mm Luger magazines, including that company’s own 33-round example originally developed for the G18 machine pistol. Finally, as with its companion pistol reviewed below, the PC Carbine is priced to attract—essential in an era of $450 AR-type ri es—with a suggested retail of $649 that is likely to translate to over-the-counter gures in the high $400s.

The gun is not as high-tech in appearance as most other currently offered pistol-caliber carbines, which tend to be based either on unique designs or on adaptations of the AR. Its buttstock and fore-end are molded from 33 percent glass- lled nylon into a fusion of traditional and modern lines. The butt is capped with a rubber recoil pad and spacer system borrowed from the company’s Gunsite Scout Ri e. It has a molded-in sling swivel stud and stippling in panels on either side of the pistol grip, which also features slight palm swells. Further, the buttstock forms the magazine well, which houses a large, serrated, metal magazine release button that can be installed on either side. Internally, the release engages Ruger magazines at a rectangular cutout in the front center of their bodies. Two action screws secure the receiver to the stock. They pass through imbedded brass inserts that prevent their falling free when the receiver is removed.

Once the receiver is free, either of the Ruger magazine well inserts, one of which is marked on its mouth “SR9 S9” and the other “RA9,” or the Glock magazine insert, marked “G9”, can be dropped into place within the magazine well as the magazine release is pressed. As the receiver is reinserted into the buttstock, and the action screws tightened to 65 in.-lbs., the insert is clamped rmly in position. It’s worth noting here that Ruger advises that some Magpul Glock-pattern magazines may not function reliably with the PC Carbine. Factory Glock magazines, however, have been found to function well, as have some other aftermarket offerings, including 50- and 100-round drum designs.

The gun is taken down for transport or storage in identical manner to that of the 10/22 Takedown. A recess in the lower front of the buttstock guides the thumb into position to retract a downward-protruding pin in the foreend assembly. That allows the fore-end to be twisted and the barrel pulled free of the receiver. The buttstock and fore-end assemblies measure 19¾ " and 165⁄16" in overall length, respectively, and the latter, which also has panels of stippling on its sides, has a molded-in section of accessory rail for the attachment of a light or laser at its lower

As with the 10/22 Takedown, the PC Carbine’s barrel can be rotated out of engagement with its receiver by pressing forward on a lever that withdraws a tapered lock pin. The knurled ring can be adjusted to eliminate excess play from the mechanism.

RUGER PC CARBINE

MANUFACTURER: STURM, RUGER & CO., INC. (DEPT. AR), 411 SUNAPEE ST., NEWPORT, NH 03773; (603) 865-2442; RUGER.COM

34.25" TO 35.75"

1.5"

12.5 TO 14" 1.25"

910-00000

CHAMBERING: 9 MM LUGER ACTION TYPE: BLOWBACK, SEMI-AUTOMATIC

CENTER-FIRE CARBINE RECEIVER: 7075-T6 ALUMINUM FINISH: MATTE BLACK STOCK: BLACK SYNTHETIC, RUBBER RECOIL

PAD, REMOVABLE SPACERS BARREL: SIX-GROOVE, 1:10" RH TWIST;

MUZZLE THREADED 1/2"X28 TPI FOR

INCLUDED THREAD PROTECTOR 16.31"

MAGAZINE: 17-ROUND DETACHABLE BOX SIGHTS: STEEL; FULLY ADJUSTABLE REAR

APERTURE, POST FRONT WITH

PROTECTIVE WINGS TRIGGER: 4-LB., 12-OZ. PULL WEIGHT: 6 LBS., 10 OZS.

ACCESSORIES: OWNER’S MANUAL,

LOCK, ALLEN WRENCHES,

GLOCK MAGAZINE ADAPTER MSRP: $649

SHOOTING RESULTS (50 YDS.)

front just ahead of a metal QD sling stud.

At rst glance, the PC Carbine’s receiver, bolt assembly and trigger group appear similar to those used in the 10/22. The PC’s receiver is machined from aluminum bar stock and is closed at the rear while its bottom and front are open. It is nished in a at-black hard-anodized treatment. An integrally machined, 6½"-long, 16-slot section of Picatinny rail runs along the receiver’s top surface, and machined openings in its sides include an ejection port on the right and keyways on the right and left for the bolt carrier’s hollow charging handle, which can be swapped by way of a single screw running through its center. Two sets of holes through each side of the receiver at its rear act as attachment points for pins that secure the polymer re-control housing, which contains a crossbolt safety in the trigger guard’s front and a blade-type bolt catch immediately in front of the trigger guard that is pressed upward to hold the bolt to the rear. Finally, a steel barrel block is attached by way of machine screws at the receiver’s front. It features the recesses that accept a set of lugs machined onto the barrel’s breech end when the barrel assembly is turned into place during assembly. (There is also a knurled ring that can be adjusted to ensure the joint assembles without excess play.)

A bolt carrier measuring approximately 1.125" square by 4.5" inches in length rides below a guide rod and a “bolt top” keyed to the bolt. While fundamentally a blowback, the gun’s design also relies on a separate so-called dead-blow weight, mimicking the function of a like-named hammer. The weight measures 0.750" square by 1.875" in length and is metalinjection-molded from tungsten—an elemental metal with a density 1.7 times that of lead. According to Ruger engineers, the weight accounts for nearly half of the bolt assembly’s mass, which keeps its overall size reasonable yet still allows the mechanism to counteract the recoil of even 9 mm Luger +P cartridges. The weight rests in a pocket machined into the bolt carrier that allows about 0.025" of play fore and aft, and, in operation, comes to rest a split second after the carrier, retarding the carrier’s velocity somewhat as it changes direction. That helps prevent the “bolt bounce” effect often associated with such guns, which can result in receiver battering and a lack of reliability. It also softens the blow of the carrier against the receiver somewhat, even though that task is primarily handled by a elastomer buffer attached to the rear of the recoil spring assembly.

The PC Carbine’s 165⁄16" barrel is tapered and uted, which helps to keep the gun’s weight centered between the hands, making it less muzzle-heavy than its predecessor, which housed a slide assembly and counterweight in its fore-end. The muzzle is threaded 1/2"x28 TPI. and capped with a polymer O-ring and knurled steel thread protector. Steel sights—a fully adjustable ghost-ring rear and

9 MM LUGER CARTRIDGE

a wing-protected blade front—are secured to the barrel with screws and provide a sight picture similar to that of the U.S. M14 and M1 Garand ri es. Future plans call for an optic plate that would replace the rear sight assembly to allow mounting of a re ex sight directly to the barrel.

At 6 lbs., 10 ozs., the PC Carbine has a substantial feel, but its weight is centered between the hands, and the gun comes to the shoulder readily—its iron sights aligning well with the eye when the stock meets the shooter’s face. Beyond resulting in better balance, the new carbine’s design facilitates the take-down con guration since the action’s moving parts are con ned to the buttstock assembly.

A recent Ruger-sponsored media event at Gunsite Academy in Paulden, Ariz., provided ample opportunity for about a dozen writers to put a sampling of the new carbines through their paces. In the course of running several thousand rounds through the guns in exercises designed to simulate dynamic engagements, the PC Carbine proved its mettle, with all the guns exhibiting excellent reliability and commendable accuracy.

Back at NRA Headquarters, other editors were favorably impressed with the gun’s handling qualities. Accuracy results, as tabulated in the accompanying table, were achieved using a Trijicon AccuPoint 1.25-4X 24 mm scope set at 4X. Comparing velocity and energy gures of the Hornady Critical Defense Lite 100-gr. FTX load red from the PC Carbine with corresponding results from the Security-9 pistol (p. 76), demonstrate that, on average, the PC Carbine’s longer barrel added 221 f.p.s. and 117 ft.-lbs. of energy at the muzzle—a 17 percent increase in velocity and a 31 percent increase in energy. In addition, the new NovX 65-gr. polymer matrix load in the PC Carbine achieved 2031 f.p.s. and 595 ft.-lbs. of energy—a 36 percent increase in velocity and a 37 percent increase in energy compared to the Hornady load.

For anyone who concedes that the pistol-caliber carbine concept is valid and who can envision how one might complement a personal inventory of rearms, Ruger’s PC Carbine must be acknowledged as one of the better modern examples. Its take-down feature and multi-magazine adaptability provide a utility that every modern-day armed citizen should at least consider as he or she traverses the 21st century frontier.

VEL. @ 15' (F.P.S.)

ENERGY (FT.-LBS.) GROUP SIZE (INCHES) SMALLEST LARGEST AVERAGE HORNADY CRITICAL DEFENSE LITE 100-GR. FTX

1300 AVG. 36 SD 375 1.42 2.32 1.89

NOVX 65-GR. +P ARX

2031 AVG. 22 SD 595 1.13 2.09 1.53

SIG SAUER ELITE PERFORMANCE 147-GR. V-CROWN JHP

1093 AVG. 15 SD

390 1.29 2.09 1.58 AVERAGE EXTREME SPREAD 1.67 NOTES: MEASURED AVERAGE VELOCITY FOR 10 SHOTS THROUGH A CALDWELL G2 CHRONOGRAPH AT 15 FT. ACCURACY RESULTS FOR FIVE CONSECUTIVE, FIVE-SHOT GROUPS AT 50 YDS. FROM A BENCH REST. TEMPERATURE: 40° F. HUMIDITY: 68%. ABBREVIATIONS: FTX (FLEX TIP EXPANDING), JHP (JACKETED HOLLOW POINT), SD (STANDARD DEVIATION).

The Ruger Security-9 Pistol

BY B. GIL HORMAN, Field Editor

During the last few years, Ruger has kept its 9 mm Luger semi-automatic pistol fans well armed with the double-stack American and American Compact, designed for uniformed users and protection-minded citizens, and the svelte singlestack LC9s for daily concealed carry. As popular as these two options have been, Ruger recognized that an intermediate option that splits the difference between these two was missing from the lineup.

Ruger’s new Security-9, a compact, polymer-frame, double-stack 9 mm Luger intended primarily for civilian applications, including every-day carry, home defense, target shooting and casual plinking. It weighs nearly 7 ozs. less than the American, while providing double the ammunition capacity of the LC9s. The suggested retail price of $379 is likely to translate into real-world prices closer to $300.

The new Security-9 pistol takes its design cues, inside and out, from the pocket-size LCP II .380 ACP. Imagine an LCP II on steroids, and you’ll have the right idea. This pistol is a pre-cocked, hammer- red double-action with a passive trigger safety and Browning-type, tilting-barrel lock-up. The recessed hammer, much like the strikers in striker- red models, is cocked most of the way back by the rearward motion of the slide. Depressing the trigger completes the hammer’s cocking cycle to re the gun.

The dovetailed polymer sight system consists of a whitedot blade in front and a low-pro le, white-outline rear notch unit that is secured by a screw. Both are drift-adjustable for windage. The blued, through-hardened carbon steel slide is milled with angled front and rear cocking serrations. The muzzle end and top edges are cut with angular bevels, while the back of the slide has a rounded, no-snag pro le. The

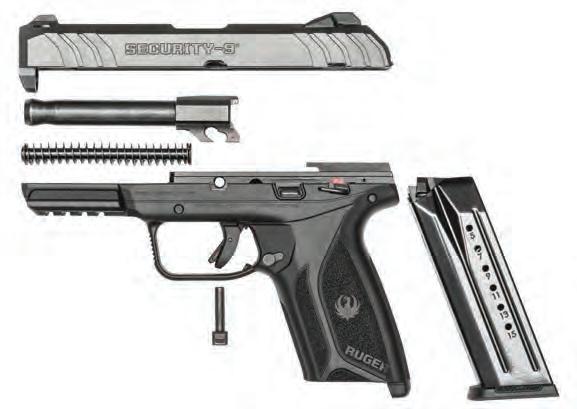

The Security-9 eldstrips into a few subassemblies by way of a removable barrel link pin (r., arrow). The serialized receiver module, shown removed from the polymer frame for illustrative purposes (above r.), is pinned in place and is not intended to be user-serviceable.

RUGER SECURITY-9

enlarged ejection port sports a heavy duty extractor claw.

The blued 4" barrel is cut with traditional land-and-groove ri ing with a witness hole located at the top rear of the barrel hood for the purpose of con rming whether a round is in the chamber. The recoil assembly consists of a at-wire spring captured on a steel guide rod.

Removing the slide reveals a onepiece machined and hard-anodized aluminum chassis pinned within the polymer grip frame and secured to the frame by two polymer pins. Much like the lower receiver of an AR-15 ri e, the Security-9’s chassis is the serialized receiver proper. The number is visible through a window molded into the right side of the frame. The chassis houses most of the moving parts, including the re-control system and external controls to prevent wear and tear on the polymer frame. Its 4.15"long slide rails provide greater support for the slide assembly than the small steel inserts used in other designs.

The take-down pin, slide stop, thumb safety and magazine release are all on the left side of the frame. Each has been minimized for comfortable concealed carry. The small slide lock is protected by fencing molded into the frame. It is exceptionally tight when engaging the slide and, therefore, not a practical option for releasing the slide from the locked-open position. It’s a much simpler proposition to pull back on the slide to release it.

The thumb safety is by far the smallest I’ve seen on a pistol in this size class. Nevertheless, it’s relatively easy to manually locate and press down into the “ re” position. The steel magazine release is smooth-faced and diminutive in size, but remains easy to nd and operate. It allows the magazines to drop free of the magazine well when depressed.

The black polymer frame is constructed of a durable, long ber, glass-reinforced nylon that has proven to be a reliable material in other Ruger models. The dustcover is molded with a 1.5"-long, four-slot accessory rail. The generous, squared-off trigger guard has a textured nger rest along the front edge and an overtravel stop for the trigger. It has been undercut where it meets the grip frame for added comfort.

Grip frame indentations, located behind the trigger housing, provide easier access to the trigger and magazine release. The frontstrap, sides and backstrap of the grip have a molded-in, semi-coarse texturing that mimics skateboard tape without being as abrasive. This texturing provides positive purchase but does not require gloves for long shooting sessions. The base of the backstrap has a short extension that protects the shooting hand from being pinched by the magazine baseplate.

MANUFACTURER: STURM, RUGER & CO., INC. (DEPT. AR), 411 SUNAPEE ST., NEWPORT,

NH 03773; (603) 865-2442; RUGER.COM 7.25"

READ INSTRUCTION MANUAL BEFORE USING FIREARM

381-00000

5" ACTION: INTERNAL-HAMMER, SEMI-AUTOMATIC, CENTER-FIRE PISTOL CHAMBERING: 9 MM LUGER SLIDE: BLUED, THROUGH-HARDENED CHROME-MOLY STEEL CHASSIS: MACHINED ALUMINUM FRAME: GLASS-FIBERREINFORCED NYLON The smooth-faced polymer trigger is listed as having a pull weight of 6 lbs. The pistol I tested exhibited a 5-lb., 5-oz. pull with a bit of take-up before a fairly clean break. The trigger reset is short, with an audible and tangible click. The trigger pull has a shorter, smoother and lighter feel than those found on many of the striker- red pistols I have used that incorporate passive trigger safeties. The blued-steel, 15-round magazines are proprietary to the Security-9 pistol. They are not interchangeable with magazines from the company’s other platforms because of differences in feed angles. Manufactured by Ruger here in the United States, the magazines are tted with polymer followers and baseplates, the latter being textured along the sides to match a pair of textured indentations located on either side of the magazine well. This allows the magazine base to be rmly gripped and stripped out of the gun in case of a malfunction. A good deal of engineering effort has gone into designing a pre-cocked hammer ignition system for this pistol that provides a smooth trigger pull while operating in a safe and reliable manner. The thumb safety has two functions when set in the “safe” position: It blocks the rotation of the sear, to keep it in rm contact with the hammer, and it blocks the movement of the hammer. The geometry of the hammer and sear were designed with a signi cant degree of engagement for a positive lockup when the safety is set in the “ re” position. The sear has a neutral balance while under strong spring tension. This works to prevent disengagement if the pistol is dropped. In the unlikely event that the pistol should receive a signi cant enough physical shock to disengage

3.87" SIGHTS: DOVETAILED POLYMER

WHITE DOT FRONT; DOVE-

TAILED POLYMER WHITE

OUTLINE REAR BARREL: STEEL WITH

SIX-GROOVE, 1:10" RH TWIST RIFLING MAGAZINE: 15-ROUND

DETACHABLE BOX WIDTH: 1.17" TRIGGER: SINGLE-ACTION, 5-LB., 5-OZ. PULL WEIGHT: 23.75 OZS. ACCESSORIES: OWNER’S

MANUAL, EXTRA MAGA-

ZINE, CABLE LOCK MSRP: $379

continued on p. 76
