[04]

[ Makonitis ]

JEAR: 2021..

TYPE: Kindergarden SIZE: 3355 m2 LOCATION: Latvia

[ Cloud Cather ]

YEAR: 2021

TYPE: Tiny house SIZE: 25 m2 LOCATION: Chile

After nearly 50 years of stagnation, the global community is witnessing a second push to explore space, but this time it is a research effort driven by economic and philosophical objectives. Scheduled flights to the Moon and Mars are being conducted with the aim of creating independent orbital and surface-based stations, and thus it is an increasingly pressing issue of ensuring the full life of the occupiers, living in extreme environmental conditions, as well as the role of the architect in it.

The main tasks of the research station are to promote scientific growth and to function as the base station for further learning Mars. A central element of the project is to ensure human psychological well-being by creating an artificial habitat and applying human-friendly spatial planning techniques. The external shape of the structure is influenced by factors such as the radiation on Mars, the extreme climate on Mars, gravity, and the underlying structural and engineering solutions.

Self-sufficiency is of great importance for the realization of the station. The supply of construction materials and other raw materials from earth is not an economically viable solution.

Therefore, it is necessary to make maximum use of locally available resources and to create an economy of local circulation resources.

Water

One of the most important resources for maintaining the long lasting functionality of the station and life support. Initial amounts for the first encampment can and will be brought from earth on the moon, but that would not be sufficient for the expanding station and is logistically uneconomical. Therefore it’s important to find an easy water source for creating a self-sufficient station.

Although, at first glance, Mars has no visual signs of an easily accessible water source, a lot of recent research and surveys in the past decades have shown two potential sources of water: polar ice caps and subsurface ice reservoirs in the north hemisphere.

Magnetic Fields

Mars, compared to earth, does not have a strong global magnetic field. Without it the planetary surface is blasted by huge amounts of cosmic background radiation and energetic solar particles. However, research shows that in the past Mars could have had a strong magnetic field, and even now in the south hemisphere traces of local magnetic anomalies can be detected.

Considering that the station will be inhabited by humans, it could be considered to place the station along some of these anomalies for an passive protection from the cosmic and solar radiation.

Topology And Geographical Location

Relative topological and geographical location is important taking in mind logistics. Firstly, landing a rocket is safer and easier in equatorial zones, around 30 degrees to each direction of the planet’s equator is suitable for landing vehicles. Secondly, a flat surface is needed for easier landing options and surface exploration. Thirdly, to reduce needed earthworks a crater of suitable size has to be found.

The second prerequisite can be easily provided in the northern hemisphere, when an theorized ancient lake left a relatively flat sea bed.

Resources

As one of the important aspects of achieving a self-sufficient station in local in-situ resource utilization, it won’t be economically justified if all materials for construction and other components will be brought by rockets. To be able to utilize local materials they have to be abundant and in a close proximity to the station.

Climate

On Mars, depending on the season and time of the day, surface level temperatures swing between -120 to +20 degrees celsius. On average the temperatures are below the freezing point, unfortunately not suitable for human habitation. To achieve needed thermal comfort the station will have to be heated and well insulated. This will require a lot of energy, therefore picking a warmer location could save resources and energy.

Atmospheric Pressure

This climatic factor in everyday construction on earth is not taken into account. Unfortunately on Mars the atmosphere is much thinner and the atmospheric pressure is only about 1% of Earths.

At such low pressures an artificial environment has to be created for human survival, creating this kind of environment comes with its own challenges.

To reduce the tension load on the pressurized station and other constructions it is wise to choses location with higher atmospheric pressure. For this a lower geographical location has to be chosen.

year

Stations central core and the adjacent functions are arranged in a radial principle, this arrangement allows for easy access to any supporting block of the station. For improved mobility an underground logistic loop is created, which encircles the central core and connects all supporting buildings.

In the north-west part an multimodal transportation hub is planned. It connects the station directly to the vacuum tube train network and other future stations. Same transportation hub is connected to the interplanetary transportation landing pad further to the west from the station, accessible by surface vehicles.

Construction

Taking in mind the complex environment and logistic challenges on Mars it is necessary to apply construction methods that use locally available and easily sourced materials. In addition most if not all of the processes have to be atomized. The research done in the past few years shows 3d printing as a viable solution for this.

For the 3d printing material Mars regolith in mixture with sulphur could be used. Both of these resources are abundant all across the surface. The mixture is heated and the cooling process solidifies the mixture into homogeneous material, with the properties similar to concrete.

Terrestrial communication antena

Exit to underground tunels

Molten salt reacotr Solar assabled panels.

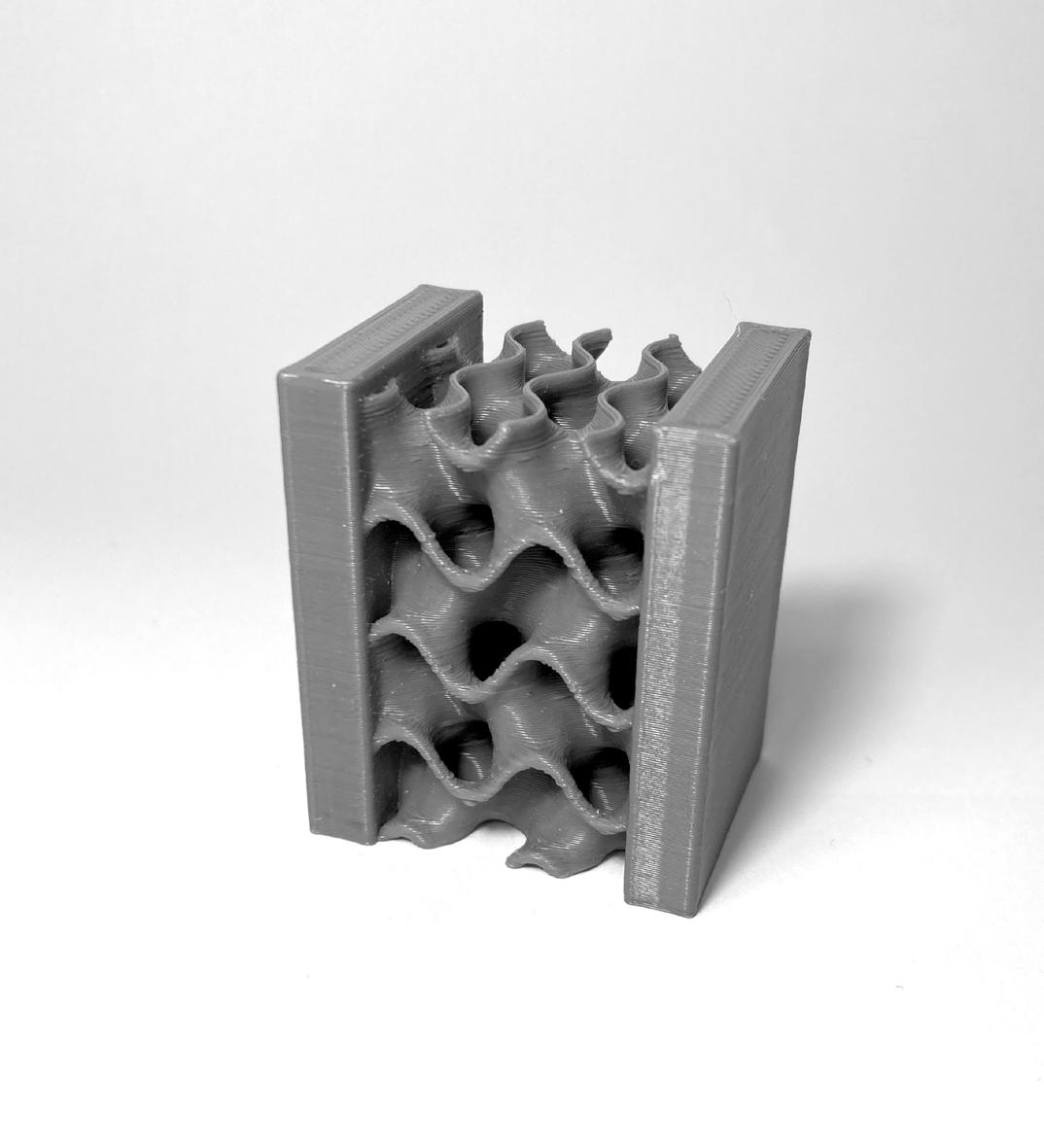

3d printed Load bearing structure

Sensory Stimulation

Natural Landmarks

[EUROFIN GENOMIC]

JEAR: 2021-2022 Construction project

TYPE: Office interior

SIZE: 460 m2

LOCATION Riga, Latvia

STAGE: In construction

PROJECT ENVOLMENT:

Full project develpment. Client consultatiens , concept development, tehnical project and implementation. Furnitre design

TEAM: Helmuts Nežborts Beatrise Šteina

Client provides solutions and support for commercial genomic laboratories.

The task given by the client was to create a cozy office space with a lot of indoor plants and with an emphasis on the wellbeing of the whole team. All of this should be done in a fresh manner.

Proposed design concept focuses on creating a connection to the mother company, bringing some laboratory themes in the office space. The second main design decision was to play around with light and bring it deeper into usually artificially lit space. Through the interior the dominant color is light gray - concrete and shiny metal sheets. While the working area is kept in this manner for more deep work concentrated mindset, the recreational space is complemented with a bright coloured floor and colourful furniture, encouraging activity and socializing.

[ EUROFIN GENOMIC ]

1 2 3 [01] [02] [03]

1 [03] [04] [04] [02]

2 2 [02] [02]

[1] Plants [2] New walls [3] Reflective wall finish

[ EUROFIN GENOMIC ]

Conceptual collage - kitchen

[01] Recreational area [02] New walls

[03] Meeting room [04] Large work space [05] Kitchen [06] Lunch room [07] Warderobe [08] Call booth [09] Active zone [10] Relaxation corner [11] Lobby

[13]

[11] [12]

[01] Recreational area 110 m2

[02] Warderobe 6.6 m2

[03] Call booth 2.1 m2

[04] Large work space I 130 m2

[05] CEO office 15.5 m 2

[06] Manager office 17.4 m2

[07] PR and HR office 17.3 m2

[01] [02] [03] [04] [05] [06] [07] [08] [09]

[10] [ EUROFIN GENOMIC ]

[08] Meeting room 15.7 m2 [09] Large work space II 78.0 m2 [10] Agile an engin. office 20.9 m2 [11] Meeting room 21.0 m2

[12] Kitchen 11.9 m2

Z 1m 5 0

Conceptual collage - dining room

Conceptual collage - office

Extra Workspace

Office layout allows for additional workstations to be added.

Small Gathering

For larger team meetings on of the office spaces can be transformed to an small auditorium.

Interior visualizations of active play area.

Purpose

A custom designed bean bag in the shape of a chromosome is a direct reference to the mother company’s field of work.

Events

If needed the recreational space can be arranged to create stage for big anoucments and presentations.

[03]

Study room

Entrance hall

Doctor cabinet

Sport hall

Changing rooms

Pool

Sauna [08] Glazed galery [09] Warderobe [10] Classroom [11] Sensory room [12] Warm sand room [13] Administration [14] Technical room [15] Utility room

[09]

[15] [07]

[15] [09] [09] [15] [15] Level 2 Z 1 3 8

[1]

[4] [4]

[6]

[2] [5] [5]

[7]

NATURAL DAYLIGHT [1]

Maximizing the natural daylight amount by large glazed gallery and skylights, reducing the need for any additional artificial lights.

HEAT RECUPERATION [4]

Reduced heat losses by implementing cross flow heat exchanger for ventilation system. W

DECENTRALIZATION [5]

Decentralizing the heating and ventilation system allows for more precise microclimate control in each area. Heat and air is supplied only where it is needed and mechanical equipment runs more efficiently.

Natural Ventilatilation

[2]

Opening into the gallery glass facade and roof windows allows for natural ventilation during the summer

Optimization

One of the cornerstones of achieving high energy efficiency ratings is an analytical approach building usage during the day. By analyzing the flow of the buildings users it was possible to use more economical ventilation system

[2] [4]

GREEN ENERGY [3]

[4]

[1] [1]

[3] [3] [5] [5] [8] [1]

In summer photovoltaic panels produce enough to power the whole building, and the surplus power is given back to the grid.

RAINWATER [8]

Rainwater from the roof is collected int underground reserve from where it is slowly released into a small river nearby.

Facade Shading

Existing forest and facade elements to the south protect the building from overheating, scatter light and reduce glare.

GEOTERMAL HEATPUMP [6]

Achieves high and stable energy to heat ratio compared to other methods. During summer the system works the other way around cooling the building.

Passive Climate Control

As the building or partially buried it loses less heat and heats up slower, together with the high thermal storage of the concrete shell an stable micro climate can be achieved.

Lightning rod

Lightning protection

Arhitekts iela 4-1 Rīga LV-1010 +371 29408098 +371 29213994 Reģ. Nr. LV 40103982501 Būvkomersanta reģ. nr. 15301

UzvārdsParakstsDatums

Paegle N. Paegle H. Nežborts

Smilga

Pirmsskolas izglītības iestādes jaunbūve

[Cloud Catcher]

JEAR: 2021

TYPE: Tiny house SIZE: 25 m2

LOCATION: Chile, Atacama desert

STAGE: Concept / Competition

PROJECT ENVOLMENT: Full project development.

AWARDS: 2022 / BEBREEDERS MICRO HOME COMPETITION / Second place

PROJECT ENVOLMENT: Full project development.

PROGRAMS USED: Rhino, V-Ray, Acad, Photoshop

Structure

The whole facade is covered in recycled polyethylene mesh which catches the air embodied water as condensation. Further it is stored in transparent water-wall tanks. This solution saves space, creates a lot of backup water storage and functions as a thermal regulator, thanks to water’s large thermal storage capacity.

Foggy breeze gently blows over the rocky mountain range, whitin it carries the elixir of life, nourishing the thirsty landscape.

Cloud Catcher aims to address the ever rising global water crisis. It is estimated that 2.7 billion people worldwide suffer due to water scarcity, and due to climate change these figures are estimated to grow. Some of the affected regions don’t get any rainfall for months or even years, most of the precipitation simply stays in the air, but there also lies an opportunity to collect drinking water out of thin air using biomimicry.

Recycled polyurethane mesh fog catcher

Modular structural frame

Fog net / shade.Water drops on the soil giving life to the surrounding. PV panel

Radiative cooling panel

Metal sheet roof

Plywood ceiling Filtered water tank

Hydroponic garden Collected water storage tank

Kitchen module Living room module Bedroom module

Work Layout

Interior Concept

Interior
