LEDs Revitalize Recital Hall

Buckley Recital Hall at Amherst College uses Lumentalk technology in an LED-lit, multi-functional performance space.

Lumentalk allows upgrading to digital control and LED lighting without intrusive re-wiring, disruptions, or remodeling.

Lumentalk technology converts college’s performance space without re-wiring.

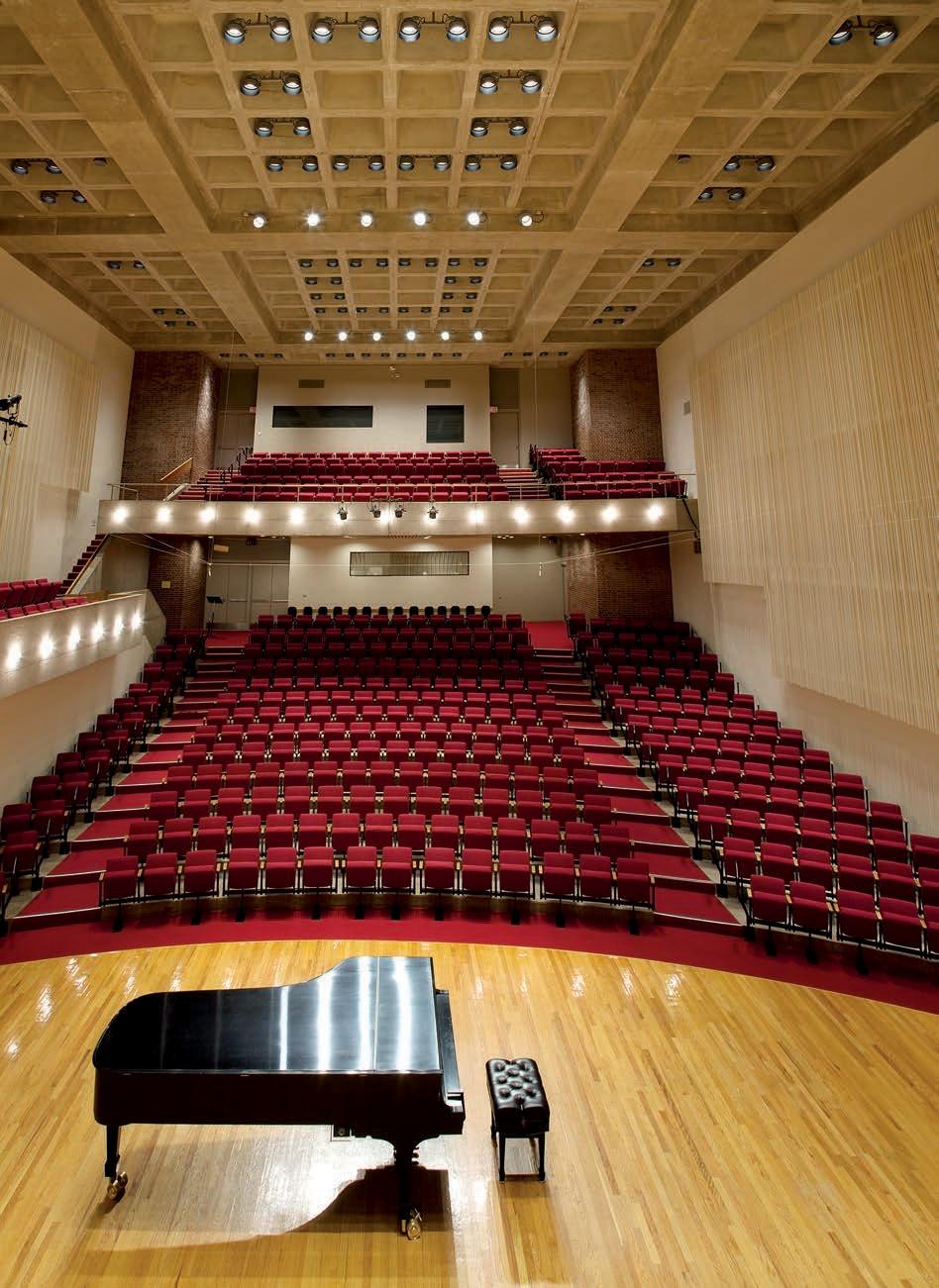

Buckley Recital Hall at Amherst College, Amherst, MA, serves as its primary concert and rehearsal facility. The hall was converted into an LED-powered performance space for the 21 st century with the addition of Lumentalk technology from Lumenpulse Inc., Montreal. Lumentalk transforms existing electrical wiring into a smart and robust digital network, with stable, high-speed data communication. Ideal for projects where existing controls are not compatible with LED luminaires, or where the controls in place are infl exible, Lumentalk allows upgrading to digital control and LED lighting without intrusive re-wiring, disruptions, or remodeling.

“Buckley Recital Hall was using a very antiquated lighting console and control system,” said Greg Campbell, executive vice president and CTO at Lumenpulse. “Lumentalk was the perfect solution to update their lighting system, providing a gateway to modern control advantages, without having to rip up walls or add complex infrastructure.”

Designed by lighting design firm Horton Lees Brogden (HLB), New York, the recital hall’s new LED lighting scheme added 14 zones of control, reduced energy consumption by 60%, and eliminated the school’s maintenance costs for scaffolding and lamp replacement, which totaled more than $50,000 annually.

Lumentalk works with any LED fixture, bringing instant digital control to legacy wiring systems. The technology is protocol independent, making it compatible with most traditional dimmers and control systems, including Triac, 0 to 10 V, DALI, DMX, and ELV.

“Lumentalk technology allowed us to use the existing wiring and controls, which gave us a lot of options and helped us overcome challenging architecture,” said Carrie Hawley, HLB associate principal, explaining how the technology enabled a complete yet cost-effective modernization of the space’s lighting scheme. “Everything can now be dimmed, zoned, individually programmed, and addressed, with a series of separate control points for the stage and the audience,” she said.

François-Xavier Souvay, Lumenpulse president and CEO, believes the installation could set a precedent for other theaters and performance spaces looking to add flexibility while reining in costs. “The Buckley Recital Hall shows the impact Lumentalk can have on an older building,” he said. “The technology simplifies the conversion to LED lighting and smart lighting control which, apart from providing significant maintenance and energy savings, also adds untold flexibility. It can give a building a whole new lease on life.” CBP

DATA CACHE

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/mar2014.

Circle 16 on the Reader Service Card.

Download a brochure describing Lumentalk technology at http://www.lumenpulse.com/en/product/82/lumentalk

EDITORS’ CHOICE

LED floodlights

ACP series:

• LED fl oodlights • Replace 100- to 1,000-W metal halide • Applications include parking lots, building façades

ACP series LED fl oodlights reportedly save as much as 60% in energy costs while cutting maintenance costs by as much as 50%, compared to metal halide. Medium luminaires are available with 2, 3, 4, 5, or 6 chip-on-board modules and replace conventional 100- to 400-W fl oods. Large luminaires have 7, 8, or 9 COB modules to replace 400- to 1,000-W fl oods.  e lights have segmented internal refl ectors for fi eld to beam ratios, tool-less entry, surge protection, and optional RoamView controls. Mounting options include tenon-slipfi tter knuckle and steel yoke. Applications include parking lots, building façades, and facility perimeters.

American Electric Lighting, an Acuity Brand, Granville, OH Circle 80

Wall-mount enclosure A horizontal wall-mount enclosure for new or retrofi t installations is part of a series of optical network terminal secured housings. Enclosures are confi gured to customer’s specifi cations.

Snake Tray, Bay Shore, NY Circle 81

Lighting box EALB easy-access lighting box has a sliding, swivel cover plate. The swivel plate has a 20-deg. angle that is said to eliminate damage to hanging fi xtures when struck or jarred. The unit holds 70 lb. and measures 4 x 4 x 2 1/8 in.

Orbit Industries, Los Angeles Circle 82

Road, path luminaire A colonial lantern, traditionally styled, luminaire line is available in three scaled fi xture sizes. Available as pole- and pendant-mount fi xtures, the lantern also is offered as a wall mount and as bollards. Pole and pendant fi xtures can be single- or multi-luminaire mounted. The lantern is said to provide glare-free illumination with HID lighting from 50 to 250 W.

Sun Valley Lighting, Palmdale, CA Circle 83

Lighting control SmartCast technology is a self-programming, wireless lighting-control system that is said to reduce energy consumption by more than 70%. The system uses OneButton setup, where luminaires enabled with the technology create their own secure network, learn about their environment, and form groups to maximize savings, with the push of a single button. SmartCast is available in CR series LED troffers, CS series linear luminaires, and KR series downlights, as well as with a 0- to 10-V interface for control of existing dimmable LEDs.

Cree Inc., Durham, NC Circle 84

Classic, modern designs Decorative lighting collections for today’s transitional style trends blend traditional and contemporary details. Collections include Asset; Club, that uses antique-bronze iron scrolls; Compass, with linear details and circular accents; Dazzle, with clear glass shades; Entice, featuring diamond-patterned glass; and Indulge that uses clear glass shades with etched details.

Progress Lighting, Greenville, SC Circle 85

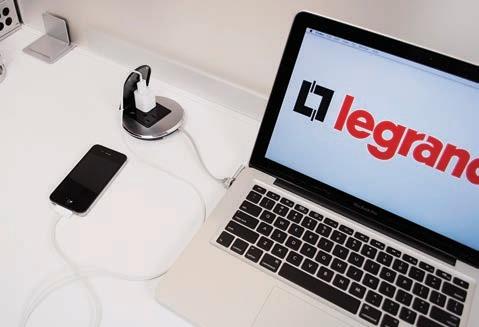

Cable retractors Wiremold work-surface desk module replaces an existing wiring grommet to provide adjustable connections within reach and with minimal work surface disruption. The cord-ended modules are available with optional USB and RJ45 cable retractors. The modules are available with two 15-A outlets and a 12-ft. cord or two 15-A outlets, a 12-ft. cord, and one USB charging outlet. Each is offered with or without an RJ45 retractor cassette. U nits install in existing desk grommets or in a new opening using a hole saw.

Legrand, West Hartford, CT Circle 86

Outdoor wall washers, fl oods WW2 LED series aimable outdoor wall washers and fl oodlights are available in rectilinear strip-, square-, rectangular-, and round-shaped housings with adjustable mounting hardware for precise aiming. On-board controllers provide independent selection of LED colors, timed color-changing effects, and step dimming. Controllers allow master/slave control of as many as 30 luminaires in series.

Jesco Lighting Group, Glendale, NY Circle 87

The best power control systems are equipped with redundant PLC controllers

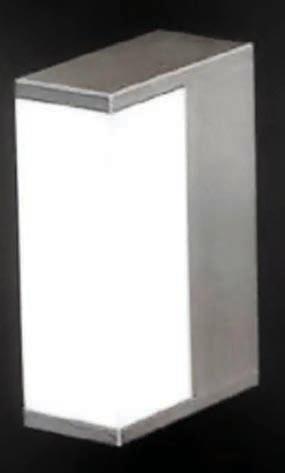

LED sconce Allege 2 series omni-directional distribution LED or T5 diffuse-lens vertical wall sconce provides contemporary design and uniform ambient illumination. LED versions are available in a 9 5/8-in. mini-sconce and 2-, 3-, or 4-ft. lengths. Fluorescent versions are available in 2- or 4-ft. lengths. A three-sided, 270-deg. lens shape provides the wide distribution.

A-Light, Oceanside, CA Circle 88

Made in USA

www.russelectric.com 1-800-225-5250

An Employee-Owned Company An Equal Opportunity Employer

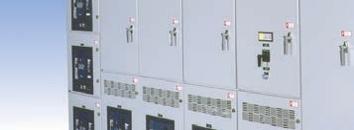

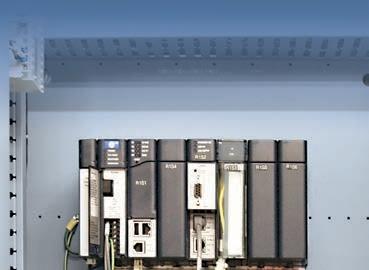

The typical power system is controlled by one PLC. Russelectric power control systems come standard with dual PLC controls for fully redundant operation, ensuring no interruption of control should either malfunction.
