Sub-Metering Organizes Market Power
A significant renovation of the York Central Market, York, PA, involved installing a sub-metering system that greatly simplified power distribution and improved energy conservation. (Inset) Covering almost a city block, the market is one of the oldest farm-to-market operations in the country.
Advertisement
Sub-metering system cleans up wiring, equalizes power distribution, and simplifies billing at the York Central Market.
More than a century old, the York Central Market, York, PA, occupies nearly a sprawling city block of downtown real estate and is one of the oldest farm-to-market operations in the country. Located in the heart of York County and listed in the National Register of Historic Places, the market is the bustling commercial home to a range of fresh produce, seafood, meat, deli products, and specialty vendors, many of whom operate seasonal businesses and move in and out as their sales cycles change. With more than 50 vendors, preparing everything from subs, sandwiches, and paninis, to those selling fresh fruits, vegetables, and other delicacies, the market serves the community as an iconic gathering place enjoyed by locals and tourists.
As part of a $1.9-million revitalization project to modernize the market’s farmstand-fresh appeal, property managers at the two-story, 35,000-sq.-ft. complex updated the interior with a new lighting system, energy-efficient boiler, overhead fans, ADA-compliant push-button wooden doors, fire-suppression sprinkler system, and upgraded electrical-distribution system that included Leviton's VerifEye sub-metering system. Leviton Manufacturing Co. Inc. is located in Melville, NY. Today, the system helps management get a handle on the market’s electrical costs and provides a way to accurately invoice tenants for their electrical usage.
THE OLD Prior to the reconstruction, vendor kiosks were powered by a jumble of wires that ran overhead to electrical meters mounted on the walls behind vendor stations. The exposed wires were not only unsightly, but created an electrically unsound condition and potential liability for property managers.
The electrical infrastructure also posed an accounting headache for management. Some vendor kiosks were utility-company-metered while others weren’t. The patchwork system created an inequitable situation among vendors. Some paid the utility company directly for their usage. Others were billed by property management based on allocated usage. This disparity made it difficult for management to get a handle on its electrical consumption or implement energy-conservation measures.
THE NEW Upgrading the electrical-distribution system was a key element in modernizing the market’s décor and creating a more ap
pealing and eco-friendly environment for vendors and visitors. Leer Electric Inc., Dillsburg, PA, the market’s electrical contractor, brought Leviton representatives in on the ground fl oor to collaborate on the design, construction, and installation of the new electrical-distribution system and provide comprehensive training to property managers on how to use its powerful features.
Leviton and Leer designed a plan to eliminate the exposed wiring and increase tenant-space marketability. All wiring was run beneath the flooring and terminated at sub-meters tucked away in utility closets off the sales floor. VerifEye Series 2000 sub-meters were retrofit into pre-wired Leviton Multiple Meter Unit (MMU) enclosures, each capable of accommodating as many as 19 sub-meters.
The sub-meters were connected to the system’s high-density pulse modules and communications system, which included Leviton’s energy-monitoring hub and energy-manager data center. “The ease of installation of the Leviton VerifEye sub-meters made fast work of the project. They wired up quickly and their contractor-friendly MMUs truly simplified the job,” said Brett Keeney, project manager for Leer Electric.
THE NOW The new VerifEye sub-metering and communications system provides the market with a robust energy-management platform that enables easy tracking, monitoring, and verifi cation of real-time energy usage in monthly, daily, and 15-min. time intervals for each vendor. The icing on the cake: The system seamlessly integrates with Leviton’s BillSuite software, which automatically generates monthly electrical bills for each vendor, based on actual usage.
The new electrical-distribution system and tenant-billing platform hit the “sweet spot” for property management and tenants. “By replacing our old patchwork system with Leviton’s VerifEye solution, we can monitor our energy use and invoice tenants for the electricity they actually use. Our billing process is streamlined and we’re able to run a more energy-efficient operation,” said Casi Babinchak, the market’s chief operating officer. CBP
DATA CACHE
Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/julaug2014.
Circle 4 on the Reader Service Card.
Download a brochure that describes Leviton’s VerifEye products. Download a brochure that describes Leviton’s VerifEye products.
Download a brochure that describes Leviton’s BillSuite software. Download a brochure that describes Leviton’s BillSuite software.
Watch a video about the York Central Market installation.
Watch a general video about the York Central Market.
Above. Prior to the renovation, power delivery to the various vendors was a mixed bag. A VerifEye system cleaned up the wiring and made it possible to properly charge vendors for the power that they use.
EDITORS’ CHOICE
Low-profile, linear LEDs
BoxRail LED 907:
Slim luminaire for cove, perimeter, wall applications Standard lengths from 2 to 6 ft. Square profile measures 1.14 in. x 1.14 in
BoxRail LED 907 is a slim lighting solution for general and small cove, perimeter, and wall applications. The modular system has flexible mounting solutions and system layouts, and is said to deliver as much as 80 lumens/W at 4,000 K. Applications include corporate, hospitality, entertainment, or institutional settings with cove, perimeter slot, or wall lighting, providing a minimalistic design aesthetic. Available in standard lengths from 2 to 6 ft., the square profile measures 1.14 in. x 1.14 in. Remote drivers can be located as far as 72 ft.
Vode Lighting, Sonoma, CA Circle 50
Mini LED multiple recessed spots Mini LED multiple recessed spots are complete units including housing and trim. Available as one-, two-, and three-light configurations, each spot is individually adjustable and provides a 30-deg. visual cutoff. The luminaires are said to deliver as much as 755 lumens/light using 11 W.
WAC Lighting, Port Washington, NY Circle 51
LED floodlights Varieta series weatherproof LED floodlights are available in output ranging from 2,100 to 19,100 lumens and 12 beam distributions. All optics and media are concealed inside the fixture. The fixtures have a tempered-glass external lens and sealed LED modules that contain an array of 16 Rebel LEDs, available in a number of symmetric or asymmetric axial-beam spread patterns with integrated optics. Options include wall and pole mount.
Amerlux, Fairfield, NJ Circle 52

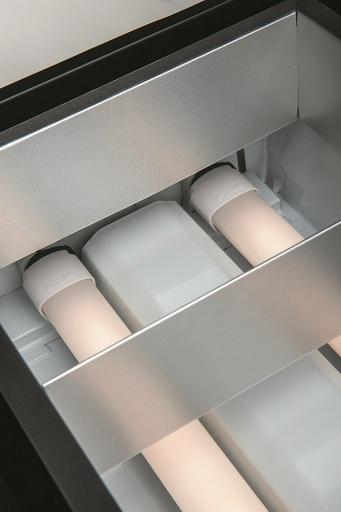

LED T8 replacement LED T8 series linear fluorescent replacement tubes are said to provide a 30% energy savings with near-universal driver compatibility. Using TrueWhite technology, the luminaires provide high color quality and accuracy in 3,500 and 4,000 K color temperatures. The oval-shaped design allows more uplight, creating a uniform light output.
Cree Inc., Durham, NC Circle 53
LED luminaires Aculux 2-in. and 3 1/4-in. LED luminaires are said to deliver precision lighting. The 2-in. model is available in round and square apertures in a variety of trims, colors, and finishes. The larger model is a recessed luminaire that has black-body dimming and tunable white technology.
Juno Lighting Group, Des Plaines, IL Circle 54
Indirect lighting Acanthus 1 is a linear indirect, suspended luminaire said to deliver high lumen output and nonglare ambient/accent uplighting using LED or T5 fluorescent. Measuring 2-in. wide by 5-in. high, units can be single stainless-steel aircraft cable, pendant/stem, or partial-span mounted. They can be juxtaposed at right angles, abutted to a wall or column, formed into rows or patterns, and provide numerous combinations. Lengths include 2-, 3-, 4-, 6-, 8-, 9-, and 12-ft./unit or hairline-seamed rows of unlimited length.
A-Light, Oceanside, CA Circle 55
LED step lights LED brick step lights operate at 3 W for interior and exterior applications. Features include a high-impact and weather-resistant polycarbonate diffusion lens. Available in LED warm white or amber, faceplates include horizontal louver and visor.
ConTech Lighting, Northbrook, IL Circle 57
Harsh-environment luminaires
T5 and T8 fluorescent vapor-tight lighting fixtures protect the light source from the elements in harsh environments. Constructed with full-length polycarbonate lenses and housings and stainless-steel closure hardware, the luminaires mount close to the surface on ceiling or walls. The fixtures are wet-listed with hermetic sealing for outdoor and indoor use and have instant-start and thermally protected electronic ballasts.
MaxLite, West Caldwell, NJ Circle 56
Motor controller
MMP-T32 motor controller integrates low-voltage circuit breakers and thermal overload relays to reportedly protect motor branch circuits from overload or phase loss during short-circuit conditions. The device can also be used as an IEC circuit breaker.
Mitsubishi Electric Automation Inc., Vernon Hills, IL
Circle 58
Ultra-thin LED troffer
SLT-2232 ultra-thin LED troffer for grid-ceiling downlighting has a 3 3/16-in.-deep housing. Available in 3,000, 4,000, or 5,500 K, the luminaire has an efficacy of more than 70 lumens/W. A universal input driver allows either 0 to 10 V or Triac dimming.
Jesco Lighting Group, Glendale, NY Circle 59
Roadway, security LED luminaires Autobahn series ATBS LED roadway and security luminaires replace 50- to 150-W high-pressure sodium, 100-W metal-halide, and 175-W mercury-vapor fixtures. The fixtures have IP66-rated borosilicate glass optics and are available with Type II, Type III, or Type V roadway distributions.
American Electric Lighting, an Acuity Brand, Granville, OH Circle 60
Emergency/exit combination fixture EESLA-LED emergency/exit combination light has two fully adjustable LED lamp heads. A back-up battery provides 90 min. of operation. Housing and faceplate are available in aluminum, white, and black. Letter colors are red or green.
