Lighting & Electrical

Lantern with LED, HID optics

Mozart lantern series:

Two sizes with LED and HID options Neo-classical/transitional architecture Variety of components and fi nishes

 e Mozart lantern series is available in two sizes with an expanded range of LED arrays, in addition to HID.  e fi xture has a variety of open-frame or enclosed housings and is compatible with neo-classical or transitional architecture. Model sizes include 34 1/2-in. high x 26-in. wide and 26 1/2-in. high x 20-in. wide. Available as a single pole, double pole, or wall mount, the luminaire can be paired with the company’s selection of arms, poles, and bases in textured fi nishes that include white, black, gray, dark bronze, and green, along with custom fi nishes.  e product has full cutoff or more traditional lensed optics and all electrical components are UL and cUL recognized.

Sun Valley Lighting, Palmdale, CA Circle 84 usaltg.com

LED wall mount The CWM contemporary wall-mount LED luminaire is fully customizable. The modular design has interchangeable lenses and end caps and is available in semi-recessed and fl ush-mount confi gurations. The luminaire has four LED color choices and an 84 CRI.

Columbia Lighting, Greenville, SC Circle 85 columbialighting.com

Architectural lighting Emerald is a surface-mount luminaire for architectural lighting applications where colored illumination or dynamic white light is desired. A rectangular projector with 60 high-power LEDs in RGBW or dynamic white, static white light in warm or cool temperatures is also available. Five rotationally symmetric distributions are available in spot, narrow, medium, wide, or extra-wide beam spreads. A range of optional light-control accessories is available.

Griven USA, Gaffney, SC Circle 86 griven-usa.com

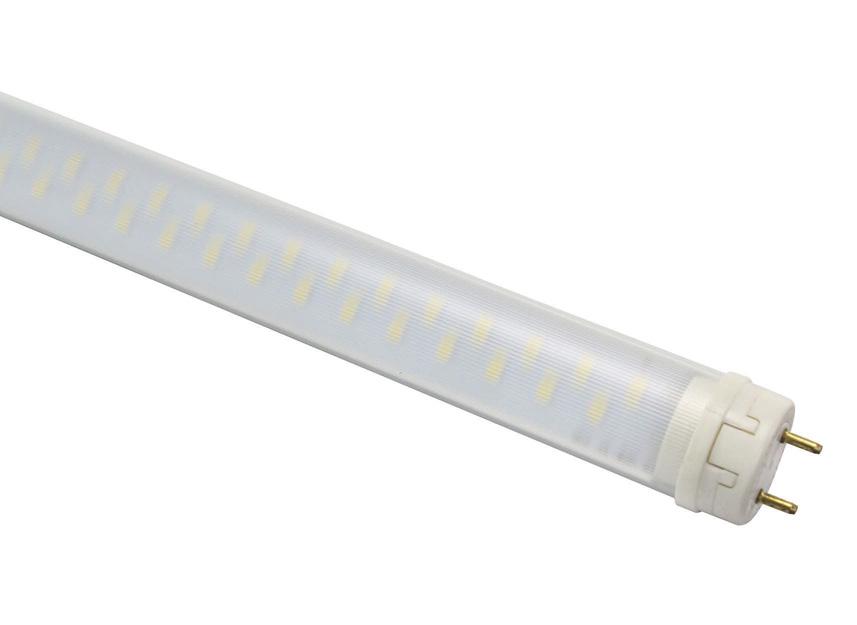

4-ft. dimmable LED The LEDT8-28W-V3-D 28-W T-series LED bulb works with any T8 fl uorescent light fi xture and requires no ballast for operation. Power is single ended, meaning line and neutral voltage are applied to the same end. The lamp has rotating pins, allowing adjustment of light dispersion after installation. The fi xture has 0 to 10 V dimming.

Larson Electronics, Kemp, TX Circle 87 larsonelectronics.com

PoE planning guide A zone cabling and coverage-area planning guide provides guidance to infrastructure designers on the selection, design, and deployment of a structured cabling system optimized to support a wide range of Power over Ethernet (PoE) lighting applications. The guide highlights installation recommendations, integration with IoT applications, zone cabling for PoE lighting including coverage areas and location of zone enclosures.

Siemon, Watertown, CT Circle 88 siemon.com

LED driver, dimmer switch in one Switchex LED driver and dimmer switch combines an LED dimmer switch and LED power supply into a single unit. The product accepts 120 VAC and converts it to low-voltage DC within a standard electrical box.

National Specialty Lighting, Buffalo, NY Circle 90 nslusa.com

Linear slot lighting MOD x linear slot lighting uses Variable Intensity (Vi) technology which allows specifi cation of LED light output to meet precise needs. Vi technology also provides verifi able wattage, critical for specifi ers who are responsible for program, agency, state, and local code compliance. Units arrive on site with specifi c labeling to allow calculation of wattage based on actual versus the highest-possible value. Selection of output or power in 50 lumen increments/ft. is possible.

Litecontrol, Greenville, SC Circle 89 litecontrol.com

Modular downlight The modular Iolite LED downlight series is available as a 1-in. downlight or 2- and 4-in. adjustable. Translucent Deco Collars in blue, frost, amber, and red fi t around the LED module to color the aperture. Hexcell louvers and opaque collar snoots that reduce aperture brightness are available. Fixtures produce 600 to 800 lumens at 95 CRI in various Kelvin temperatures.

Nora Lighting, Commerce, CA Circle 91 noralighting.com

Pendants, glass vessels Hand-blown pendants are made from recycled glass cola bottles. Molten glass is shaped into spheres with each sphere collapsing into itself to form a bowl and coated to achieve a mirror fi nish. Dimensions vary. Each piece includes a Quick Adapt jack, 8-ft. cable, socket assembly, and 12-V 50-W Xenon bi-pin lamp. Companion decorative tabletop vessel accessories are also available to complement the fi xtures.

Jesco Lighting, Port Washington, NY Circle 92 jescolighting.com

Windows Key To Scenic Delights Extreme climate conditions dictate window selection at picturesque resorts.

At Martis Camp a custom wood door paired with large sidelites and a stunning, curved transom welcomes visitors year-round while bathing the lodge’s lobby in natural light. W hether located in an alpine or desert climate, windows and doors of resort communities must withstand a variety of environmental extremes. Such is the case at Martis Camp, located in the High Sierras along the California and Nevada border, or at Furnace Creek in Death Valley, CA.

Martis Camp homes and facilities enjoy the sunny warmth of southwestern summers along with the snow-covered winters of the mountainous American Cordillera. The buildings must be prepared to withstand a variety of environmental extremes that roll through the area every season.

Nationally recognized as one of the nation’s premiere luxury vacation home communities, with world-class golf and skiing on site, Martis Camp structures must blend the beauty of a five-star resort with the functionality to maintain interior comfort regardless of the extreme weather Mother Nature throws at the neighborhood in any given season. Residents also require a personalized look

and feel for every space, demanding that the doors and windows must be custom designed and fabricated specifically for this project.

To further complicate the project, all materials and products used need to support Martis Camp’s commitment to LEED certification. While some energy-efficiency products are optimized for climates that tend to be hotter or colder, the community needed options that could provide the best of both worlds.

After an extensive review process, the Martis Camp design team decided that gorgeous views of the High Sierras would be best captured through Jeld-Wen Inc., Charlotte, NC, custom clad-wood windows made with AuraLast wood, while guests would enter their own personal wilderness getaway through the company’s IWP custom doors.

As guests arrive at the exclusive mountain oasis, they are met with the grandest of entrances. A custom wood door paired with large sidelites and a stunning, curved transom welcomes visitors year-round while bathing the lodge’s lobby in natural light.

When the warmth of spring and summer sweeps along the border of Truckee, CA, and Lake Tahoe’s north shore, the Martis Camp Lodge and community facilities let the outdoors in. Custom bifold doors sweep open and fold into concealed closets to create a 40-ft.-wide opening between dining and patio spaces.

Throughout the property—from individual guest rooms in private homes to spa facilities and dining locations in public spaces—custom wood windows pair energy efficiency with luxurious design. A blend of window varieties, from traditional casement to custom radius-top designs, creatse an atmosphere that mixes the feel of a traditional wilderness lodge and a jaw-dropping luxury resort.

“Constructing a luxury development in a region with climates that can vary so dramatically every few months is enough of a challenge. For this project, we needed a partner that could help us ensure the comfort of our residents while providing windows and doors that project the luxurious look and feel Martis Camp is known for,” said Larry van Hook with Martis Camp. “Jeld-Wen’s collection of solutions went above and beyond our needs. These windows and doors not only helped us craft the luxury environment our customers desire, they also made it possible to ensure our buildings met LEED guidelines while delivering a level of durability that will stand up to Mother Nature year after year.”

HOTTEST PLACE ON EARTH Some 400 miles to the south, the climate of Death Valley, CA, is far from forgiving. “The hottest place on Earth,” this desert is baked by temperatures averaging 116 F in July and cooling to a chilly 67 F in the heart of winter. The intense heat is compounded by a

Top. Custom bifold doors sweep open to create a 40-ft.-wide opening between dining and patio spaces at Martis Camp.

Above. Buildings at the Inn at Furnace Creek face accelerated wear as exteriors contend with extreme temperatures.

significant lack of rainfall throughout the year. In fact, the region may only see a couple of inches of rain in an entire year.

Buildings at the Inn at Furnace Creek face accelerated wear as exteriors contend with extreme temperatures. The powerful rays from the sun and hot, dry air make it more likely for doors and windows to fade, warp, or crack more quickly than in other climates. In addition, structures must be properly insulated to help keep the heat out and room interiors cool.

Pairing substantial design flexibility with energy-efficiency technology, Jeld-Wen custom clad-wood windows combining AuraLast wood and finishes meeting the AAMA 2605 Standard were chosen as the optimal
