Parking With Style
by IdeaSoil
Fabricoil coiled-wire fabric defi nes style and a modern aesthetic for Nashville parking structure.
Advertisement
An uninterrupted magnetic dry-erase steel writing surface with nearly invisible seams and a sleek frameless edge design
ENDLESS CREATIVITY. UNLIMITED POSSIBILITIES. WhiteWalls ® Magnetic Dry-Erase Wall Panels
WhiteWalls.com 800-624-4154

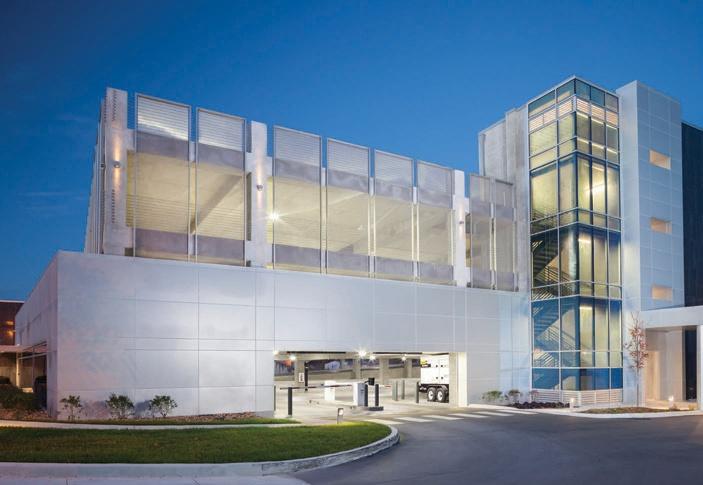

Left. Coiled-wire fabric defi nes the architectural style of the parking garage and conveys a clean, modern aesthetic.
Above. Cascade Architectural’s technical team pre-engineered the Borderline attachment units so they could be bolted directly to the concrete of the garage upon delivery.
Cascade Architectural, Tualatin, OR, provided 4,000 sq. ft. of 1/4-in., 16-gauge stainless-steel fabric for a new parking garage on the campus of HCA Healthcare, Nashville, TN. The coiled-wire fabric defi nes the architectural style of the parking garage and conveys a clean, modern aesthetic.
The site of the parking garage is in an urban overlay zone, requiring the building’s design to abide by a specific set of urban overlay standards. The standards required that the garage have an articulated façade to minimize the visual impact of the structure and add life to the street.
Fabricoil coiled-wire fabric secured in a Borderline attachment system—a perimeter only, powder-coated carbon-steel frame with top and bottom rods that tension the fabric—was used for the project. Panels range from 19 ft. to 28 ft. tall and were tensioned at the Oregon facility before delivery to Nashville. Cascade’s technical team pre-engineered the Borderline attachment units so they could be bolted directly to the concrete of the garage upon delivery. The material is simultaneously open and closed, providing a barrier that gives occupants visibility out, provides fall protection, and allows ventilation throughout the garage.
“The design included an upgraded façade for the garage, and Cascade provided a turn-key solution that aesthetically achieved the design,” said Virginia Campbell, design principal at architecture and design firm, Collaborative Studio, Nashville. CA
Want more information from Cascade Architectural (cascadearchitectural.com)? Circle 4 on the Reader Service Card.
The source listed below is linked at
commercialarchitecturemagazine.com/1901cascade.
Collaborative Studio, collaborative-studio.com
Your commercial structures deserve what TYPAR ® MetroWrap delivers, starting with tear strength 5x
greater than the leading competition. Plus, it can be left exposed an unrivaled 12 months with no UV degradation. Use it together with our full Weather Protection System for a higher level of defense.
TP18100_AdMat_ProdSectSpon_CommArch_Aug18.indd 1
CIRCLE 230
www.TYPAR.com Made in the USA © 2018, Berry Global, Inc.
7/10/18 4:55 PM
Adhesive delivery system
Massive Splash is a modular splash-play feature for maximum inclusivity of all users. With a modern, architectural look, the product draws attention to parks and athletic facilities with a constant motion of water buckets including four different spray effects. Water spray from uprights provides constant cooling. Modular design allows a wide variety of configurations. TurboStick Mini is an ultra-lightweight, ultra-compact adhesive delivery system. A smaller version of the company’s TurboStick, the system gives users a choice of two convenient sizes, cartridge or cylinder, when applying its ready-to-use, single-component adhesive for installing insulation boards in exterior wall cladding. The device is said to be easy to use and offers fast application, cutting cure time from a full day to an hour. The cartridge weighs
Sto Corp., Atlanta Circle 83 stocorp.com
PRODUCTS | exteriors
EDITORS’ CHOICE
Splash-play feature about 26 oz. and covers 110 to130 sq. ft.
Water Odyssey, San Marcos, TX Circle 84 waterodyssey.com

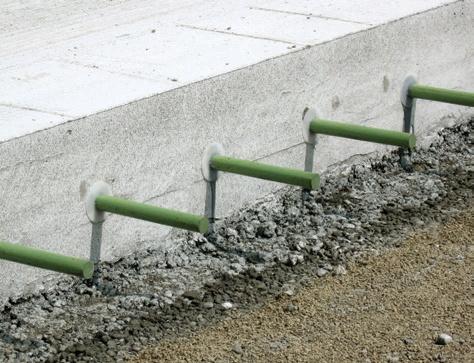

Dowel, tie-bar adhesion Poly-Grip acrylic system is said to provide fast-curing, high-strength dowel and tie-bar adhesion in full-depth concrete repairs. The two-component, styrene-free product is used for anchoring and doweling applications in uncracked concrete using threaded rod and rebar. It can also be used in short-term anchoring and shear loading applications in accordance with allowable stress design. The system can be used and dispensed in temperatures between 15 F and 95 F, offers a service temperature range from - 40 F to 176 F, and reaches full cure in 30 min. at 77 F.
W. R. Meadows Inc., Hampshire, IL Circle 85 wrmeadows.com
Vent roofing system
VacuSeal:
Vent-secured roofing system Vents harness wind power No cold-weather limitations
VacuSeal vent-secured roofing system uses special vents said to harness wind power to lock roof membranes in place. The system reportedly provides optimal performance while maximizing opportunities for retrofit and monolithic deck applications. Negative pressure venting pulls air and moisture from under the membrane to maintain insulation dryness and R-value. There are no cold-weather limitations for installation, no VOCs, and no odor. The system’s V2T vents are made from UV-resistant PVC, contain no moving parts, require no penetrations, and provide performance regardless of wind direction. The product is UL certified with uplift certification at 195 psf negative pressure.
Carlisle SynTec Systems, Carlisle, PA Circle 82 carlislesyntec.com
Fire Resistant. Design Consistent.
Fire-Rated Aluminum Window And Door Systems
Aluflam has a complete offering of true extruded aluminum fire-rated vision doors, windows and glazed wall systems, fire-rated for up to 120 minutes. Available in all architectural finishes, our products are almost indistinguishable from non-fire-rated doors and windows. You won’t have to compromise aesthetics to satisfy safety regulations. Retractable enclosures, roof systems The company’s retractable enclosures and roof systems aid in the use of outdoor spaces year-round, without concern for the weather. The system opens manually or can be motorized. Enclosures are manufactured with heavy-duty aircraft aluminum-extruded rafters, and wind and snow-load requirements for reportedly any area can be met.
Roll-A-Cover Intl, Bethany, CT Circle 86 rollacover.com
One-step mortar Multimax Lite is a one-step, non-sag large- and heavy-tile mortar for interior and exterior installations of ceramic, porcelain, and glass tile, and stone. The material uses Kevlar reinforcement, and features antimicrobial protection to inhibit the growth of mold and mildew. The company’s Hydromatic Cure Chemistry accelerates the hydration process to rapidly consume water in the system, allowing the material to cure in a predictable manner.
Laticrete, Bethany, CT Circle 87 laticrete.com
Wall-panel systems The company’s wall panels can be installed over commercial-grade Tyvek onto plywood, or used as outboard insulation pressure-equalized rainscreen. The 100% recyclable panels are manufactured from a variety of materials, including zinc, copper, stainless steel, and painted and anodized aluminum. Panels are available in any fl uoropolymer paint color and are sized and detailed to meet the specifi c requirements of each project. Unique profi les include: Shadow, Tapered, Perforated, Embossed, Textured, Imaging Technology, and Inspire. These options create angles, textures, depth, and images. Systems are Dade County and AAMA 508-07 approved.
Dri-Design, Holland, MI Circle 88 dri-design.com
Aluflam North America 562-926-9520 aluflam-usa.com
Photo: Nick Merrick ©Hendrich Blessing
800.PAC.CLAD pac-clad.com
Circle 250
Full-bed limestone Adair Georgian Blend stone is a mix of the company’s traditional Sepia and Blue-Gray colors and features a split-face texture. Three face rises in random lengths to 23 5/8 in. make up the ashlar confi guration. The blend and size combination augments the natural appeal of the classic quarried stone.
