LOBBY ICON IDEA 2
NET & BALL RELATIONSHIP STUDY

Advertisement

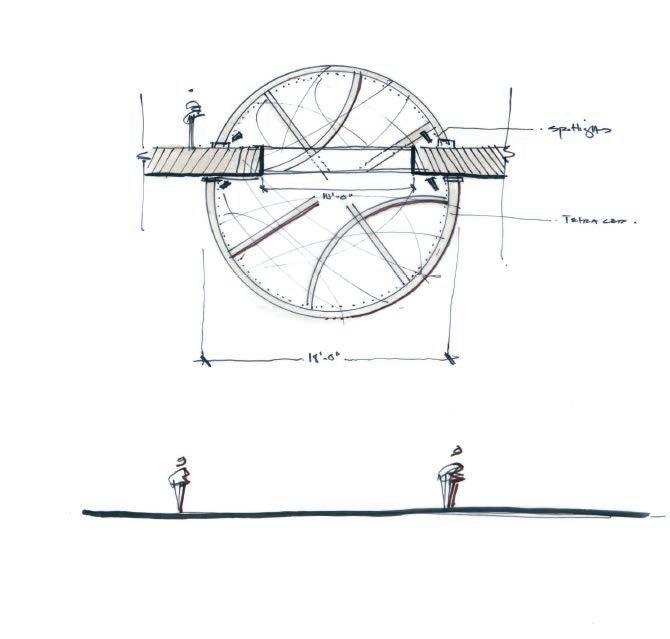

Elevation Scale: 3/32"=1'-0" 1
Spherical formed in clear acrylic and silver mirror metal strips. A very evocative piece that can be customized



Rendering Scale: NTS 2





Spherical formed in clear acrylic and silver mirror metal strips. A very evocative piece that can be customized The basketball could be made out of 3" rolled round aluminum tubes that would look similar to a net. The intent is paper mache but with big aluminum pipes. This concept would pertain lights and provide a light tray at floor opening.


Reference Imagery Scale: NTS 3
Elevation Scale: 3/32"=1'-0" 1 2




Elevation Scale: 3/32"=1'-0" 1


Rendering Scale: NTS 2
