FEEDING SYSTEMS

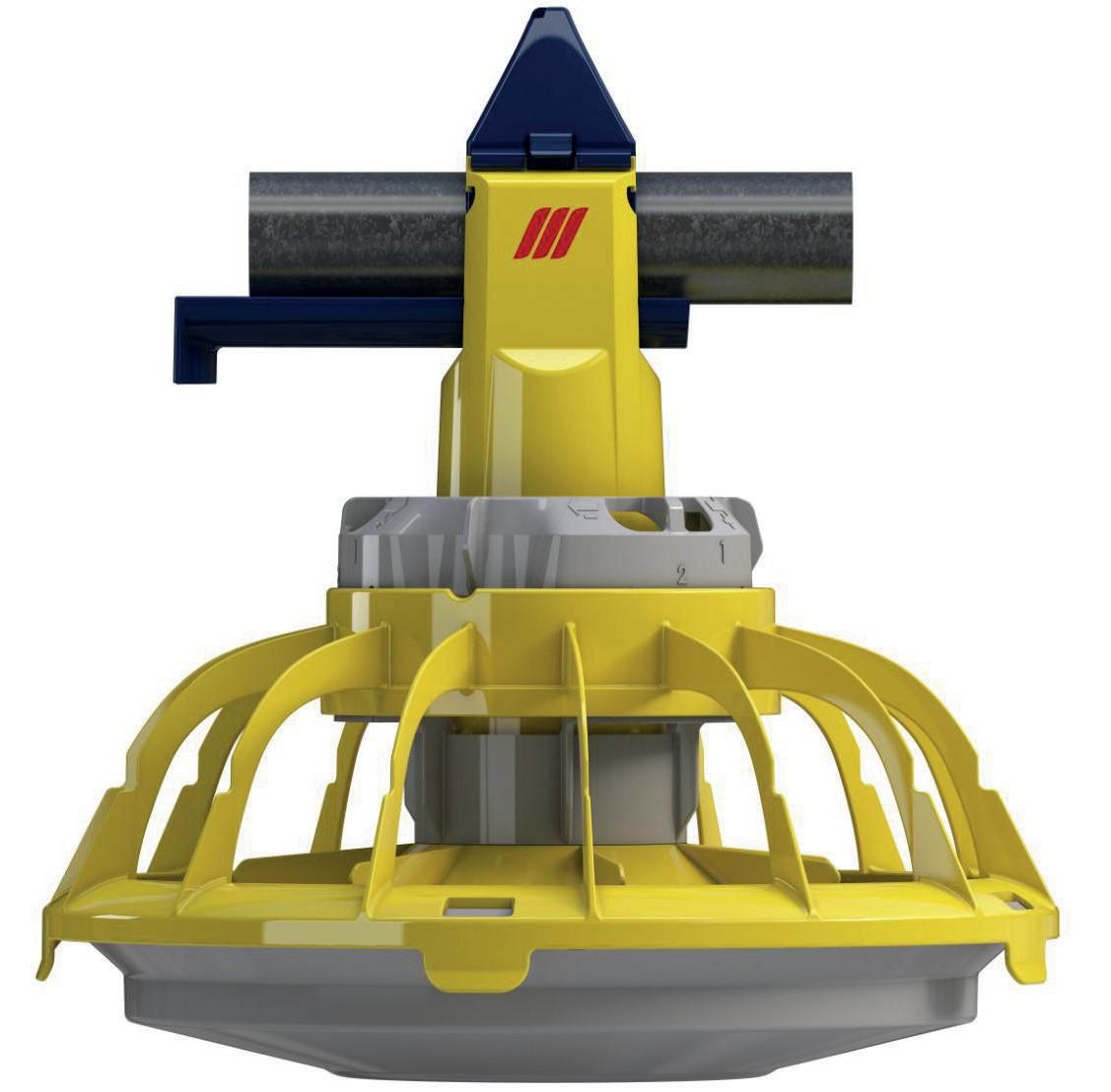

Roxell is expanding the range of MiniMax™ feeder pans

The modular broiler feeder designed for efficient growth

Roxell’s round feeder pan for broilers is now modular, which means we can offer four different versions of the MiniMax. The best pan composition can be determined by asking the following questions: • At what age do you think chicks should stop stepping into the pan to eat? • What end weight are you aiming for with your broilers? • What type of floor will your feeding system be used on?

The result is a MiniMax feeder pan that is adapted to the preferences and practices of each poultry farmer. The feeder pan therefore helps poultry farmers to grow more efficiently. Cost-effective way to grow broilers For 35 years the MiniMax feeder pan has set the standard for optimal feed intake for broilers. This is due to the patented design: a stepped bottom pan with a special anti-waste edge. Both features improve the chickens’ feed intake and prevent

spillage because feed cannot fall over the edge of the pan. The wings in the pan mark out a pecking zone, which means each broiler will eat out of its own compartment and cannot eat selectively. Each animal therefore receives the correct composition of feed to ensure consistent growth in the group.

The low height – 60 mm or 2.36”– means that the pan is suitable for day-old chicks and you do not need to supply an extra source of food in the house. From day one, the chicks can see the feed and climb effortlessly into the pan. This guarantees the best start. The bottom pan is now also available in two volumes: • a shallow pan with a standard

feed capacity that is perfect for broilers up to 3 kg (or 6.61 lb). • a double capacity pan for chickens with a heavier end weight. A benefit of opting for the extra feed capacity is that the pan is only 0.5 cm (or 0.2”) higher than the shallow version.

Results show that the base of the MiniMax pans buries easily into the litter, which lowers the step into the pan even more.

The feed flow occurs according to a 360° principle, meaning that the pan fills consistently and evenly across the entire surface area. By adjusting the feed volume, you can provide the right amount of feed. Your broilers will therefore reach their end weights in a cost-effective way and you will use precisely as much feed as you need.

Easy management of the MiniMax feeding system Managing the feeding system is quick and easy to manage, day after day. The size of the feed opening can be adjusted to the type of feed. There are three feed settings for adjusting the feed volume during a flock. With the control pan at the end of the feeding line, the feeding system can work fully autonomously and precisely. When the minimum or maximum level is reached, the pan sends feedback, which starts or stops the feed flow. The feed level in the control pan can be influenced with an LED light that attracts chickens to the end of the feeding line. The automatic MiniMax feeding system is

reliable, without requiring any intervention from the poultry farmer.

You can save time with the two patented cleaning functions: • The pan rotates automatically when you use a pressure washer, which means you can reach all corners of the pan without any extra effort. • If you opt for the extra cleaning option, you can also open the top cap of the pan, so you can clean all the internal components such as the inner cone, without getting water in the feeding tube.

The bottom pan, made of flexible plastic, can be removed from the base with a simple click so it can be cleaned manually. Due to the robust design of this mechanism, the pan will never unintentionally come loose from the base. Save time and money when performing thorough maintenance and start on a new flock quicker than ever before with the MiniMax.

For more information, visit www.roxell.com
