Myths Busted! Harrop spills the beans!

Harrop Engineering is in its 65th year of Automotive Engineering design, development and manufacturing. For 15 of those years we have developed many supercharger systems for both OEM and Aftermarket customers. We supplied the world’s first Eaton TVS technology

supercharger to Toyota Australia, a global OEM, for the TRD Aurion program. Over 10 years ago we also worked on another world first, this time with FPV to develop the Ford Miami OEM TVS Supercharged Coyote engine. Our focus has always been to develop complete, high quality supercharger systems for a range of platforms including GM LS and LT, BMW S65, R53 Mini, Ford 5.0 & 5.4, Toyota 3UR, 1UR and 2GR, Subaru FA20, Nissan VK56, Hemi 5.7 and Holden 304– all designed and manufactured in Australia. 92 © MotorWerks Magazine - The Utimate Reading Experience! At Harrop we try not to get caught up in opinions and beliefs, and prefer to deal with the facts. A hot topic for debate recently has been Supercharger designs and the impact of Inlet Air Temperatures (IATs) delivered to the engine.

Myths Busted!

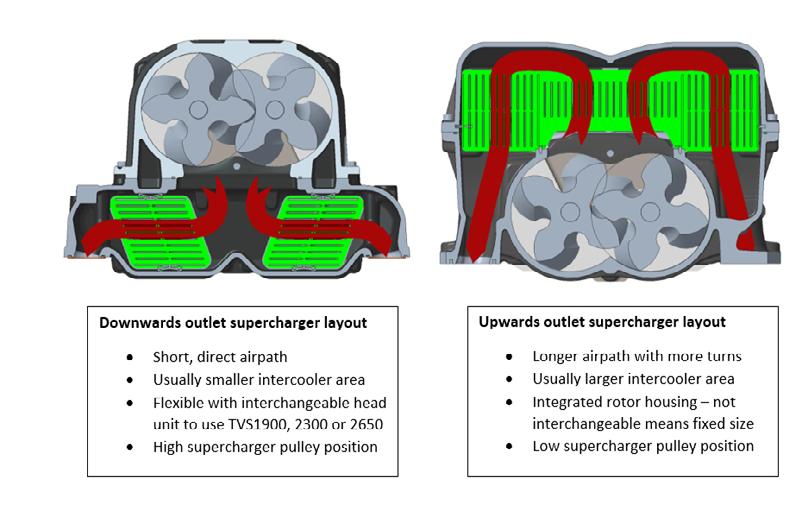

two common types. One where the air exits the supercharger downwards, and the other upwards. There are advantages and disadvantages of each, and the design is influenced by a number of factors including styling, available space, serviceability, manufacturing cost, rotating group, intercooling requirements, airbox and intake system, and very importantly – supercharger drive. It is interesting to note that- all other things being equal, neither design stands out as being significantly more efficient than the other. Our design objective is to develop complete, high quality supercharger systems while maximising the performance potential for our customers. We test to better understand what happens to the air through the induction side of the engine using our supercharger dyne cell, our vehicle dyne cells and testing through data acquisition at the race track. Shown on the next page are cross-sections of two Harrop Supercharger manifolds, at the left a downwards outlet and on the right an upwards outlet. Green highlighted surfaces are the inmanifold intercoolers.

Red arrows indicate the general, schematic airflow path. In reality this is much more complex, turbulent, rarely in a straight line and varies tremendously with volume flowrate and pressure. Air inlet is facing the reader into the ends of the 2x 4-lobe rotors in both cases.

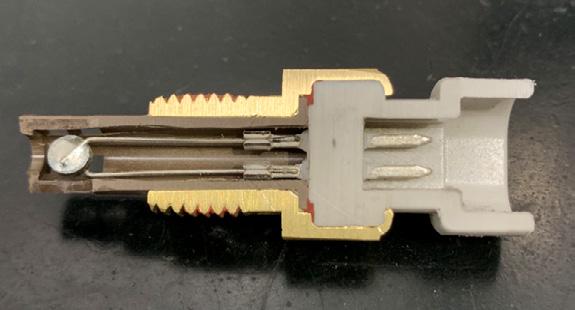

Measuring IATs Harrop Supercharger kits use a factory OEM sensor. We are confident that the engineers that designed these sensors spent a lot of time designing for both accuracy and durability. The image below shows a sectioned IAT sensor to clearly show the construction of the sensor. The brown and white components are non-conductive plastic and the part that measures the temperature is the circular thermistor hanging in free air on two thin wires at the left, heat soak through the casting is minimal. The sensor is designed to be accurate at the tip, even if the brass body of the sensor is very hot. Now let’s consider some key points regarding the position of the IAT sensor: * Must be in the post-intercooler airstream, close to an inlet port – need to know accurately what temperature the cylinder head is receiving. * Not directly facing an inlet valve – reversion can heat the thermistor *Avoid oil contamination of the sensor * Avoid fuel vapour which can cool the thermistor

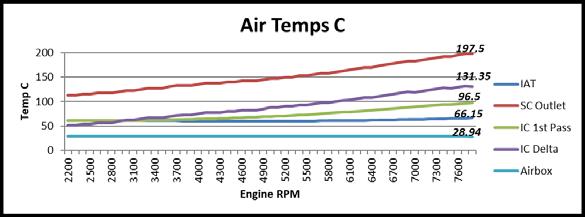

All of these must be taken into consideration when choosing the position of the IAT sensor. Our experience has shown that a high proportion of heat in the inlet air is added by the supercharger itself, not from heat transferred from the engine. The following chart shows data from a TVS2650 Mustang on our chassis dyno, where we added sensors and measured air temperatures throughout the supercharger air path. The light blue trace is the temperature of the air entering the supercharger (constant at ~29°C). The red trace is the temperature of the air exiting the supercharger (~198°C) before any intercooling, and the dark blue trace is the IAT that the ECU uses, after intercooling (~66°C). The run start point has about 11 PSI of boost and the end point just over 21 PSI. Whilst the supercharger outlet temperature almost doubles the IAT is well under control and increases by less than

30%. There is a lot of work done by the intercooler
