ARPA 12

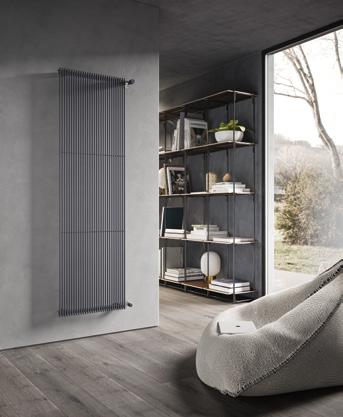

The sober verticality of the ARPA 12 radiator represents a modern aesthetic that integrates into any environment.

The style of ARPA 12 is completed in the modular functionality.

Available in 15 heights, from 4 to 60 elements in even number and thermal power from 54 to 3326 Watt.

(*) Thanks to the high performance of Irsap ARPA 12 Vertical radiators, the ideal ∆t for low temperature projects is ∆t at 30°C.

For ∆t different from 50°C use the formula:

Q=Qn ( ∆t / 50)n

Finishes available: see pag. 298.

• Maximum working pressure 10 bar

• Maximum working temperature 95°C

MANIFOLDS: Prearrangement for bottom connections with 1/2” welded fittings and internal baffle.

ARPA 12 Horizontal represents the aesthetic evolution of the decorative radiator, thanks to its longitudinal development and the squared profile of the elements. Every caloric need is met by the modularity and breadth of range. There are 15 proposed widths, from 4 to 60 elements in even number and thermal powers from 115 to 3394 Watt.

(*) Thanks to the high performance of Irsap ARPA 12 Horizontal radiators, the ideal ∆t for low temperature projects is ∆t at 30°C.

For ∆t different from 50°C use the formula: Q=Qn ( ∆t / 50)n

Finishes available: see pag. 298.

• Maximum working pressure 10 bar

• Maximum working temperature 95°C

MANIFOLDS: Prearrangement for side connections with 1/2” welded fittings and internal baffle.
