5.6 Zoning process

1

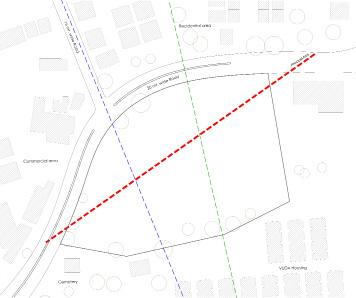

Figure 5.11 A Central Principal axis is created in the site which passes through the site and connecting both the roads in a straight line. This Principal Axis will act as a Street and central part for the project which will a multi-usable active public space throughout the day and around which all the functions will develop.

-Easy & Efficient connection with both the roads. -Site connecting all the functions around Axis (street). -directly accessible and easy for the user. -It will act main public street attracting people from outside.

2

Figure 5.12 Another two minor axis were created, one from the front secondary road and another one from the residential area. Both the axis later intersects with the Central Principal axis.

3

Figure 5.13 A principal axis and two minor axis divided the site in to six parts.

4

Figure 5.14 An intersection point of the principal axis and two minor axis created a major junction and later it will act as an interaction point that attracts people and maintains connectivity with surrounding spaces.

5

Figure 5.15 The diagram shows the division of the site into two major functions one is multifunctional space which includes a food court, cafe, food street, amphitheater, multipurpose hall, recreational space, etc. and another one is market space which includes a fruits and vegetable market, flower market, Seasonal and farmers market, dairy products, etc.

An intersection point of the principal axis and two minor axis created a major junction and later it will act as a public street which creates a connection with the main road and surrounding context.

6

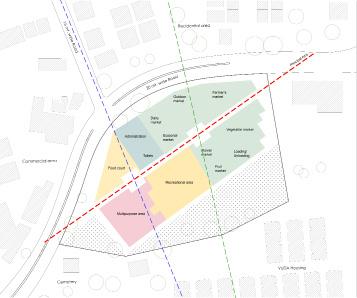

Figure 5.16 The diagram shows the detailed level zoning of the market and public function on the site along with the intersection of three axis. so the site develops in to this area only and below the part of site converted into green patch.
