THE PROPOSAL / UNITS TECHNICAL DRAWINGS

HOUSE TYPE NO.1 PLANS, SECTION,

Elevations

HOUSE TYPE NO.2 PLAN, SECTION, ELEVATIONS

THE PROPOSAL / STRUCTURAL BUILD-UP

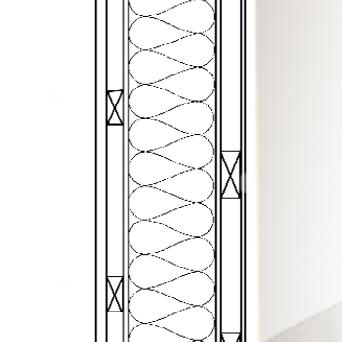

Structural Insulated Panels

The housing units will be mainly constructed of SIPs as they are generally more energy efficient, stronger, quieter and more airtight than older technologies. Less air leakage means less drafts, fewer noise penetrations and significantly lower energy bills, thus reduction in CO2 emissions.

Bridge Structural Support Made to support the bridge and its live loads, interior coloumns have been added to the community hub in order to extend a beam that supports the structure without increasing structural density on the exterior.

Bow String Truss Wire Tie

This strategy is usually used to span wide, column free spaces. It is constructed of a beam (the bow) joined by the ends by straight beam (the string), with diagonal beams as support for the two.

NORTH-EAST ELEVATION

SOUTH-EAST ELEVATION

SOUTH-WEST ELEVATION

NORTH-WEST ELEVATION
