Editor’s Choice for January

January 2022 COT’S PICKS

A Quantum Leap in Core Count

congatec introduces the 12th Generation Intel Core mobile and desktop processors (formerly code-named Alder Lake) on 10 new COM-HPC and COM Express Computer-on-Modules. Featuring the latest high-performance cores from Intel, the new modules in COM-HPC Size A and C as well as COM Express Type 6 form factors offer major performance gains and improvements for the world of embedded and edge computing systems. Most impressive is the fact that engineers can now leverage Intel’s innovative performance hybrid architecture. An offering of up to 14 cores/20 threads on BGA and 16 cores/24 threads on desktop variants (LGA mounted), 12th Gen Intel Core processors provide a quantum leap [1] in multitasking and scalability levels. Next-gen IoT and edge applications benefit from up to 6 or 8 (BGA/LGA) optimized Performance-cores (P-cores) plus up to 8 low-power Efficient-cores (E-cores) and DDR5 memory support to accelerate multithreaded applications and execute background tasks more efficiently.

In addition, the mobile BGA processors with, up to 96 Execution Units of the integrated Intel Iris Xe GPU have been estimated to deliver extraordinary improvements of up to 129% [2] in graphics performance for immersive user experience and can also process parallelized workloads faster, such as artificial intelligence (AI) algorithms, as compared to the 11th Gen Intel Core processors.

Optimized for the highest embedded client performance, the graphics of the LGA processor-based modules deliver now up to 94 % faster performance and its image classification inference performance has nearly tripled with up to 181% higher throughput [3]. In addition, the modules offer massive bandwidth to connect discrete GPUs for maximum graphics and GPGPU based AI performance. Compared to the BGA versions, these and all other peripherals benefit from doubled lane speed as they come with ultra-fast PCIe 5.0 interface technology in addition to PCIe 4.0 off the processor. Furthermore, the desktop chipsets provide up to 8x PCIe 3.0 lanes for additional connectivity and the mobile BGA variants also offer up to 16x PCIe 4.0 lanes off the CPU and up to 8 PCIe 3.0 lanes off the chipset.

Target industrial markets for both BGA and LGA variants can be found wherever highend embedded and edge computer technology is deployed. This includes, for example, edge computers and IoT gateways incorporating multiple virtual machines for smart factories and process automation, AI-based quality inspection and industrial vision, real-time collaborative robotics, and autonomous logistics vehicles for warehouses and shipping. Typical outdoor applications include autonomous vehicles and mobile machines, video security and gateway applications in transportation and smart cities, as well as 5G cloudlets and edge devices requiring AI-supported packet inspection.

“Leveraging Intel’s innovative performance hybrid architecture with impressive P - core performance in combination with power-efficient E - cores Intel Thread Director assigns each workload to the proper cores for optimum performance. Selected processors are also suitable for hard real-time applications with Intel TCC and TSN. In combination with full support for Real-Time Systems’ hypervisor technology, they are the ideal platform to consolidate a multitude of different workloads on one single edge platform. As this applies to low-power and high-performance scenarios alike, it enables highly sustainable designs with a small ecological footprint,” explains Christian Eder, Director Marketing at congatec.

Besides the highest bandwidth and performance, the new flagship COM-HPC Client and COM Express Type 6 modules impress with dedicated AI engines supporting Windows ML, Intel Distribution of OpenVINO toolkit, and Chrome Cross ML. The different AI workloads can seamlessly be delegated to the P-cores, E-cores, as well as GPU execution units, to process even the most intensive edge AI workloads. The built-in Intel Deep Learning boost technology leverages different cores via Vector Neural Network Instructions (VNNI), and the integrated graphics supports AI accelerated DP4a GPU instructions that can even be scaled to dedicated GPUs. Furthermore, Intel’s lowest power built-in AI accelerator, the Intel Gaussian & Neural Accelerator 3.0 (Intel GNA 3.0), enables dynamic noise suppression and speech recognition and can even run while the processor is in low power states for wake-up voice commands.

congatec www.congatec.com

January 2022 COT’S PICKS

ADLINK launches COM-HPC Client Type and COM Express Type 6 Modules with 12th Gen Intel® Core™ processors

ADLINK Technology Inc. introduces the world’s first 12th Gen Intel Core processor-based Computer-on-Modules (COMs), available in two form factors – COM-HPC Client Type and COM Express Type 6. ADLINK COMs with the Intel 12th Gen Intel® Core™ processor family (Codename: Alder Lake-H) allows for a unique design that can be adapted for single-thread or multithread performance. The advanced hybrid architecture can be used for stationary, mobile, and portable solutions. It also provides system integrators with a future-proof design that supports both current and future best-in-class peripherals.

“Working closely with Intel, we are bringing timely, next-generation computing modules to the market with Intel® Alder Lake-H,” said Alex Wang, Senior Product Manager - Module Product Center, ADLINK. “We now offer a full line-up of COM-HPC and COM Express modules for any deployment scenario and budget.”

ADLINK COMs with Intel® Alder Lake-H provides support for PCIe 4.0 and DDR5 memory with up to 4800 MT/s combined with increased cache, as well as security and manageability features, AI enablement to deliver intelligent workload optimization, enhanced graphics, AI, computer vision, and enhanced peripheral, connectivity, and fast memory access capabilities.

The integrated Intel® Iris® Xe graphics architecture, with up to 96EUs, offers four concurrent 4K60 HDR displays and an Intel Deep Learning Boost to deliver superior AI performance. Using DDI, eDP 1.4b, and USB4/TBT4, the four independent displays support Display Alternative mode, providing premium graphics features for superior content support, display, and I/O virtualization.

ADLINK Technology Inc. www.adlinktech.com

13.3-inch Full HD TFT delivers exceptional optical performance - Bright, colorful, and highly consistent image reproduction

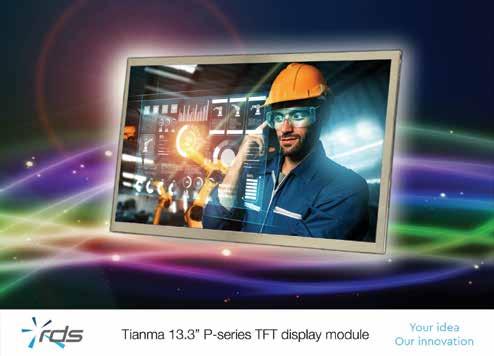

Review Display Systems Inc. (RDS) has announced the introduction of a new 13.3inch TFT display module from industrial display manufacturer Tianma. The P-series P1330FHF1MA00 features Full HD (FHD) resolution (1920 x 1080 pixels), a wide 16:9 aspect ratio, and in-plane switching (IPS) technology which provides excellent optical performance.

Tianma P-series (Professional series) TFT display modules have been designed and developed to deliver exceptional optical performance and meet the demanding requirements of the industrial and medical display markets and applications where reliable and consistent operation is considered paramount.

The 13.3-inch display features a contrast ratio of 1000:1 and a white LED backlight, complete with an integrated driver, provides a specified brightness rating of 1000cd/m² and a 50K hour half-brightness lifetime. In-plane switching (IPS) technology enables a wide viewing angle of 88 degrees in all viewing directions (left, right, and up, down). These key characteristics ensure that the 13.3-inch P-series TFT module produces display images that are bright, colorful, and highly consistent.

Justin Coleman displays division manager, RDS said, “The Tianma 13.3-inch P-series display offers a strong feature set that provides excellent optical performance and a color gamut that delivers bright, saturated color display images that can be easily seen from all viewing directions. P-series display modules have been specifically designed for use in a wide range of human-machine interface (HMI) applications where reliable, long-term operation in challenging application environments is required.”

The 40-pin LVDS data interface supports 8-bit RGB which enables a color palette of up to 16.7M colors. The 13.3-inch display module features mechanical outline dimensions of 308mm (w) x 188mm (h) x 10mm (d) and an active display area of 293.76mm (w) x 165.24mm (h). An operating temperature range of -20°C to +70°C is supported.

Review Display Systems Inc. https://review-displays.com/

January 2022 COT’S PICKS

VadaTech Announces a Two Slot 3U VPX Rackmount Chassis with RTM for Conduction Cooled

VadaTech announces the VTX985. The VTX985 is a dual-slot 3U VPX chassis conduction-cooled for two 3U VPX modules. The chassis can accept a front and a Rear Transition Module (RTM). The Chassis CPU will monitor and maintain the VPX module wedge temperature, set by the user which allows testing of the conduction-cooled modules without going through the thermal chamber. Additionally, the chassis has provision to mount to a 19” Rackmount and a Universal AC power supply that provides 400W to the chassis. The chassis supplies all the necessary power (+12V, -12V, +5V, +3.3V, etc.) to the module per VITA 46 specifications and a battery pack is included that provides VBAT to the module. The chassis provides the current draw on the +12V, +5V, and +3.3V by the VPX module and its associated RTM.

Five Port Gigabit Ethernet Controller Document

CN8-REVERB EKF continues to support classic CompactPCI® systems. The CN8-REVERB is a peripheral slot card, equipped with five independent Gigabit Ethernet controllers. The Intel® I210-IT Ethernet NICs provide the latest networking technology and support most common data rates 1000BASE-T, 100BASETX, 10BASE-T. The CN8-REVERB combines a PCI® to PCI Express® reverse bridge with a PCIe® packet switch, for optimum bandwidth usage of the CompactPCI® backplane. The board is well suited for various industrial networking applications and also for PXI™ systems. Drivers are available for all major operating systems.

EFK www.ekf.d

The VTX985 also has temperature control via variable speed fans controlled by the onboard CPU which keeps the wedge at the user-defined temp. The backplane provides all the necessary VITA 46 signals set by the user (NVMRO, SYSRESET, SYS_CON, driver the dual clock, etc.). All the connectors are installed P0 thru P6 and are routed from the front to the rear. The unit can be ordered with custom routing between the two modules but the default routing routes all P1 ports between the two modules. The backplane also breaks out the JTAG signals via a header connector to enable the external connection of a JTAG probe.

Additionally, the chassis comes with the VadaTech 4th Generation shelf manager (VT040) that monitors the VPX board sensors in compliance with VITA 46.11. The VT040 supports Tier 2 Health Management and comes with the VTX985 chassis. For a more complete and detailed description of the VT040, the data sheet may be downloaded from VadaTech web page.

VadaTech http://www.vadatech.com

January 2022 COT’S PICKS

Acumentrics Introduces Half-Rack UPS™ Power Solutions with the Industry’s Highest Power Density

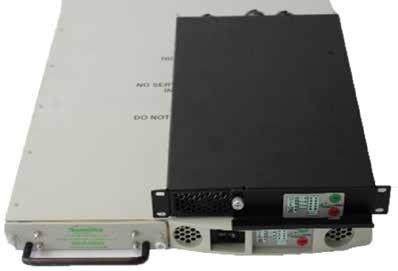

Acumentrics introduces their 1000W Rugged Half Rack UPS™ (Uninterruptible Power Supply) with industry-leading SWaP-C, providing the warfighter with a new level of power-portability for mission-critical applications. At just 12 lbs, Acumentrics’ Rugged Half Rack™ UPS features an industry-leading power density of 83W per pound and is just one-third the size of a 1000W full-size chassis.

Acumentrics’ 1000W Half Rack UPS™ provides the autonomous power needed for small form factor networking, communication, and computer platforms that support “Quick at the Halt” and “On the Move” mounted and dismounted tactical missions. This Mil-Standard Certified UPS provides systems architects with a COTS (Commercial Off The Shelf) power system that can be easily integrated with Small Form Factor Modules from DTECH; KLAS; PACSTAR; Mercury; HP; and Dell, along with other computer networking and communication modules that require 20VDC to 30VDC mission-critical power. It is also compatible with small form factor transit cases that are available from Ameripack, ECS, Desapro, and others.

Said Steve Corbesero, Acumentrics Senior VP of Sales and Marketing, “Our engineering team used advanced technologies and high-performance digital control to optimize the SWaP-C of the 1000W Half Rack UPS™.

We’ve reduced the size and weight of this portable UPS while providing the rugged power and runtime necessary for the warfighter to deploy fully operational electronic systems in austere environments. In military applications, this means portable power that can increase the survivability, lethality, and responsiveness of the combat soldier, while giving them the technical advantage at the tactical edge.”

Acumentrics www.acumentrics.com

January 2022 COT’S PICKS

Acrosser Technology Announces introduces industrial Server Grade Autonomous Vehicle Server Computer

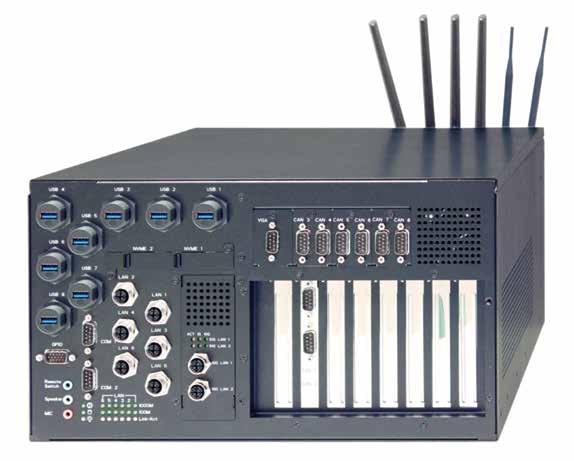

Acrosser Technology Co., Ltd. announces the release of industrial-grade Edge AI and Autonomous Vehicle Server, the AAD-C622Ax series that combines the power of the serve-grade processor and the ruggedness of the In-Vehicle Computer. AAD-C622Ax supports Intel® 2nd Gen Xeon Scalable Processor (Cascade Lake) with C622 chipset and it provides 5 PCIe x16 slots with a maximum power consumption of 1000W, and 3 of the 5 PCIe x16 slots are intended for NVIDIA® or AMD high-end graphics cards to meet demanding applications like real-time edge computing, Autonomous Driving or AIoT/ Industry 4.0.

Designed to work in vehicles, AAD-C622Ax provides a variety of I/O connection options including 6 M12 X-coded GigE LAN, 8 lockable USB 3.2, 2 RS-232/422/485, 3 SIM slots, and 2 2.5” SSD and 2 M.2 type swappable NVME storage. Additional expansion is available through our accessory kits with 2 M12 X-coded 10GigE LANs and CAN FD/CAN Bus module to meet the ever-changing requirements.

“AAD-C622Ax, is the latest Edge AI & Autonomous in-vehicle server released by Acrosser Technology that provides high-speed computing capability and variety I/O options to meet the demanding customer applications and connects to standard vehicle voltage outputs of 12Vdc or 24/48Vdc along with power ignition control function, “said Alan Chou, Product Manager at Acrosser.

Acrosser Technology provides industry-leading solutions with 30+ years of experience from supplying field-proven standard products to OEM/ODM services. Customers can always find the best solutions from the wide range of the products offered by Acrosser Technology to meet their exact application, shorten the time to market by reducing the development time, and accelerate the deployment process.

Acrosser Technology Co., Ltd. www.acrosser.com
