BUILDING A BACKREST

A sissy bar upright and passenger backrest are the starting point to build a complete touring machine. The backrest provides long-range comfort and support and adds a feeling of control and confidence for the passenger. Start by selecting model-specific Docking Hardware, then choose a finish that matches your styling direction, determine the desired sissy bar height and finally select a backrest pad that complements your seat.

Docking Hardware Side Plates

A. H-D DETACHABLES SIDEPLATES

Backrests & Racks

A. H-D® DETACHABLES™ SIDEPLATES

In the time it takes for a traffic light to change, you can transform your motorcycle from a city cruiser to a crosscountry hauler. Start with Harley-Davidson® Detachables™ Sideplates, and add your choice of sissy bar upright and pad to make removing the passenger backrest a simple slide and click operation. Manufactured and tested to rigorous HarleyDavidson standards, installation requires separate purchase of model-specific Docking Hardware Kit.

Fits ’00-’17 FLST, FLSTF, FLSTFB, FLSTFBS, FLSTN, FLSTNSE, FLSTSB, FLSTSC, FLSTSE, FXSB, FXSBSE, FXST, FXSTB, FXSTS, FXSTSSE and ’06 FLSTFSE models with or without saddlebags (except Heritage Softail® Saddlebags P/N 9087605). Requires separate purchase of Docking Hardware Kit and may require Directional Relocation Kit. See chart for your application.

53810-00C Chrome.

54258-10A Gloss Black.

Fits ’00-’17 FLSTC and ’00-’03 FLSTS models. Also fits ’05-’15 FLST and FLSTSC models with Heritage Saddlebag P/N 90876-05. Requires separate purchase of Docking Hardware Kit and may require Directional Relocation Kit. See chart for your application.

53815-00A Chrome.

SISSY BAR UPRIGHTS

Sissy Bar Uprights are available in a variety of shapes and styles. Round bar uprights feature a mini medallion bar and an embossed Bar & Shield insert. Uprights are designed to accept specific 3-bolt or 2-bolt mounted backrest pads.

SHORT & TALL UPRIGHT

Passenger Backrest Pad

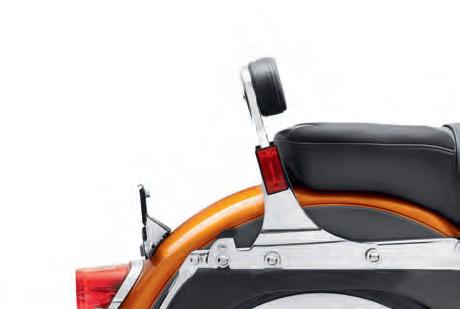

B. LOW SISSY BAR UPRIGHT – CHROME (52300022 SHOWN)

B. LOW SISSY BAR UPRIGHT – GLOSS BLACK (54256-10 SHOWN)

B. LOW SISSY BAR UPRIGHT

Shaped to complement a thicker passenger pillion, the ideal match for touring style seats, this upright also offers additional height options to riders with custom style seats.

Fits ’04-’22 XL models with H-D® Detachables™ sideplates, ’06-’17 Dyna® (except FXDF, FXDFSE and ’10-’17 FXDWG), ’84-’05 Softail® (except FXSTD) and ’06-’17 FL Softail models (except ’07-’17 FLS, FLSS, FLSTF, FLSTFB, FLSTFBS, FLSTSE and FLSTSB and ’06 FLSTFSE) with appropriate sideplates.

52300022 Chrome.

Fits ’07-’17 FLSTF, FLSTFB, FLSTFBS, FLSTSB, FLSTSE and FXSTC, ’06 FLSTFSE, ’06-’17 FXST, FXSTB and FXSTS and ’07-’08 FXSTSSE models with appropriate sideplates. ’07-’10 FXSTC models require separate purchase of Fender Mounted Seat.

SELECT THE DOCKING HARDWARE

2000-later Softail® Docking Hardware for H-D® Detachables™ Racks, Tour Pak® Racks & Sideplates Docking hardware fitment is dependent on vehicle model and saddlebag configuration.

H-D Detachables Accessory Available to fit: Docking Hardware Directional Relocation Kit

No Saddlebags Detachable Sideplates 53810-00C (Chrome), 53857-00B (Wrinkle Black), 54258-10A (Gloss Black), Solo Detach Rack 53649-05A (Chrome), 53612-08, 53652-05 (Black), One-Piece Detach Sissy Bar Upright P/N 53618-05 (Chrome), 52729-08 (Black), FXS One-Piece Sissy Bar P/N 52828-11, 52760-11, Solo Detach Tour-Pak® Rack 53559-04B or Two-Up Detachable Tour-Pak Rack 54051-08A, 53066-00D.

With P&A Saddlebags Detachable Sideplates 53810-00C (Chrome), 53857-00B (Wrinkle Black), 54258-10A (Gloss Black), Solo Detach Rack 53649-05A (Chrome), 53612-08, 53652-05 (Black), One-Piece Detach Sissy Bar Upright P/N 53618-05 (Chrome), 52729-08 (Black), Solo Detach Tour-Pak Rack 53559-04B, Two-Up Detachable Tour-Pak Rack 54051-08A, 53066-00D.

With P&A Saddlebags 53015-05, 53061-00A, 88237-07, 88238-07, 88263-07, 88286-07, 90058-05, 90114-00A, 90119-00A, 90130-00B, 90133-06B, 90200765, 90200816, 90201389, 90320-00B, 90384-04, 90384-06, 90388-04, 90419-08, 91536-00A, 91537-00A, 91555-01A, 92000-00B and 92015-03.

With Original Equipment Saddlebags Detachable Sideplates 53815-00A (Chrome), Adjustable Sideplates 52300001 (Chrome), Solo Detach Rack 53649-05A (Chrome), 53652-05 (Black), Solo Detach Tour Pak Rack 53559-04B or Two-Up Detachable Tour Pak Rack 54051-08A, 53066-00D with Original Equipment Saddlebags or with P&A Saddlebags P/N 90876-05.

2003-2017 FXST, FXSTB, FXSTS, FXSTSSE, FXSTC, FLSTF, FLSTFB, FLSTFBS, FLSTSB,

B. LOW SISSY BAR UPRIGHT – CHROME (52540-09A SHOWN)

B. LOW SISSY BAR UPRIGHT – GLOSS BLACK (52300401 SHOWN)

51477-06 Chrome.

54256-10 Gloss Black.

Fits ’13-’17 FXSB and FXSBSE, ’16-’17 FXSE and ’09 FXSTSSE models with appropriate H-D Detachables sideplates. FXSTSSE models require separate purchase of Hardware Kit P/N 52300306.

52540-09A Chrome.

52300401 Gloss Black.

C. STANDARD SISSY BAR UPRIGHT for

Give your passenger additional back support with a Standard Sissy Bar Upright designed to accept a wide variety of backrest pads.

Fits ’04-’22 XL models with H-D Detachables sideplates, ’06-’17 Dyna (except FXDF, FXDFSE and ’10-’17 FXDWG), ’84-’05 Softail (except FXSTD) and ’06-’17 FL Softail models (except ’07-’17 FLS, FLSS, FLSTF, FLSTFB, FLSTFBS, FLSTSE and FLSTSB and ’06 FLSTFSE) with appropriate sideplates. 52300018 Chrome.

52300020 Gloss Black.

C. STANDARD SISSY BAR UPRIGHT –GLOSS BLACK (52300020 SHOWN)
