high-tech transparent skin

Refined structural members according to strength allow varying transparency of the facade, machineries are then showcased.

Double-skin facade is applied due to environmental concern. Tensile fabric serve the functional use of blocking high-angle sun shade while allowing visual connection in multiple perspectives.

Refined members allow varying transparency of the facade, machineries are then showcased.

Double-skin Facade System

1. Fabric

2. Double Glazing

3. Spider Fitting and Connector

4. Wooden Flooring with Vinyl Finish

5. I Beam for Raised Floor

6. Insulation

7. 50mm Concrete Slab Floor

8. 200mm Steel I Beam

9. Steel Connector

10. CHS Steel Truss

11. Operatable Window

Machine Workflow

Learning about how the facilities work are essential: the mechanism, water levels, machine dimensions, substance supply through pipes, etc.

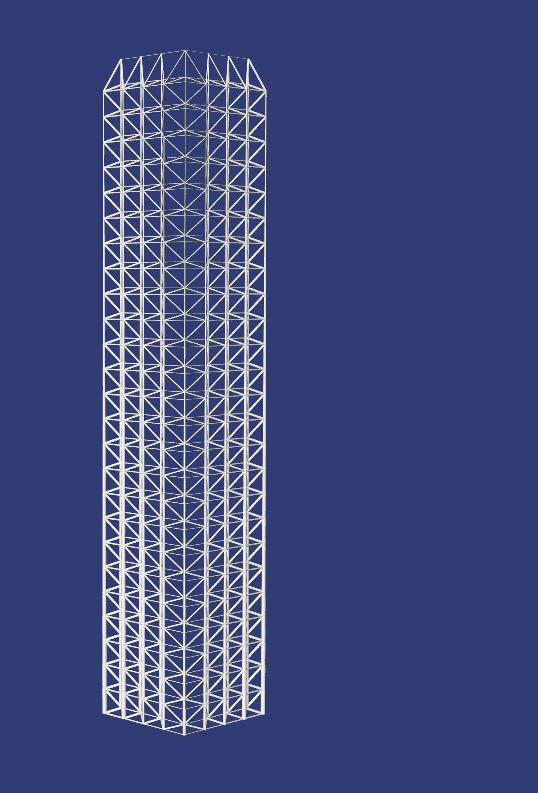

Robust Module Structure

The unique structural solution was to counter the limited footprint. Hence, it all start with a pair of diagonal corner cores.

WHAT IF: Grinch

The Chirstmas Tree houses all the instruments from Spring to Autumn, standing tall and proud on the flowing river water. There are also underwater tracks hiding beneath. When winter comes, tracks appear on the snow, the Tree opens up, finally all the instruments glides out through the tracks. Party starts!

“evergreen”

“...Tree opens up, all instruments glides out through the tracks. Party starts!”
