IMD's Monthly Product Showcase features the latest from some of the manufacturing industry's top suppliers.

WD-40 Company Makes it Easier for Professionals to Find the Right Product for Their Job with the WD-40 Specialist® Line

Research indicates fabricating and metalworking professionals increasingly prefer specialized products with specific applications – and the newly redesigned packaging of the superior performing WD-40 Specialist® line makes it easier than ever to identify the right product for specialized maintenance needs.

The WD-40 Specialist line – including lubricants, penetrants, greases, cleaners and degreasers, and rust-management solutions – are best-in-classic products that now bear the colors of WD-40® Brand, meaning for every challenge there is now a blue and yellow can. With the redesign, the WD-40 Specialist line more closely resembles the iconic WD-40 Multi-Use Product, making it easier to identify the brand professionals have known and trusted for decades.

The company says the more than 20 WD-40 Specialist products provide superior performance born from rocket science and include WD-40 Specialist Gel Lube, Silicone, White Lithium Grease, Penetrant with Flexible Straw, Contact Cleaner and Dry Lube, among others. They were developed to work in the most demanding situations, providing specialized solutions for industry professionals in factories, facilities, automotive garages and on farms around the world.

» Explore more about WD-40 Specialist products, the new look, and find a retailer near you at wd40.com/specialist

Suhner Offers Efficient Machining with Special Guards Suhner Industrial Products Corp. (Rome, Georgia) is proud to introduce machining units with special guards that protect mechanical and electrical components against contamination from fiberglass dust and fibers, as well as dust from composite and 3D printed products. Suhner offers automated drilling, boring, tapping, threading and other tools for high-production environments on these products throughout North America.

When drilling high quality holes into sheet metal composites and dissimilar material stacks of resin bonded fibers or 3D printed polymer substrates, for example, these dust-protected machining units are an ideal solution. They are universal and can be positioned everywhere alongside the workpiece for precision, automatic machining. Regardless of the complexity of the workpiece or the number of operations that need to be performed, all machining units work at the same time and only the longest operation defines the total cycle time, when the units are used in multiple setups.

ABB Expands Small Robot Family with Fast And Powerful IRB 1300 For Confined Spaces Building on the success of ABB’s IRB 1600 robot for payloads up to 10kg, the IRB 1300 offers a 27 percent improvement in cycle times and is nearly 60 percent lighter and 83 percent smaller than the IRB 1600. With a footprint of just 220 mm by 220 mm, the IRB 1300 is designed for use in small spaces, enabling more robots to be deployed in a confined area. To maximize the versatility of the IRB 1300, the OmniCore controller can be equipped with a range of additional equipment, including fieldbus protocols, vision solutions and force control.

» For more information, visit www.abb.com

The RCE-710, ATI’s First Radially-Compliant Electric Material Removal Tool The RCE-710 features large bearings, a shaft designed for demanding robotic use and a variable speed motor with a range of 0 to 13,000 rpm. It is built to handle a diverse array of robotic material removal tasks such as rust and weld spatter removal, blending, polishing and light grinding. The new electric tool features built-in compliance to simplify and streamline the programming process, and to compensate for part and fixturing misalignments. The motor rotates clockwise and counterclockwise and produces continuous torque on the work piece.

» For more information, visit www.ati-ia.com

BIG KAISER Adds New Sizes to EWE Digital Boring Head Program BIG KAISER Precision Tooling is expanding its offering of digital boring heads to include head sizes down to the CKB1 modular tooling connection size, which means boring down to Ø.787” for Series 310 peripheric heads, and Ø.016” for Series 112 centric boring heads. Due to the small sizes of these boring heads, the digital display will no longer be present on the head itself, rather the adjustment value will be shown on a separate mobile device or tablet that has the BIG KAISER App installed.

» For more information, visit www.us.bigkaiser.com

Doosan’s Versatile 5-Axis DVF Series

The DVF 5000 is equipped with a CAT40/BIG PLUS® taper 18,000 r/ min spindle, which facilitates high speed metal removal. The DVF 5000 features a 19.7-inch diameter B- over C-axis rotary table with a 24.8-inch (option. The machine table is an integrated cantilever style full 5-axis table, which allows for the machining of parts from a variety of angles. Built-in table support holds a maximum weight of over 880 pounds and minimizes any table deflection. The rotary table is designed for user friendliness and consummate work efficiency, minimizing interference as the part is machined.

» For more information, visit www.doosanmachinetools.com

Coxreels® Brawny Option for the 100 Series Reels

Coxreels is proud to offer the Brawny option available for most 100 Series hose reels. The 100 Series reel can be mounted to a floor, wall, ceiling, bench, or truck and is made of steel for strength and durability with a U-shaped frame for 2-point axle support to provide stability during operation. The Brawny feature is an added option that adds strength to the drum, minimizing potential damage under increased or pulsing pressure usage. By adding the additional strength to the drum, these professional grade reels are better prepared to tackle the toughest jobs in the industry.

» For more information, visit www.coxreels.com

New Emuge Micro End Mills and Chucks Offer Efficient Machining of Challenging Materials Emuge Corp. has announced the introduction of its new Micro End Mills and Micro Milling/ Drilling Chucks for a wide range of applications such as die and mold, medical and more. The Micro End Mills feature a patented neck design with up to 10x diameter, enabling reach into deep contours. The new Emuge end mills offer High Speed Cutting finishing of 2D and 3D contours, and are offered in square, ball nose, and torus end types. Featuring a short, stable cutting geometry, the end mills are available in Solid Carbide and CBN designs.

Electronics LCD Preset Hourmeter For Maintenance Applications ENM’s series PT12 features two 6-digit, 7 segment LCD displays, channel two is self-programmable. The service LED light informs the operator when the preset value setting is reached. The accumulated hours are stored on powerless, non-volatile data backup using CMOS EEPROM technology, where small space and reliable instruments are required with memory that does not rely on a battery. Hour meter module displays hour glass and decimal point. This model is ideal for maintenance applications.

» For more information, visit www.enmco.com Exact Metrology Performs Bulk Plastic Cap Inspection The GOM CT scanner used by Exact enables the inspection of complex parts based on volume. It produces the finest details visible throughout the component, simplifying initial sampling, tool correction and inspection tasks during production. It captures complex components including the "inner workings" in a single scanning process, so that the user receives a complete image of the test specimen for form and position analysis or nominal/actual comparisons. As with all GOM metrology systems, the control of the device, data acquisition and evaluation are combined in a single software package. The chain from recording the raw data to creating the measurement report is greatly simplified.

» For more information, visit www.exactmetrology.com

Four Outlet Selectable Voltage Power Supply for Static Eliminators EXAIR’s new Gen4 Four Outlet Selectable Voltage Power Supply allows you to choose input voltages of 115VAC or 230VAC. Four 5kV stainless steel output connectors can energize four static eliminators at the same time. Applications using up to four Gen4 Super Ion Air Knives, Ion Air Guns, Ion Air Cannons, Ionizing Bars or any other EXAIR Gen4 static eliminator product can be connected to one power supply. Like all EXAIR Gen4 products, these four outlet power supplies are UL component recognized, CE and RoHS compliant. They also feature an electromagnetically shielded modular power supply cable which eases routing and connections.

» For more information, visit www.exair.com

quality matters. every time.

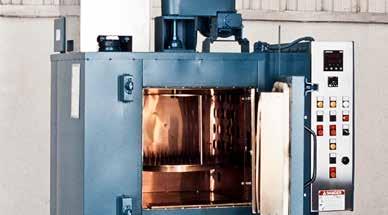

High-Temp Cabinet Oven From Grieve No. 987 is an 850ºF electric cabinet oven from Grieve, currently used for baking various paint samples at the customer’s facility. Workspace dimensions of this oven measure 20” W x 20” D x 20” H. 10 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 600 CFM, 1/2-HP recirculating blower provides horizontal airflow to the workload. This Grieve cabinet oven features 4” insulated walls, aluminized steel exterior, Type 304, 2B stainless steel interior, a silhouette plate with removable cover inside the door opening. All safety equipment required for handling flammable solvents are onboard No. 987, including explosionventing door hardware.

» For more information, visit www.grievecorp.com

PRO GRADE HOSE, CORD, & CABLE

REELS

SOLUTIONS FOR:

AIR / WATER | HYDRAULIC | PNEUMATIC | VACUUM | WELDING | POWER

AND MORE TOLL FREE | 800.269.7335 FOLLOW US:

www.coxreels.com

EnviroMax Laminar Flow Clean Work Station EnviroMax Laminar Flow Enclosures are engineered and built to meet critical clean requirements within the laboratory. Typical applications include liquid handling stations, compounding, high throughput screening, sample weighing, powder handling, HPLC equipment and other related systems. The enclosure isolates the process while the HEPA filter system maintains a positive pressure and ISO 5 class 100 conditions by protecting the process from surrounding contamination. Standard sizes range from 4’ to 8’ wide, 2’ to 4’ deep, and 3’ to 5’ high. However, custom sized enclosures to contain and protect larger integrated instrument systems can be constructed to meet specific size and design specifications.

Koike Introduces Their New Welding Manipulator for Pipe Fabrication, The Cricket-I The Cricket-I manipulator with 6 feet of powered lift and 6 feet of manual reach, provides users with stable welding from end-to-end. The Cricket-I was developed specifically to meet customers’ demand for fixed automation equipment compact enough to fit into small to mid-size fabrication shops. Customers have the option of purchasing an entire pipe welding package that incorporates both the Cricket-I and Koike’s standard Wel-Handy Multi Next and WU-3 weaver that is mounted on the end of the boom.

» For more information, visit www.koike.com

IF YOU HAVE AN EDGE… WE HAVE A TRIM!

FREE SAMPLES FREE CATALOG

Test Our Trims and Seals for Quickly View Our Most Popular

Fit and Function Lines of Trims and Seals DESIGN ASSISTANCE Let Us Help You Find the Right Trims and Seals

Mitsui Seiki VGi20A Ball Screw Nut Grinding Multitasking Machine Mitsui Seiki’s VGi20A Ball Screw Nut Grinding Multitasking Machine performs grinding and machining in one chucking, slashing nut processing time by two thirds. With five axes of motion and storage for 40 tools, the machine can grind thread grooves and also machine the nut circumference, end surface, key grooves, and return tube holes in a single setup. In addition to producing large savings in manufacturing time, elimination of setup changeovers also assures exact phase alignment of thread grooves and return tube holes. The machine produces threads via simultaneous interpolation of the C-, Y-, and Z-axes.

Same Day Shipping on Thousands of Parts

CALL US TODAY! 800-663-9507

HEADQUARTERS 6855 HERMOSA CIRCLE BUENA PARK, CALIFORNIA 90622

MIDWEST MANUFACTURING 1642 GATEWAY COURT ELKHART, INDIANA 46514

WWW.TRIMLOK.COM INFO@TRIMLOK.COM

New Ex9CA Safety Contactor from NOARK Electric NOARK Electric is proud to announce the release of the new Ex9CA Safety Contactor. The NOARK Ex9CA Safety Contactor is designed for use in safety function applications. It offers unique features that allow the design of safety control circuits with current ratings up to 38A. The Normally Closed (NC) Auxiliary contact is a mirror contact to the main contacts and is mechanically linked to the Normally Open (NO) Auxiliary contacts. This allows for optimal design selections in SRP/CS. Applications for the Ex9CA include: E-stops, light curtains, safety gates and safety interlocks.

» For more information, visit na.noark-electric.com

C-FRAME PRESSES

• Heavy Gauge Steel Design • Press Bed bolted on, not welded, to prevent distortion. • Large press bed to accommodate a variety of tooling other than just punching. • Pump, motor, valve and reservoir are all easily accessible for maintenance. • Large rectangular tubes used at base of machine to give safe, instant portability.

HYDRAULIC MACHINES OF IOWA A Division of Betenbender Mfg. Inc

5806 Quality Ridge Rd Coggon, IA 52218 Phone: 319.435.2378 Fax: 319.435.2262 www.betenbender.com

New High Precision Norton Winter AEON Electroplated Wheels New Norton Winter AEON Electroplated Grinding Wheels are for high precision applications in the automotive, medical and aerospace markets. An innovative design and manufacturing process give AEON wheels the ability to hold an extremely tight profile tolerance of ± 5µm at a maximum wheel diameter of ~24" (600mm) and width ~12" (300mm), weighing up to 551 lbs (250 kg). These grinding wheels have a single usable abrasive layer design, with diamond or cBN particles mechanically fixed onto the core surface by an electrochemical process of nickel deposition. This unique layer design provides high grit retention levels for long wheel life.

» For more information, visit www.nortonabrasives.com

OnRobot Launches Out-of-the-Box Robotic Sanding Tool for Cost-Efficient Finishing Applications Traditional sanding automation solutions often require a background in robotics to implement and maintain. With the launch of OnRobot Sander, manufacturers now have access to a complete out-ofthe-box sanding tool that's easy to use with all major collaborative and lightweight industrial robots. The complete Sander package incorporates everything OnRobot customers need to get their sanding application started quickly and easily: a plug-and-play sanding tool, a variety of standard sanding and polishing pads, easy-to-use programming software, an optional force/ torque sensor and a Grit Changer that enables automated switching between different sanding grits without operator intervention.

Fully Automatic Horizontal Dual Post Band Saws from Palmgren Constructed from heavy duty cast iron and steel, Palmgren’s Fully Automatic Horizontal Dual Post Band Saws provide superior stiffness and vibration dampening. The band saw collection features an advanced powertrain that utilizes a precision gear and hardened ground worm shaft. The taper roller bearings operate in an oil bath to deliver smooth, quiet positive sfpm to the blade. The band saws have fully automatic on demand hydraulic controls for the saw heads, shuttle vises and split-jaw clamping vises. Palmgren, now in its second century, is a C.H. Hanson brand.

» For more information, visit www.palmgren.com

Servo Products’ New Micro Drill Press A complete mini drill press with a brushless motor programmed via CNC panel, SERVO’s model 708-CNC offers the ability to download, upload, and store hundreds of integrated speed and motion direction programs on one controller, delivering infinite program control. Ideal for continuous use (24/7) applications, where downtime and carbon dust is not desirable, SERVO’s Mini Drill Presses with the Model 708-CNC control keeps running without the need to change brushes. It also offers better speed regulation and more torque. Switching the spindle direction from forward to reverse and back, and spindle RPM controls, are now the standard on SERVO’s Model 708-CNC.

» For more information, visit www.servoproductsco.com

Platinum Tooling Offers Heimatec Live Tools for New HAAS BMT Turret Platinum Tooling announced that it has an extensive line of Heimatec tooling available for the new Haas BMT turret. The line includes a variety of driven tools (axial and radial drilling & milling heads) as well as static tool holders. Platinum Tooling also offers specialty tools for this turret including multi-spindle, adjustable angle, and speed multipliers. Platinum Tooling already offers the most complete line of live tools available in the machine tool industry today, with over 40,000 designs in its database.

» For more information, visit platinumtooling.com

SPRINTER MACHINES…

• Provide reliable, low cost, ink code marking. • May be mounted in any orientation. • The sealed ink system allows discontinuous operations with immediate start-up of comparable previous impressions. • Can be modified or made to order for your particular marking application.

Model 416 Ink Code Marking Machine

INDUSTRIAL INK MARKING SYSTEMS

SPRINTER MARKING supplies all the basic, optional and auxiliary equipment, as well as, operating supplies for normal code-marking operations.

740-453-1000 | SALES@SPRINTERMARKING.COM SPRINTERMARKING.COM

Flexible Servo Drive System For Demanding Geared Motor Applications Sinamics S120 drives and Simotics S-1FG1 servo geared motors are an integral component of Siemens Totally Integrated Automation (TIA), which reduces engineering time and costs. Pre-fabricated Motion-Connect signal and power cables offer an easy and reliable method of connecting the components. The engineering of the Simotics S-1FG1 servo geared motor includes high efficiency and low torsional backlash for precise, dynamic motion sequences and is available in the following versions: helical, parallel shaft, bevel and helical worm gearboxes with up to 25 transmission ratios, depending upon the type of gear and gear size required.

» For more information, visit usa.siemens.com

agro-hytos hydraulic products

filtration… The range of filter solutions implemented at Argo-Hytos extends from fixed-position industrial plants to highly mobile applications, primarily tailored to individual customer requirements. As a result of their vast experience with custom applications over a wide variety of sectors, Argo-Hytos offers a comprehensive range of innovation standard solutions: Suction Filters; Return and Return-Suction Filters; Pressure/ High Pressure Filters; Filling and Ventilating Filters; Filter Accessories; Sensor Technology. fluid and motion control… Directional control ValVes D02/D03/D05/D07/D08: Argo-Hytos DC and dual frequency AC coils can be rotated to locate connectors to your need. DIN, Deutsch Flying Leads and Wire Box Connection are available as standard Manual Override. Full line of Sandwich Controls. FiVe series oF ValVes rate to 5000 Psi: RPE3-04, providing 8.0 GPM; RPE3-06, providing 21.0 GPM; RPE4-10, providing 37.0 GPM; RPE4-16, providing 80.0 GPM; RPE4-25, providing 160.0 GPM Gear PumPs: Argo-Hytos gear pumps provide high reliability, high volumetric efficiency, and low noise levels over the entire operating range. three series: GP1-P, maximum pressures from 2300-4350 flows 1.0 gpm; GP1-T, maximum pressures from 1700-4200, flows 1.0 to 17.0 gpm; GP1-Q, maximum pressures from 29004500, flows 7.1 to 42.8 gpm.

7355 N. Lawndale Ave., PO Box 6, Skokie, IL 60076 Phone: 847-676-2910 Fax: 847-676-0365 UNISIG Unveils Next Generation of UNE Gundrilling Machines Ideal for manufacturers focused on highvolume/low-mix or low-volume/high-mix production environments, UNISIG’s next generation of UNE Series gundrilling machines delivers operational flexibility, improved performance and effortless operation. Now available, the UNE Series is engineered and designed to simplify gundrilling for all those individuals involved in a facility’s manufacturing process. The UNE Series offers gundrilling solutions that are well suited for various industries, including firearms, automotive, medical, energy, defense and aerospace. With five models built from two frame sizes, the UNE Series can drill hole diameters from 1.4 mm to 40 mm and depths up to 3,000 mm.

» For more information, visit www.unisig.com

New Milling Cutter with Round Insert From Walter Can Reduce Cutting Tool Costs By 20% The M2471 milling cutter from Walter, with a new indexable round insert, is the first to feature a double-sided round insert with eight useable cutting edges. Its technical features, sintered design, as well as the eight useable cutting edges, help reduce cutting material costs by up to 20 percent. This system, with diameters of 0.98 inch with parallel shank or ScrewFit modular interface is suitable for face and copy milling steel, stainless steels and materials with difficult cutting properties. Indexing using the flank face of the indexable insert ensures simple, safe handling.

High Payload PL500 Palletizing Robot Offers Application Flexibility Offering a high 500-kilogram payload, the powerful PL500 robot is ideal for a variety of palletizing applications, unitized loads, and other logistical tasks for end-of-line or distribution automation. The PL500 features extremely fast axis speeds and acceleration for maximum production throughput. It offers a large work envelope and a high payload to efficiently load/unload pallets, and easily handles full layers or a variety of product including boxes, bags, bottles and cases. Installation is also quick and efficient.

» For more information, visit www.motoman.com Superior Abrasives LLC Bolsters Production Capacity for Mounted Flap Wheels Superior Abrasives, LLC has recently expanded their production capabilities for mounted flap wheels, yielding industry-leading lead times, with common sizes like 1-inch, 2-inch, and 3-inch x 1-inch available from stock. In addition to a wide range of readily available standard products, the company offers customization of flap wheels to address specific production parameters. The Mounted Flap Wheels are ideal for contoured finishing and grinding, deburring and finishing of tube interiors, shaping or refining contours on cast or machined parts, weld seam blending or finishing, and more.

» For more information, visit www.superiorabrasives.com

MACHINE TOOL ACCESSORIES, MAINTENANCE SUPPLIES & PARTS

413-323-9041

HALS LUBRICATION PUMP

HMGP-303M

HMGP-303M

Highly reliable externally controlled fixed quantity oil supply pump Used across a wide range of fields, and is especially suitable as a fixed quantity oil supply pump for high-precision, large machine tools The pump’s main drive connection parts are made of single die casting pieces to ensure excellent durability Built-in pressure switch and float switch Voltage: 200/220V

HMGP-303 units and parts are currently in stock
