Development

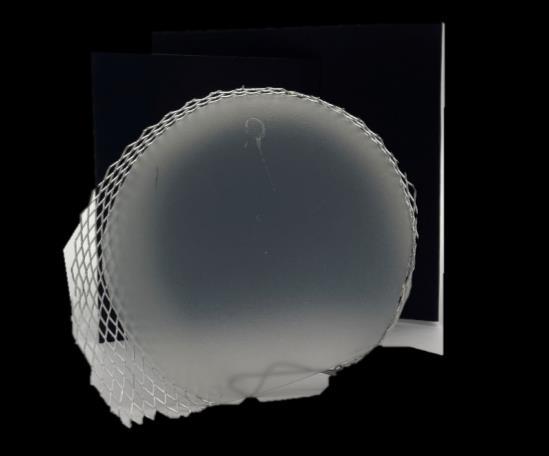

Development the 3 section model even further. I took one one the central shapes and added these 2 contrasting shapes on either side which acting of this blank canvas in the middle. Theres a modern wave like structure on one side which could be made of glass and metal adding a futuristic look. On the other side there’s this pavilion like structure consisting off sharp geometric shapes which all intersect into each other to create a covered area but still have gaps where the wind can flow through.

In the plan view it shows how this design and the altered design can e made into a multifunctional space. In this design sharp structure is used as a roof over other markets that could be placed underneath that would be made in the similar nature of the structure in triangular form . Where when the triangles are put together it creates a solid structure which could act as a restaurant. The wave structure is already enclosed so can acts either a store or bar .

In this alternation joined the triangles together to create a solid shape which allows for it to be of a per ant building that can hold a food court or shops inside. The middle shape was changed in order to make the space more functional with more useable space allowing better floor plan for toilets green space and the central information booth.
