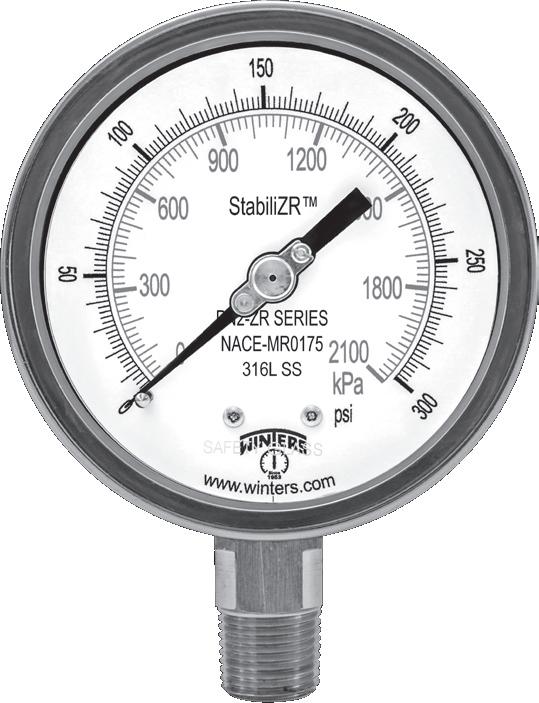

NACE StabiliZRTM Gauge - MR0175-2002

Description & Features:

• Designed for sour gas applications requiring NACE

Standards MR0175-2002 (NACE Standards

MR0103-2003 available) • StabiliZRTM dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges • Blow out back plug • Under and overload stops • Wetted parts meet hardness requirements • ASME B40.100 compliant (EN837-1 available) • CRN registered • 5 year warranty

Applications:

• Sour gas applications requiring gauges that meet ® NACE International Standards

Dial Case Lens Ring Socket Connection Bourdon Tube

Movement

Pointer

Over-Pressure Limit

Ambient/Process Temperature Accuracy Enclosure Rating Specifications

4” (100mm) aluminum with black and red markings 304 SS (dry) Laminated safety glass 304 SS, bayonet 316L SS 1/2” NPT bottom 316L SS 304 SS with under and overload stops and StabiliZRTM dampened movement (silicone in sealed chamber) Aluminum, anodized black, micrometer adjustable 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) -40°F to 250°F (-40°C to 120°C) ±1% ANSI/ASME Grade 1A IP66

Order Codes Dial Size Connection

30” Hg Vac/kPa 30”/0/15 psi/kPa 30”/0/30 psi/kPa 30”/0/60 psi/kPa 30”/0/100 psi/kPa 30”/0/150 psi/kPa 30”/0/200 psi/kPa 30”/0/300 psi/kPa 0/15 psi/kPa 0/30 psi/kPa 0/60 psi/kPa 0/100 psi/kPa 0/160 psi/kPa 0/200 psi/kPa 0/300 psi/kPa 0/400 psi/kPa 0/600 psi/kPa 0/1,000 psi/kPa 0/1,500 psi/kPa 0/2,000 psi/kPa 0/3,000 psi/kPa 0/5,000 psi/kPa 0/6,000 psi/kPa 0/10,000 psi/kPa 0/15,000 psi/kPa 0/20,000 psi/kPa

4” (100mm) 1/2” Bottom

PN2655ZR PN21044ZR PN21045ZR PN21046ZR PN21047ZR PN21048ZR PN21050ZR PN21051ZR PN2656ZR PN2657ZR PN2658ZR PN2659ZR PN2660ZR PN2661ZR PN2662ZR PN2666ZR PN2663ZR PN2664ZR PN2665ZR PN2667ZR PN2668ZR PN2669ZR PN2675ZR PN2670ZR PN2671ZR PN2672ZR

Other ranges and connection sizes available upon request. For scale change, refer to How to Order Guide for scale codes.

For options, attach suffix to end of order code: i.e. PN2664ZR-4BF for BACK FLANGE. Option suffix:

4BF = 4” (100mm) Back flange 4NSS = 4” (100mm) SS case 4UC-P = 4” (100mm) U-Clamp premium EN = EN837-1 compliant REST = Restrictor screw

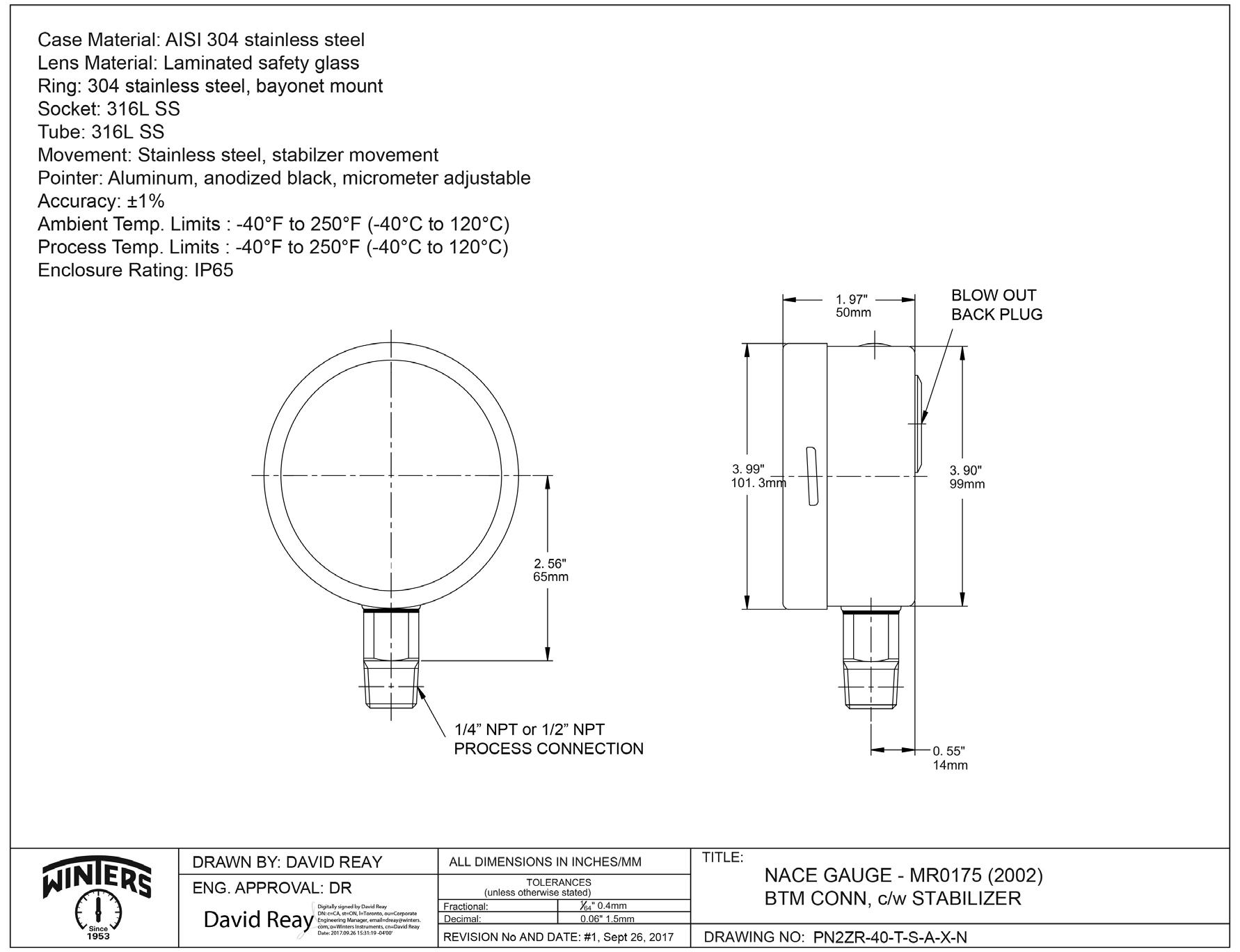

4” Bottom Connection
