Threaded Flush Mount Seal

50 to 5,800 psi (345 to 40,000 kPa)

Description & Features:

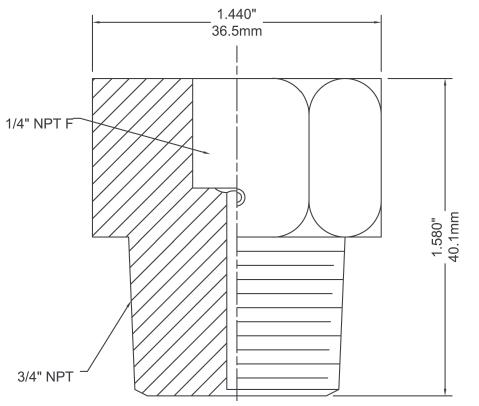

• Constructed with a welded diaphragm placed at the end of the male NPT connection, eliminating the normal diaphragm chamber where solidifi cation of the process media may render the seal inoperable • Rugged and suitable for the most severe process applications • ASME B40.100 compliant • CRN registered • 5 year warranty

Applications:

• Suitable for any process where freezing or solidifi cation of the pressure media is a concern

Housing Diaphragm Minimum Operating Pressure Maximum Operating Pressure Gauge Connection Process Connection Process Temperature Specifi cations

AISI 316 SS AISI 316L SS, welded 50 psi (345 kPa) 5,800 psi (40,000 kPa) 1/4” NPTF 3/4” NPTM -20°F to 360°F (-29°C to 182°C)

Order Codes 1/4” NPTF x 3/4” NPTM

D15992

Option suffi x for above order code only:

SF-D = Silicone fi ll (seal only)
