Yulun Liu_Portfolio_2022_ by yulun liu

Yulun Liu

2019-2022 Selected Work

Yulun Liu, LEED AP BD+C

M.Arch. M.Eng. B.Eng. lyulun@yahoo.com

(+1) 626-319-1606

English (fluent) | Mandarin (native)

EDUCATION

Master of Architecture Professional Degree

University of Pennsylvania Weitzman School of Design (PennDesign) Philadelphia, PA, USA

Master of Engineering | Architecture and Civil Engineering

Tianjin University School of Civil Engineering Tianjin, China

Bechelor of Engineering | Civil Engineering

Wuhan University of Science and Technology School of Civil Engineering Wuhan, China

PROFESSIONAL EXPERIENCE

Architectural Summer Intern Ballinger, Philadelphia, PA

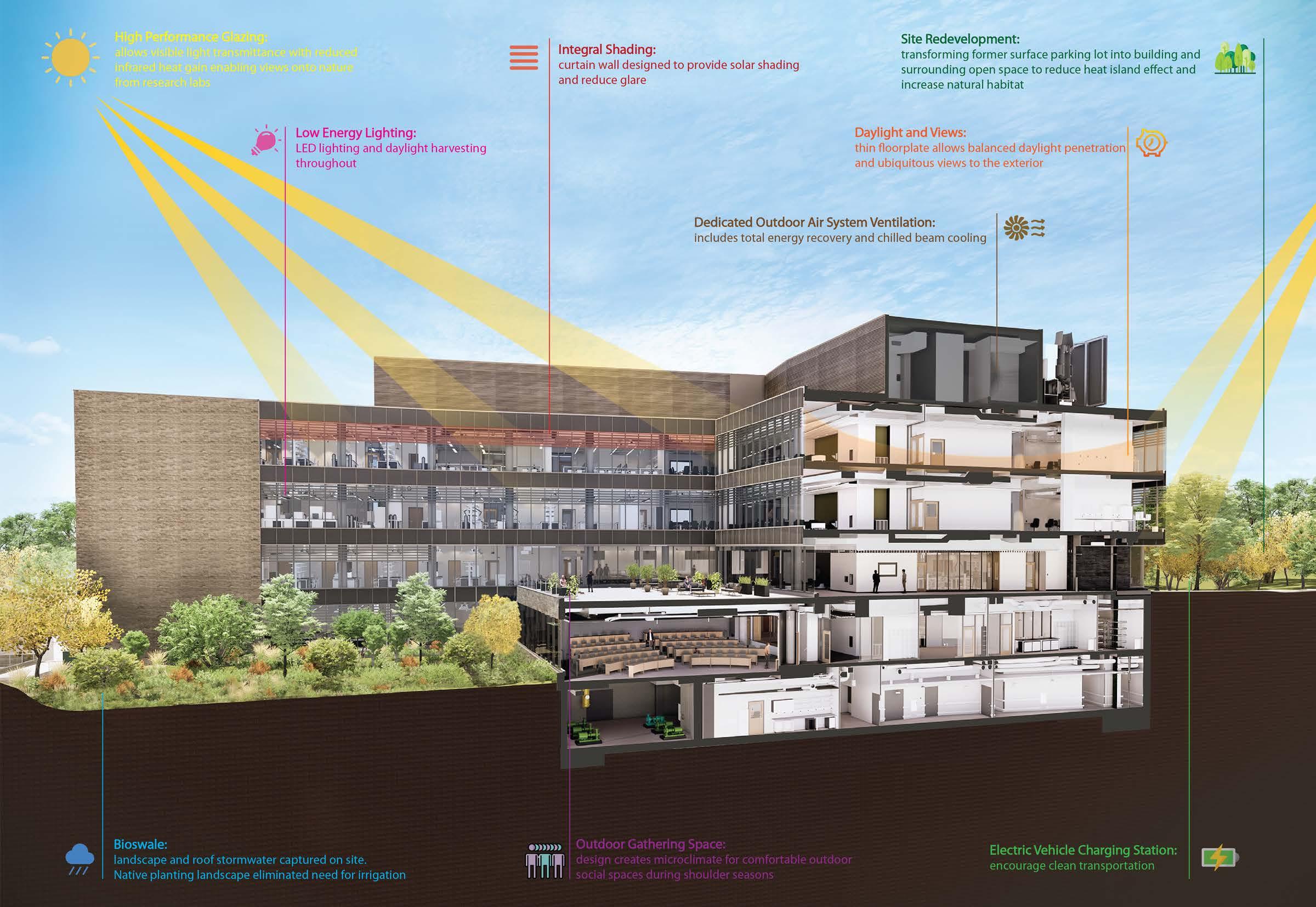

Worked in studio focuses on academic project, led by Principal Stephen Bartlett. Jobs include: Programming and analysis of the site, Revit modeling, Construction documentation for AIA award application, Diagram of sustainability, Animation production based on Revit model.

Participated in project: - American University Hall of Science Building, Washington, DC

- Virginia Commonwealth University STEM Building, Richmond, VA

- Old Dominion University Health Sciences Building, Norfolk, VA

Structural Design Assistant

CITIC General Institute of Architecture Design and Research, Wuhan, China

Worked in 10 people group as structural designer collaborated with architectural designer.

Jobs include: Reinforcement process, Construction document, Presentation material, Estimating material costs and sourcing requirements.

Participated in project: - Hospital of Hubei University of Chinese Medicine, Wuhan, China

- Urumqi Olympic Sports Center, Urumqi, China

- Wuhan Hang Lung Plaza, Wuhan, China

- Terminal and Station Square of Heyang Airport, Shanxi, China ACADEMIA PUBLICATION & PATENTS

Enscape | Keyshot | Vary for Rhino

Adobe ID+AI+PS | AutoCAD | Microsoft Office

Fusion360 | Abaqus | Ansys

January-Present

Research Assistant

Polyhedral Structures Laboratory (PSL), University of Pennsylvania, PA

- Python and Grasshopper assisted on geometric structural generation

- Materialization of the wooden structure designed by polyhedral graphic statics

- Published and ACADIA paper based on Research

Invited Presenter

Association for Computer Aided Design in Architecture (ACADIA)

- Presented paper “Kerf Bending and Zipper in Spatial Timber Tectonics“ as first author

Research Assistant

China Academy of Building Research, Beijing, China

- Inverstigated the shear mechanism of adhesive anchor and post-installed rebar

- Published a paper and delivered a presentation at seminar

Excellent Graduation Project

Wuhan University of Science and technology | Top 0.1% in Hubei Province

Hubei Provincial Structural Design Competition 2nd Prize

Handcrafted stock bin using bamboo chip to resist vertical load and lateral instantaneous force

Yulun Liu , Yao Lu, Masoud Akbarzadeh. 2021. “Kerf Bending and Zipper in Spatial Timber Tectonics: A Polyhedral Timber Space Frame System Manufacturable by 3-Axis CNC

Milling Machine” In ACADIA 2021: Realignments, Paper Proceedings of the 41th Annual Conferenceon the Association for Computer Aided Design in Architecture (ACADIA)

Pressing Matter 11

An annual publication by Penndesign showcasing outstanding academic work

Yulun Liu , Xu Fuquan, Xie jian, Xiong Zhaohui. Experimental study on shear behavior of anchor steel connections. Journal of Building Structures, 2018,39(S2):374-379. ISSN:1000-6869

Patent “A Multifunctional Temporary Architectural Design” | CN201620700048.8

Patent “A Device for Measuring Horizontal Capacity of Single Pile” | CN201420758855.6

REFERENCE

Stephen Barlett

Principal at Ballinger

sbartlett@ballinger.com 215-446-0314

Masoud Akbarzadeh

Director of Polyhedral Structures Laboratory at Upenn masouda@design.upenn.edu 215-573-8662

HILLING

Mental Wellness | Machinic in Sites: Temporal Tailored Infill

Upenn Advanced 701 | Fall 2021

Instructor: Robert Stuart-Smith

Group Work | Collaborated with Dongqi Chen

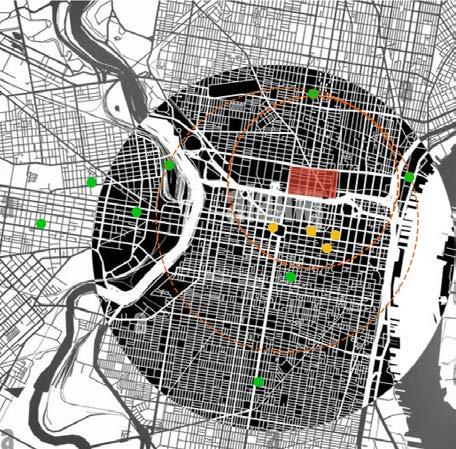

Like many other places, Philadelphia is suffering from severe mental illness strikes. Callowhill (Spring Garden St, Philadelphia), a place of art and abandoned industrial land, is experimented with a tailored infill nature for physical breath and mental relief. The project “Hilling” is born as a 3d printed artificial nature serving for mental healing programs via Eco-art therapy.

Eco-art therapy is a pioneer method facilitating mental wellness through the creation of artwork via the observation and enjoyment of nature. With the support of machine learning such as AI perceptions and style GAN generations, the project is constructed as a new form of natural destination for the neighborhood to alleviate and treat mental illness.

The forms obtained have been twinned with landscape features that transform the abandoned land into a new constellation of programs including art-workshops, galleries, and classrooms. The ambiguous position between nature and architecture makes it unique. As nature, it is occupiable and conquerable, while as an architecture, inhabitable spaces unfold the mysterious natural features for visitors to meditate and relieve themselves.

Painting Outside Eco-art Therapy Process

Our research started with exploring the potential of 3d printing for prefabricated building, and the use of the machine perception and AI to develop a new form of artificial nature.

As has happening in many places, Callowhill has it shared tragedies suffer from mental illness due to inadequate mental health services inside this community.

Our project inspired by the exist practice Eco-art therapy, a method for facilitating mental wellness and healing through the creation of artwork and enjoy being present in the nature world.

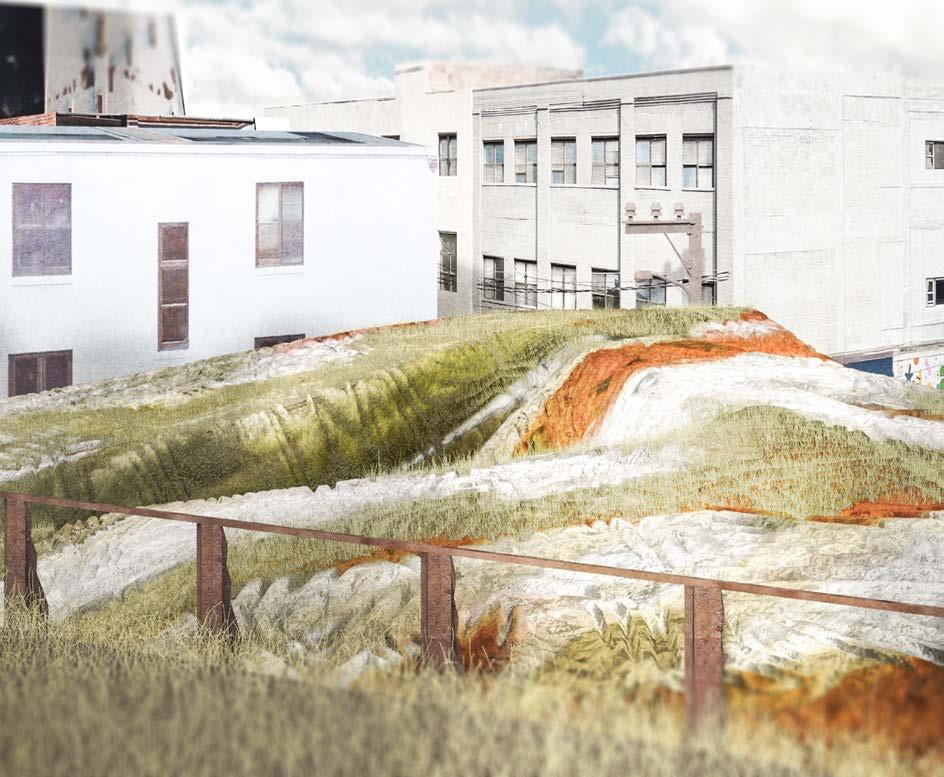

Painting upon Viaduct

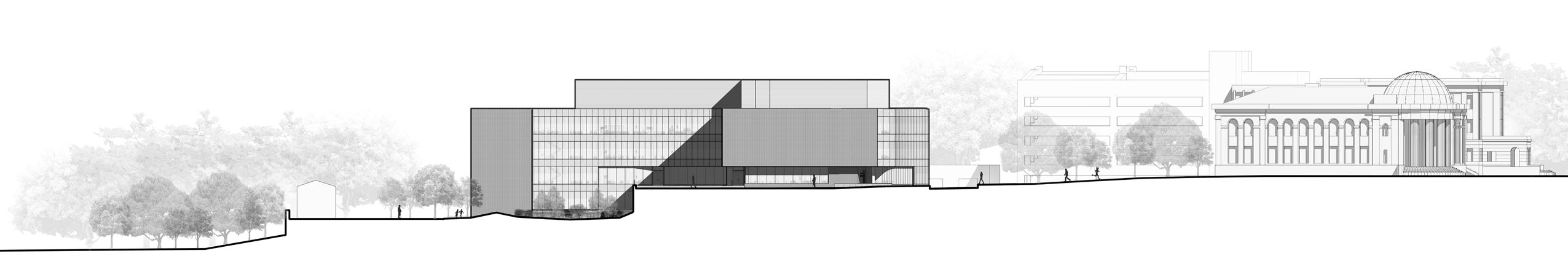

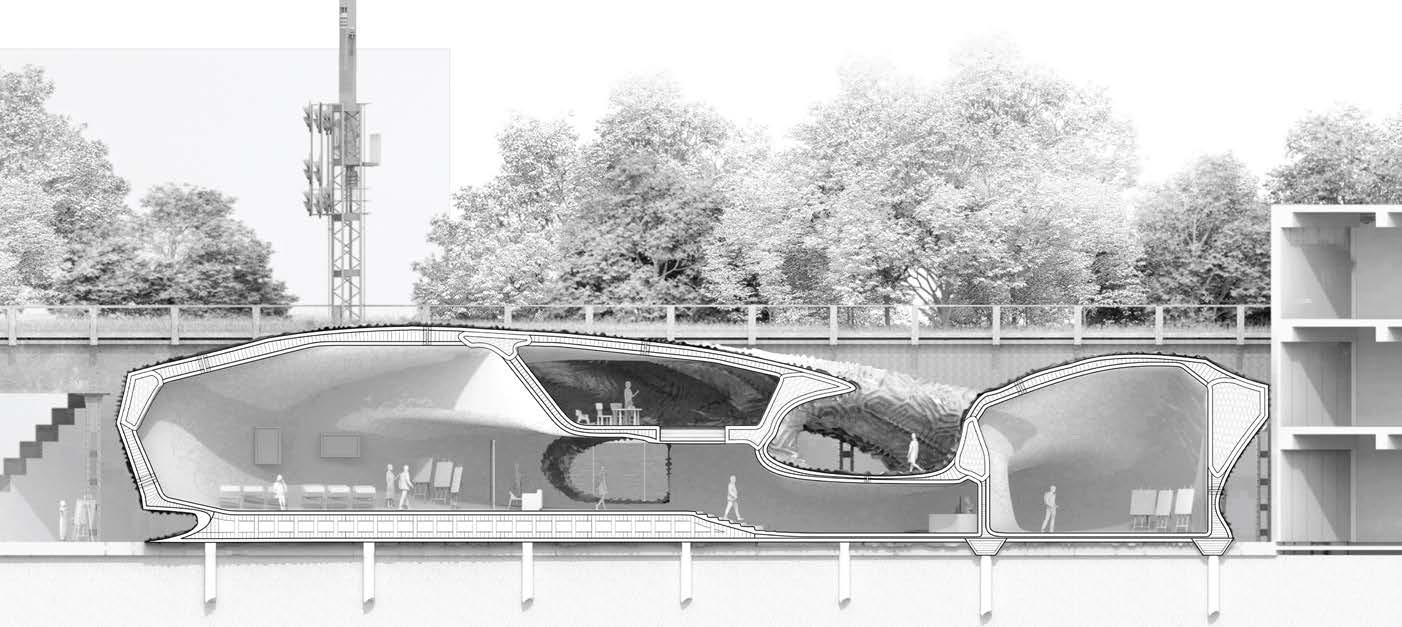

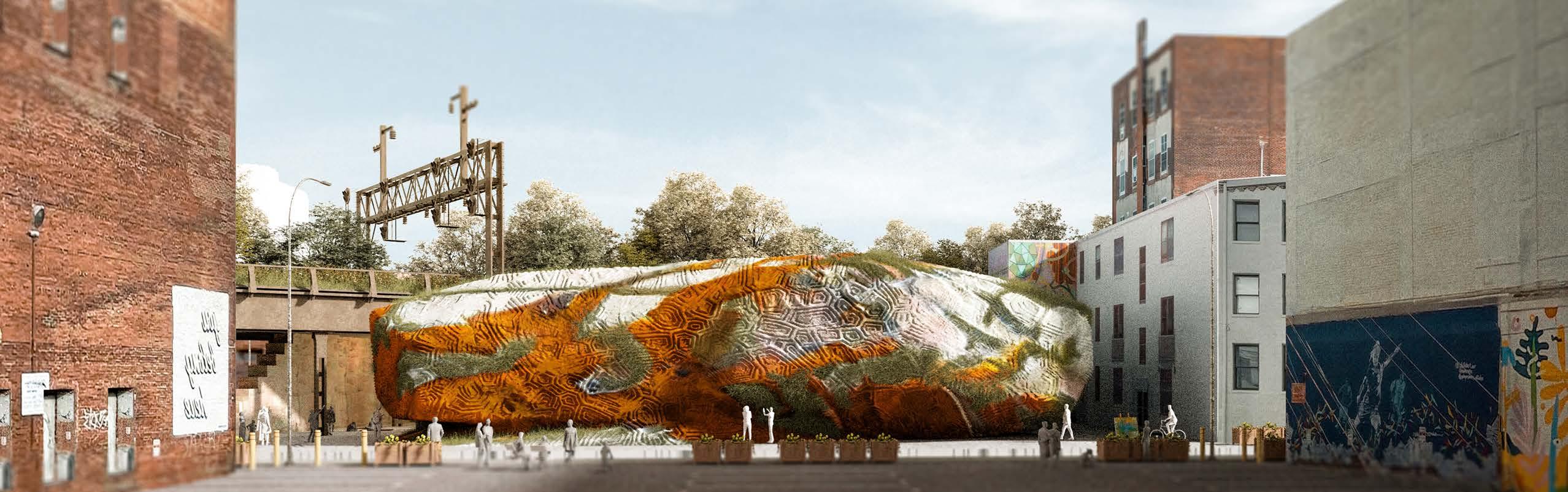

Street View_Elevation

The design rest in an ambiguous state between nature and architecture and art

The design can be one and all, or a completely different category that only makes sense

Street View_Southwest Corner

where it was born.

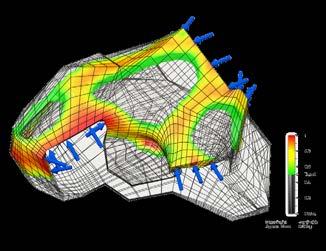

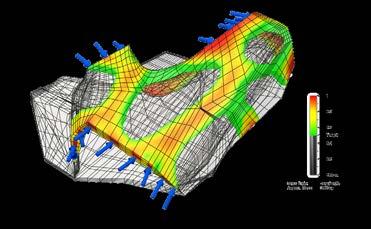

Structural Analysis Result from Fusion360

In addition to the form, the structural and material articulation were also developed through machine learning Process. The Geometric lichen pattern was chosen to follow the stress line of massing to get the new pattern as our reinterpretation of both structure and landscape. Using Fusion as topological structure optimized method, the primary structure was developed as integrated geometry with massing.

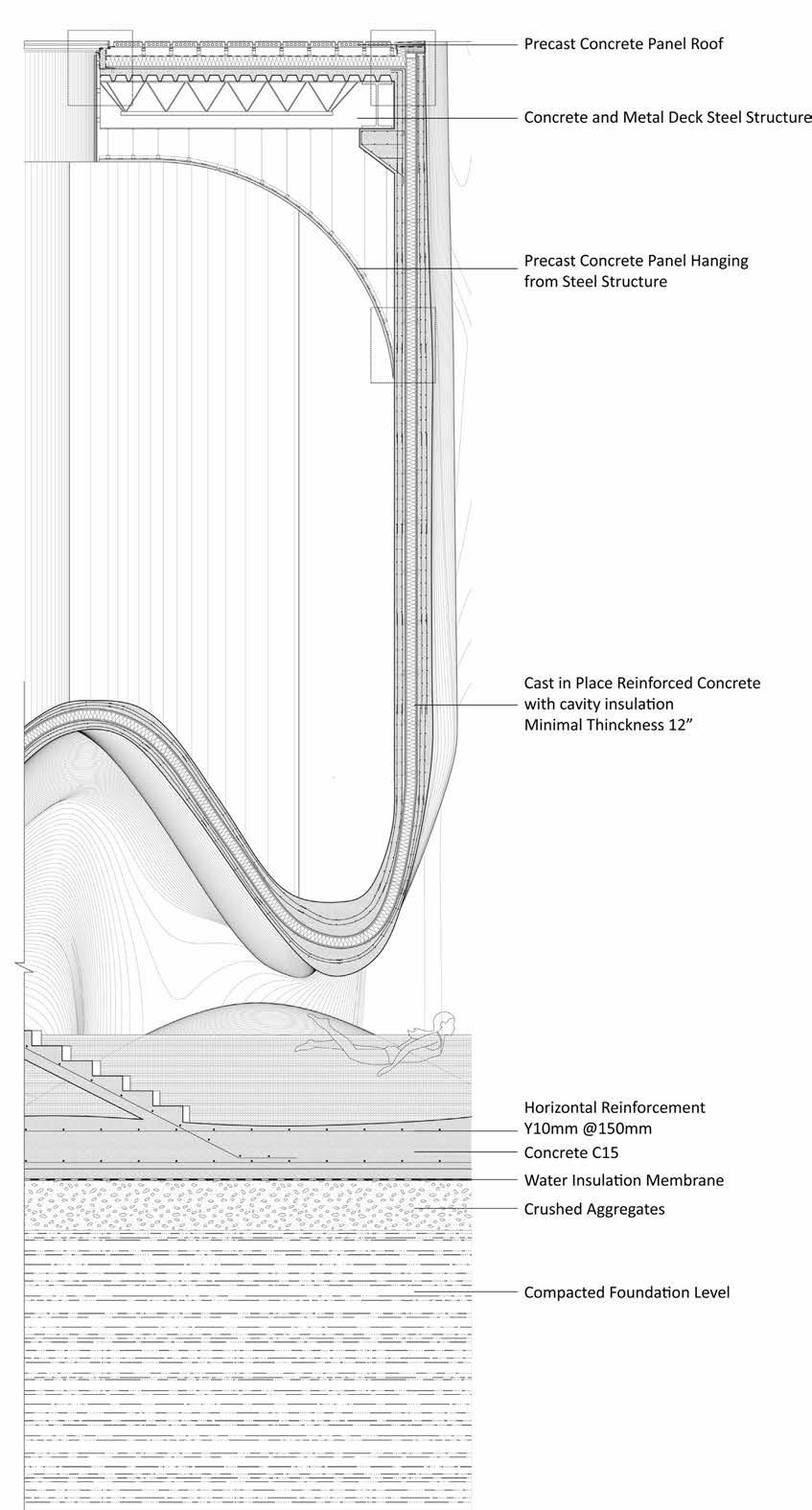

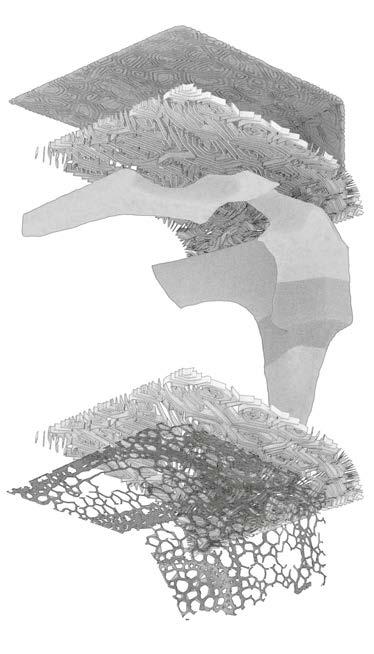

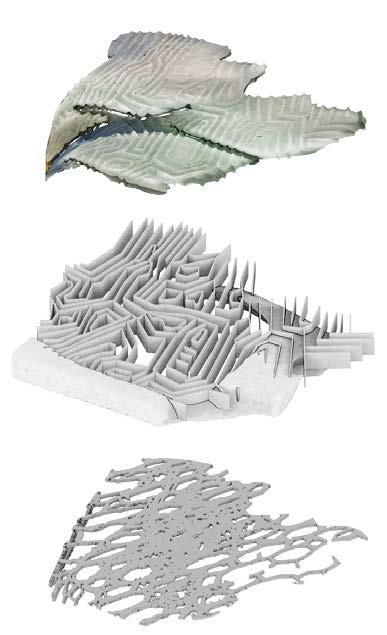

Structural Articulation

Following the geometric pattern, the 3D Printing, prefabricated panel from exterior was developed as the interlocking joint.

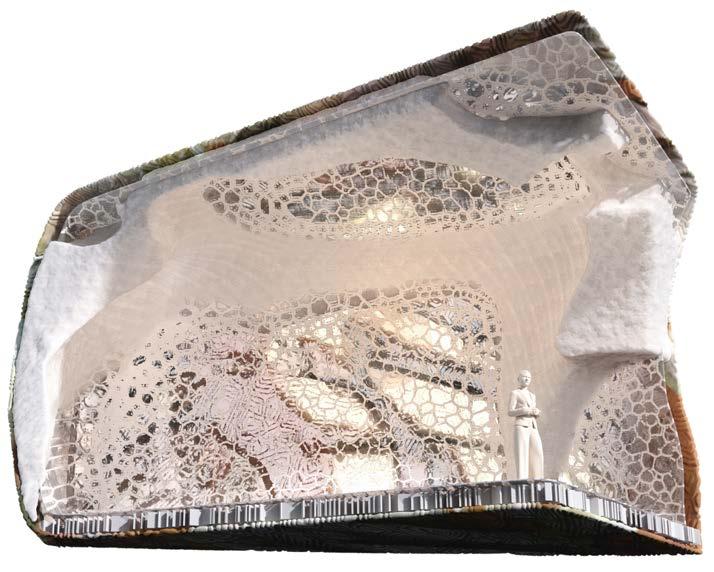

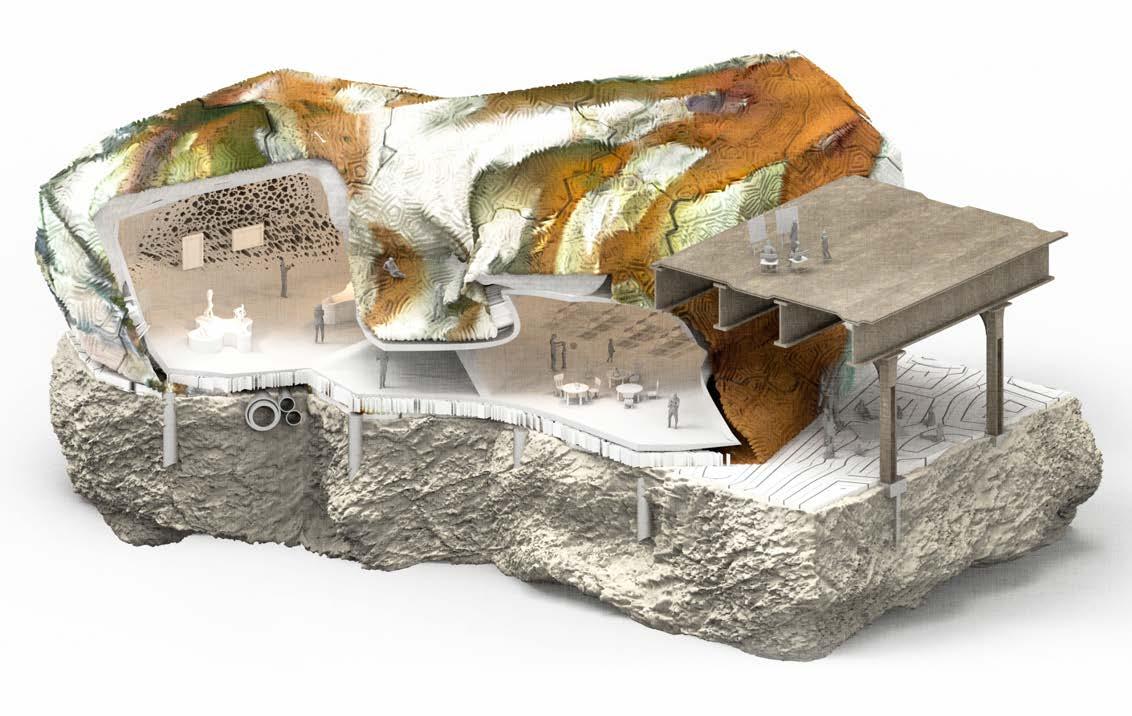

Structural Chunk

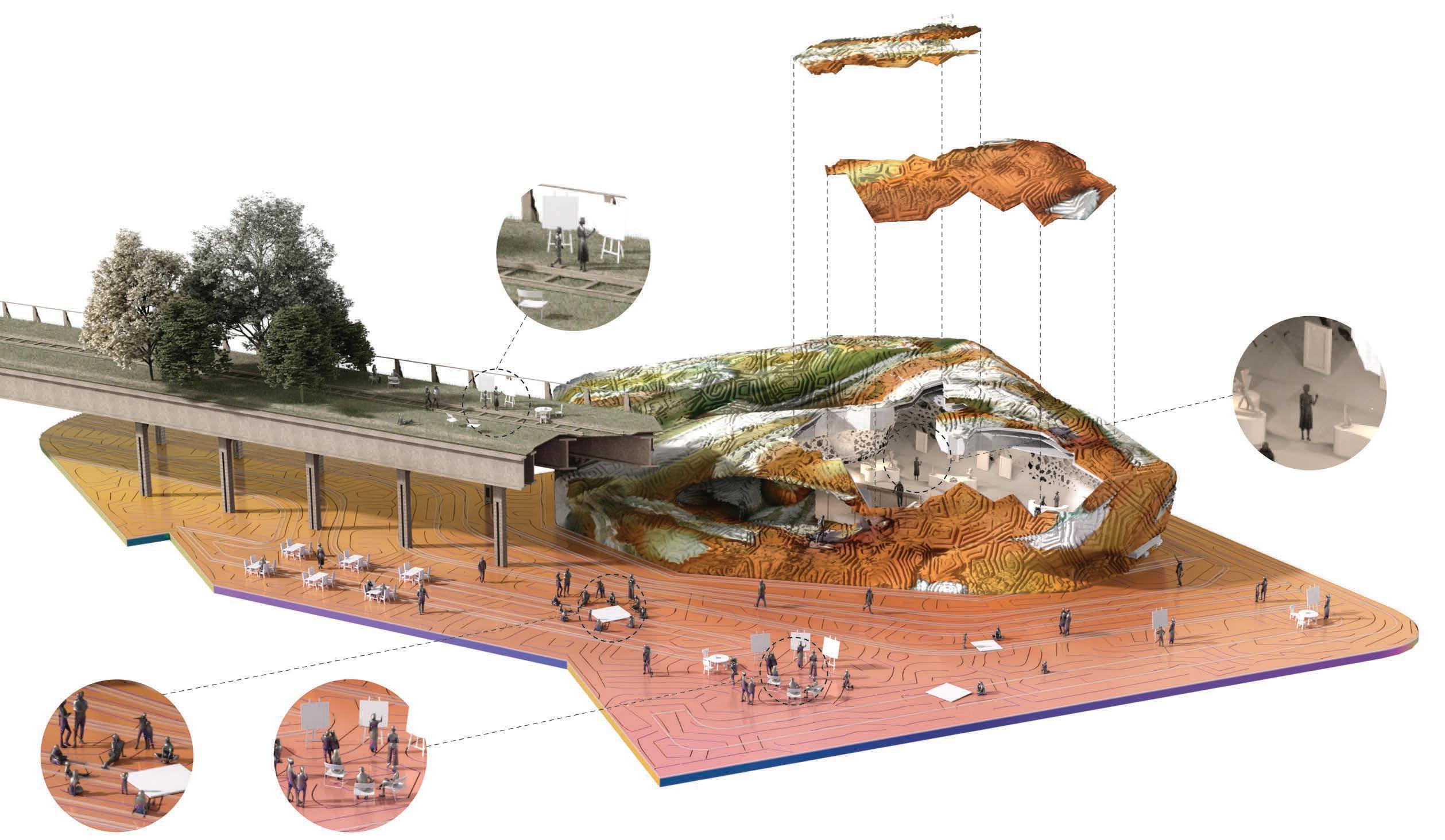

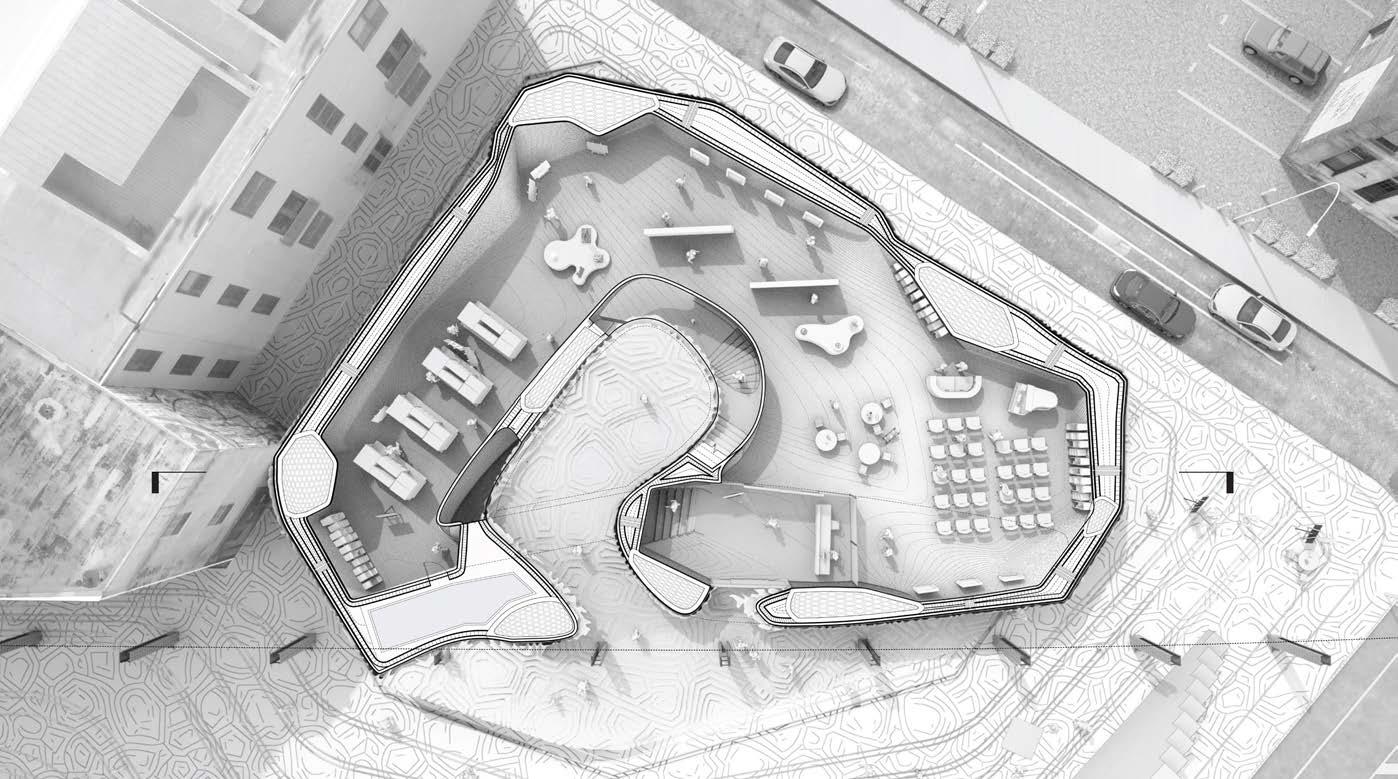

Transforming matter into inhabitable space and unfolding a new constellation of programs among the plateaus, ridges, canyons, and hills of brutal beauty that compose the site. The design rest in an ambiguous state between nature and architecture and art. they can be one and all, or a completely different category that only makes sense where it was born. As a nature, it is occupiable, yet not conquerable perhaps, and much of the landscape is inaccessible.

Entry Rendering Under Viaduct Entry into the building | Entry to the Courtyard

NATURAL REVERSAL

A Bath House Set on ‘The Cliffs‘ of Fairmount Park

Upenn Core 602 | Spring 2021

Instructor: Daniel Markiewicz

Group Work | Collaborated with Shifei Xu

With more than 2,000 acres of rolling hills, gentle trails, relaxing waterfront and shaded woodlands, Fairmount Park keeps a wealth of natural landscapes in East and West sections of the park. Based on this real land, We don’t want to take a one-sided view of the landscape within this dialectic as a “thing-in-itself” rather, we want to regard it as a process of ongoing relationships existing in a physical region. We hope the park becomes a “thing-for-us”.

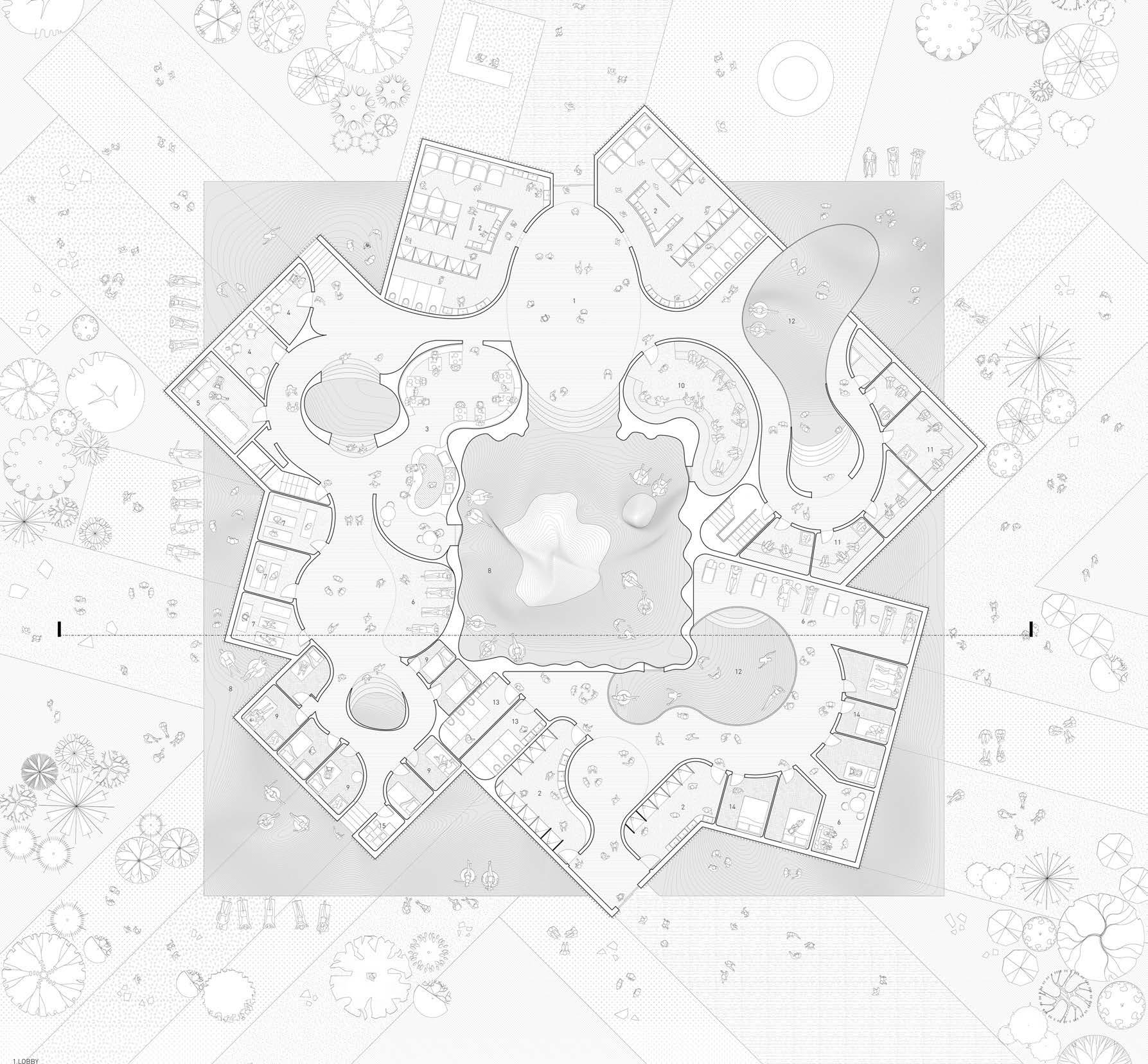

Our project initially inspired from Korean traditional bath house which typically has central gathering space surrounding by multiple small room that has different functions. Embracing the central gathering idea into the traditional thinking, the natural site is the outermost layer, immediately adjacent to the building, and the innermost is the bath. We imagine having a pair of scissors to cut from one part of nature and unfold nature, the building, and the bath. Then we fold back in the opposite direction, So We treat the original atrium as a new landscape, and the original landscape as a new building atrium. We want to keep the characteristic of creases on the central wall, which is obviously the result from folding back.

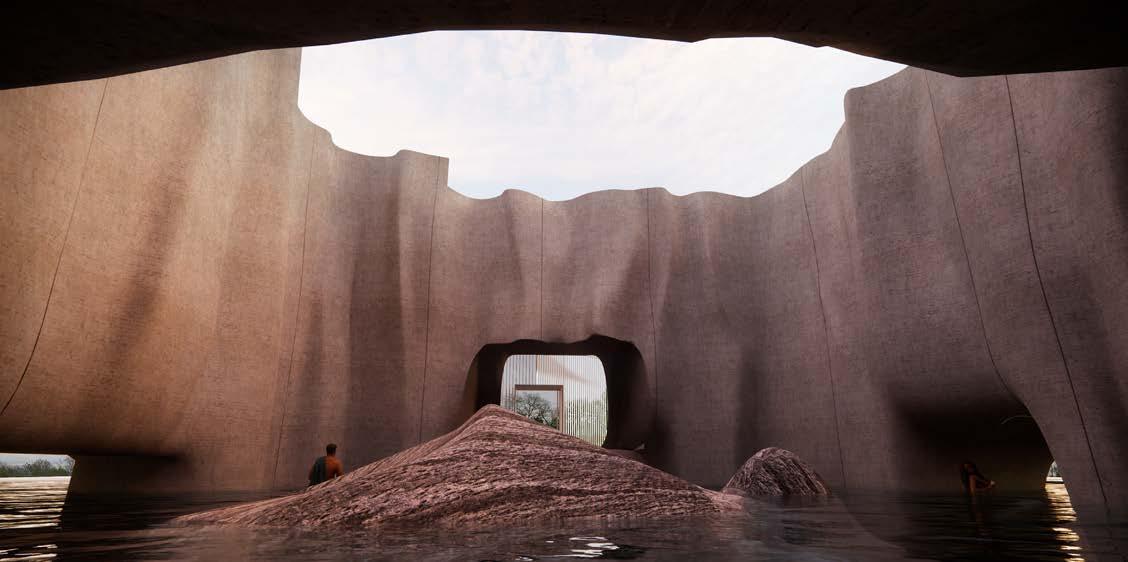

Semi-public Space Rendering Common Bath Pool

The Research of Concept “Formal Degradation” Cloth Model | Loss of Resolution

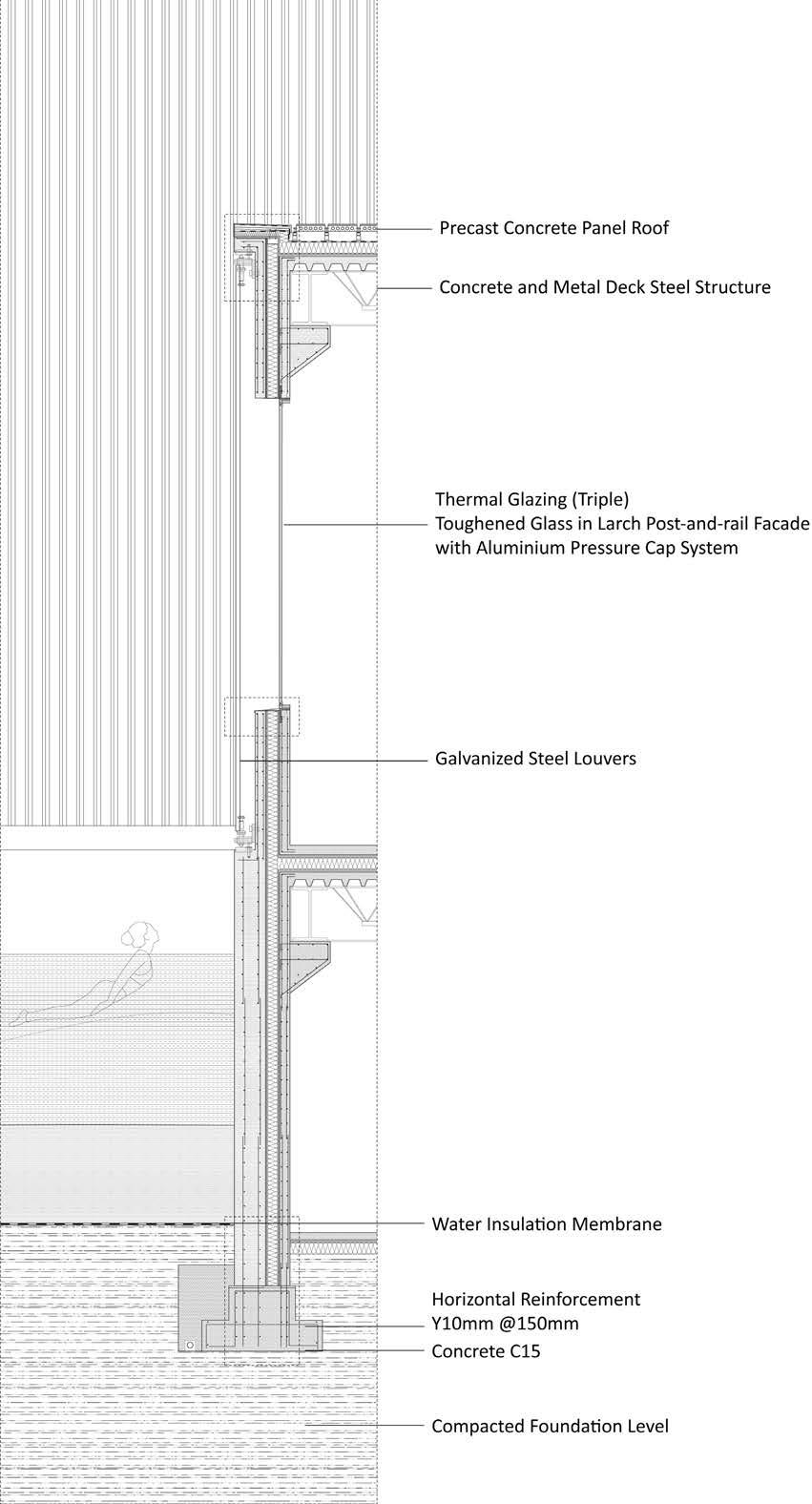

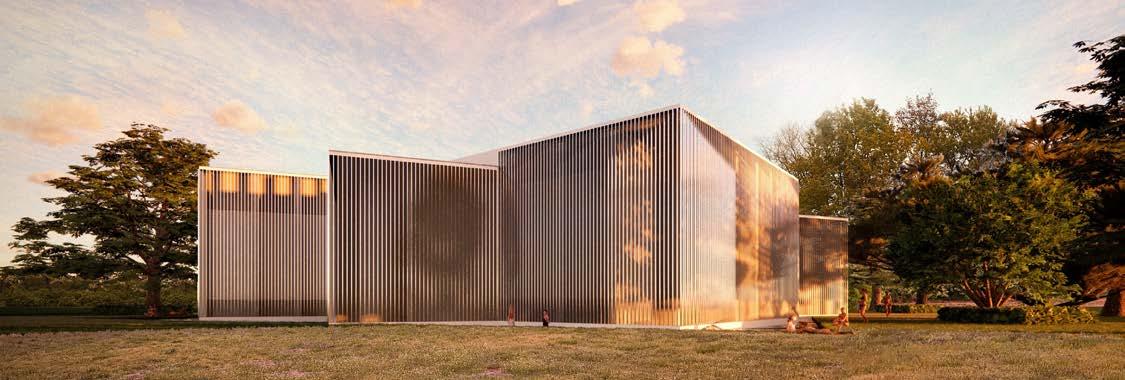

Elevation Rendering Mental Louver | Cladding

Top View of the Pool

Cloth Model | Loss of Resolution

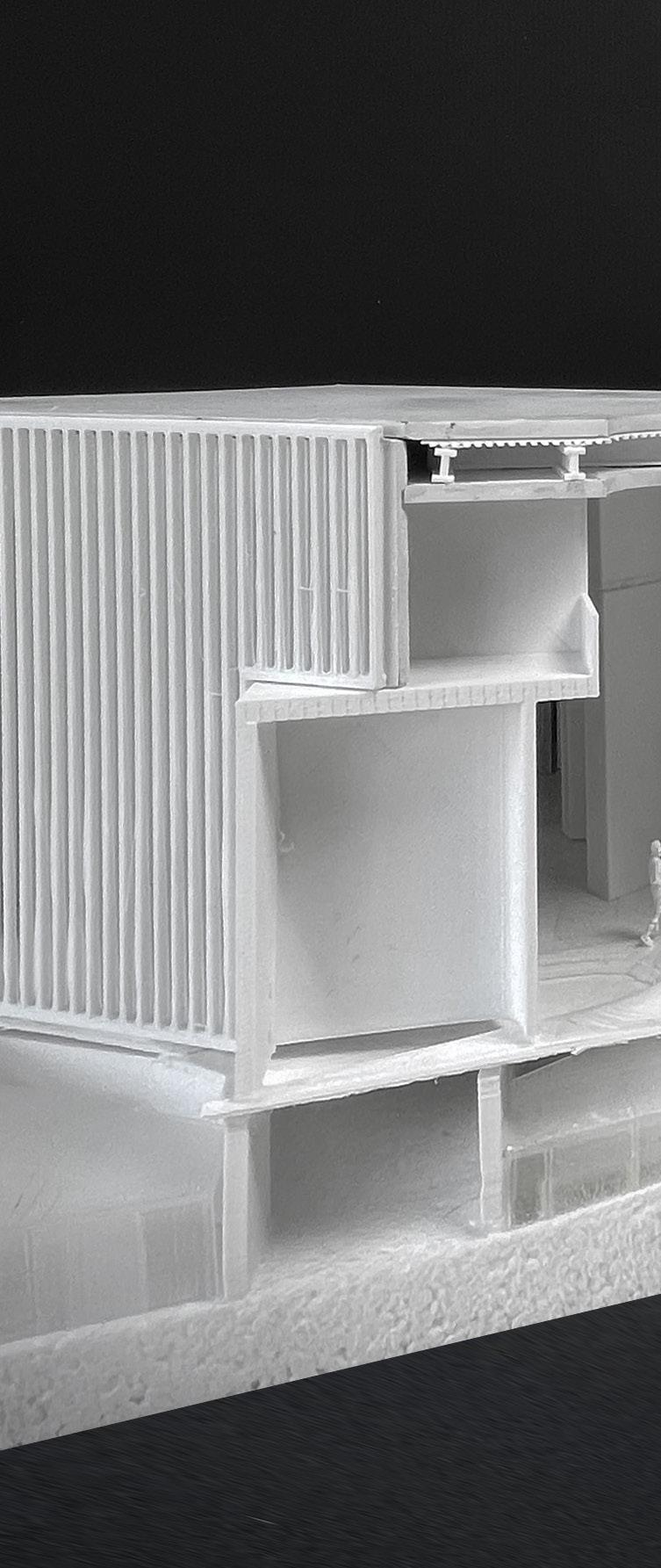

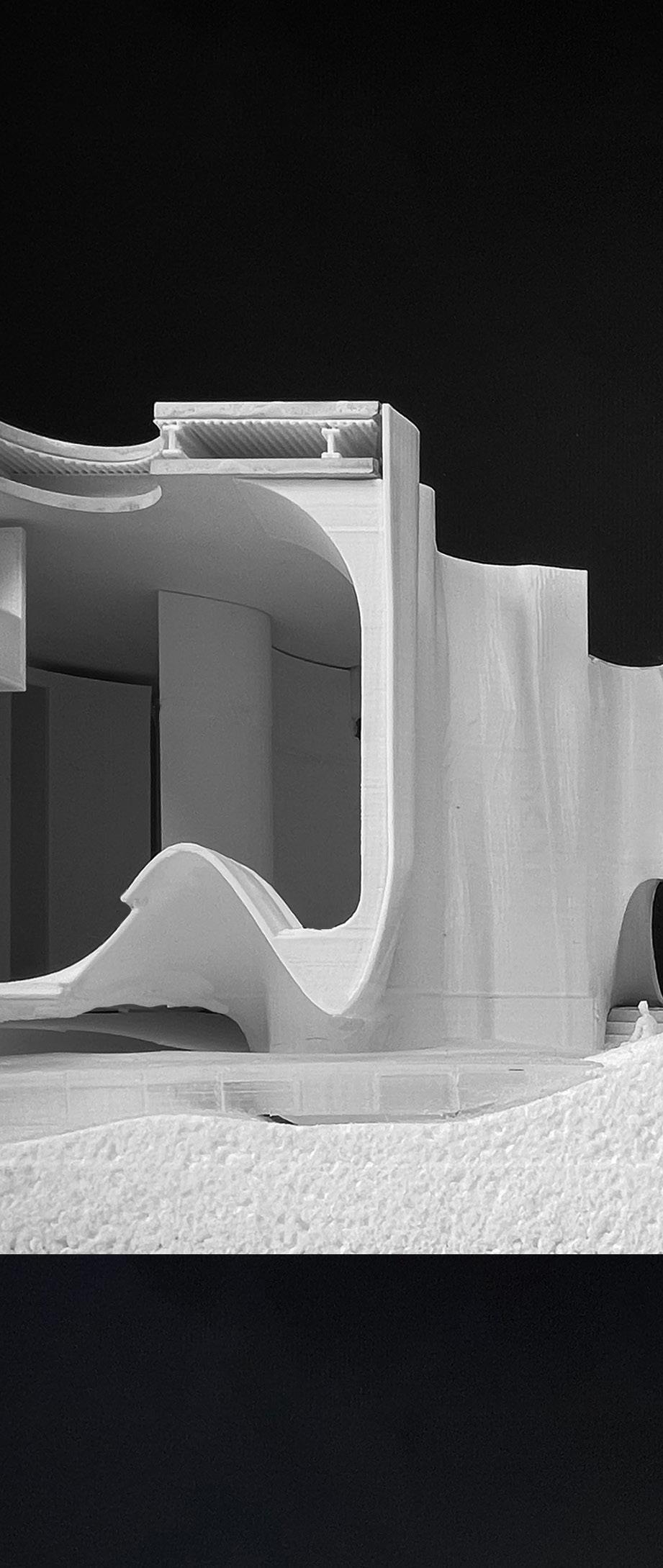

Physical Model Section Chunk | Entry

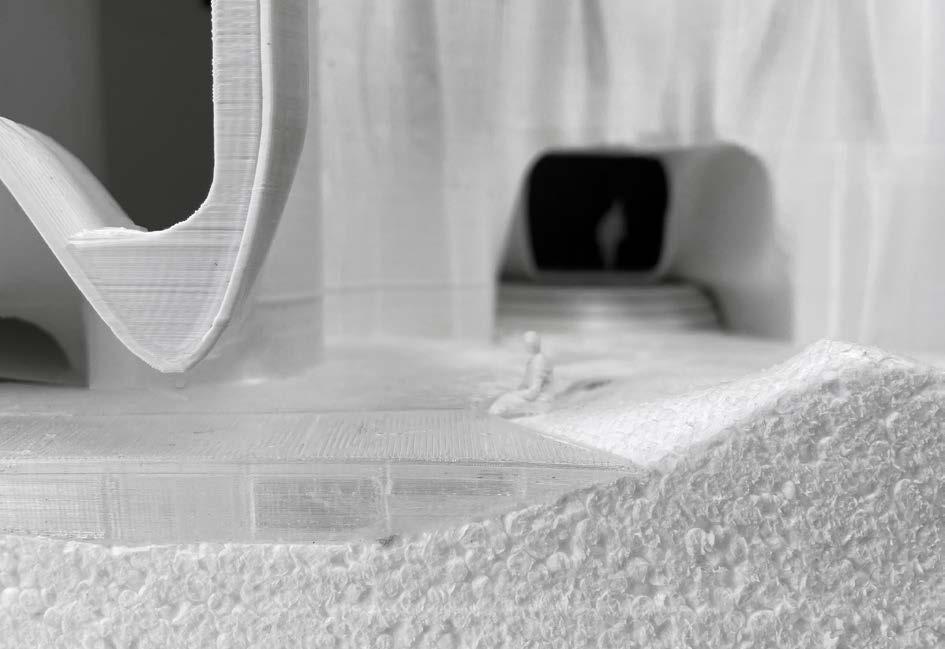

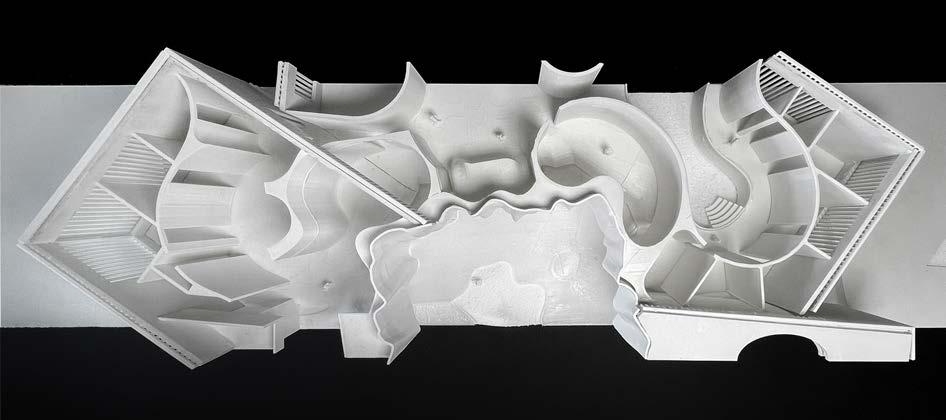

Physical Model

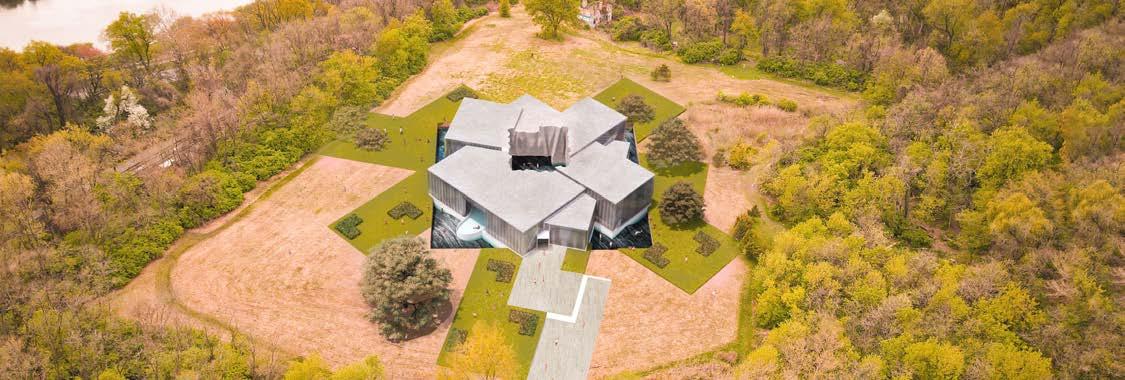

Top View

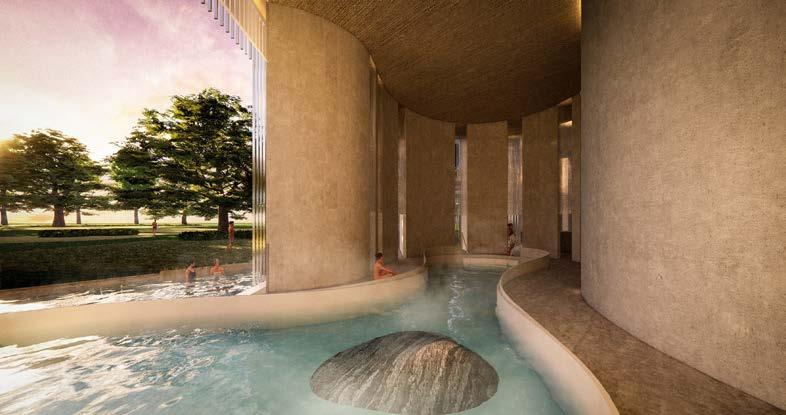

Interior Rendering Semi-Public Pool

EVOLUTIONARY INTERVAL

High-Rise Renovation Project | Embeded Public Common Space

Upenn Core 601 | Fall 2020

Instructor: Scott Erdy

Individual Work

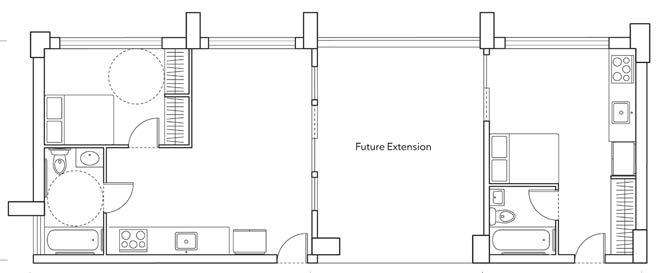

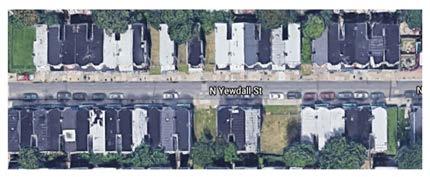

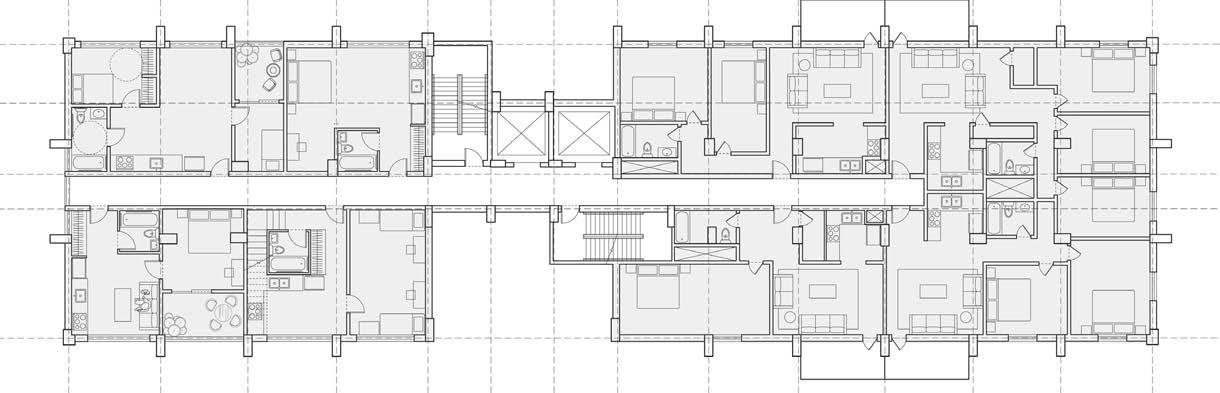

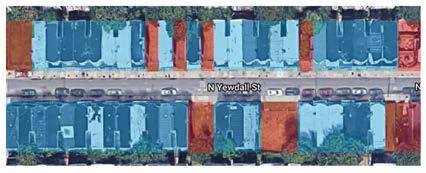

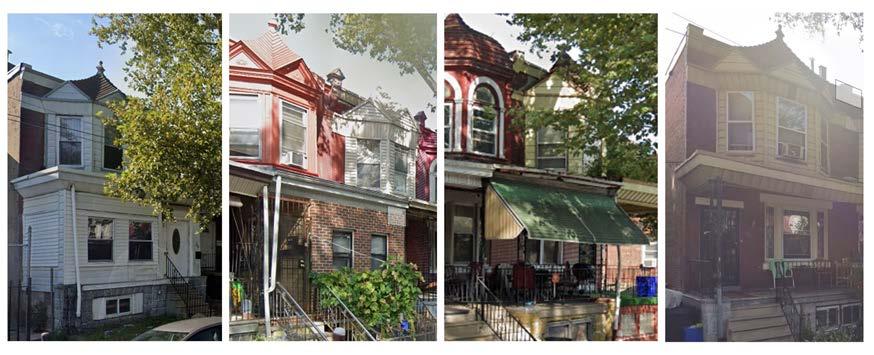

Westpart Apartments, as a typical project of high-rise public housing, has long being criticized for its in segregated or transitional neighborhoods, now is disparaged for its density and a lack of “defensible space”. Researching the local urban fabric of residential block in Philadelphia, the regular box-shape housing cluster with neglected interval space between it has been extracted as the basic morphology. Combining it with individual housing self-expansion typology, which reveal the willing of self-determination of people in neighborhood, a strategy of insulting new renovation unit cluster has been introduced to revitalize the site while implanting the characteristic of community.

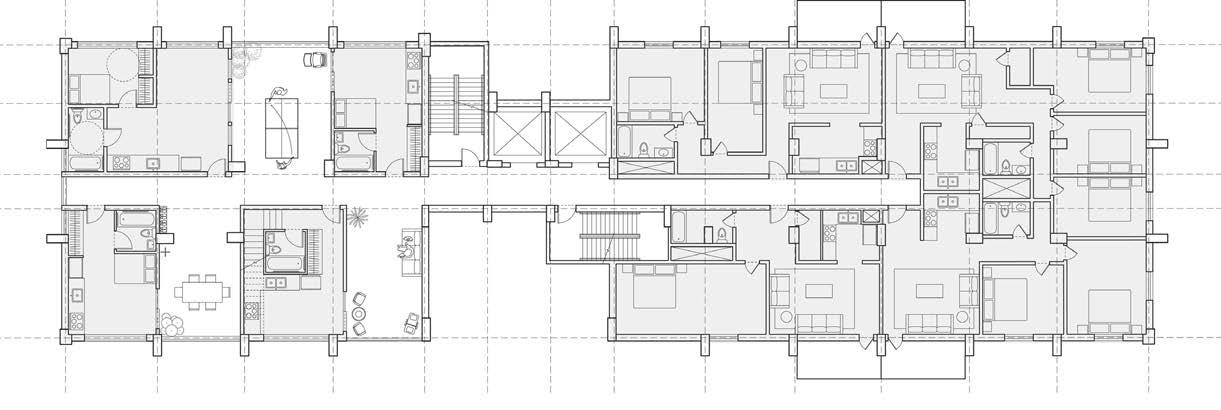

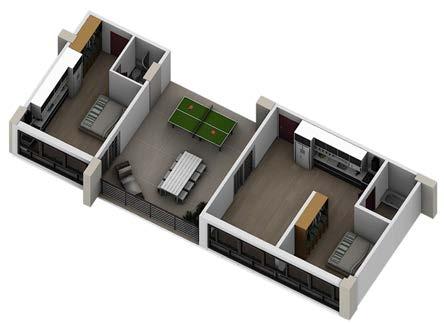

Demolishing partially of existing building, then insulting the new renovation units cluster, in which the interval space existed between every single unit. This interval space is totally modified by the resident’s individual preference, as no matter public or private appropriation to foster meaningful relationship between residents and community to express and maintain their self-determination. Meanwhile the hardware store and fabrication lab serve as other public common space inside building, not only give residents opportunity to easily get access to the materials and tools they want, but also enhance meaningful relationship between residents.

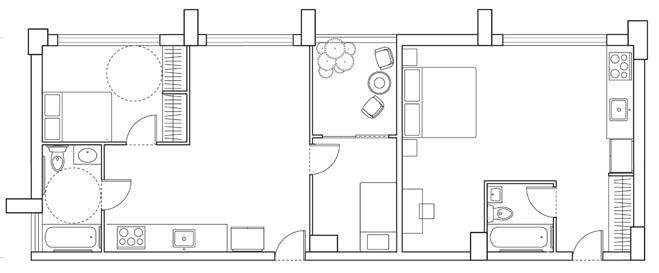

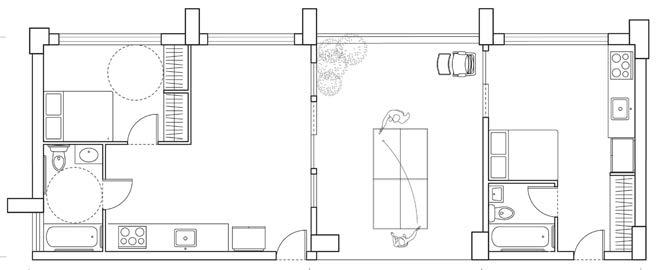

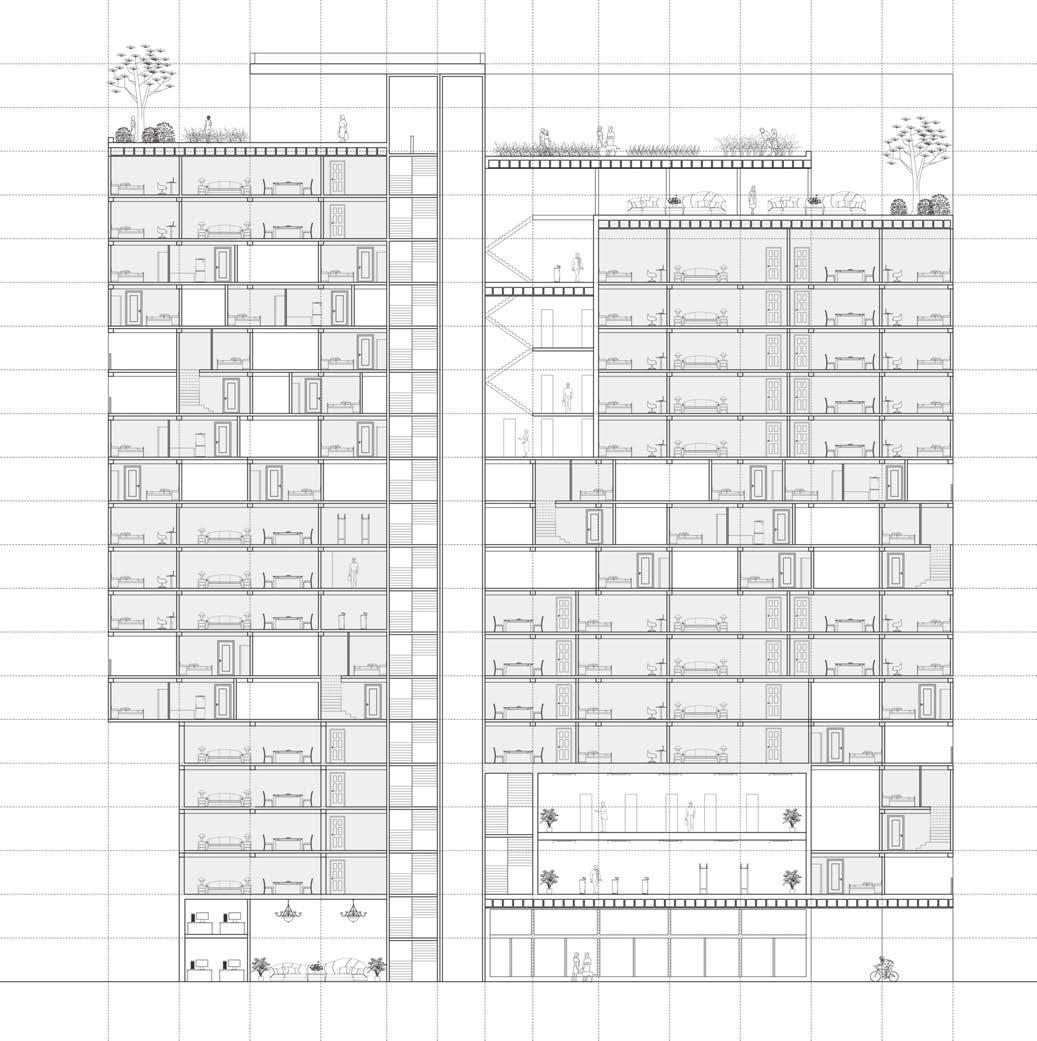

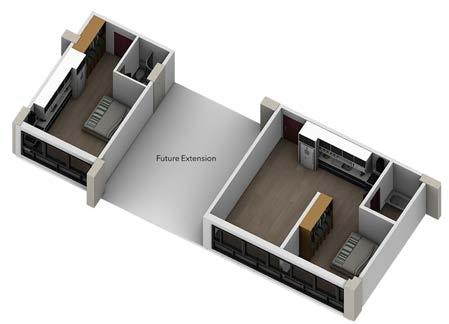

Elevation Rendering Original Renovation Unit

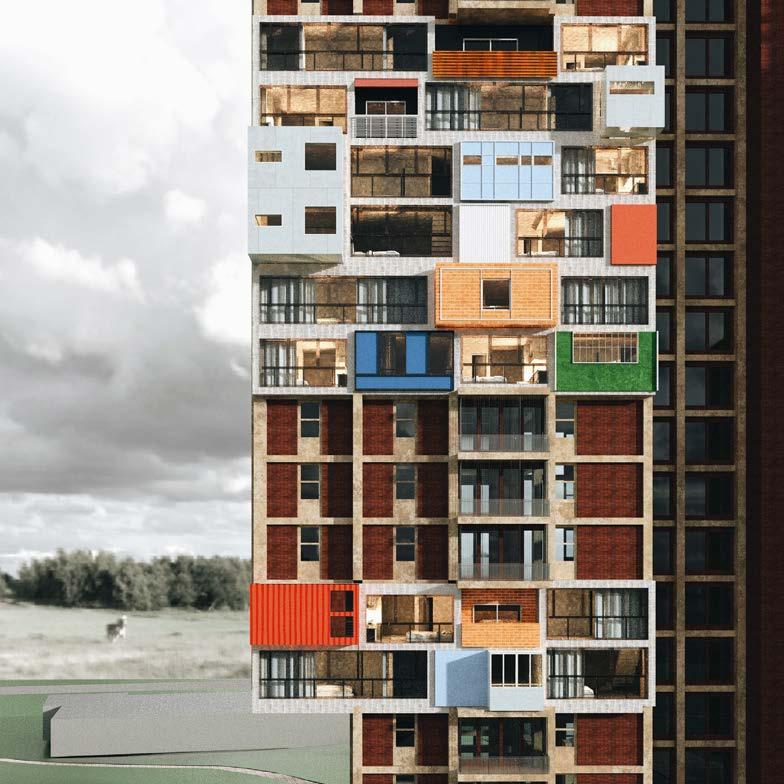

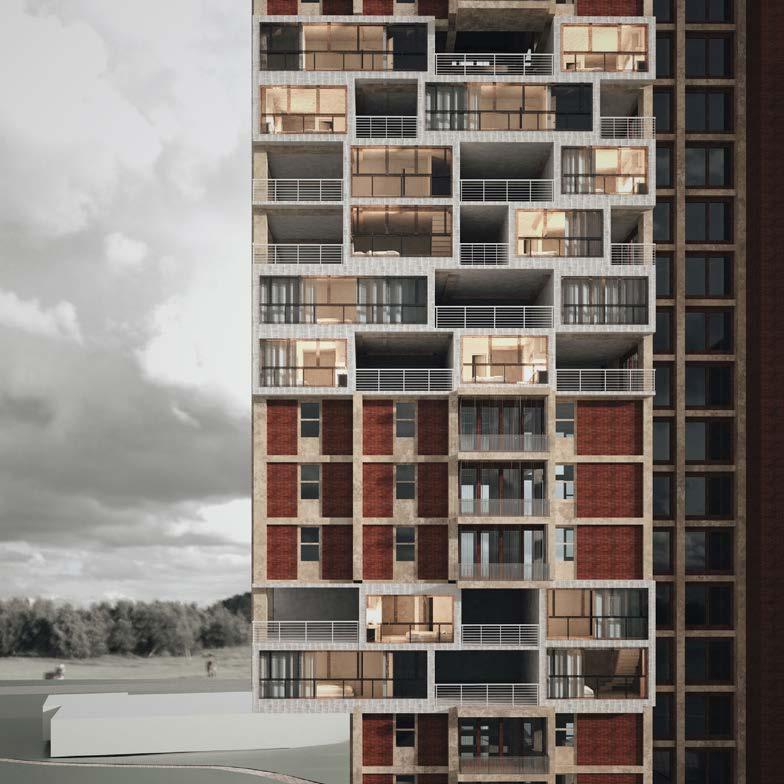

Elevation Rendering After Expansion from Residents

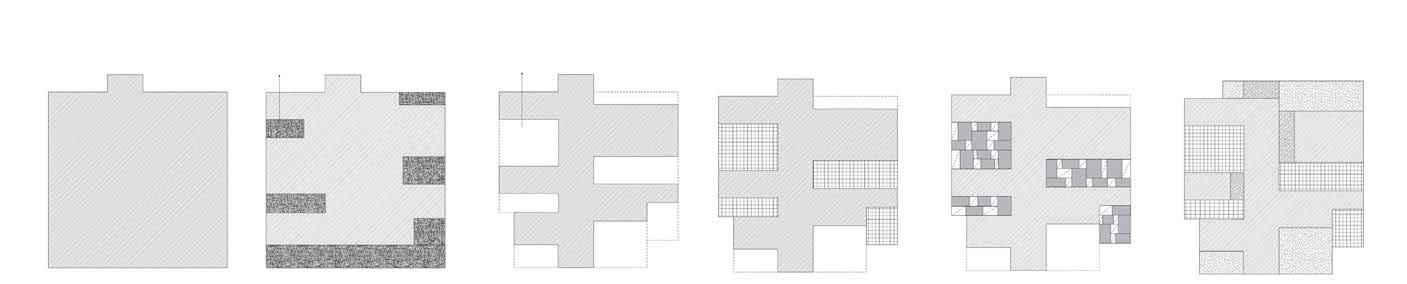

Combining the local urban fabric of residential block with individual housing self-expansion typology, which reveal the willing of self-determination of people in neighborhood, a strategy of insulting new renovation unit cluster has been introduced to revitalize the site while implanting the characteristic of community.

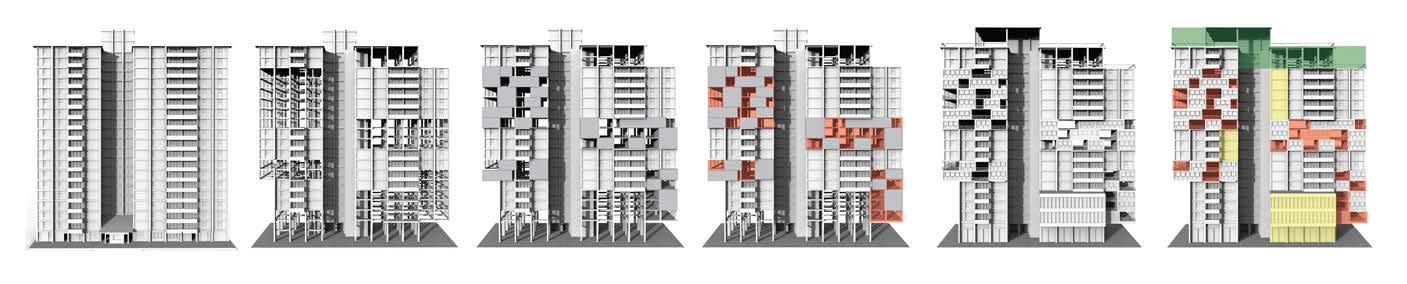

Phase 1 Demolishing partial existing building Exterior Rendering

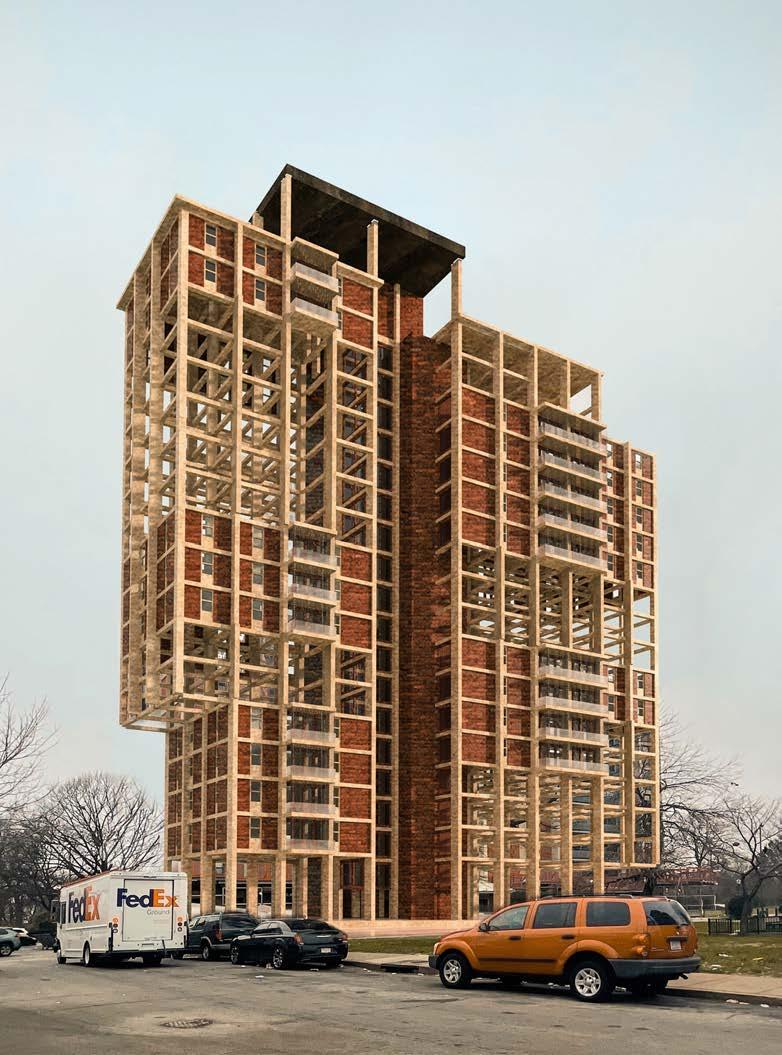

Phase 2 Inserting renovation unit Exterior Rendering

Phase 3 After expansion from residents Exterior Rendering

Mining Remnants

An Installation of Cabinet for Upenn Museum

Upenn Foundation 501 | Fall 2019

Instructor: Andrew Saunders Group Work

Collaborated with Elisabeth Machielse, Miguel Matos, Yoki Luo

Mining Remnants speaks to the boundaries between historical objects and time periods – the overall figure is broken down into four smaller figures that are connected through a black seam that runs across the surface. However, the seam sometimes interrupts the patina that connects each artifact’s voids and separates the voids themselves. This goes to show that while all of these artifacts are connected through time and through the cabinet, the shape of time is complicated and constantly changing. By this, we mean that one single object cannot be fully understood unless the viewer acknowledges the historical impact it had on or received from other cultural objects, the present-day impact in relation to current cultural understandings, and how this might shape the understanding of other objects as more are researched in the future. This last part is particularly important – although the presented project reframes the artifacts into the same narrative, this is not the final interpretation of their meanings. Future understandings of world events and history will once again provide opportunities to reframe and reinterpret them within new frameworks and giving them renewed meaning, just as it intended as history continues to develop.

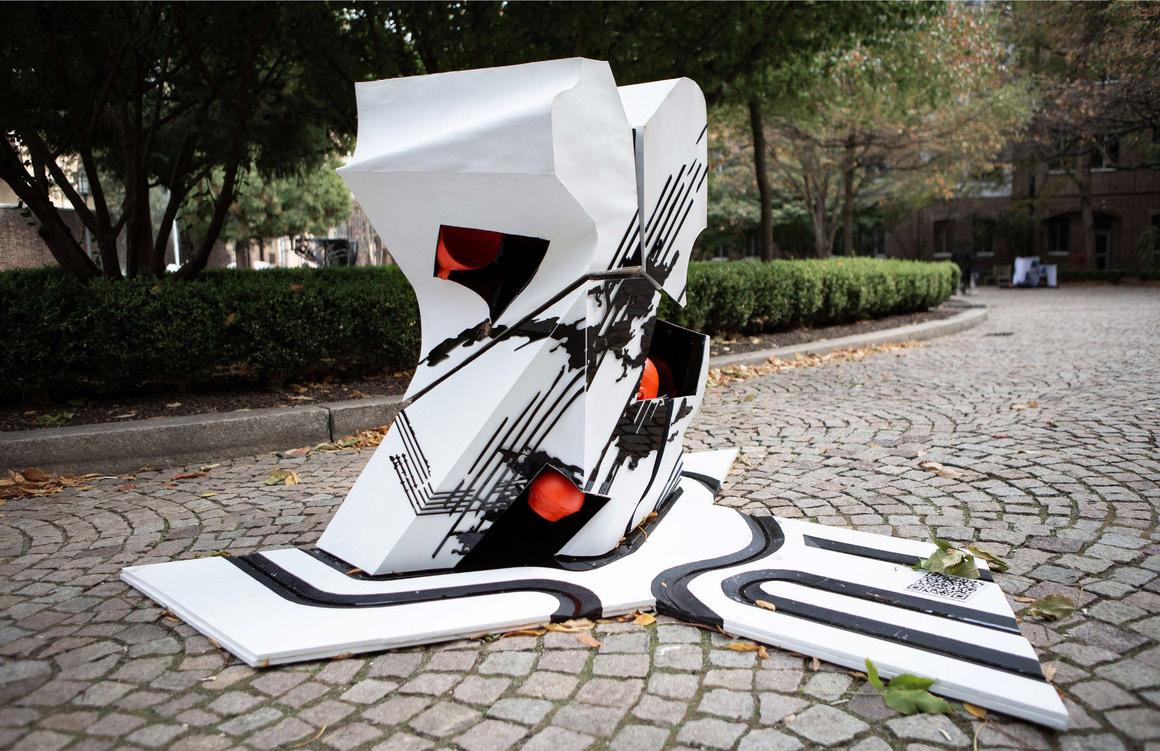

Physical Model Cabinet

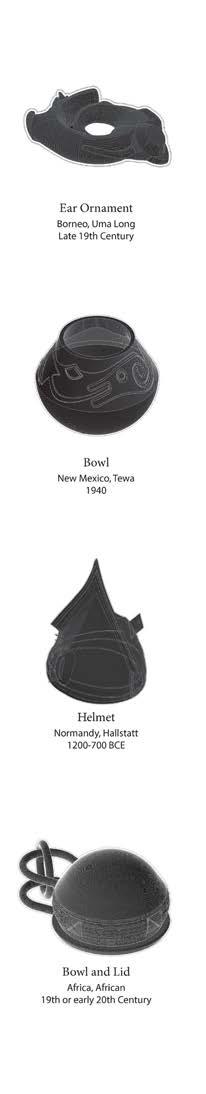

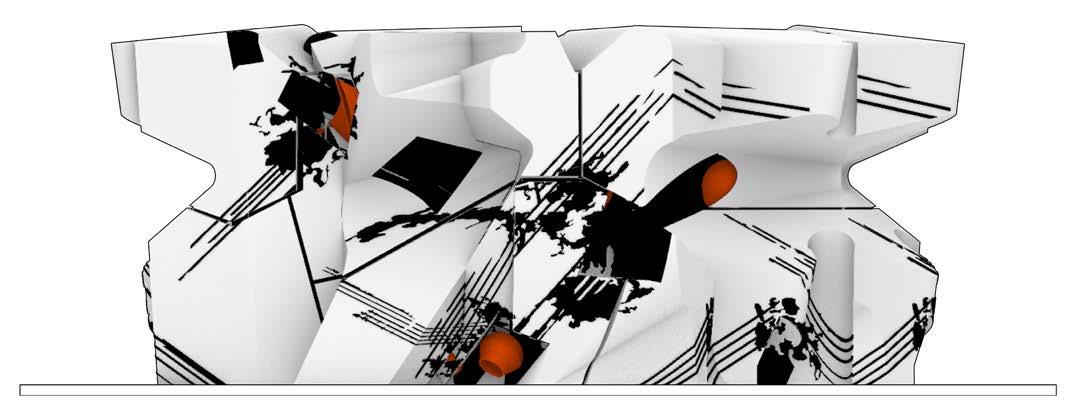

Unrolled Elevation Artifact and Patina

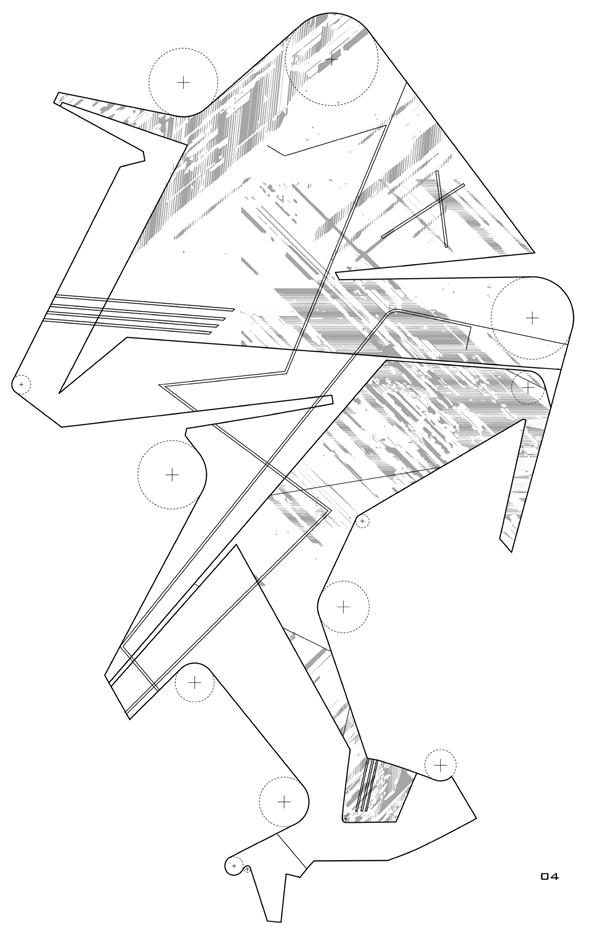

Drawing of Artifact | Extracted Linework Translation from 2D to 3D

Physical Model and Details Reflected Patina

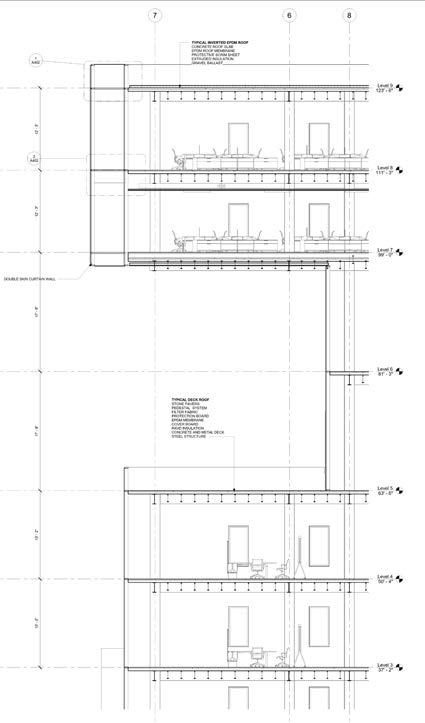

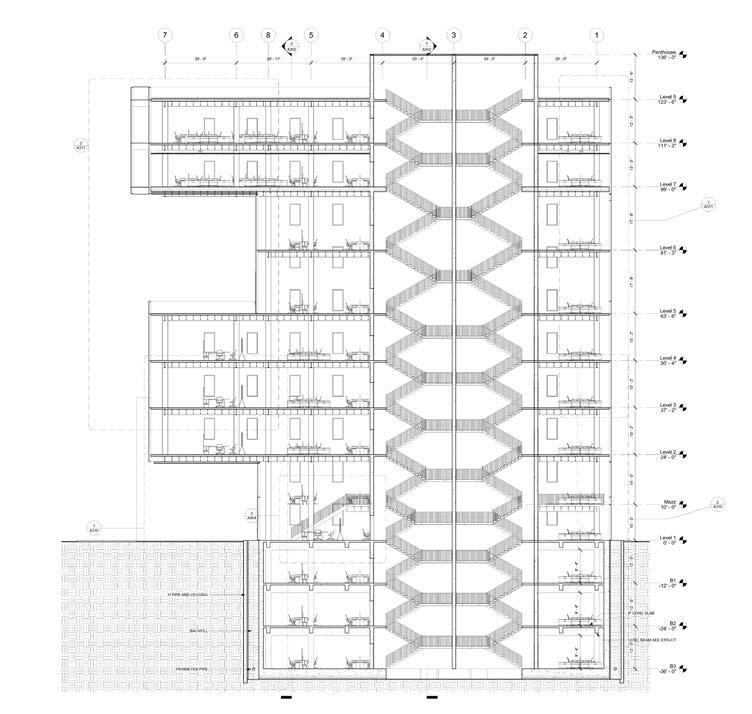

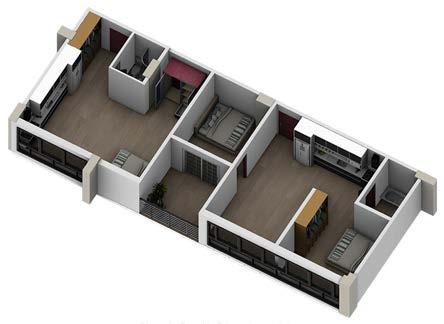

06 Revit Work

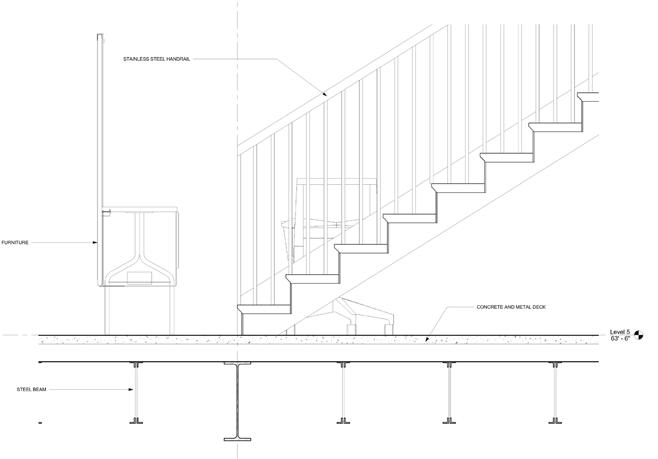

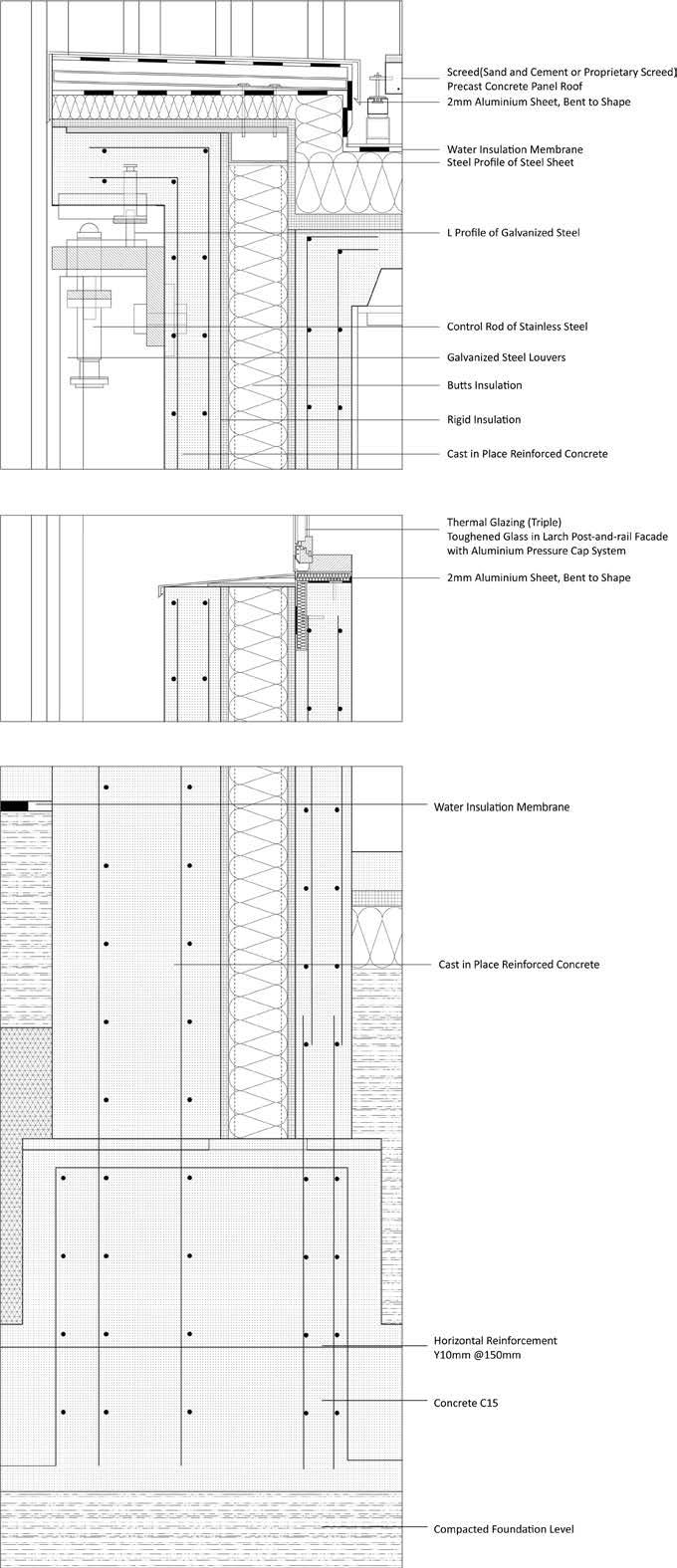

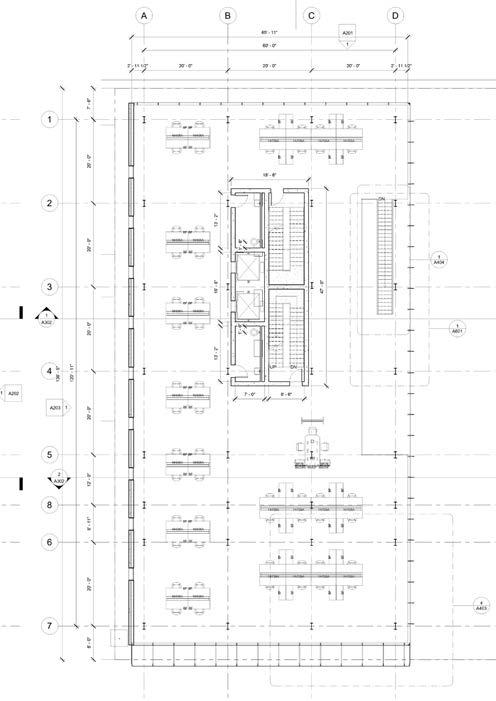

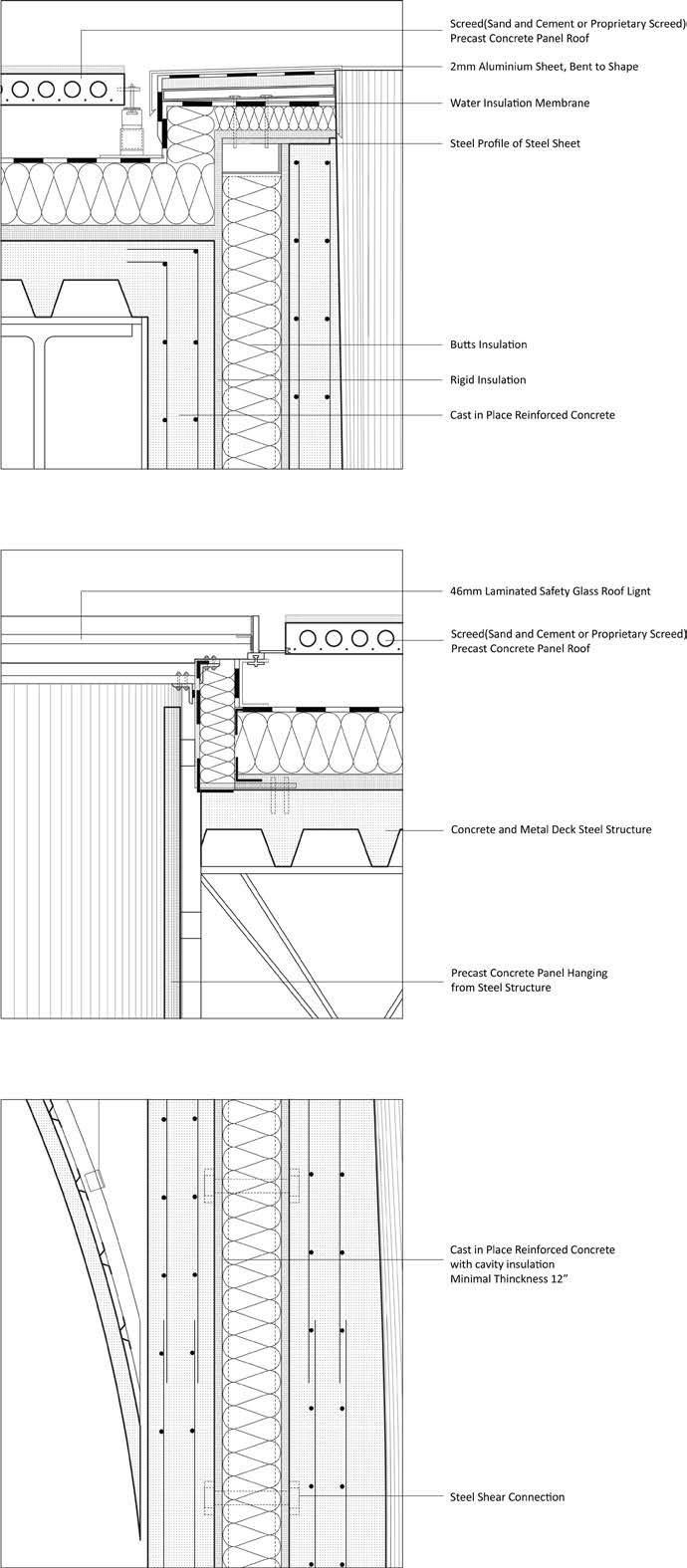

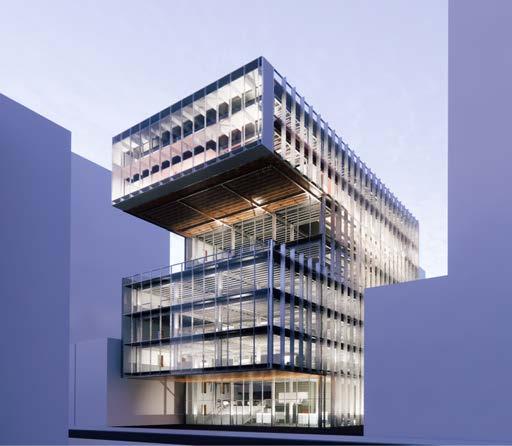

1901 Walnut Cube

Building

Construction II Course | Individual Work

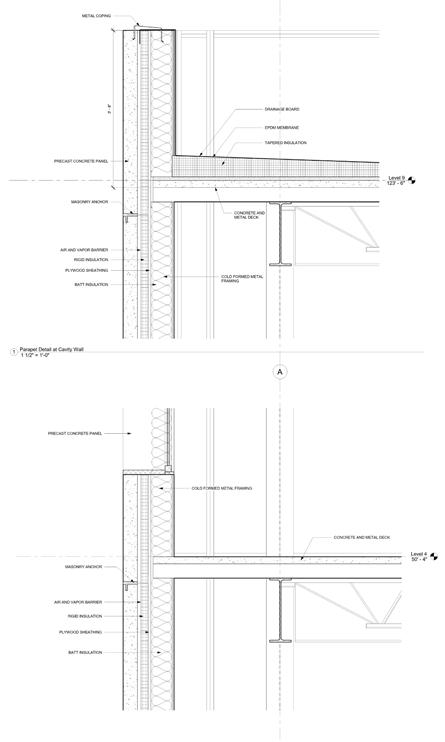

The introduction of BIM makes possible the re-framing of how construction technology is taught to architecture students.

07 Professional Work

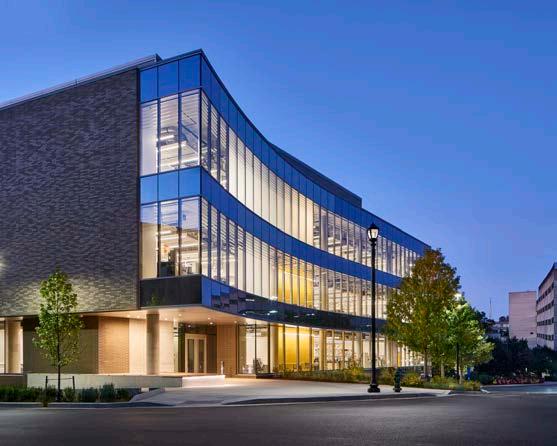

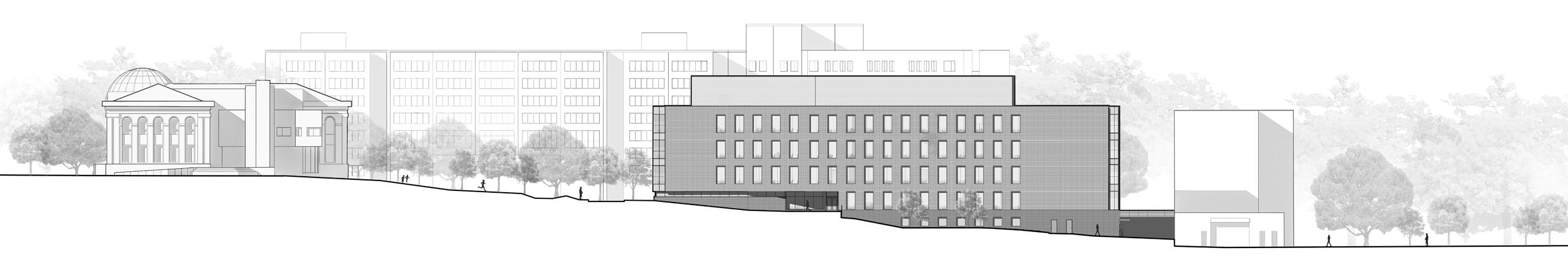

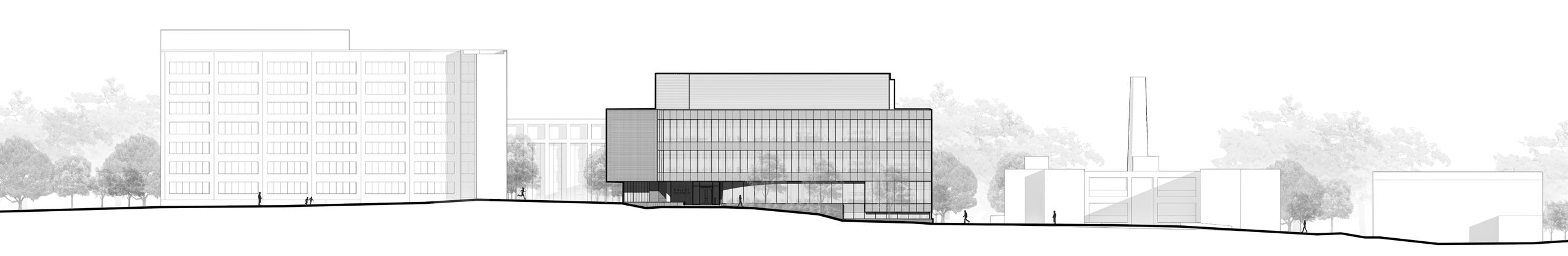

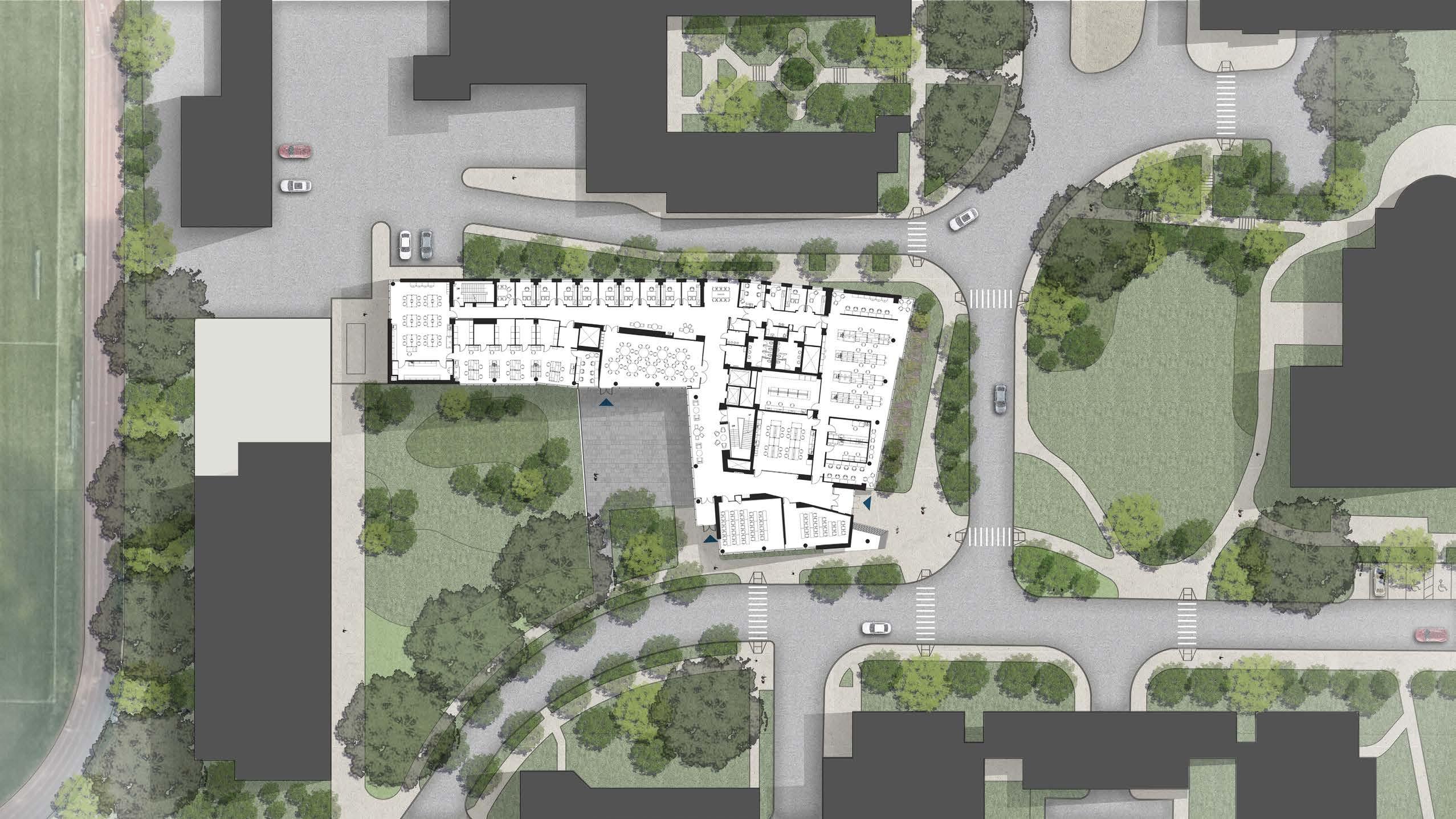

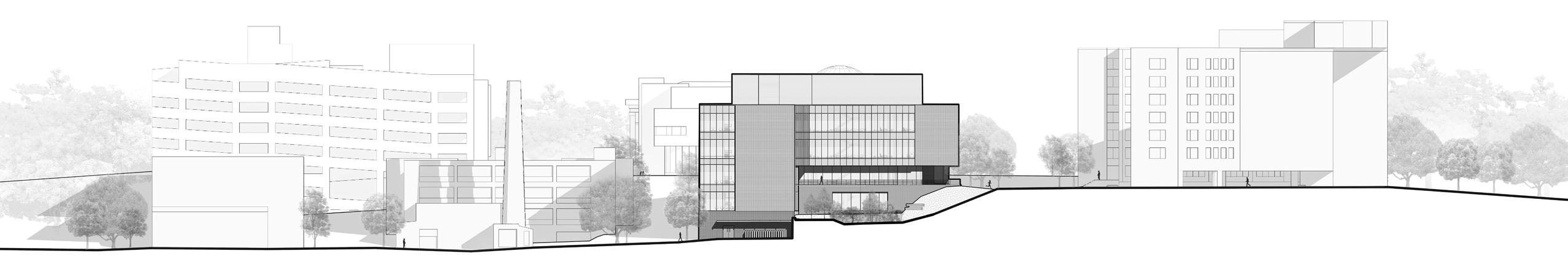

American University

Hall of Science

Ballinger | Architectural Intern | Summer 2021

Principal: Stephen Bartlett

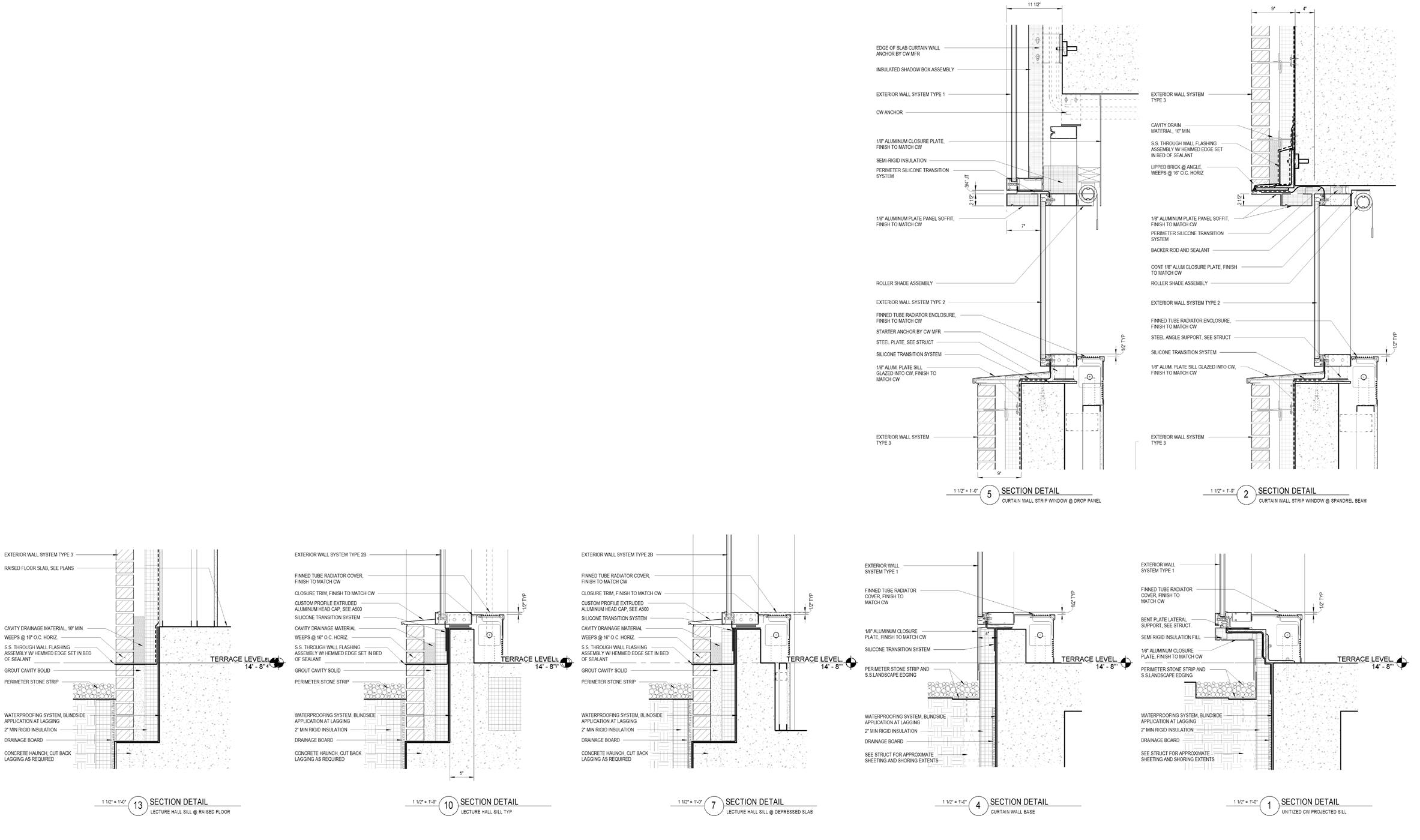

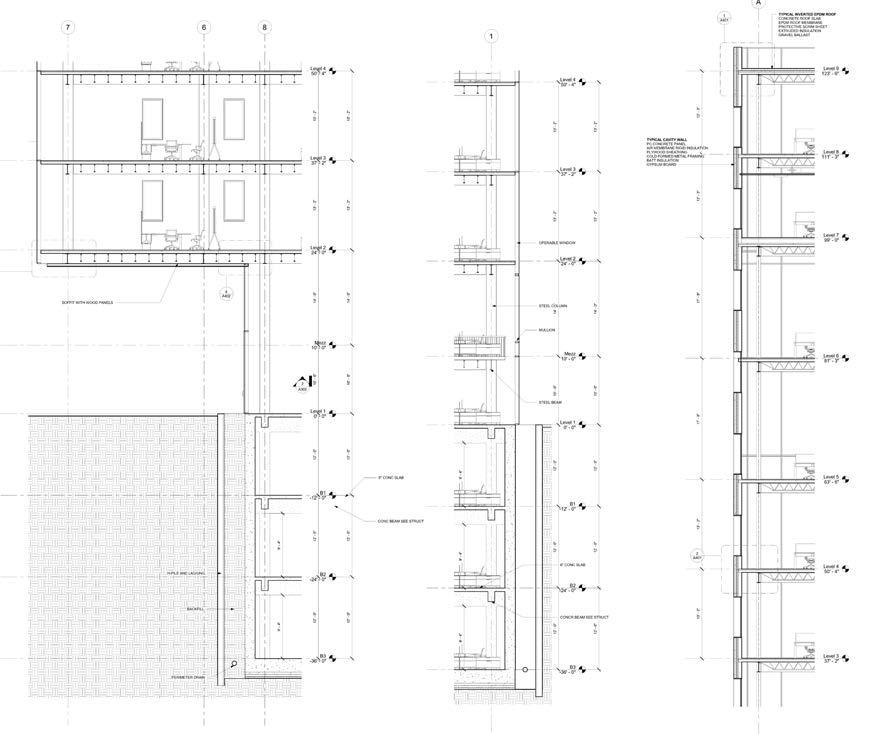

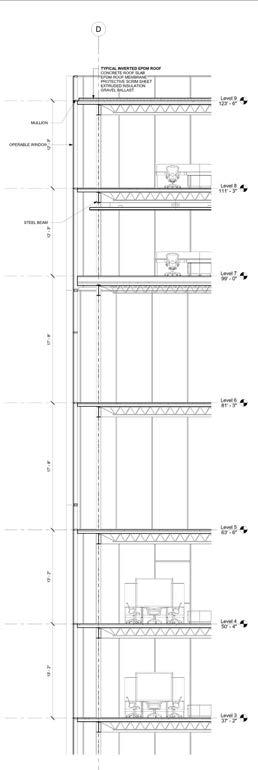

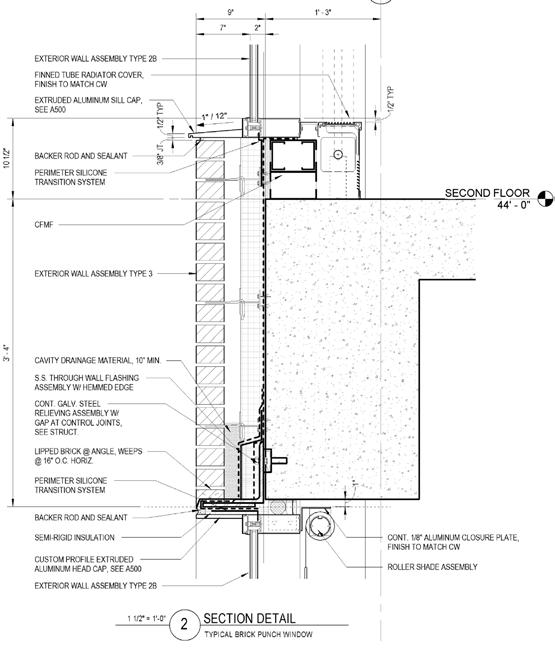

Work on Construction documentation for AIA award application

Painting Outside Eco-art Therapy Process

08 Independent Study

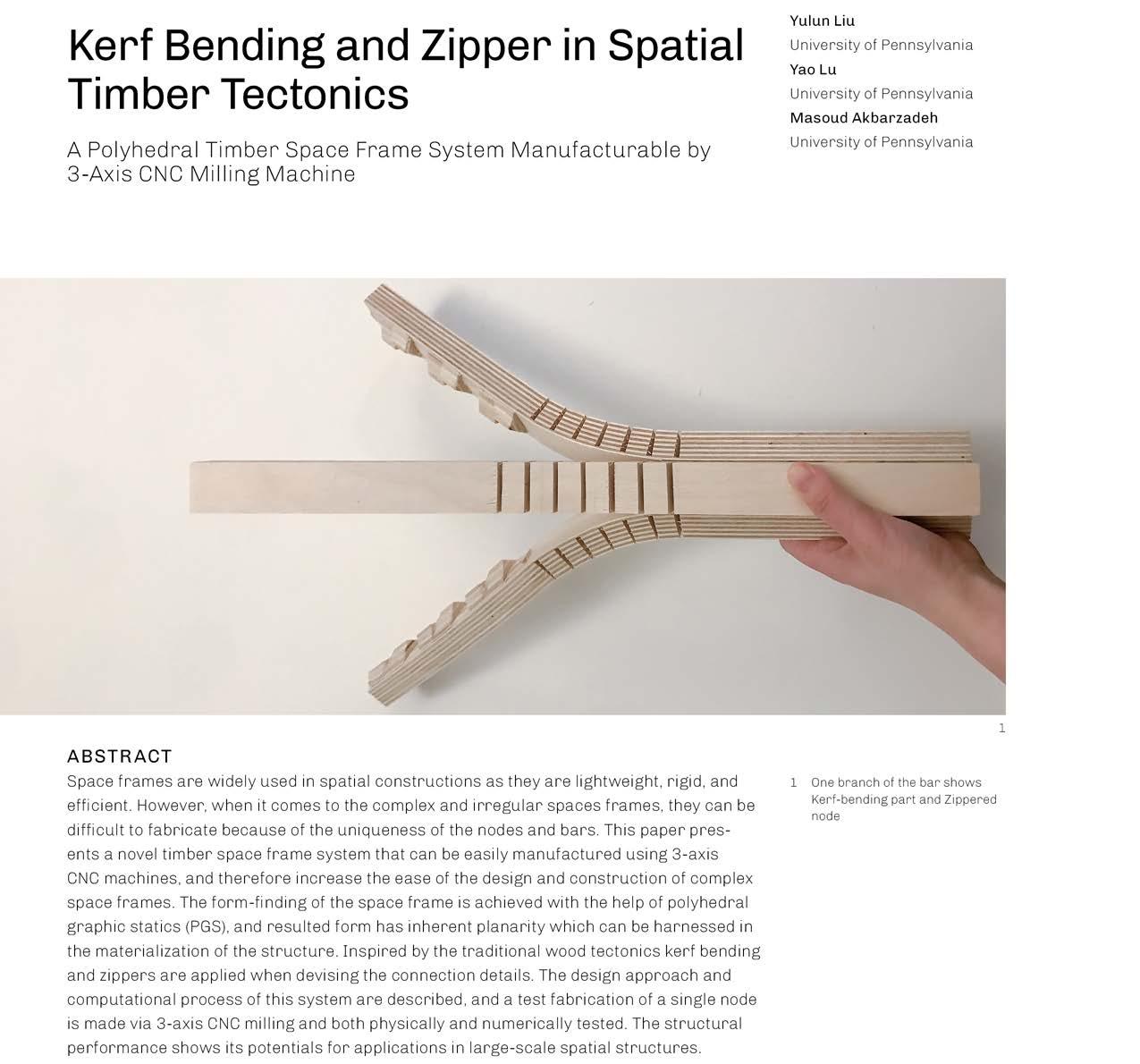

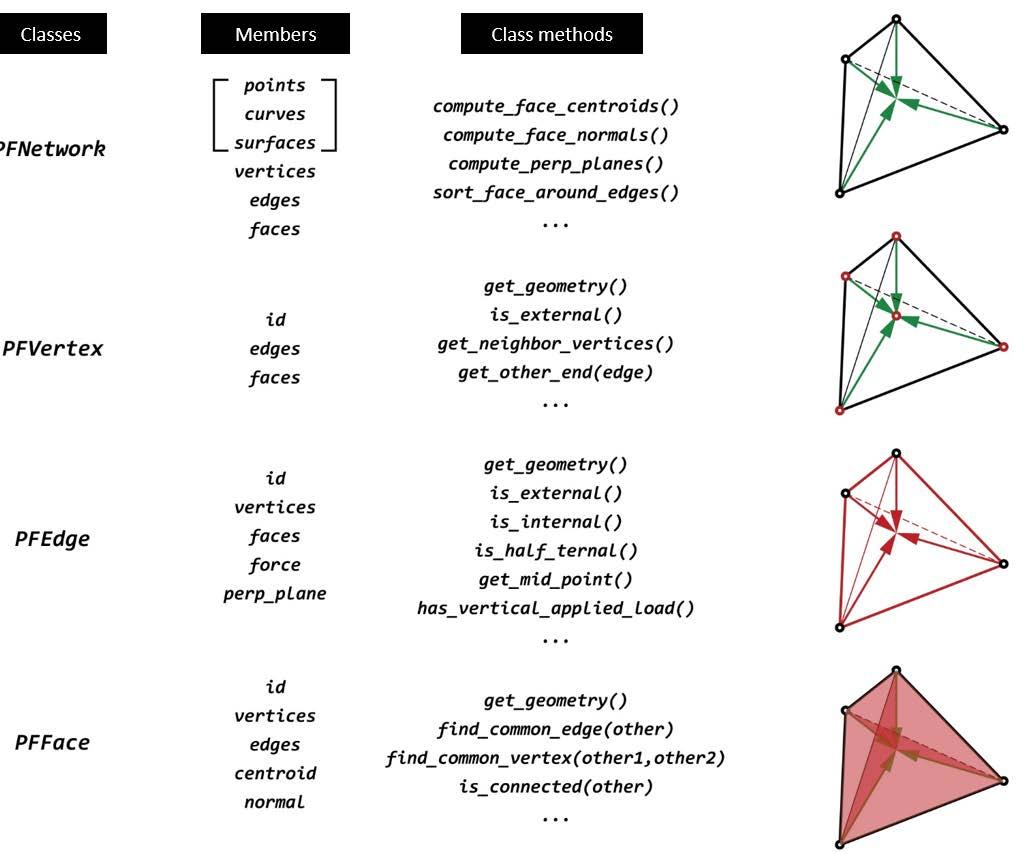

_ ACADIA 2021 Selected Paper

Polyhedral Structures Laboratory (Upenn)

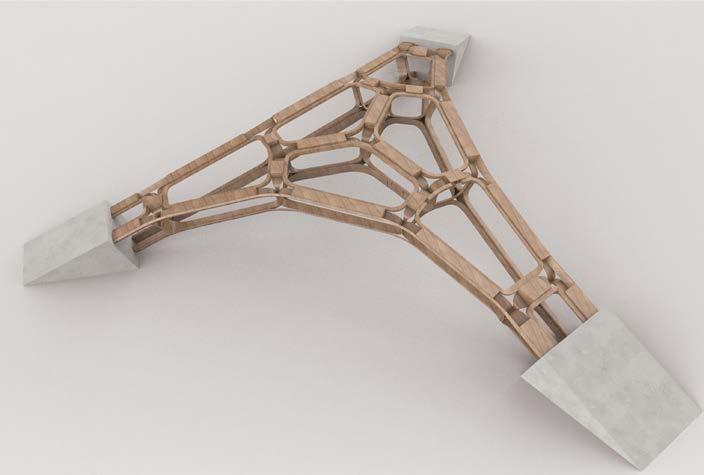

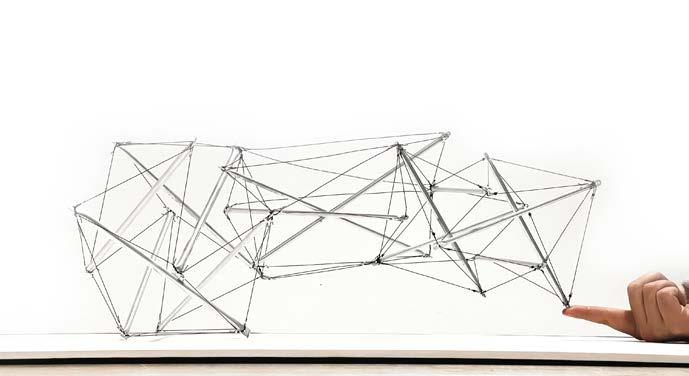

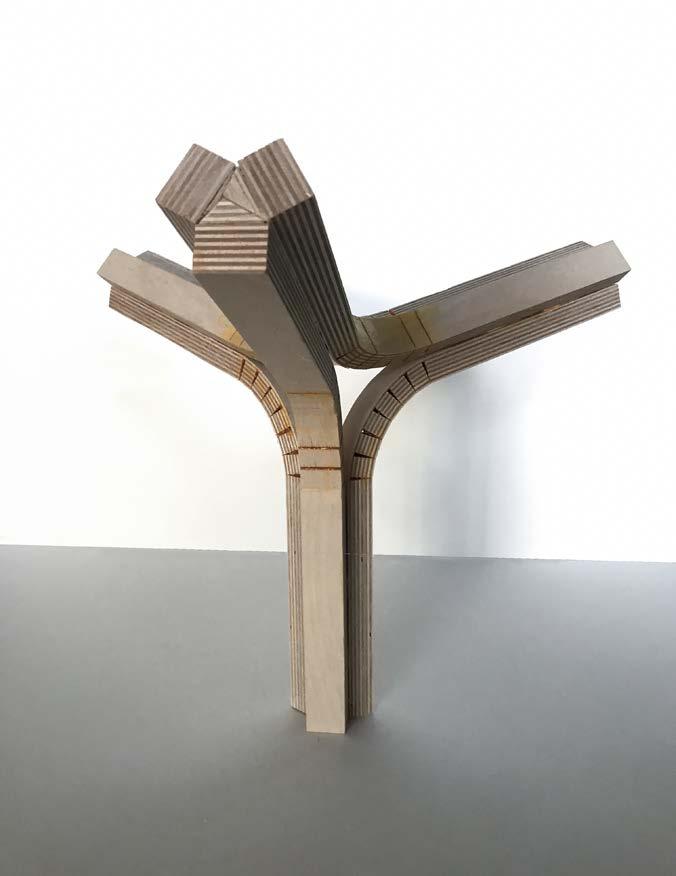

Physical Model

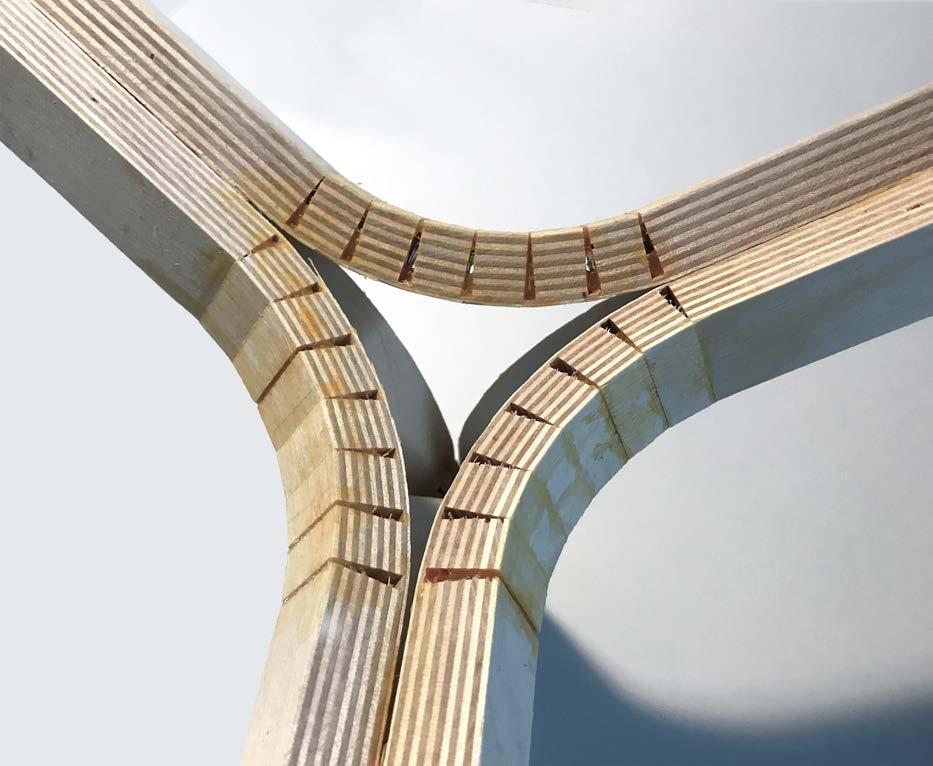

Kerfing Detail

Connected Faces

Connected Vertices

Connected Edges

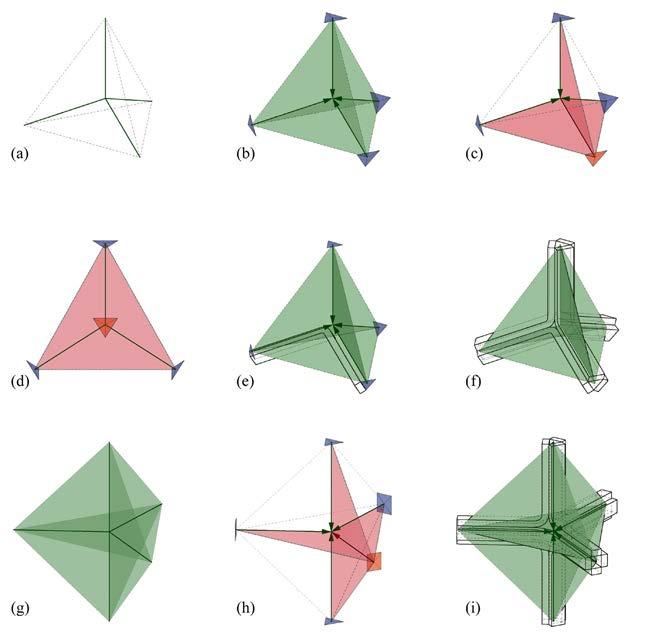

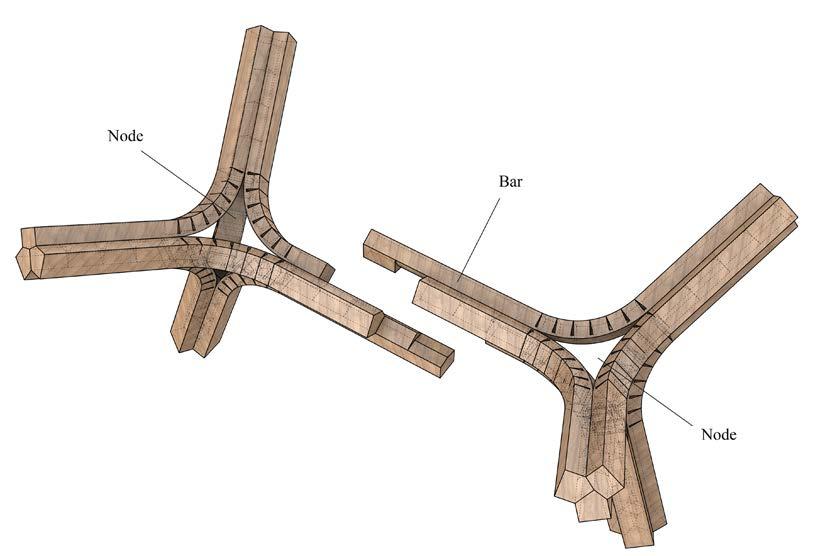

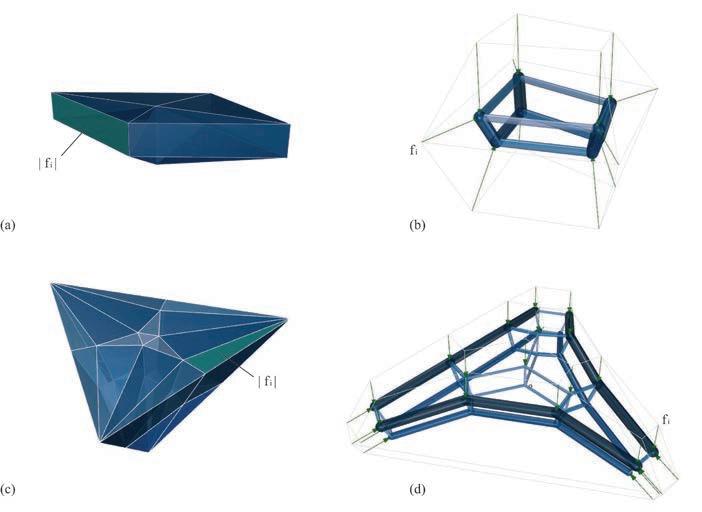

(a) Spatial node with four bars;

(b) edges and faces;

(d) aligned view for the edge section;

(e) side face perpendicular to the corresponding input face;

(f) all side faces perpendicular to their corresponding input faces;

(g) Spatial node with five bars;

(h) tetragonal section profile for one edge determined by connected four faces;

(i) final generated parts.

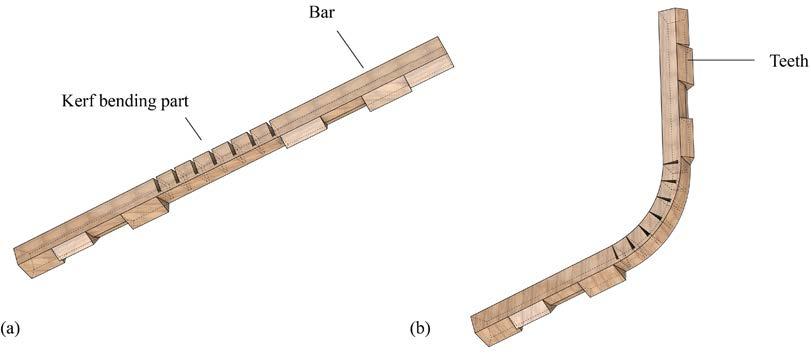

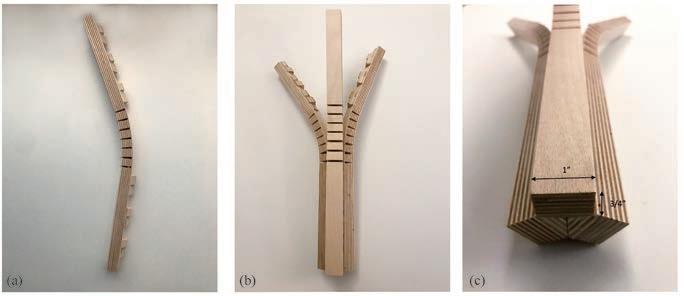

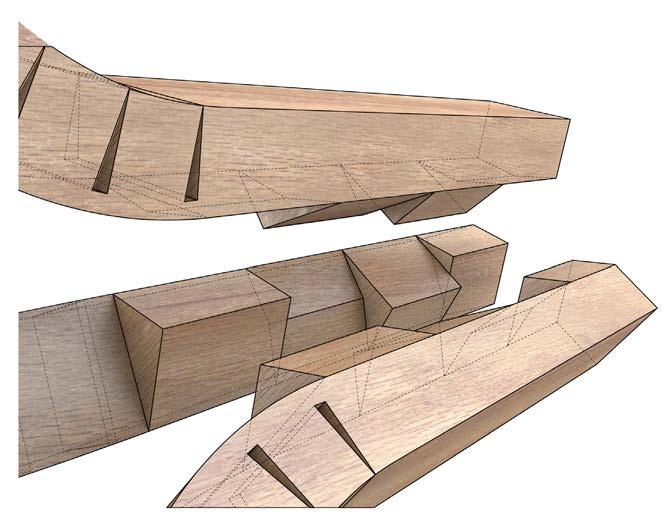

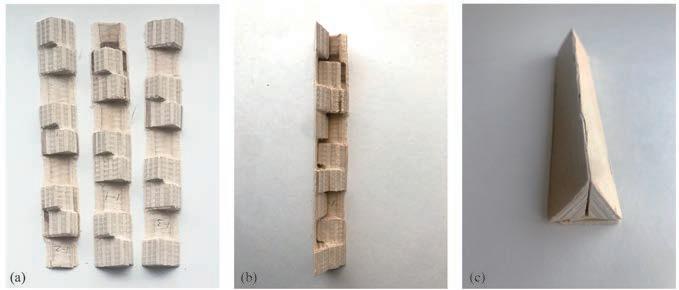

(a) One part of the frame with kerf-bending portion and zipper teeth (b) the part after bending with the edge pair of each kerf tightly attached.

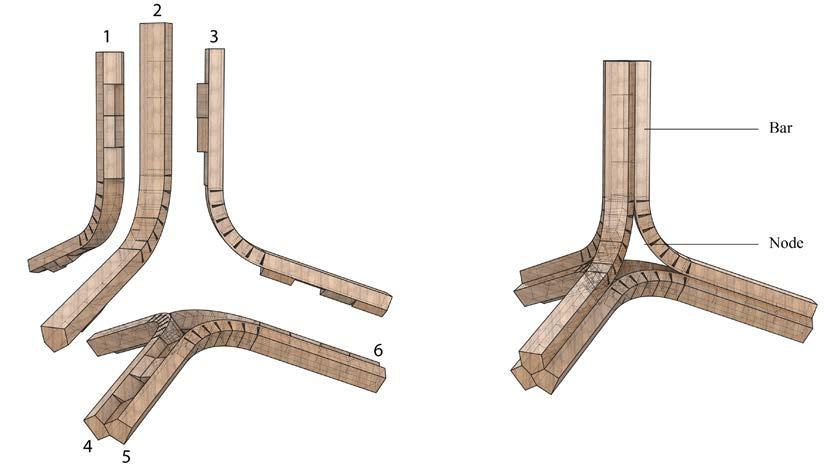

The assembly sequence

The connection between two neighboring joints.

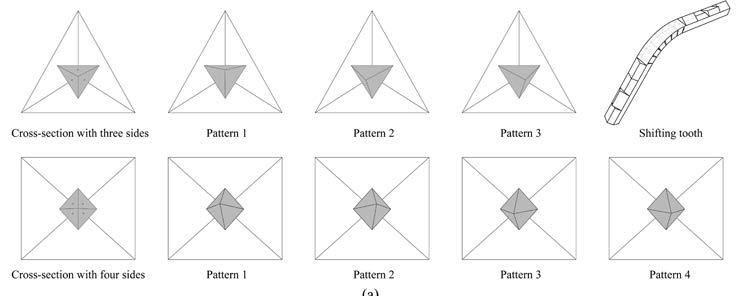

The logic of generating zippered ‘tooth’ and the mode of patterns for triangle and quadrangle cross-section; Details for the three-directional zippered part.

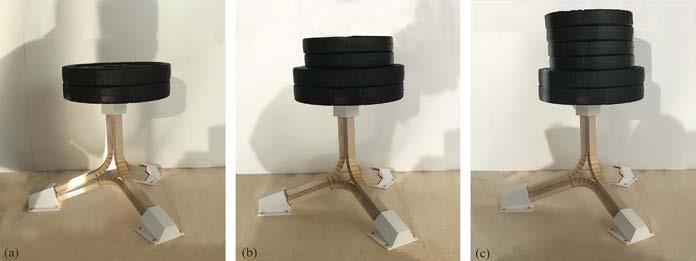

Top : Physical load test for the prototype; (a) 50 pounds of applied load (b) 70 pounds of applied load (c) 90 pounds of applied load.

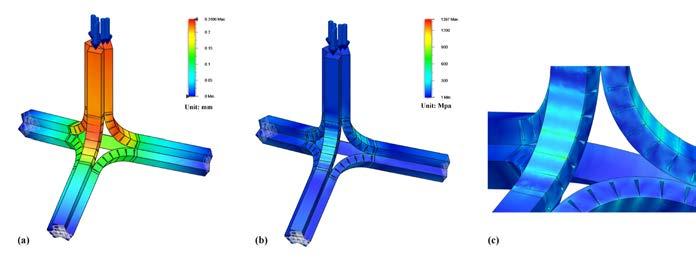

Bottom : (a) Displacement map; (b) stress distribution map; (c) detail of maximum stress point after bearing the force of 1KN.

Physical Model of Joint Assembly Process

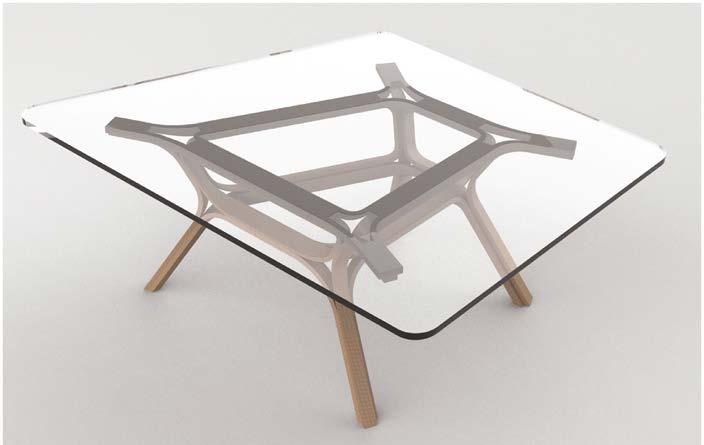

The Force Diagram and Fom Diagram of a Table and Shell Rendering of Table and Shell

Architectural forms which are not born of logic, study and deep understanding of the peculiar problem at hand, but come out of preconceived aesthetic theories, will always be in danger of becoming artificial or just fashinable.

“A satisfactory balance must always be struck between the two alternatives: The best architectural design and the best structural design.”

In examing and deciding upon the most suitable structural scheme, the most varied solution gradually emerges. After elimination of that which is irrelevant and unimportant and strictly adoping structural form to function, the most aesthetic solution may emerge.
