-ECO RESORTPULAU KETAM MANGROVE RESORT

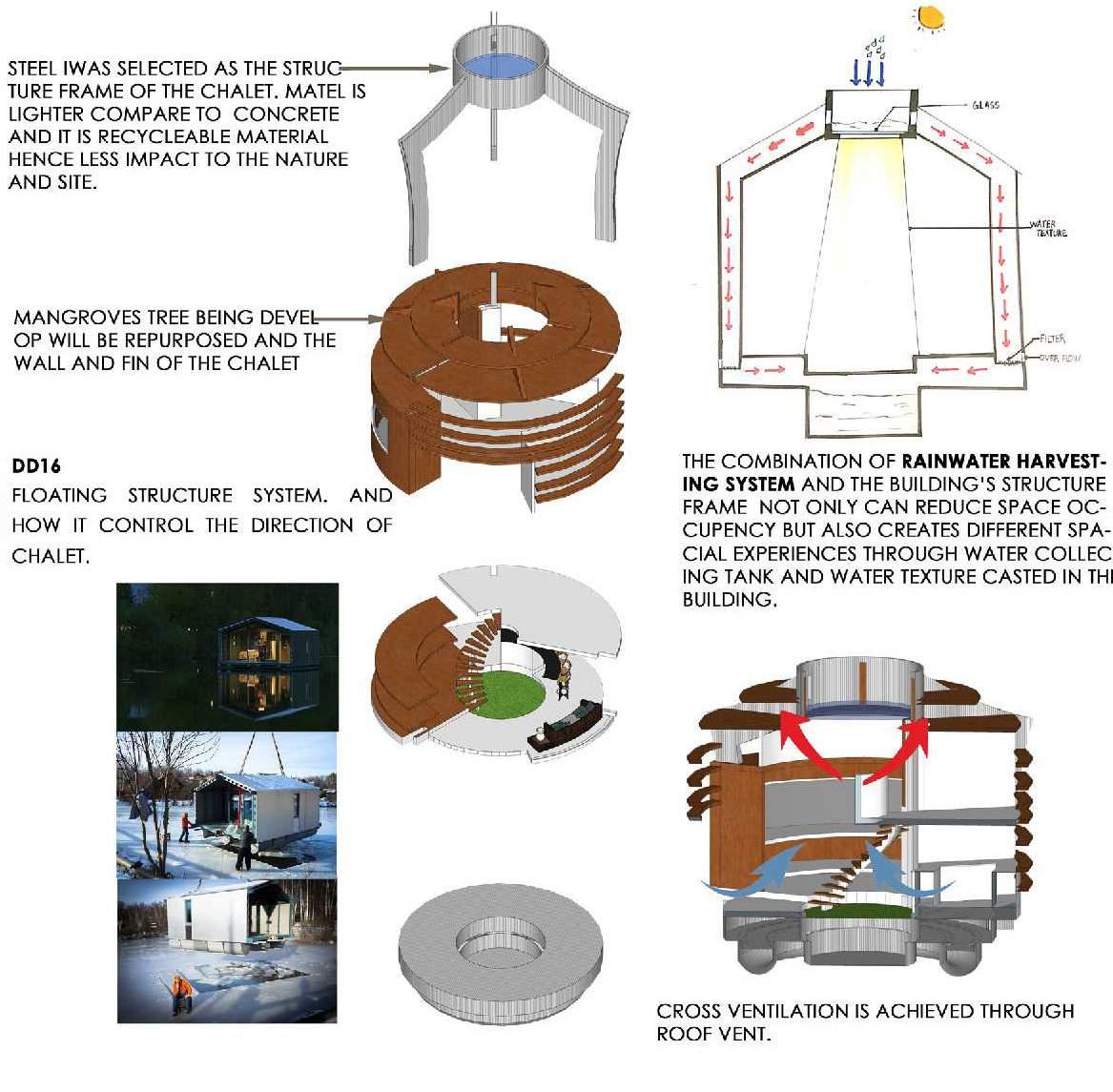

THE CONCEPT OF THE CHALLET IS TO OVERTHROW THE TRADITIONAL RESORT. A MOVEABLE FLOATING CHALLET AND MODULAR CONCEPT ALLOW THE VISITOR HAVE DIVERSE EXPERIENCE AND DIFFERENT OPTION OF MODULAR FOR DIFFERENT ACTIVITES ON THE CHALLET.
THIS PROJECT IS TO DESIGN A ECO RESORT WITH 10 UNITS OF TYPICAL CHALET THAT LOCATED IN KLANG ISLAND, SELANGOR. IN CHALET DESIGN WAS DONE IN PROJECT 2, THUS PROJECT 3 IS TO DESIGNE THE FACILITY OF THE RESORT. THE FACILITY ARE INCLUDING JETTY, MAIN BUILDING OF THE RESORT AND RESTAURANT. HOWEVER, TO MAKE THE RESORT MORE INTRESTING BY ADDING IN PROGRAM WHICH RELATE TO THE SITE IS ALSO PRAT OF PROJECT 3. THE PROPOSED PROJECT IS TO PROMOTE AND STRENGTHEN THE IDENTITY, COMPETIVENESS AND UNIQUENESS OF KLANG ISLANDS.
Kampong Bharu Information Centre-Epitomes is to record the history, current and future Of Kampong Bharu and become the cornerstone of Malaysia’s “New Village Program”.
“Epitomes” is referring to the miniature of Kampong Bharu. Therefore, in order to preserve the historical sense of Kampong Bharu, the design was inspired by the characteristics of traditional Malay house, such as stilt up design and the space arrangement of Malay traditional house. Kampong Bharu Information Centre is a comprehensive exhibition building that integrates planning, display, culture, education, leisure and other functions. It implements the functions of planning and publicity, education, e-library reading, city sightseeing, leisure and comprehensive combination of conference and office functions.
-EPITOMES-
Kampong Bharu Information Center
DESIGN DEVELOPMENT
(…) The Kampung Baru development plan does not seem to take into full account the potential of the area as a tourist attraction, especially with its cultural heritage values, according to a heritage historian. Ahmad Najib Ariffin of the Malaysian Institute of Architects (PAM) Conservation and Heritage Committee said the traditional Malay enclave is already a hub of Malay cultural activities, notably for those seeking gastronomic experience. (…) ISSUE
(…) ISSUE
The traditional Malay houses that now sit in the shadow of the gleaming Petronas Twin Towers in Kampung Baru, Kuala Lumpur, will be relocated and preserved as part of the redevelopment project. The redevelopment master plan includes a Heritage Park, where these houses will be relocated to make way for mixed development, Veritas Design Group vice-president Lilian Tay (above) said. The Heritage Park is part of various elements in the Kampung Baru redevelopment master plan. Houses that are not located where new structures will be built, will remain in their original location, Tay said.
(…)
Connect Connect
Kampong bharu Information centre act as a starting point to connect the dots in Kampong Bharu and yet propose a bicycle tour for tourist from kl city centre.
Kampong Bharu Information Centre act as a coner stone of new village development . Recording the past, present and future as a reference for other new village development.
Transform kampong bharu into tourist attraction point by introduce the living culture, history, architecture and food to the public.
ANJUNG DESIGN SCHEDULEIDEAOF ACCOMODATION
COMMUNITY SPACE INTERACTIVE HALL
EXHIBITION AREA HISTORICAL PATH
The selected site in Kampong Bharu situated close to KL City Centre, which surrounded by resident and institution. Site 3 is lo cated near to the Kampong Bharu LRT station and Saloma Bridge which only 3 min walking distance to the site.
BASEMENT CARPARK SCALE 1 : 200
GROUND FLOOR PLAN SCALE 1 : 200
FIRST FLOOR PLAN SCALE 1 : 200 THIRD FLOOR PLAN SCALE 1 : 200 SECOND FLOOR PLAN SCALE 1 : 200
Reserve the original futsal and provide community area to serve the community and integrating it into a part of the architectur al design.
FRONT ELEVATION SCALE 1 : 200 RIGHT ELEVATION SCALE 1 : 200

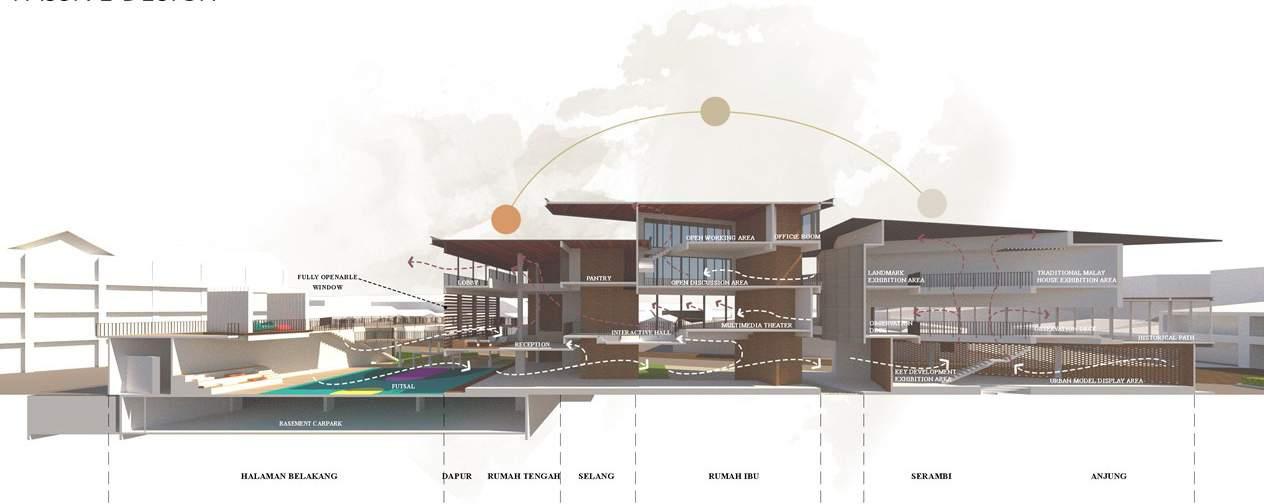

SECTION A-A SCALE 1 : 200
SECTION DETAIL SCALE 1:20
