AGuide to our Umbrellas
To help you choose the perfect umbrella for your setting
WELCOME
This guide has been created to help you choose the ideal umbrella for your education or commercial setting.
You will find a helpful comparison table which compares all the umbrellas within in our range and includes sizes, construction materials and features. Each product has two pages dedicated to it and lists the product features along with installation details.
If you have any questions or would like to find out if you qualify for a free site survey, please call us on 0800 389 9072 or email sales@ablecanopies.co.uk
The Ulverston Umbrella
The Richmond Umbrella
The Blenheim Umbrella
Page 4 –5 Umbrella ComparisonTable
Page 6 The Keswick Umbrella Specification
Page 7 The Keswick Umbrella Ground Fixing Detail
Page 8 The Ulverston Umbrella Specification
Page 9 The Ulverston Umbrella Ground Fixing Detail
Page 10 The Blenheim Umbrella Specification
Page 11 The Blenheim Umbrella Ground Fixing Detail
Page 12 - 13 The Blenheim UmbrellaAvailableAccessories
Page 14 The Drayton Umbrella Specification
Page 15 The Drayton Umbrella Ground Fixing Detail
Page 16 The Drayton UmbrellaAvailable Sizes
Page 17 The Drayton UmbrellaAvailableAccessories
Page 18 The Richmond Umbrella Specification
Page 19 The Richmond Umbrella Ground Fixing Detail
Page 20 The Richmond UmbrellaAvailable Sizes
Page 21 The Richmond UmbrellaAvailableAccessories
Page 22 Fabric Colour Options: Keswick Umbrella Ulverston Umbrella Blenheim Umbrella
COMP ARE UMBRELLAS
Compare our umbrellas using the table below . Please continue reading this guide to view the specifications for each product in more detail.
DRA YT ON RICHMOND
Round: Up to 8m2 Square: Up to 6m Rectangle: Up to 7.5 x 4m
Round: Up to 6m Square: Up to 5m Rectangle: Up to 6.5 x 4m
UL VERST ON BLENHEIM
Width: Up to 6m Length: Up to 6m 2.8m x 2.8m 3m x 4m 4.2m x 4.2m
Bases
KESWICK
Width: Up to 4m Length: Up to 4m
Supplied in white as standard. Any RAL colour or a DECORAL® pattern range at an additional cost.
Supplied in white as standard. Any RAL colour or a DECORAL® pattern range at an additional cost.
Installed into the ground with concrete pads • Underground concrete pads • Deck plates
Installed into the ground with concrete pads
Non-standard RAL colours available at an additional cost.
. Non-standard RAL colours available at an additional cost.
Serge Ferrari Precontraint 502 (PVC coated Polyester , high-gloss lacquered on both sides) Choice of Sunacryl (acrylic) or Airtex (polyester) Choice of Sunacryl (acrylic) or Airtex (polyester)
Serge Ferrari Precontraint 502 (PVC coated Polyester , high-gloss lacquered on both sides)
Serge Ferrari Precontraint 502 (PVC coated Polyester , high-gloss lacquered on both sides)
THE KESWICK
The Keswick is an attractive cantilever umbrella structure which is ideal for small or large outdoor spaces, especially outdoor learning and play environments.
This structure is covered with our exclusive waterproof tensile fabric and due to its design, offers a spacious area underneath the structure which is free from a central post.
TECHNICALSPECIFICATION
Max. Length: 4 metres
Max. Width: 4 metres
Umbrella Shape: Square & cantilevered with a side post
Guarantee: 5 years for the fabric
AvailableAccessories: Anti-climb cones and post pads
Collapsible: No
Installation Method: Installed into a concrete base
Frame
Material: Steel
Frame Finish and Colour Options: Galvanising & powder coating in any standard RAL colour - see page 26. Non-standard RALcolours may incur additional costs
Fabric
Material:
PVC coated polyester, high-gloss lacquered on both sides
Fabric Colour Options: 40 colours - see page 24
Waterproof: Yes
UV Projection: Printable: Up to 99% No
GROUND FIXING DETAIL
The above dimensions are based on a standard size product and may vary, they are also subject to pre-site specific structural calculations.
THE ULVERSTON
The Ulverston is a striking tensile umbrella structure which is supported by a robust tubular steel post.This design creates an attractive shade and shelter structure which is perfectly suited to outdoor seating and dining areas and looks stunning in both natural and urban landscapes.
This umbrella can be constructed to cover an area of up to 6 metres square, and creates an attractive effect when multiple umbrellas are installed next to each other
TECHNICALSPECIFICATION
Max. Length: 6 metres
Max. Width: 6 metres
Umbrella Shape: Square with a centre post
Guarantee: 5 years for the fabric
AvailableAccessories: Post pads
Collapsible: No
Installation Method: Installed into a concrete base
Frame Material: Steel
Frame Finish and Colour Options: Galvanising & powder coating in any standard RAL colour - see page 26. Non-standard RALcolours may incur additional costs
Fabric Material:
PVC coated polyester, high-gloss lacquered on both sides
Fabric Colour Options: 40 colours - see page 24
Waterproof: Yes
UV Projection: Printable: Up to 99% No
THE KESWICK
GROUND FIXING DETAIL
The above dimensions are based on a standard size product and may vary, they are also subject to pre-site specific structural calculations.
THE BLENHEIM
The Blenheim is a strong waterproof umbrella structure that can be closed when not in use.This product is perfect for everyday use within restaurants, pubs & cafés for alfresco dining; parks, schools and leisure centres for shade and shelter; and hospitals and care homes for relaxing sheltered outside areas.
As an added extra, the Blenheim rarely requires structural calculations or building regulations as it is a collapsible structure, making the installation process simple and fast.
TECHNICALSPECIFICATION
Length: 2.8m, 3m and 4.2m Width: 2.8m, 4m and 4.2m
Umbrella Shape: Square with a centre post
Guarantee: 5 years for the fabric 2 years for the frame
AvailableAccessories: Posts pads, lighting, heating, guttering, side fills, 3-part cleaning kit and mast clamps
Collapsible: Yes
Installation Method:
Choice of installation into a concrete base, deck plates and above ground bases
Frame Material: 316 grade stainless steel
Frame Finish and Colour Options: None - natural stainless steel finish only
Fabric Material:
PVC coated polyester, high-gloss lacquered on both sides
Fabric Colour Options: 40 colours - see page 24
Waterproof: Yes
UV Projection: Up to 99%
Printable: Yes also, a vinyl can be applied as an alternative.
Sizes and Dimensions
Size 4.2m 2.8m 3m x 4m
Shape Square Square Rectangle
Mast Diameter 76mm 76mm 76mm
Head Clearance (b) 2270mm 2100mm 2270mm
Total Height © 3800mm 3200mm 3845mm
Closed Clearance (d) 410mm 1050mm 780mm
SurfaceArea 17.6m2 7.8m2 12m2
GROUND FIXING DETAIL
Choice of three ground fixing options as shown below; setting into concrete (1.), deck plates (2.), and mobile bases (3.a.) and (3.b.).
Concrete pads:
1000mm x 1000mm x 1000mm for the 4.2m² umbrella
800mm x 800mm x 800mm for the 2.8m² umbrella
(for both size umbrellas)
The concrete slabs need to be added in layers, making up the recommended weight of base; 950kg for the 4.2m² umbrella or 750kg for the 2.8m² umbrella as shown in figure (3.a.)
Once the slabs have been added, it is possible to construct a box round the slabs as shown in figure (3.b.)
The above dimensions are based on a standard size product and may vary, they are also subject to pre-site specific structural calculations.
THE BLENHEIMACCESSORIES
The Blenheim is available with a range of accessories to enhance the use of the structure and to suit the needs of the end user
All accessories are available at an additional cost, please ask us to include them in your quotation if required.
HEATINGAND LIGHTING KITS
Flexible heat and light options
Highly efficient directional heat
Highest quality European manufactured components
No factory wired loom required
2 Heaters
Preconfigured kits for easy installation
Individual components for flexibility
Many other possible combinations available
2 x Solamagic 1.5kW electric IR heaters, with integrated switches and lights
2 x Brackets to attach heaters to parasol arms
1 x Solamagic 4 x 50W spot lights
1 x Heater hub, for connection of up to 4 heaters
Cabling from Lights & Heater hub to apex of parasol, fitted
IPRated junction box for apex of parasol
4 Heaters
4 x Solamagic 1.5kW electric IR heaters, with integrated switches and lights 4 x Brackets to attach heaters to parasol arms
1 x Solamagic 4 x 50W spot lights
1 x Heater hub, for connection of up to 4 heaters
Cabling from Lights & Heater hub to apex of parasol, fitted
IPRated junction box for apex of parasol
Lights only
1 x Solamagic 4 x 50W spot lights 280
Cabling from Lights to apex of parasol, fitted
IPRated junction box for apex of parasol
FABRIC PRINTING
The fabric can be screen printed or have vinyls applied in the text or logos of your choice.
FABRIC SIDE FILLS
Waterproof fabric side fills can be added to your umbrella/s to enclose them and block additional rain and wind during the cooler months.
They can be removed as and when required.
GUTTERING
Guttering can be supplied to link multiple Blenheim umbrellas together, creating much larger outdoor covered areas.
POST PADS
Post pads are available to protect the centre posts from prangs.They are also ideal to protect children from bumping into the posts.
3 PART CLEANING KIT
Look after the steel parts of your Blenheim umbrella with theAfter CareTea Staining 3Part Cleaning Kit which keeps stainless steel fittings in top condition long after installation.
MAST CLAMP
Ideally, the Blenheim umbrella should not be left vertical when closed for extended periods of time, without fitting the optional mast clamp plate, to take the tension out of the canopy.
If left closed without the clamp ring correctly fitted, the canopy can stretch.This is not covered under warranty.
THE DRAYTON
The Drayton is our classic umbrella that is suitable for outdoor eating and drinking areas, patios, playareas, decking or any other outdoor setting, the Drayton is constructed with a high quality aluminium frame and state-of-the-art gearbox which is guaranteed for 5 years.
There’s a wide range of fabrics to choose from and the fabric can be branded with a logo, image or slogan of your choice.
TECHNICALSPECIFICATION
Available Sizes: Up to 6m diameter (see page 18)
Umbrella Shape: Round, square and triangle
Guarantee:
10 years for the fabric, 5 years for the gearbox and 1 year for the frame
AvailableAccessories:
Fabric printing, heaters, lighting, side panels, valences, gutters (to connect multiple umbrellas) and the marine upgrade
Collapsible: Yes
Installation Method:
Choice of ground sleeve, base plate or a portable base
Frame Material: Aluminium
Frame Finish and Colour Options:
Powder coated in white as standard, also available in any RALcolour at an additional cost - see page 26 for our standard RALcolours
Fabric Material: Choice of Sunacryl (acrylic) orAirtex (polyester)
Fabric Colour Options: 47 colours - see page 25
Waterproof:
Water pressure resistant up to 350mm/700mm
UV Projection: Up to 100%
Printable: Yes.
GROUND FIXING DETAIL
Choice of three ground fixings options as shown below; ground sleeve(1.), base plate (2.) or a portable base (3.).
(1.)
Upper Sleeve Height: 420mm Diameter: 80mm
Upper Sleeve Plate 150mm x 150mm x 8mm
In-Ground Sleeve Plate 150mm x 150mm x 12mm
In-Ground Sleeve Height: 360mm Diameter: 60mm
Foundation size required: 600mm x 600mm x 600mm or 800mm x 800mm x 600mm. The sizes varies with the size of the umbrella
(2.)
Upper Sleeve Height: 260mm
Plate
150mm x 150mm x 10mm
Base Plate
300mm x 300mm x 15mm or 500mm x 500mm x 15mm
The size of the base plate varies with the size of the structure
(3.)
Portable Base Weight: 120kg - 320kg
Foundation Size: 600mm x 600mm x 600mm - 800mm x 800mm x600mm No. of Layers of Slabs: 1 - 3 The sizes varies with the size of the umbrella
The above dimensions are based on a standard size product and may vary, they are also subject to pre-site specific structural calculations.
THE DRAYTON SIZES
Sizes: From 2m to 6.5m
Shaded area: 4m² to 27.5m²
Mast: ø 80mm
Mast thickness: 3mm to 4mm
Arms: 35 x 25 x 2mm or 45 x 25 x 2mm
Operation: Crank handle/crank pin
The Drayton umbrellas is available in 43 different sizes.
The table on the right shows all the standard sizes in 0.5 m steps.
Additional sizes are available on request.
THE DRAYTONACCESSORIES
The Drayton is available with a range of accessories to enhance the use of the structure and to suit the needs of the end user
All accessories are available at an additional cost, please ask us to include them in your quotation if required.
FABRIC PRINTING
The fabric can be printed with the text and design of your choice including your company logo and branding colours.
HEATERS & LIGHTING
Adding energy saving light units and highly efficient infrared heaters to your umbrella is not only friendly to the environment (compared to the use of conventional light bulbs and outdoor heaters), it will also save you money. Using the latest LED technology, amazing colour effects can be achieved:
- 21 programmes
- 7 static colours
- Slow or rapid variation of
- 2 to 7 colours
- Interval switching
- 256 step dimming
- Remote control
VALENCES
Fabric valences can be integrated into the fabric off your umbrella for a softer appearance.The valences can also be printed with the logo and text of your choice.
Our heaters are attached using special brackets that can be conveniently collapsed before closing the umbrella. Time-consuming removal of the heaters is not necessary.
SIDE PANELS
Side panels provide additional protection from the weather They can be installed to either single umbrellas or multiple umbrellas to create one large outside room.
Our side panels are available with and without transparent clear vision inserts.The fastening system is identical to that of the rain gutters. they can be connected to one another by means of heavy duty velcro strips. Additional roll-up doors can also be installed.
MARINE UPGRADE
The marine upgrade is ideal for those in coastal areas. It consists of military grade sealant and lubricants that make our gear-box and spindle pipe air tight, preventing the salt from getting into those critical areas.The eye-screws and hinges are double galvanised, the joints are stainless steel to prevent rusting.The powder coating on the aluminum frame also prevents rust damage. For circlips and screws we use a special zinc alloy, that is 8 times more salt resistant than zinc coating alone.
GUTTERS
Guttering can be added to the umbrellas to connect multiple umbrellas together with a seamless connection of weather protection.
THE RICHMOND
The Richmond is a strong and sturdy umbrella that is suited to windy locations (with winds speeds of up to 102 km/h) such as seaside pubs and restaurants.
It has a contemporary design that can be round, square or rectangular and can cover areas up to 36 square metres.The umbrella can be opened and closed easily with the hand crank supplied which can be removed to avoid tampering once open.
TECHNICALSPECIFICATION
Available Sizes: Up to 8m diameter (see page 22)
Umbrella Shape: Round, square and triangle
Guarantee:
10 years for the fabric, 5 years for the gearbox and 1 year for the frame
AvailableAccessories:
Fabric printing, heaters, lighting, side panels, valences, gutters (to connect multiple umbrellas) and the marine upgrade
Collapsible: Yes
Installation Method:
Choice of ground sleeve, base plate or a portable base
Frame Material: Aluminium
Frame Finish and Colour Options:
Powder coated in white as standard, also available in any RALcolour - see page 26 for our standard RALcolours
Fabric Material:
Choice of Sunacryl (acrylic) orAirtex (polyester)
Fabric Colour Options: 47 colours - see page 25
Waterproof:
Water pressure resistant up to 350mm/700mm
UV Projection: Up to 100%
Printable: Yes.
GROUND FIXING DETAIL
Choice of three ground fixings options as shown below; ground sleeve (1.), base plate (2.) or a portable base (3.).
(1.)
Upper Sleeve Height: 420mm/430mm
Upper Sleeve Plate
150mm x 150mm x 8mm / 200mm x 200mm x 12mm
In-Ground Sleeve Plate 150mm x 150mm x 12mm / 200mm x 200mm x 12mm
In-Ground Sleeve Height: 360mm/470mm Diameter: 60mm/80mm
Foundation size required: Between 600mm x 600mm x 600mmor 1000mm x 1000mm x 1000mm. The sizes varies with the size of the umbrella
(2.)
Upper Sleeve Height: 260mm or 430mm
The size varies with the size of the umbrella
Plate
150mm x 150mm x 10mm or 200mm x 200mm x 15mm
The size varies with the size of the umbrella
Base Plate
300mm x 300mm x 15mm or 500mm x 500mm x 15mm
The size varies with the size of the umbrella
(3.)
Portable Base
Weight: 220kg - 940kg
Foundation Size: 80mm x 80mm x 80mm - 100mm x 100mm x 100mm
No. of Layers of Slabs: 2 - 7
The sizes varies with the size of the umbrella
The above dimensions are based on a standard size product and may vary, they are also subject to pre-site specific structural calculations.
THE RICHMOND SIZES
Sizes: External dimensions 3m to ø 8m
Shaded area: 7m² to 50m²
Mast: TS = ø 80mm,TXS,TX = ø 110mm
Material thickness: 4mm to 5mm
Arms: 45 x 25 x 2mm or 56 x 31 x 2.5mm
Operation: Crank handle/crank pin
The reinforced Richmond umbrellas are available in 19 different sizes as shown.
THE RICHMONDACCESSORIES
The Richmond is available with a range of accessories to enhance the use of the structure and to suit the needs of the end user
All accessories are available at an additional cost, please ask us to include them in your quotation if required.
FABRIC PRINTING

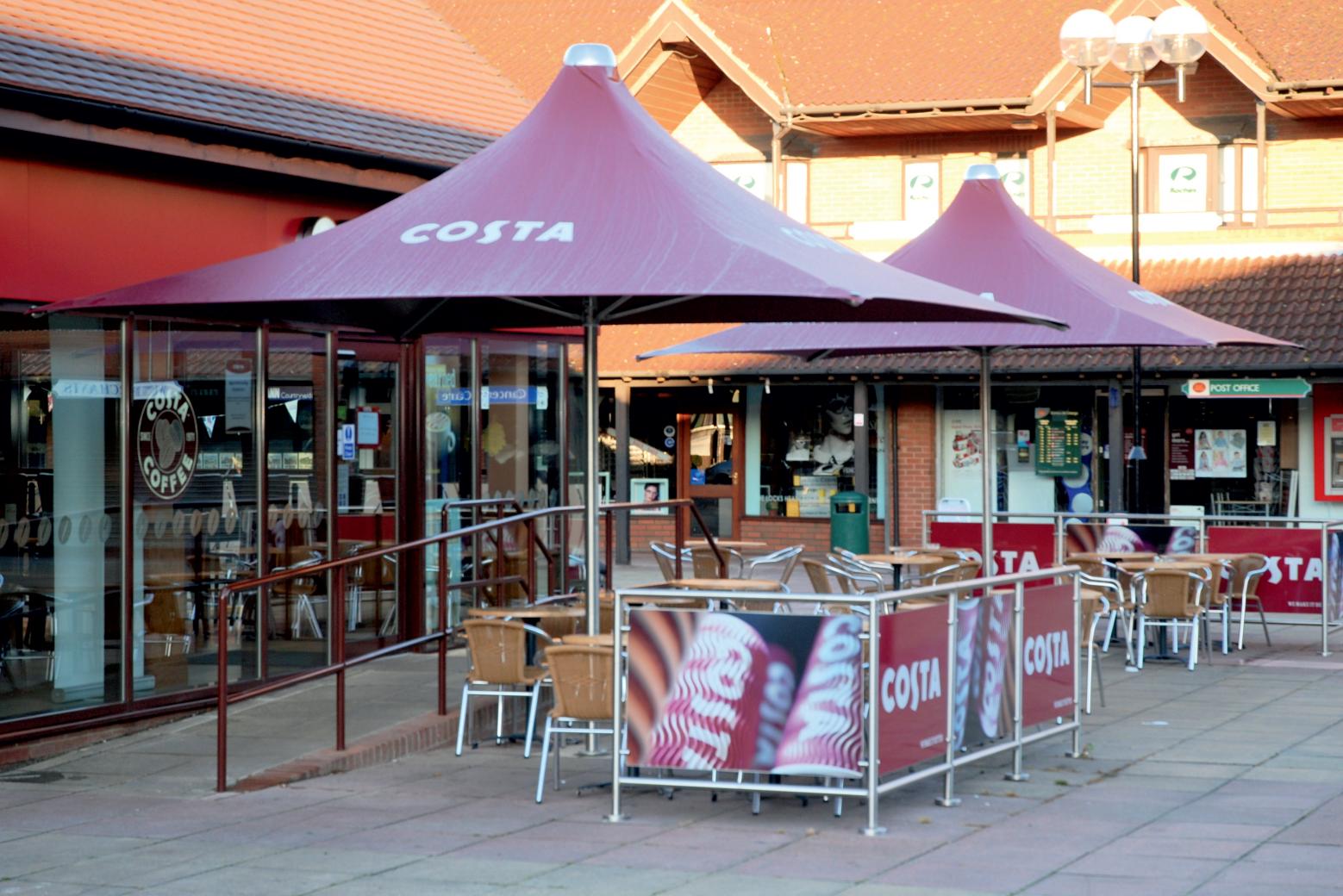

The fabric can be printed with the text and design of your choice including your company logo and branding colours.
HEATERS & LIGHTING
Adding energy saving light units and highly efficient infrared heaters to your umbrella is not only friendly to the environment (compared to the use of conventional light bulbs and outdoor heaters), it will also save you money. Using the latest LED technology, amazing colour effects can be achieved:
- 21 programmes
- 7 static colours
- Slow or rapid variation of
- 2 to 7 colours
- Interval switching
- 256 step dimming
- Remote control
VALENCES
Fabric valences can be integrated into the fabric off your umbrella for a softer appearance.The valences can also be printed with the logo and text of your choice.
Our heaters are attached using special brackets that can be conveniently collapsed before closing the umbrella. Time-consuming removal of the heaters is not necessary.
SIDE PANELS
Side panels provide additional protection from the weather They can be installed to either single umbrellas or multiple umbrellas to create one large outside room.
Our side panels are available with and without transparent clear vision inserts.The fastening system is identical to that of the rain gutters. they can be connected to one another by means of heavy duty velcro strips. Additional roll-up doors can also be installed.
MARINE UPGRADE
The marine upgrade is ideal for those in coastal areas. It consists of military grade sealant and lubricants that make our gear-box and spindle pipe air tight, preventing the salt from getting into those critical areas.The eye-screws and hinges are double galvanised, the joints are stainless steel to prevent rusting.The powder coating on the aluminum frame also prevents rust damage. For circlips and screws we use a special zinc alloy, that is 8 times more salt resistant than zinc coating alone.
GUTTERS
Guttering can be added to the umbrellas to connect multiple umbrellas together with a seamless connection of weather protection.
FABRIC COLOUR OPTIONS
KESWICK, ULVERSTON & DALLINGTON
The Keswick, Ulverston & Dallington fabric is available in any of the below 7 colours as standard, or any of the alternative 33 colours as shown; additional costs may apply
Standard Colour Options
Additional Colour Options * Metallic finish
BLENHEIM
The Blenheim Umbrella fabric is available in any of the below 40 colours.
Lagoon Concrete
Mastic
Turtledove
Cornflower
Shifting Grey*
Aluminium* Tennis
Spruce
Aniseed
Carrot Mandarin
Blackcurrant
Buttercup Raspberry
Burgundy
Beetle*
Walnut Stain
Moss Green
Dead Leaf* Pepper
Tuscan Cocoa
Gold* Camel Vanilla
Violet Parma
Chick
Pale Pink
Sandy Beige
Champagne
Slate
Night Blue
Navy
Poppy
Velvet Red*
DRAYTON & RICHMOND
The Drayton and Richmond Umbrellas are available in a choice of two different fabrics as shown below
SUNACRYL
Ÿ 100% Solution-DyedAcrylic, Sunacryl fibre, specially designed for outdoor use - Designed for outdoor use all year round, over many years
Ÿ Coated with Cleanguard - Creates a genuine water barrier and prevents dirt from building up, ensuring the fabric stays cleaner for longer
Ÿ Weight 290 g/m² -Alight weight fabric making it easier to open and close the umbrella
Ÿ Colour fastness and UV resistance 7 to 8/8 (UV 801) - High resistance to fading, keeping the umbrella looking newer for longer
Ÿ Water pressure resistance 350mm -The coating ensures optimum beading, allowing water to run off rather than sit
Ÿ Available in 23 standard colours - So you are sure to find a colour that suits your outside setting
Ÿ 100% polyester -Airtex is a lighter weight, coated polyester fabric withAcrylicon top side
Ÿ Acrylic finish on top side -To protect against dirt build up
Ÿ Weight 200 g/m² -Alight weight fabric making it easier to open and close the umbrella
Ÿ Colour fastness and UV resistance 6 to 8/8 (UV 801) - High resistance to fading, keeping the umbrella looking newer for longer
Ÿ Water pressure resistance 700mm - The coating ensures optimum beading, allow water to run off rather than sit
Ÿ Available in 24 standard colours - So you are sure to find a colour that suits your outside setting
FRAME COLOUR OPTIONS
STANDARD FRAME RALCOLOURS
Richmond and Drayton: Finished in white as standard.Any other RALcolour and special patterns as shown to the right are available at an additional cost.
Blenheim: Not available powder coated.
Keswick, Ulverston & Dallington: Please see our standard RALcolours below. Other RALcolours are available at an additional cost.
NOTES
Please use this space to add notes.
HowAble Canopies Can HelpYou
Here atAble Canopies, we work closely with you to come up with a solution that not only improves the aesthetic value of your school or commercial space, but also maximises your facilities and therefore their appeal.
We have helped many schools and businesses create suitable and stylish shade and shelter within their outside settings for the comfort of their pupils. staff and customers.
Our high-end umbrellas and canopies are the perfect final touch to any outdoor setting and can really bring it all to life.
Thank you for reading. www.ablecanopies.co.uk
