01 REIMAGINING ROSELAND 6
03 8HOUSE PRECEDENT 22
04
ENGLEWOOD WELLNESS CENTER 26
05 THE NEW FACTORY
01 REIMAGINING ROSELAND
The Roseland Theatre is an Adaptive Re-use project in Roseland. Revamping the original theatre to house community space and books, the Roseland Theatre uses a Glulam lattice structure to organize the program and unite the space.
Using the vacant lot next door, the outdoor space is activated with a theatre and elevated mound for seating and gatering. Prof. Sagobahn, Third Year
Section Perspective
Program Diagram
1. Existing
2. Cut
3. Terrace
Assign Program
1. Reception + Gallery + Coffee
2. Adult + Display
3. Children + Teen
Timber Roof System: Group and Connections
Beam Hanger Connection Moment Connection Plate and Gusset Connection
Details, Physical 1/8” Model
Facade
Reading Area, Physical 1/8” Model

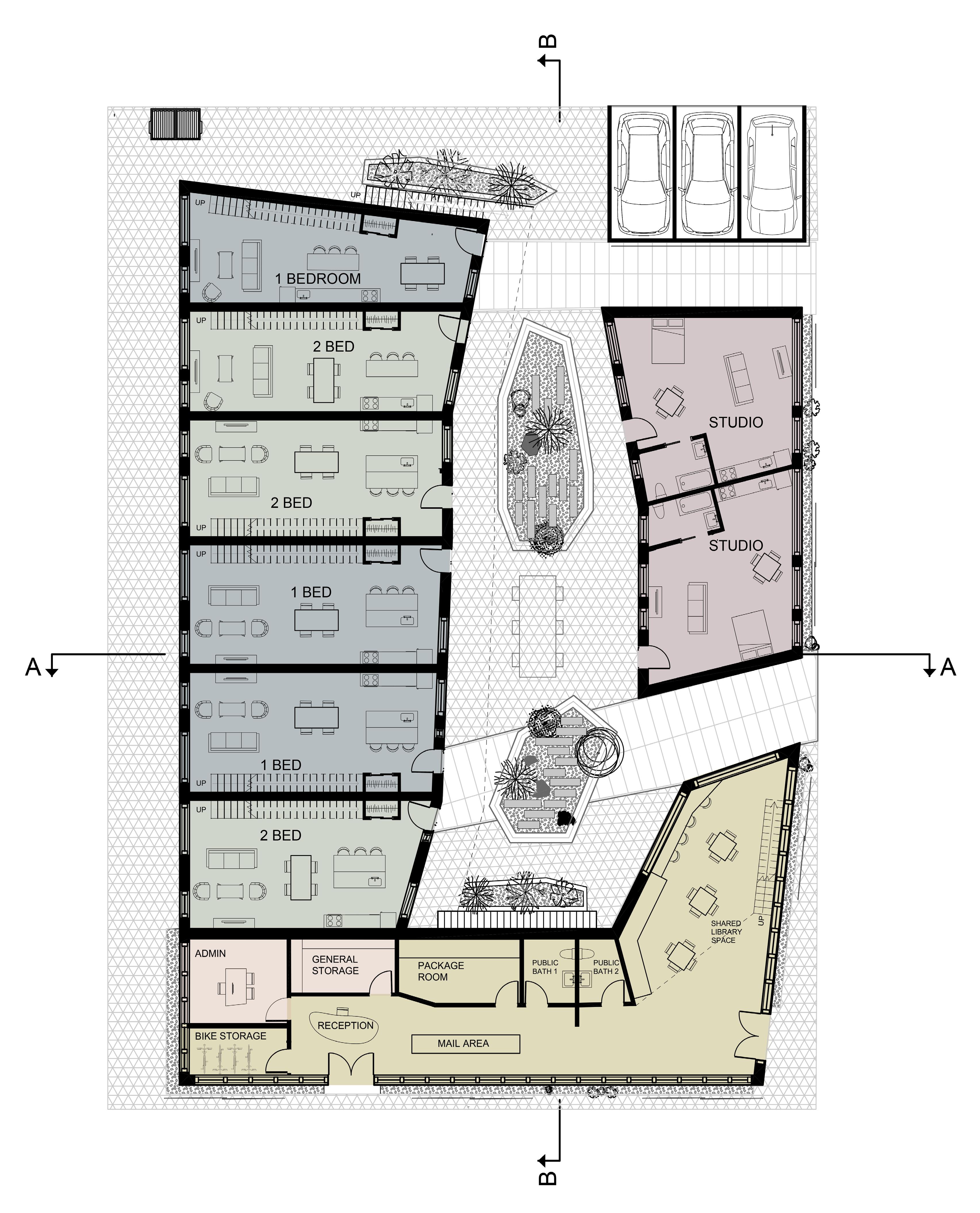

02 NEW COURTYARD
The New Courtyard is a new take on mixed-use housing. Taking inspiration from 8house, Estudio Mola, The New Courtyard provides residents with a shared working and study space. Additionally, through vertically organized units, the shared balconies provide residents with shared communal space..
Courtyard Collage Render
West Elevation
Section B-B
Section A-A
03 8HOUSE ESTUDIO MOLA
8House by Estudio Mola was a group precedent project.with James Buatch, and Casey Heow. Based on the MCHAP cycle from 2022, the project was focused on modeling a succesful housing project.

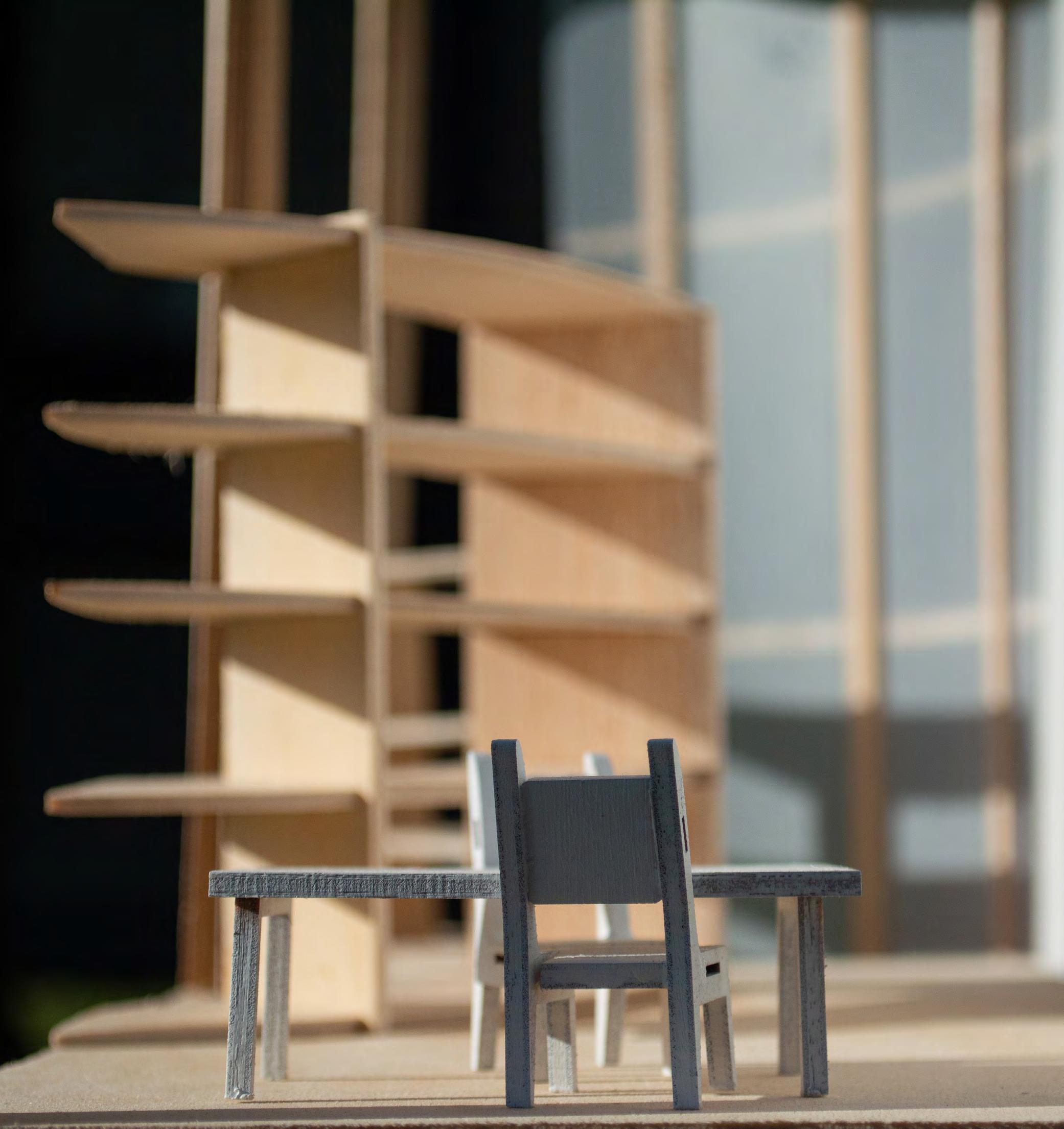

I created the rhino model and laser files for the 1/8” scale model using photos and plans as a reference. . I also assisted with the construction and assembly.
1/8” Physical Model Front Facade
1/8” Physical Model, Underground Car Park
04 ENGLEWOOD WELLNESS CENTER
The Englewood Wellness Center focuses on health as a complex network of concepts. Whether it is health in regards to physical activity, mental health, or even general health; the Englewood Wellness Center seeks to promote health through programatic and subconcious means.
As a partner project with Norah Dignam, I created the Revit model, renders, floor plans, and structure.
Prof. Tinucci and Mills,
Enlarged User Paths String Diagram
Using string, I created the different paths of different types of users. From Market users to health clinic users, the diagram displays the interconnectedness and crossing paths of different users that promote interaction and social health.
Floor 2, User Paths String Diagram
Operable Windows
Green House Effect
Sustainability Section Diagram
Structural Glulam Diagram: Singular
Structural Glulam Diagram: Singular
Knife plate
Threaded Rods Glued into Glulam
3”x6” Pine Glulam Member
4.5 Diameter Arch Pine Glulam Member
Vertical Shading
Glulam Structure
Structural Glulam Diagram: Standard Bay
Structural Glulam Diagram: Standard Bay
Diagram
1/32” Site Model, Englewood Nature Trail
1/32” Site Model, Halsted and 67th Street
05 THE NEW FACTORY
The new factory is an ode to Pilsen and Chinatown’s prior industrial history and the evolution of its relationship to recreation and advocacy.
The new factory is a resource. Serving the community through a continued multi-purpose boulevard, The New Factory also serves as a meeting place, as well as a space for continued education.
BOW TRUSS FRAMING
STEEL FRAMING + LOAD BEARING CMU WALLS
Structural Axon
Section Perspective
HISTORIC CHICAGO BRICK FACADE, GLAZED WINDOWS
Interior Collage Render
1/8” Section Model
Bow Truss and Moment Model
1/8” Section Model
