PLAYSCAPES | CHARMS OF THE SAKARIBA
SECTIONAL PERSPECTIVE
DETAIL SECTION
The project rises to a height of 200 feet in order to launch the metrino cable car. The ground level contains the ferry and BOX connection, and the middle portions is a vertical street fair with detours and spaces to look out into the city while shopping.
DETAIL NORTHERN LILIES POPPY CISTERNHILLGROVE 2019-0271
DETAIL SECTION
SECTIONAL PERSPECTIVE
The project rises to a height of 200 feet in order to launch the metrino cable car. The ground level contains the ferry and BOX connection, and the middle portions is a vertical street fair with detours and spaces to look out into the city while shopping.

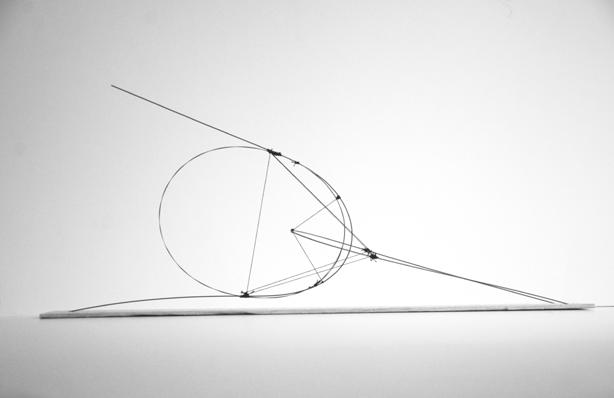

ANALOG STRUCTURE STUDIES CABLE STUDIES WIRE TENSEGRITY STUDIES
TENSEGRITY /
ARCHITECTURE 602 | DECEMBER 2017 |INSTRUCTOR: BEN KRONE | TEAMMATE: CELIA HAO
KINETIC OASIS |TRANSIT HUB AS THEME PARK
FINAL ANALOG
Kinetic Oasis reimagines the traditional transit hub as an amusement park where the “rides” take you to your destination. Inspired from EPCOT by Walt Disney, our research showed that his vision was also to use amusement parks as testing grounds for new transportation and city planning ideas, and our project aims to implement this concept in Red Hook. The new tranportation we are introducing are Metrino cable cars, BQX bus connection, ferry connection, and personal vehicle charging stations for electric bikes, scooters, skateboards etc. This is all situated in a theme park setting to truly celebrate the advancements in transportation
MESH &
Frame Solid Seperation Position Re-Forming Program Canopy /Public STEEL SHADECONCRETETRUSSSHELLGLASSENCLOSURESTRUCTURE LAUNCH PLATFORM CABLE CAR TERMINAL FERRY TERMINAL CABLE CAR TRACK CAR STORAGE AND URBAN CANOPY PEDESTRIAN BRIDGE SPACE TRUSS PROGRAM STRUCTURE MATERIALS Frame Solid Seperation Position Re-Forming Program Canopy FerryTerminal/Public Frame Solid Seperation Position Re-Forming Program FerryTerminal Frame Solid Seperation Position Re-Forming Program Frame Solid Seperation Position Re-Forming Program FerryTerminal Solid Seperation Position Re-Forming Program FerryTerminal

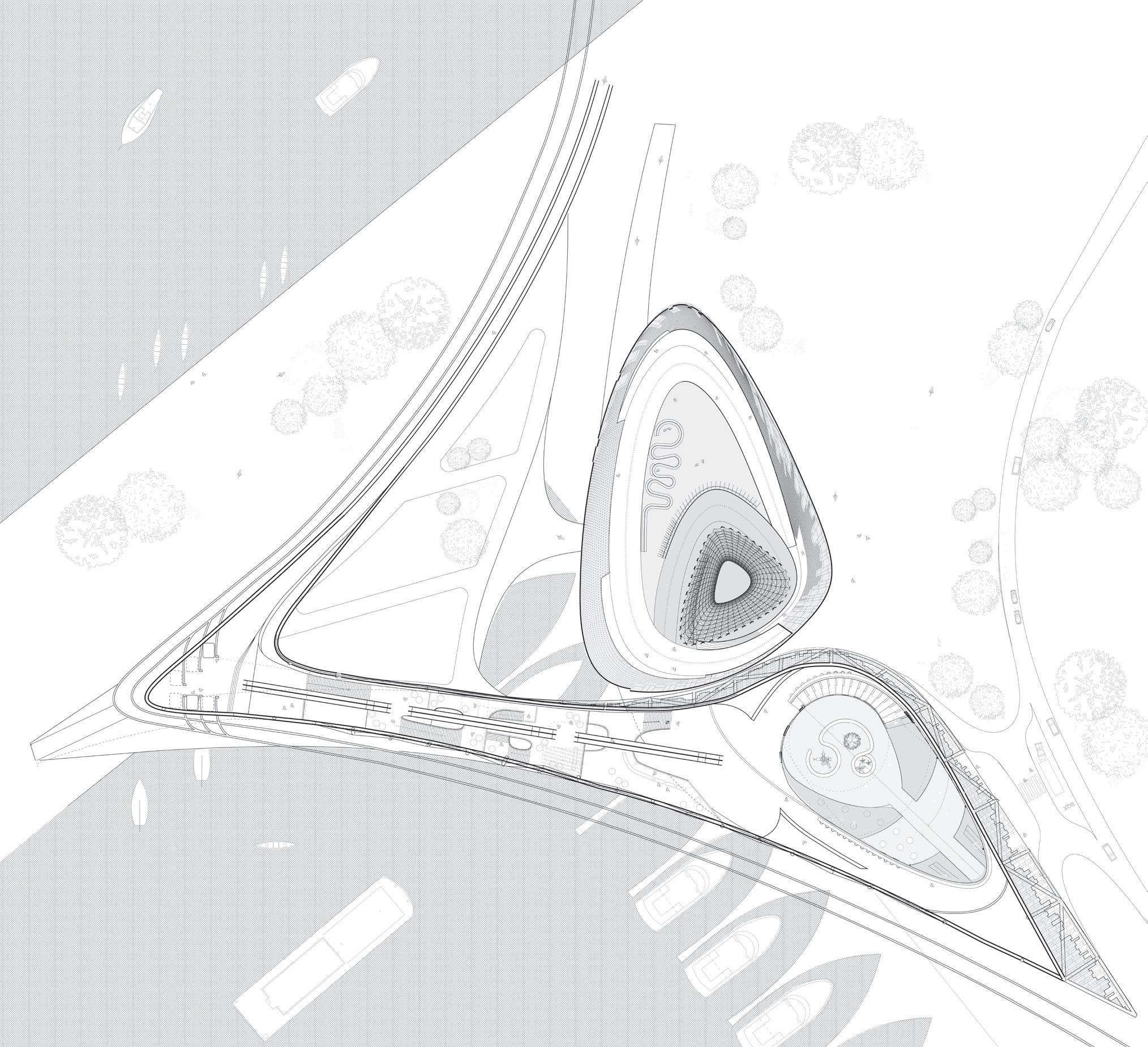

The hub is separated into two main lobes as shown by the program diagram above. The larger lobe starts as a terminal for the ferries and BQX, then transitions in a vertical street market that brings you to the launching pad. The smaller lobe is a charging station for personal devices with sprialing paths for bikes.
SECTIONAL PERSPECTIVE
PROGRAM & STRUCTURE GENERATIONFORM
The project rises to a height of 200 feet in order to launch the metrino cable car. The ground level contains the ferry and BOX connection, and the middle portions is a vertical street fair with detours and spaces to look out into the city while shopping.
TOP DOWN ELEVATION
MARCH 20 JUNE 21 SEPTEMBER 22 DECEMBER 21 SUN STUD FOR REDHOOK, NEW YORK MARCH 20 JUNE 21 SUN STUD FOR REDHOOK, NEW YORK
STATION SECTION
PEDESTRIAN BRIDGE
SOLAR PANEL FACADE DETAIL AND STUDY
CHARGING STATION
CHARGINGstations
DETAIL SECTION
FACADE

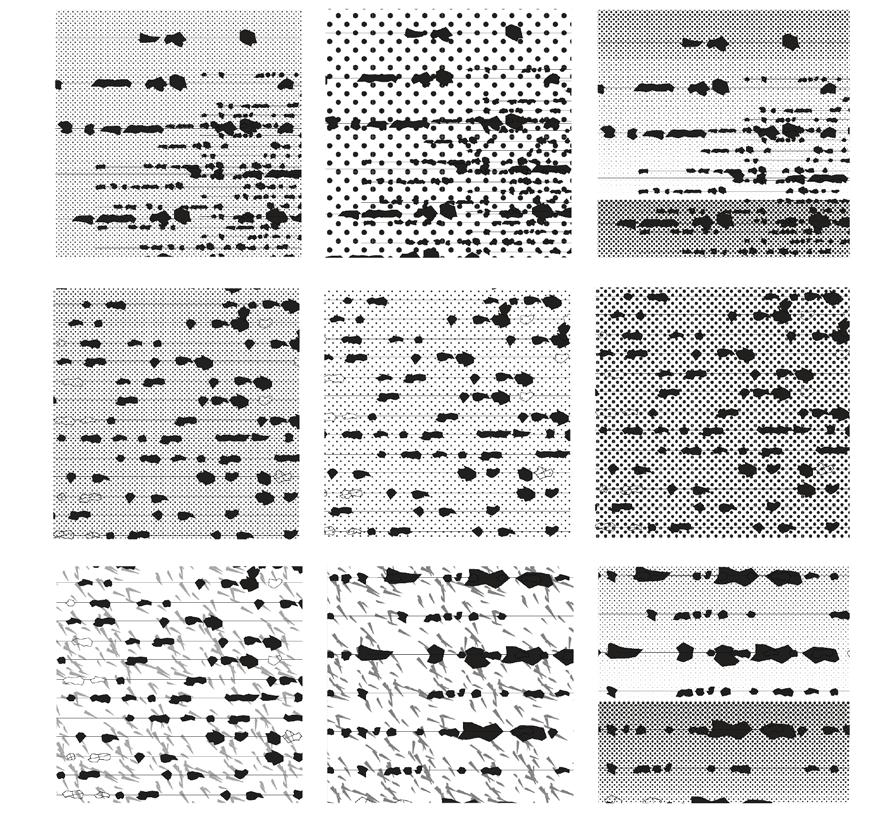

The facade for the charging station consists of solar panels and perforated metal panels arranged to capture as much energy as possible. The unrolled facade shows how the solar panel placement corresponds to sun studies of where there is the most and least amount of sunlight on the facade. The details of the right show how the panels are operable to capture more light, and the section below shows the atrium that collects energy and disperses it to charging
UNROLLED SOLAR PANEL
KITE REFLECTOR | GROUP PAVILLION PROJECT
ARCHITECTURE 501 | DECEMBER 2016 |INSTRUCTOR: EDUARDO REGA
Through photographic documentation of the site, we observed different light effects such as reflaction on surfaces like glass and water, dappling of light through trees, and camouflage. We seeked to imitate these same effects in Kite Reflector to establish a unique experience for the user as he/she walks around it

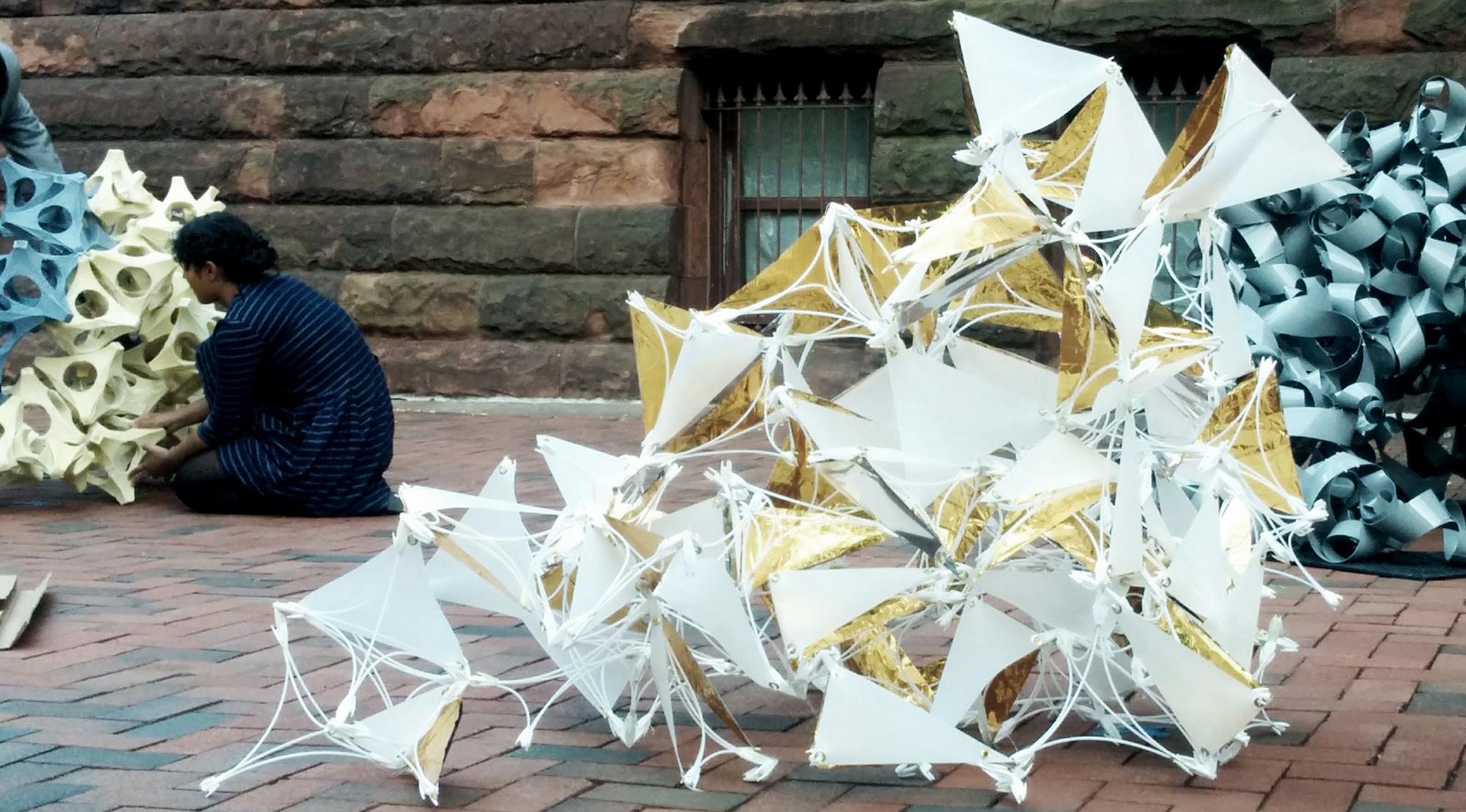

Kite Reflector is designed to delicately interact with the environment of Manitoga, resting lightly on the ground while taking on the color and movement of the natural landscape though its collage of reflective sails. The Pavilion consists of a self-supported tensile skeleton inspired by the construction of traditional kites, with a system of carefully positioned reflective fabric screens posed within the frame, producing angles of reflection allowing the pavilion to take on the color palate of Manitoga year around. The curvature of the structural units evolved out of our study of Russel Wright’s houseware collections. The form and structure of Wright’s pieces are intimately intertwined while the function becomes a process of interaction with a user, Kite Reflector is organized with a similar logic while responding to a larger footprint. While the configuration of the pavilion remains the same the visual experience is constantly changing
MANITOGA SITE ANALYSIS
IAN SINHA
PANGBURN, YU GAN, RACHEL (YI) LU, ANYA

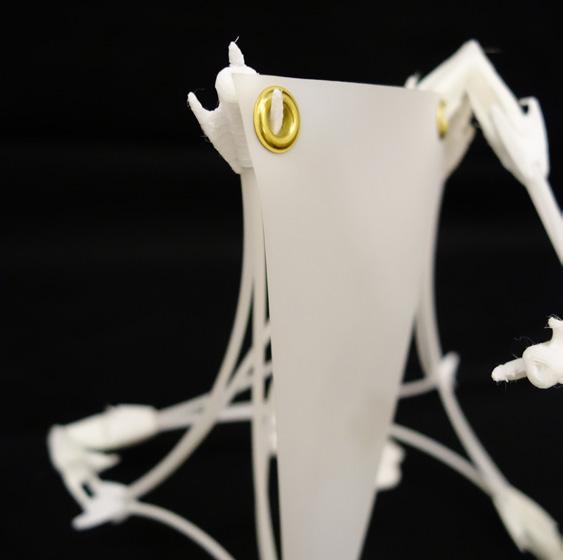

Each module of Kite Reflector can be made with a kit of parts. After extensive material tests and form iterations, we decided to use acetron rods for its ability to be both flexible and strong enough to support weight. The rods are then taped together and placed inside 3D printed joints for extra security. Each 3D joint contains hooks for the mylar, space blanket, and reflective mylar sheets to attach onto. Thus, each module consists of rods, joints, and surfaces that can be assembled together with no extra materials
The way these parts create our module, our modules then become the kit of parts to create our pavilion. Using 3 different sized modules, we created different iterations of how they could combine together by keeping certain sides of one module consistent with another. We then developed a 3D printed connector that could lock into the joints of each module and connect them in 30, 60, and 120 degree angles. We were able to quickly combine many modules using this method, and complete the final design of our pavilion
BUILDING PROCESS
SECTION RENDER | A FOREST PROFESSIONAL WORK | KENGO KUMA & ASSOCIATES VALEXTRA SHOWROOM | SUMMER 2017 | ROLE: DESIGNER
PLAN
FINAL INTERIOR RENDER

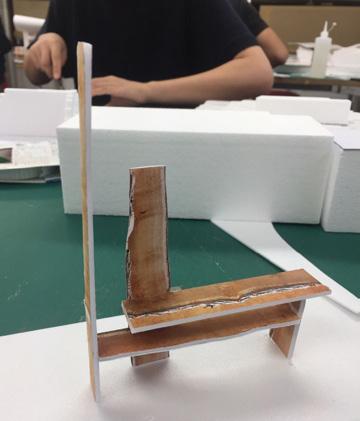

COUNTER STUDY MODELS
'KAKEJIKU' - HANGING SCROLL
The concept of "A Forest" comes from taking advantage of the properties of engineered wood veneer to create a flowing frame around the Valextra purses. Kakejiku is the Japanese word for hanging scroll, and displaying purses on wooden “scrolls” is a way of conveying their value.
DETAIL SECTION
WOMXN DESIGNING THE BUILT ENVIRONMENT | FALL 2020 | ONLINE JOURNAL| CO-FOUNDER: MANSI DHANUKA
DETAIL SECTION
DESIGN STRI
SONORA COURT
WOMXN DESIGNING THE BUILT ENVIRONMENT | FALL 2020 | ONLINE JOURNAL| CO-FOUNDER: MANSI DHANUKA
CHIU RESIDENCE WOMXN DESIGNING THE BUILT ENVIRONMENT | FALL 2020 | ONLINE JOURNAL| CO-FOUNDER: MANSI DHANUKA
TREE DRAWING FROM LIFE
CHARCOAL
INTERNATIONAL HOUSE DETAIL CHARCOAL DRAWING FROM LIFE
TABLE
ART SAMPLES ENVIRONMENTAL DESIGN 11A | SPRING 2012 | INSTRUCTOR: CHIP SULLIVAN
INTERNATIONAL HOUSE CHARCOAL DRAWING FROM LIFE
