PORTFOLIO. Architecture + 2022-2020YearAsifa Ulima Kafin | Academic & Others | Selected works VOL. 22ND VOLUME
2 - Preface Before you evaluate my CV and portfolio, Please, Allow me toIntroduce myself. Greetings!
3Preface -
I was born on June 12th 1999, and I consider myself as a curious, logical, and aspiring creative individual. Thus, I am passionate about architecture since I see it as a perfect fit for my strength.
I have learned design from 2 perspectives: graphic design, and formal architecture from my past internship as junior architect and graphic designer. These experiences combined, have rein forced my designing sense and problem solving ability to create contextual designs also aesthetically pleasing graphics and visualizations to communicate the ideas effectively. I am also very accustomed to team working as I have developed people management, time management, problem solving, dy namic critical thinking, and systematic working skills from a fair few organization experiences during my study. This portfolio has been delicately curated to deliver my compe tence efficiently. Thus, I hope this can be a positive representa tion of me. I very much appreciate your time. I look forward to talking with you because my glass is always empty to be filled with new insights and experiences everyday. Note: You may also see more works on my online portfolio by scanning the QR code provided on the back cover. My name is Asifa Ulima Kafin, you may call me Kafin.
4 - Curriculum Vitae PROFESSIONAL EXPERIENCES Sept. 2020 to Oct. 2020 Graphic designer Video Contenteditorand script writer for Youtube Internship | Campuspedia Indonesia 2 months Sept. 2021 to Nov. 2021 Junior Architect Internship | CV. Ruang Desain 3 months ASIFA ULIMA KAFIN Architectural instagram: nutshell.studio Phone: +62 821 325 168 73 E-mail: aulimakafin@gmail.com 56 Letnan Sulaiman St. Banyuwangi, East Java - ID EDUCATION 2012 - 2015 1 Banyuwangi Junior High School 2015 - 2018 1 Giri Senior High School 2018 - 2022 Bachelor of Architecture GPA 3.77 University of Pembangunan Nasional Veteran Jawa Timur ORGANIZATION & VOLUNTEER EXPERIENCES 2012 - 2014 Organization: 1 Banyuwangi Junior High School’s Student Council Student Council’s Head Secretary 2015 - 2016 Organization: Putera-Puteri SMAGI (1 Giri Senior High School’s Ambassador) School Ambassador - Puteri Persahabatan 2019 Event: PKKMB Arsitektur UPNVJT 2019 Event Organizer & MC 2019 Event: Kaderisasi Fakultas 2019 Event Organizer & MC 2019 - 2020 Event: FORSA 2019 Event Organizer & MC 2020 - 2021 Organization: HIMARSTEK Widyastana 2020/2021 Member of Pengembangan Sumber Daya Anggota (PSDA) Department On-going Community: OMAH Library Volunteer member 2020 Event: Kaderisasi Jurusan 2020 Chief Event Organizer
5Curriculum Vitae- Mindful & observant - Deadline-oriented - System-oriented - Detail-oriented - Analytical problem solver SOFT SKILLS 2022 Penerapan Aspek Rekreatif sebagai Penunjang Fungsi Edukasi Pada Museum As 1st writer alongside Ir. Eva Elviana, M.T SINTA 5 Accredited Journal: PAWON Vol. 6 No. 1 2022 2021 Proceeding: Seminar Nasional Arsitektur Pertahanan 2021 Penerapan Aspek Rekreatif sebagai Penunjang Fungsi Edukasi Pada Museum As 1st writer alongside Ir. Eva Elviana, M.T 2020 Journal: ATRIUM Vol. 6 No. 1 2020 Berarsitektur Era Kini: Antara Living with Nature dan Living within Nature As 3rd writer alongside Lutvi A., Nabila K., Fatimatuz Z., and Anas Hidayat, S.T, M.T SOFTWARES 2D & 3D Revit - Sketchup - AutoCAD - English - Bahasa Indonesia LANGUAGES [B2][Native] Render Lumion - Enscape Post-pro Photoshop - Illustrator - Lightroom Layout Indesign Video Premiere Pro ACHIEVEMENTS & PUBLICATION 2016 1 Giri Senior High School 1st Rank of overall regular science class 2020 Architecture Department University of Pembangunan Nasional Veteran Jawa Timur 3rd Winner of Widyastana Rendering Challenge 2022 Architecture Department University of Pembangunan Nasional Veteran Jawa Timur 3rd Best graduate of Architecture Department
6 Table of Contents Contents Academic works WOOD STACK. | Volumetric pre-fabricated | Rental office 02 | 2021 | P. 26 Osing Museum and Festival Center. 01 | 2022 | P. 8 | Iconic | Museum & performing arts hall The People’s Forest. | Biophilic | Apartment complex 03 | 2020 | P. 36
7Table of Contents Other renderings. | Cafe - held by. UINSA | FAD building - held by. UPNVJT 06 | Competition | 2020 | P. 58 Other works SANG-GRAHA. | Affordable and COVID adapted | Urban housing 04 | Competition | 2021 | P. 48 Jeeva Office + Cafe. 05 | Internship | 2021 | P. 54 | Scandinavian | Office & cafe interior
Acknowledging the potential, Government stipulates local cul ture-based tourism as a primary development program in Banyu wangi to conserve local cultures, empower local businesses, hu man resources, and increasing local revenue. However, Tourism facilities in Banyuwangi have nev er been adequate to satisfy the re quirements.
Location: Kemiren, Banyuwangi, East Java, Indonesia Category: Museum and performing arts hall Building type: Cultural, Low-rise Site area: ±14.000 sqm
Osing Museum & Festival Center
Banyuwangi is one of the cities in East Java known for Its tourism attractions due to the abundant natural assets and dis tinctive cultures that are still continually conserved today. It is proved by the chart provided by Dinas Pariwisata Kabupaten Banyuwangi in 2020, in which the data displays that the number of tourist visit in Banyuwangi has been increasing since 2016, with 8,3% rising trend percentage each year, and estimated to have 141.945 more visitors in 10 years.
8 - The Osing Museum and Festival Center | Academic | 2022
9 Therefore, the design is expected to be a new icon and medium for promoting local cul tures, empowering local business and human resources, as well as public learning facility of Osing tribe and Its cultures in a deeper and more updated way to support Banyuwangi’s primary development program. Facts culturesUnique potentialTourism programtourismLocal Lackingfasilitiesof buildingculturalIconic Problem Solution
10 THEME & CONCEPT - The Osing Museum and Festival Center | Academic | 2022
Batik Gajah Oling - Identity Gajah Oling is chosen as part of the concept because it is Banyuwangi’s trademark batik. It is Appplied in the design’s form and is used as a symbol of identity.
Kembang Dermo - Hope & strength According to the local beliefs, Kembang Dermo possesses a protective supernatural power. in the design, It is used as a symbol of hope and strength.
Batik Kopi Pecah - Effort Batik kopi pecah is applied in the design because it holds a relevant philosophy with the theme. Thus, It is used in the facade as a symbol of effort
The massive 1.400 sqm site is located on a plateu area in Watu Ulo, Kemiren, Banyuwangi. Based on the City’s spatial planning, this location is part of the heri tage development area.
11 SITE
The site is also located in an area that has been known as a connector between urban and rural parts of the city. Therefore, the design is also able to function as a connecting space of 2 different communities, urban, and rural communities.
AmenitiesContext and radius Located in a heritage development area LOCATION
The site is surrounded by agriculture lands, traditional commercial buildings, and a low density residental ar eas. This environment provides a perfect atmosphere for the design as It is located close to the downtown, yet, still possesses a pure traditional ambience Link and access Easy access and connection
The main access to the site is Kemiren st., a 4,5 m width local road with a medium to low traffic. It is also easy to access because It can be accessed from several city’s secondary arterial roads, such as: HOS Cokroaminoto st., Gajah Mada st., Letkol Istiqlal st., and Brawijaya st, that are easily accessible from the A. Yani boulevard, Banyuwangi’s primary arterial road.
12 - The Osing Museum and Festival Center | Academic | 2022
13
The building’s mass is formed by transforming batik Gajah Oling’s shape that symbolizes Iden titiy. the deeper meaning of the batik is “A man shall not disregard what is greater than them”. Thus, batik Gajah Oling application in the design also means that Banyuwangians shall never forget their greatest treasure and identitiy, the Osing cultures.
3
Initial mass adjustment Trunk shapped mass 2 Modification Circular masses are initiated on the site with different radius. Then, the masses height are adjusted depending on the design needs trunk shapped mass is formed using the initial circular masses as the axis Some parts of the mass are substracted for variaton and balcony
1 Height
14 - The Osing Museum and Festival Center | Academic | 2022
4 2
MASSING CONCEPT
15 1st Floor 1. Storytelling exhibition 2. Festival Center 3. UMKM Center 4. Office’s lobby 5. Museum’s lobby 6. MEP rooms 7. Loading dock 2nd Floor 1. Artefacts exhibition 2. Gift shop 3. Public lounge 4. Office 5. Office lounge 6. Collections storage 7. Conservation lab. 3rd Floor 1. Temporary exhibition 2. Traditional playground 2. Library 3. Food court 4. Mushola 5. Collections storage 4th Floor MEP rooms
16 - The Osing Museum and Festival Center | Academic | 2022 NORTH LONGITUDINALELEVATIIONSECTION
17
SCALE 1 : 750 18 - The Osing Museum and Festival Center | Academic | 2022 1. Main entrance 2. Service entrance 3. Office drop off 4. Museum drop off 5. Exit 6. Loading dock 7. Visitor parking 7. Employee parking 9. Agro plaza 10. Pedestrian 11. Front plaza & gandrung monument 12. UMKM Center 13. ATM Center 14. Office lobby 15. Festival Center LAYOUT PLAN
19 16. Festival Center entrance 17. Festival Center exit 18. Festival Center ticketing 19. Museum lobby 20. Lounge / Museum-Festival center link 21. Lurung sampyuh 22. Alas wetan 23. Blambangan jejeg 24. Puputan Bayu 25. Banyuwangi jejeg A. Gandrung monument B. Office drop off C. Museum drop off D. Front Plaza E. Agro plaza Outdoor fasilities
A wide space with red LED light (red room) exhibiting udeng that symbolizes victims of the war. A dark tunnel that em bodies Majapahit’s loss. Majapahit’s gamelan au dio is also played to inten sify the
BA A BC 20 - The Osing Museum and Festival Center | Academic | 2022
2
Lurung Sampyuh
An area that embodies Osing’s victory after Puputan Bayu war.
A space decorated with um bul-umbul, as a symbol of vic tory. also fully equipped with the so “Umbul-Umbul Blam bangan” song
atmospherethrilling/mourningAreawithnaturallightingandtree-likecolumsthatembodiesnewhope.
A projector space presenting interactive digital illustrations of Banyuwangi’s development from time to time
Exhibiting sesajen that reresents dark magic used as secondary weapon during the war, and types of keris as physical weapon.
A labyrinth tunnel with flowing water on both sides, and Puputan walls.hangingpictures/paintingsBayuonthe
A projector space presenting interactive digital illustrations of Blambangan’s golden era.
Dim, maze-like area that PuputanembodiesBayu War.
Alas Wetan Banyuwangi Jejeg 1 3 Blambangan Jejeg 4 Puputan Bayu
BA Area that portrays Blambangan’s goldenConsistsera. of traditional cloth ings relative to the period and a statue of King Tawangalun
5
21 2 (Alas Wetan)4C3 A 4 A
15 visitors/batch 2 tour guides Duration/floor BATCH GROUP MUSEUM TOUR SCHEME ACCESS & CONTROL EVERY FACILITY IN YOUR HAND! 22 The amount of visitors per museum tour is limited in order to preserve the atmosphere on each space as spatial experience is an essential point in the design.
structureconcreteRibbedSkinC140GFRCsteelroofingtrusssteelstructureConcreteTribuneFlatbrickwallRibbedFoldedFoldedroofconcreteplateplatepipepanelframing(CLT) 23
24 2ND BUILDINGFLOOR SECTION
25 3RD FLOOR
As the second largest city in Indonesia, The demand for office buildings in Surabaya is gradually increasing as the result of Its rapidly growing economic sector. Reffering to the data provided from Masyarakat Industri Kreatif dan Komunikasi Indonesia (MIKTI) in 2021, Surabaya is listed as one of the top 10 cities with most start-ups in Indonesia. This proves the fact that as Surabaya’s economic sector evolves, New businesses are also constantly emerging. Thus, more working places become a necessity.
Location: Genteng, Surabaya, East Java, Indonesia Category: Rental office Building type: Commercial, high-rise Site area: ±5.700 sqm Issue
WOOD STACK
Businessgrowth Lackingspaces Increasedcost Affordable offices constructionExpensive Decreased profit Pre-fabricatedsystem
26
Need Problem Solution - WOOD STACK | Academic | 2021
However, Contrary to the high demand, the amount of available spaces in urban area is limited. Consequently, the cost to build a single office building becomes more unafford able, especially for start-up companies. Therefore, WOOD STACK is designed using semi pre-fabricated structure with volumetric pre-fabricated modules to reduce construction cost and duration. WOOD stack is expected to be a win-win solution for the need of afford able offices for startup companies in urban area with dynamic economic sectors both for the property holders, and the business owners/tenants.
27
28 - WOOD STACK | Academic | 2021 MASSINGLOCATION Initial mass Substraction1 4 Basement entrance 2 Modules massing 5 Tower massing 3 Modules variation 6 Panglima Sudirman st., Genteng, Surabaya 5.700 sqm
29 43215 Module’s structure Assembly plan Type A module Type B module Type C module 1. CLT Panel 2. CLT Beam system 3. Insulation 4. CLT Framing 5. Curtain wall 1. Pre-fabricated modules - CLT 2. Core area - Concrete structure 3. Podium - Concrete 1.structureLargeunit (110 sqm) 2. Large unit (102 sqm) 3. Medium unit (96 sqm) 4. Medium unit (72 sqm) 5. Medium unit (66 sqm) 6. Double balcony 7. Single balcony 30 sqm/module 6 x 6 sqm/module 10 x 5.5 sqm/module 3 2 1 1 VARIATION SAMPLES 1 3 5 7 64 2
1. Main entrance 2. Main exit 3. Side entrance 4. Side exit 5. Basement main entrance 6. Basement side entrance 7. Basement exit 8. Front plaza 9. Drop-off area & front entrance 10. Back entrance LAYOUT PLAN SCALE 1 : 600 30 - WOOD STACK | Academic | 2021
11. Outdoor car parking 12. Outdoor motor parking 13. Bike parking 14. Bike route 15. Pedestrian 16. Garden 17. Exit lane 18. first floor lobby 19. Core area 20. Gym 21. Indoor garden 22. Mushola 23. open retail 24. ATM Center 25. Retail A. Entrance B. Exit C. Bike route and parking D. Drop off area E. Rooftop Outdoor fasilities 31
32 - WOOD STACK | Academic | 2021
33 2nd FLOOR SCALE 1 : 600 3rd FLOOR SCALE 1 : 600
LONGITUDINAL SECTION SCALE 1 : 650 34
35 Small and large units only Small, large, and medium units
The People’s forest is an appartement complex aimed for urban college students and young professionals in Surabaya, East Java, Indonesia. As the second largest city in Indonesia, Surabaya also known as its urban characteristics.
Indivilualisticurbanlife Stressfulactivity
Responding the issues adressed above, The People’s Forest is designed as a solution. Using the Biophilic approach, The People’s Forest exists as a refuge for Surabayans’ youth, such as: college students and young professionals to rest and heal their mind from the hustling urban life in Surabaya by both self-healing by the increasing sense of place, and peer-healing by increasing sense of community.
Loneliness Depression Senseplaceof Sense communityof Stress Solution Increasing Increasing Reducing
Despite the fact that a metropolitan cities provide great er development opportunities for young people, living in urban commu nity also leads to several issues, including: stressful activities, individual ism culture, and crowded, humid, unhealthy environment.
The ForestPeople’s Location: Rungkut, Surabaya, East Java, Indonesia Category: Appartment complex Building type: Mixed-use complex, Mid-rise Site area: ±10.000 sqm Issues Inconvenientdwellings
36 - The People’s Forest | Academic | 2020
37
38 - The People’s Forest | Academic | 2020 Biophilic Biophilic Patterns GoalsApplication Approach Visual MaterialBiomorphicPresenceThermalwithconnectionnature&airflowabilityofwaterRefugeformsandpatternsDynamicanddifusedlightconnectionwithnature (Book: 14 Patterns of Biophilic Design, 2014) Interior Self withhealing sense of nature Peerwithhealing sense of communityMasterZoningOutdoorFacadeSpacesandCirculationplan LOCATION Ir. Soekarno st., Rungkut, Surabaya 1.000 sqm
39 MASSING STRATEGY CIRCULATION Tenants’ConnectingDevidingAccessVisitors’AccessZoning & MassingMan-madeClusteringAxisclimate&Function
1. Visitors’ entrance & exit 2. Tenants’ entrance 3. Tenants’ exit 4. Visitors’ drop off area 5. Co-working space LAYOUT PLAN SCALE 1 : 650 40 - The People’s Forest | Academic | 2020
6. Exhibition center 7. South cluster’s man-made climate & plaza 8. Retails 9. North cluster’s man-made climate & plaza 10. Apartment’s private man-made climate & plaza 11. 56 Type apartment tower 12. 42 Type apartment tower 13. Visitor motorbike parking 14. Visitor car parking 15. Apartment’s parking entrance 16. Apartment’s parking exit 17. Parking-plaza stairs 41
42 FRONT ELEVATION (WEST) 56 sqm unit (Type A) 56 sqm unit (type B) LONGITUDINAL SECTION
43 SIDE ELEVATION (NORTH) 42 sqm unit (2 bedrooms) 42 sqm unit (studio type)
44 - The People’s Forest | Academic | 2020 Zen style Interior Zen is originated from a Japan, named after the Zen sect of Buddhism. The focus of this style is to create balance, tranquility, and harmony within a space by adapting a simple approach.
Therefore, Zen Style is used because It is suitable for the concept, and able to satisfy the design’s main goals.
The principle behind this style is to emerge a space that is able for human to meditate, relax, have peace in the fast-paced, noisy world.
45
Why Zen Style?
46 - The People’s Forest | Academic | 2020
47
comes from the words “sang” and “graha”. Sang means “the”, graha means “dwelling”, jointly, sanggraha means a “protector”. Therefore, “SANG-GRA HA” means that It is not merely a dwelling, but a house in which it provides a pro tection for the dwellers, a protection from economic and health crisis. Located in one of the densest regions in Central Jakarta, the primary goal of the design is to create a COVID adapted affordable housing that improves the dwell er’s economic resilience as a solution to public’s decreasing ability in purchasing residential buildings. Especially, during economic crisis caused by the pandemic. This design also supports new normal activites by providing a family friendly work/study from home space to prevent virus spread both internally and exter nally, as well as strengthening family bonding while working at home. A space for business is also provided as an opportunity for the owners to develop their creativity and entrepreneurship skill for recovering their economic state and im proving economic resilience in the long run. Issues Issues
Pandemic
General
SANG-GRAHA
SolutionAffordableLimitedspace ExpensivehousingCOVIDadapted functionalMultiEconomicloss UnaffordablehousingspreadVirus virusDecreasingspread NewIncreasingeconomicresiliencehousingtypology
Need
SANG-GRAHA’s
48 - SANG-GRAHA | Competition | 2021 Competition : SEPEKAN Arsitektur 2021 Team: Nabila Khofifah, Fatimatuz Zahroh Location: Johar Baru, Jakarta, Indonesia Building type: Residential, Low-rise Site area: ±97,75 m2 SANG-GRAHA
49
Jakarta is the major metropolitan area in In donesia. It is also known as the densest region because It is also an economic hub, and many people across the country migrate to Jakarta. Consequently, property prices are significantly high in Jakarta.
Economichub migrationHigh densityHigh Expensiveproperty AffordableAccessible
Due to the economic activities, most of Jakartans are commuters. Thus, the coronavirus spread in Jakarta goes rapidly during pandemic. Based on CSSE’s statistic, Jakarta ranked first as province with most covid-positive cases in Indonesia.
Johar Baru is the densest region in Central Jakarta, The population rate is reaching up to 60.933 life/km2 It is located near some major districts, such as: Senen, Cempaka Putih, Kemayoran, and Menteng. It is consisted mainly of residencial buildings with lower property price. Thus, it becomes one of the main destinations for migrants.
Rawa Tengah IV st., Johar Baru, Central Jakarta 100 sqm
Facts about Jakarta Jakarta during COVID Site’s context
50 - SANG-GRAHA | Competition | 2021 LOCATION

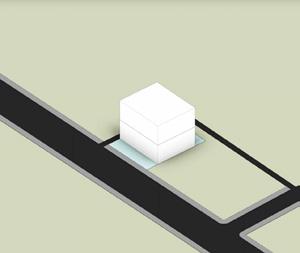

51 AFFORDABLEMASSING & QUICK MODULAR STRUCTURE Plot’s boundaries 1 Substractrions 3 Skylight & business spaces 5 Initial mass 2 Offsets 4 Finish 6 Details 1. P3 RISHA Panel 2. P1 60 RISHA Panel 3. P1 120 RISHA Panel 4. P2 RISHA Panel 5. U-canal galvanis 2 3 4 5 1
52 - SANG-GRAHA | Competition | 2021 1. Supporting COVID health protocol : Providing circulation flow that is adapted to the COVID health protocol. protecting users from unsafe contacts from outside. 2. Work from home friendly : Providing multifunctional spaces that can be utilized as work space and/or kids’ play room next to living room in order to create boundary between work and family life without completely disengaging it. 3. Upgrading users’ economic resilience : Providing creative/business space to give the us ers’ an opportunity to grow their own business to be financially independent. 1st Floor 1. Entrance 2. Steril hall 3. Bathroom 4. Laundry + garden 5. Parlor 6. Kitchen + dining 7. Business space 2nd Floor 1. Balcony 2. Living room 3. Work space 4. Bedroom 5. Bathroom 6. WorkKids’Mezanine:MultifunctionalSkylightplayroomspace 44613232511567
53
Duties: As a junior interior designer, I was included in sever al design process from concepting, 3D modelling, and ren dering as post-production process.
Considering how Jeeva identifies Itself, the office and cafe interior should manifest the identity. Therefore, Trop ical-Scandinavian style is applied in the design. Combining both styles ultimately creates a space that adequately em bodies Jeeva’s identity.
54 - Jeeva’s Office + Cafe | Internship | 2021 Client: PT. Jeeva Aroma Nusantara Team: Farhan Dirgantara, Muhammad Tsabituddin Location: Sedati, Sidoarjo, East Java, Indonesia Building type: Commercial, Office Category: Interior PT. Jeeva Aroma Nusantara produces local pure essential oil to supply fragnance, cosmetic and health industries. It is strongly committed to create products from sustainable natural ingredients. Hence, naturality become the identitiy.
As a client, Jeeva planned to build a mixed-used building consisting of an office fully equipped with laboratory, and cafe. This branch office in Sedati is meant to only focus on producing essential oils. Meanwhile, the cafe is inteded to attract visitors to buy some of the freshly produced essen tial oils in the laboratory. The laboratory itself is also open to the public. Thus, interested visitors are able to see how essential oils are made.
Jeeva’s Office + Cafe
55
56 - Jeeva’s Office + Cafe | Internship | 2021 CONCEPT MOODBOARD Materials & textures Colors Pieces
57
Why Tropical-Scandinavian?
Scandinavian design represents a clean, calming, minimalistic feelings, suitable for working environment as it helps people focus. Meanwhile, Tropical design provides naturality, which is relevant with Jeeva’s Identitiy.
58 - Jeeva’s Office + Cafe | Internship | 2021
59
60 - Cafe Rendering | Competition | 2020 Other Renderings
61 Coordinator: UINSA 3D Modelling: SketchUP Rendering: Lumion 8.5 Post-production : Photoshop CC 2019 This rendering competition was held online by UINSA during lockdown. the participants have to render both exterior and in terior of a cafe. RAW 3D model (building only) was provided by the commitee, while the envi ronment had to be made indi vudually by the participants. 1. Cafe Rendering Challenge
62 - FAD Rendering | Competition | 2020 Coordinator: HIMARSTEK Widyastana 3D Modelling: SketchUP Rendering: Lumion 8.5 Post-production : Photoshop CC 2019 2. FAD Rendering Challenge (3rd Place Winner)
63
This rendering competition was held online by HIMARSTEK Widyastana during lockdown. the partici pants have to render FAD’s building. RAW 3D model (building only) was provided by the commitee, while the surroundings had to be added indivudually by the participants.
64 + More works instagram story (video) Last but not least, these are some of my non-architec tural designs. I made these mainly with Photoshop and Premiere Pro.
65 Instagram feed: infographics, microblog, etc. Youtube thumbnails
IssuuNutshell.studio SCAN ME!SCAN ME! Contact me: Phone: +62 821 325 168 73 instagram: nutshell.studio (architectural) instagram: caffeinesugar (personal) E-mail: aulimakafin@gmail.com 56 Letnan Sulaiman St. Banyuwangi, East Java - ID
