EXTEND™

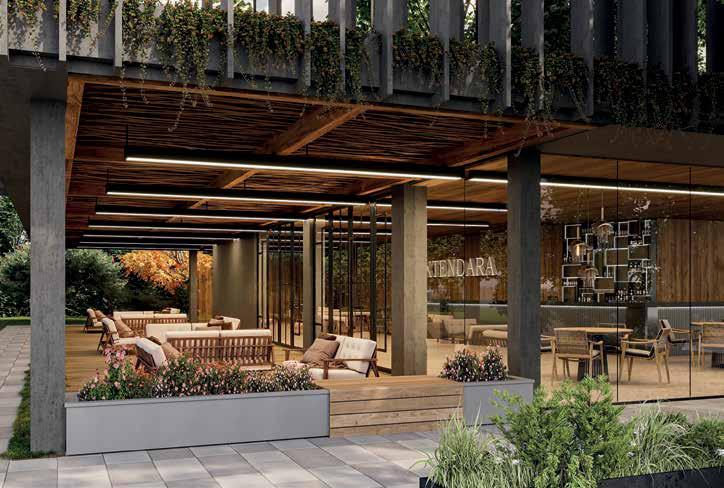

Graceful lines of light for seamless transitions from indoors to outdoors

OUTDOOR SERIES

02 Outdoor Series

Bring out the light

Axis Lighting is proud to introduce EXTEND™ the Outdoor series, a growing luminaire category designed to brave the elements with elegance and optimally effective illumination.

These all-weather commercial lighting tools – including all-new Extend™ – bring the fluid design and minimalist style of interior lighting to the building façade, while maintaining a consistent architectural look.

As a strategic partner, we deliver appealing, high-performance Outdoor Series solutions that meet all the requirements – including IP66 enclosure ratings and optics precision engineered for glare-free safety – to make your exterior lighting vision a reality. With Axis Lighting, form and function combine to provide lighting innovations you can work with and customize to fit your needs.

• Protected from total dust ingress

• Protected from high-pressure water jets from any direction IP66

IK10

• Protected against 20 joules impact

• Equivalent to impact of 5 kg mass dropped from 400 mm above impacted surface

Inside the gym, Beam 2 Square Pendant works out well, as EXTEND 2 Recessed takes the lighting concept outside.

About Extend™

About Extend™

Weather-resistant lighting design tools

Architectural outdoor luminaires creating graceful lines of light that support visual continuity between interior lighting and outdoor applications. The wide choice of optics allows you to further customize the illuminated environment.

Architectural square profiles

Sealed IP66-rated construction

IK10 impact protection available

Choice of five different optic options

Cost-effective outdoor lighting solutions

Available in continuous runs

EXTEND 4 Pendant in the carpark combines with EXTEND 2 Wall in the background to enhance private garage spaces.

4 Wall complements special-purpose areas including barbecue nooks.

Available in pendant, recessed, surface and wall mountings EXTEND 2 - Thin 2 1/2" aperture • EXTEND 4 - 4 3/16" aperture.

From indoors to outdoors

Connecting the inside to the outside

Our signature family of Beam luminaires, known for its appealing linear layouts indoors, is now available in a version that can withstand harsh weather conditions: Designed for water-resistant, IP66-rated outdoor applications, Extend™ is also suited for wet/damp indoor environments.

By definition, Extend luminaires support the creation of stunning exterior LED lighting designs, but they also enable the formation of seamless, style-matched transitions from indoor applications to outdoor spaces, namely from Beam 2 Square to Extend 2, and from Beam 4 to Extend 4.

Beam 4 Recessed inside the glass entrance transitions to EXTEND 4 Recessed in the covered driveway outside.

EXTEND 4 meets the requirements of swimming pool environments.

EXTEND 4 Wall produces subtle glow on façade.

EXTEND 2 Recessed adds style to high-end shower rooms.

Product Features

Extend™ 2

Highlights

Extend 2 aperture width: 2 17/32”

Lengths from 2’ to 12’ / System runs available

Distribution: Direct

Finishes

Optics: Flush (SO), Wall Wash, Grazing, Batwing, Asymmetric

Integral driver

Sealed end cap with tamper proof hardware

Optional IK10 impact protection

IP66 rating suitable for harsh weather conditions

Temperature range: -40°C to 50°C

Natatorium finish available

Creating safer environments with style

Built tough to withstand the most severe weather, Extend™ luminaires are well suited to many outdoor lighting applications as well as certain indoor uses, such as wayfinding in indoor parking areas, subway stations and staircases

Mounting types available:

•Pendant

•Recessed

•Surface

•Wall

With its discreet, modern styling, EXTEND 2 Recessed adds linear elegance to rooftop spaces.

Product Features

Extend™ 4

Highlights

Extend 4 aperture width: 4 5/32”

Lengths from 2’ to 12’ / System runs available

Distribution: Direct

Finishes

Optics: Flush (SO), Wall Wash, Grazing, Batwing, Asymmetric

Integral driver

Sealed end cap with tamper proof hardware

Optional IK10 impact protection

IP66 rating suitable for harsh weather conditions

Temperature range: -40°C to 50°C

Natatorium finish available

EXTEND 4 Surface is ideal for wayfinding in bus terminals and other transport hubs.

Designed to withstand harsh weather conditions, EXTEND 4 Surface is perfectly style-matched to the Beam 4 Pendant inside.

Winter Summer

2' to 12' 1" increments System runs 2 to 12' 1" increments System runs 2 to 12' 1" increments System runs 2 to 12' 1" increments

About Axis Lighting

Founded in 1991 and still family owned and managed, Axis is an important source for architectural lighting across North America and around the globe.

Over the last decade, the company has exhibited remarkable growth thanks to its commitment to Design Flexibility, Optimal Energy Efficiency and Responsive Customer Care. That leadership effort now extends to developing innovative lighting products and technologies, such as SurroundLiteTM, Pose® ribbons of light and StencilFlex®, on an ongoing basis.

On the strength of a broad and expanding product line, Axis has successfully completed lighting projects for high-profile clients including Apple, Chrysler, The Empire State Building, Google, Hyundai, Time Warner and McGill University, among many others.

Axis has the drive and the expertise to meet your needs and provide architectural lighting... your way.

Scan the QR code to learn more about Axis Lighting.

We reserve the right to change specifications without notice.

Please consult our website for the most current technical information and to locate your nearest Axis representative.
