Performance Specifications

CLIMATE ZONE Köppen–Geiger - Csa (hot summer Mediterranean climate) Bansal-Minke - Composite climate zone

BHOPAL

Csa climate

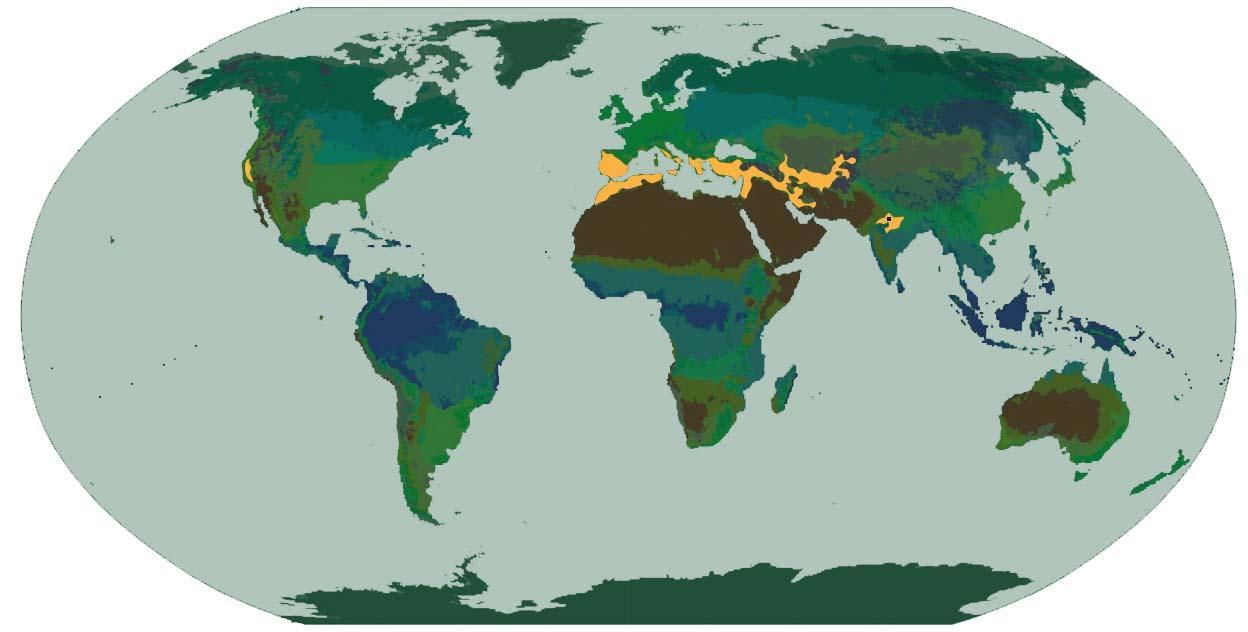

Figure 5. Sun Path Diagram Figure 6. World map acc. To Koppen-Geiger classification

BUILDING ENVELOPE

Table 2. Envelope configuration HVAC

Table 3. HVAC specifications ELECTRICITY AND LIGHTING

Table 4. Lighting specifications WATER SYSTEMS Total water used - 1800 L/day Total greywater produced - 8766 L/day Total water tank size - 857600 L Effective Catchment Area for rainwater harvesting - 3792 sqm Reduction in annual municipal water demand - 87%

RENEWABLE ENERGY Solar PV potential - 1,72,500 kWh, Required Generation - 1,30,015 kWh/year Total Generation - 1,39,250 kWh/year Using PV Generator of Capacity 48 W/hr, No. of PV cells : 330
