SPOTLIGHT INTRODUCTIONS & UPDATES

Superior Industries MODULAR SKIRTING SYSTEM

Superior Industries’ modular skirting system controls dust and prevents spillage within conveyor load and transfer zones. The new skirting system retrofits to any brand of existing structure with little or no field fabrication. Two sets of adjustable legs aid in this universal installation, while easy-to-adjust clamping mechanisms are used in place of nuts and bolts to hold skirtboard rubber tight against the belt. An optional stilling zone is available to accelerate the settling of dust while material is moving inside the system. Superior’s modular skirting system is available in 5-foot (1.5 m) sections for conveyor belt widths up to 72 inches (1,728 mm).

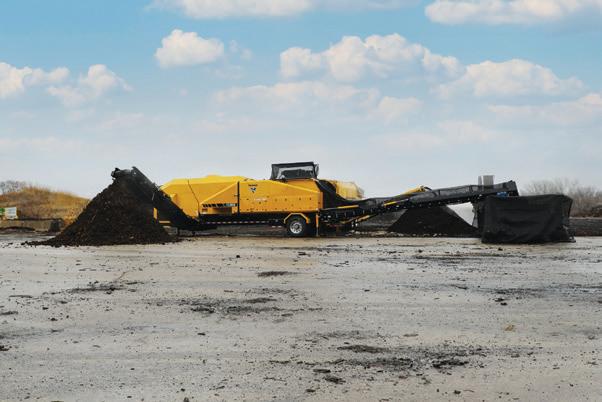

Vermeer CONTAMINANT SEPARATOR

Vermeer’s CS3500 contaminant separator uses a combination of grizzly screens, shaker tables, vacuums, an air manifold, and an optional magnetic pulley to remove a wide range of contaminant types, helping recycling operations produce high volumes of quality compost and mulch. A 74-hp (55-kW) DEUTZ diesel hybrid electric engine powers the Vermeer CS3500 contaminant separator, while the machine’s full-function remote control allows operators to adjust settings, log machine data, and diagnose fault codes. Users can also make adjustments from the full-colour 7-inch (17.9-cm) touchscreen. The CS3500 comes with Vermeer telematics for monitoring engine hours, location, geofencing, and over-the-air programming.

Arjes

MOBILE TWIN-SHAFT SHREDDER

ARJES has optimized its IMPAKTOR 250 to create the IMPAKTOR 250 evo II. In the updated version, the transport height has been reduced to approximately 255 cm, making it 20 cm lower than the predecessor model. Due to the improved quick-change cassette for the shafts, pressure is no longer exerted on the fastening bolts during the crushing process. The new waveform plates are arranged as individual parts under the shafts and act as counter blades. By inserting or removing them, the gap width may be modified and the final grain size adjusted.

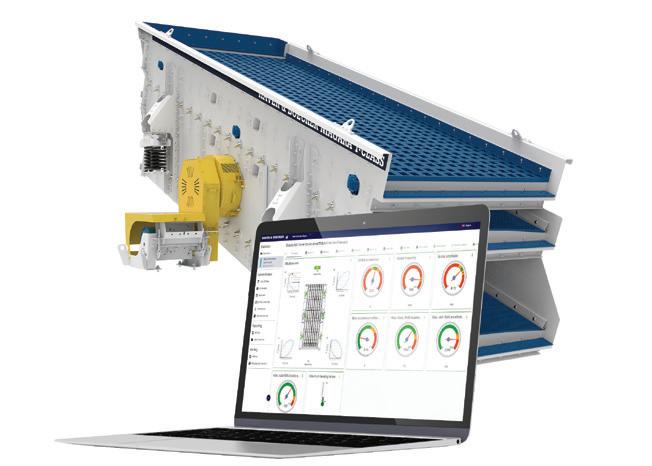

Haver & Boecker Niagara WIRELESS DIAGNOSTICS TOOL

Haver & Boecker Niagara’s Pulse Condition Monitoring (Pulse CM) is designed to monitor the health of vibrating screens using modern algorithms and artificial intelligence. It provides accurate measurements and forecasts complemented by information that is easy to understand. Pulse CM is a wireless diagnostics tool that helps mineral processing operations be proactive, rather than reactive, when it comes to maintenance efforts. This leads to increased efficiency, decreased downtime, and improved reliability. The system captures real-time information on monitored equipment and provides alerts via e-mail when it detects the first sign of potential problems.

EDGE Innovate MOBILE TROMMEL

EDGE Innovate’s latest wheel-mounted trommel provides operators with high production rates and extensive stockpiling capabilities due to its end discharge conveyor design. The TRM831 design prevents product cross-contamination and reduces the double handling of material. This is complemented by a remote operated, 180-degree radial fines conveyor as standard which has the capacity to stockpile up to 1,030 cubic metres (1,347 cubic yards). The EDGE TRM831 portable trommel is ideal for the high-capacity screening of various applications including topsoil, compost, sand, household waste, and construction and demolition waste. With a wide range of different drum types and screening media available, the EDGE TRM831 can be customized to suit the exact application requirements.
