3D CONCEALED HINGES www.benzoville.com MADE IN ITALY
3D CONCEALED HINGES

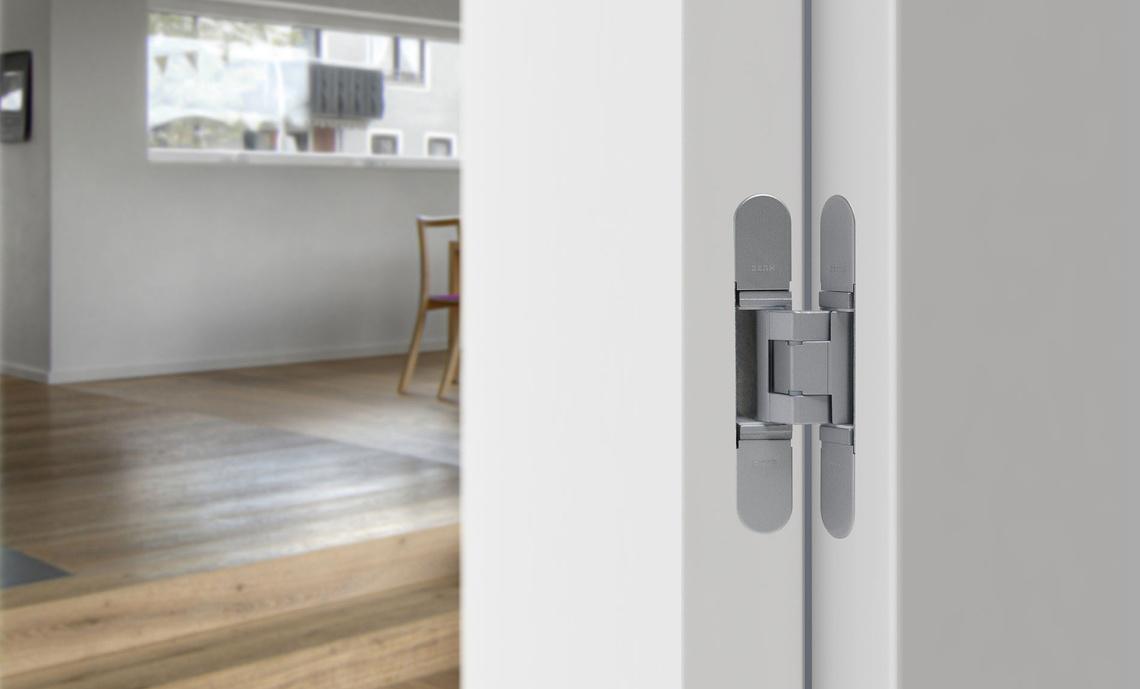

The Ceam 3D Adjustable Concealed Hinges, Series S.T.A.R.S.
ARCHITECTURAL APPEAL
Concealed hinges elegantly designed and finished in 12 stunning galvanic colours
MINIMAL
Minimally invasive, symmetric therefore versatile, all Ceam hinges leave room to client’s imagination. They can be installed on wooden, aluminium or steel profiles. Minimum hinge depth 18mm “Best in Class”
ARCHITECTURAL APPEAL
Manufactured in 3 different materials: zinc-alloy, stainless steel and Fiberglass, all Ceam hinges are symmetrical and engineered to solve the new challenges of the modern buildings
100% MADE IN ITALY
From 1962, we specialize with dedication, in manufacturing concealed hinges
Fluid 180° opening and adjustable in 3 dimensions: height, width and depth.
UP TO 150KG
Safe, solid, reliable: our hinges are tested to last for 200.000 cy- cles and now also on Fire rated doors
ADJUSTABLE EASY INSTALLATION
Easy installation: the door part and the frame part can be assembled separately in produc- tion and united on-site.
ULTRA CERTIFICATE
Company ISO 9001-2015Hinges tested according to safety European norms CE, also suitable for Fire rated doors up to EI120
01
3D ADJUSTABLE CONCEALED DOOR HINGESMODEL 1130S
MAINFEATURES:
Manufactured in zamak in 11 different finishes
Suitable for doors of 30 mm min. thickness
Total length 134 mm
Depth 21 mm only
3D adjusting system S.T.A.R.S.
Load Capacity up to 60 kg
Easy installation and slot symmetry
Revised in aesthetics and operation: now more elegant and resistant to oxidation due to the new external case in zincked zamak. Joint evolved for better performance: smoother movement, extremely precise, durable and now certified for doors up to 1000 mm wide
Machanism manufactured in zinc-alloy
Galvanized steel covers
Zinc-alloy internal body
Zinc-alloy external body
1 1 2 4 2 3 4 3
02
Small Drilling Depth

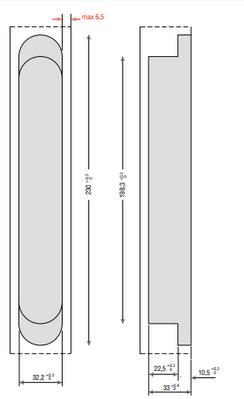

Slot Measurement
Door Cross-Section
Reversibility
Reversible for doors from 30 mm to 33 mm thick
03
Load Capacity Chart
PROPER PLACEMENT OF THE HINGES ON DOORS
Thelessthedistancebetweenthetwohingesplacedatthetwoextremitiesofthedoor (independentlyofathird/fourthhingebetweenthem),themorestressthehingesexperience We stronglysuggestfollowingthecenter-to-centermeasurementsreportedaside
DOOR WIDTH (mm) 40 40 40 40 40 40 40 40 40 40 40 37 40 36 34 31 34 31 30 28 30 28 27 26 27 26 25 24 2200 2100 2000 1900 700 800 900 1000 1100 1200 1300 D O O R H E I G H T ( m m ) 2 HINGES LOAD CAPACITY CHART DOOR WIDTH (mm) 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 59 53 49 60 60 60 60 60 60 58 53 49 46 43 60 60 60 60 57 53 49 46 43 41 39 60 60 56 52 49 46 44 41 39 37 36 3000 2900 2800 2700 2600 2500 2400 2300 2200 2100 2000 700 800 900 1000 1100 1200 1300 D O O R H E I G H T ( m m ) 3 HINGES LOAD CAPACITY CHART 4 H I N G E S S U G G E S T E D
Forspecialdoorsizesanduseofdoorcloser devices,pleaseseethetechnicalguidelines
04
3D ADJUSTABLE CONCEALED DOOR HINGESMODEL 1131S
MAINFEATURES:
Manufactured in Zamak in 11 different finishes
Suitable for doors of 38 mm min. thickness
Total length 160 mm
Depth 29 mm
3D adjusting system S.T.A.R.S.
Load capacity up to 120 kg
Easy installation and slot symmetry
Revised in aesthetics and operation: now more elegant and resistant to oxidation due to the new external case in zincked zamak. Joint evolved for better performance: smoother movement, extremely precise, durable and now certified for doors up to 1000 mm wide
Mechanism manufactured in zinc-alloy
Galvanized steel covers
Zinc-alloy internal body
Zinc-alloy external body
1 1 2 3 4 1
05
Small Drilling Depth
Slot Measurement
Door cross-section
Reversibility
Reversible for doors from 38 mm to 46 mm thick
06
Load Capacity Chart
Forspecialdoorsizesanduseofdoorcloser devices,pleaseseethetechnicalguidelines
PROPER PLACEMENT OF THE HINGES ON DOORS
Thelessthedistancebetweenthetwohingesplacedatthetwoextremitiesofthedoor(independently ofathird/fourthhingebetweenthem),themorestressthehingesexperience Westronglysuggest followingthecentre-to-centremeasurementsreportedaside.
07

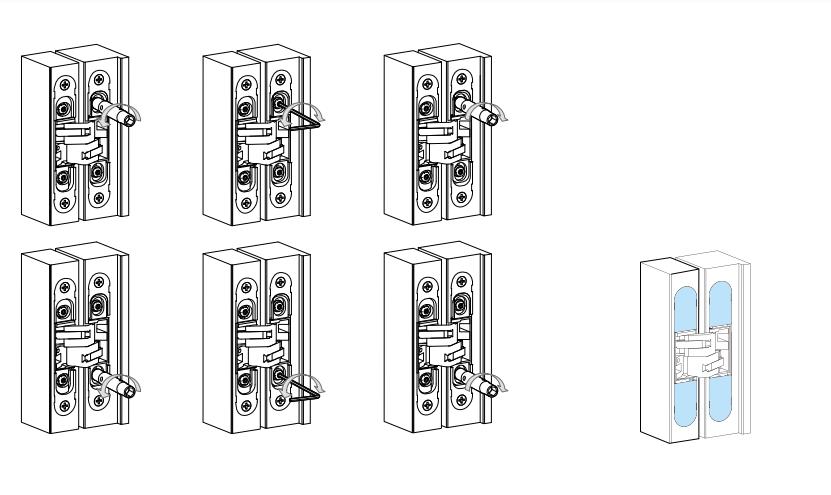

Adjustment Guidelines
Invisibleadjustable
Vertical Adjustment
Horizontal Adjustment
1131s 1230s 1130inox 1130s 1235s 1129 1229
08
hingesfordoors
Depth adjustment
09
3D Adjustment
X-1mm/+1mm
Y-3mm/+3mm
Z-1,5mm/+2,5mm
Adjustmentrangevariesaccordingto differenthingemode
10
3D ADJUSTABLE CONCEALED DOOR HINGESMODEL 1431
MAINFEATURES:
Now available in White painted
Engineered for heavy doors and suitable for doors of 38 mm min. thickness
Weight capacity up to 135 kg and 1.000 mm wide panels
Manufactured in Zamak in 12 different finishes
S.T.A.R.S. evo fluid sliding mechanism and 3D adjustable Symmetric and only 29 mm deep
Milling cut up to 6,5 mm from the internal edge
Easy installation
Machanism manufactured in zinc-alloy
Galvanized steel covers Zinc-alloy internal body
Zinc-alloy external body
1 2 3 4
11 4 2 3 1
Small Drilling Depth
Slot Measurement
Door Cross-Section
Reversibility
Reversible for doors from 38 mm to 45 mm thick
* 21 8 29
12
Load Capacity Chart
2 HINGES LOAD CAPACITY CHART
3 HINGES LOAD CAPACITY CHART
Forspecialdoorsizesanduseofdoorcloser devices,pleaseseethetechnicalguidelines
PROPER PLACEMENT OF THE HINGES ON DOORS
Thelessthedistancebetweenthetwohingesplacedatthetwoextremitiesofthedoor(independently ofathird/fourthhingebetweenthem),themorestressthehingesexperience Westronglysuggest followingthecenter-to-centermeasurementsreportedaside
DOOR WIDTH (mm) D O O R H E I G H T ( m m )
13 DOOR WIDTH
D O O R H E I G H T ( m m )
(mm)
Adjustment Guidelines Vertical Adjustment Horizontal Adjustment 1432 1432W 1431 1418 Removethecovers Invisibleadjustable hingesfordoors 1430 1430WB 1429 929 14
Depth Adjustment
Insert The Clip Covers
3D Adjustment
X-1mm/+1mm
Y-3mm/+3mm
Z-1,5mm/+2,5mm
Adjustmentrangevariesaccordingto differenthingemode
15
3D ADJUSTABLE CONCEALED DOOR HINGESMODEL 1432
MAINFEATURES:
Available in 12 different finishes
Suitable for heavy doors of 38mm min. thickness
Easy 3D adjustments • Load capacity 474 lbs. (215 kg.)
Improved mechanism with a fluid 180° opening
Easy installation with symmetrical mortising for door and frame
Manufactured in Zinc and Aluminum to resist oxidation
Tested for minimum 200,000 opening / closing cycles.
Manufactured in Italy
Machanism manufactured in zinc-alloy
Galvanized steel covers
Zinc-alloy internal body
Zinc-alloy external body
1 2 3 4 1
16
Small Drilling Depth
Slot Measurement
Door Cross-Section
17
PROPER PLACEMENT OF THE HINGES ON DOORS
Thelessthedistancebetweenthetwohingesplacedatthetwoextremitiesofthedoor(independently ofathird/fourthhingebetweenthem),themorestressthehingesexperience Westronglysuggest followingthecenter-to-centermeasurementsreportedaside
Load Capacity Chart
18
