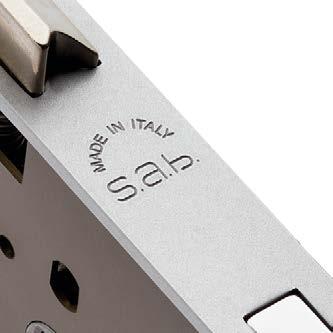

M1080 Magnetica :Gear Magnetic Multipoint Lock by Benzoville

Made in Italy

www.benzoville.com

erratura magnetica

Al momento della chiusura della porta, lo scrocco si aziona magneticamente ’incontro

When the door closes, the latch enters into the strike plate seats closing the door

Lo sgancio può avvenire sia con maniglia che con l’azionamento della chiave

The latch releases when the handle is activated or by acting the cylinder key

Semplicità e silenziosità di utilizzo

Simplicity and silence during moving

Scrocco in ottone cromato lucido

Latch in bright Chrome plated brass

È possibile sostituire la versione meccanica con quella magnetica, senza nessuna modiﬁca alle sedi nella porta e sull’inﬁsso

The Magnetic lock can replace the mechanical lock without modiﬁcations in the seats on the door

GAMMA ARTICOLI / MODELS

STRUTTURA DEL CODICE / ITEM CODE STRUCTURE

COD. FINITURA FINISHING

Serie 1080

2 Turns

Bolt and Latch

3 Locking points

Top and Bottom Bolts

Permanently engaged cylinder drive

STANDARD FINISHINGS

Satin and lacquered brass front plate U proﬁle Lock case in galvanized steel Chrome-plated bolt

ACCESSORIES

1 galvanised steel ﬂoor socket for bottom locking point Art. 78

2 galvanised steel striking plates for top locking points Art. 71-72 Fixing screws

CYLINDER NOT INCLUDED

FINITURA DI SERIE OS0 OLV OCL ONS OGR OGM *

TTENTION! STRIKE PLATES SET NOT INCLUDED

SPECIFY THE TYPE IN THE ORDER

Serrature multipunto ad ingranaggi Multipoint locks with gear movement

* *

m a x 3 3 m a x 3 3 9 2 5 32 19 5 2 9 5 6 6 10 3 5 6 0 0 10 8 E 26 3 1 8 5 6 8 1 8 4 1 0 4 1 22 2 6 0 0 10 13 5 1 2 6 10 1 5 1 5 1086-E1086-F 1086-G1086-H 1x t.62 1x t.62 1x t.60/O 1x t.60/O

FINITURA DI SERIE

DOTAZIONE

2 Turns

Bolt and Latch

3 Locking points

Top bolt

Lower frontal dead bolt

Permanently engaged cylinder drive

STANDARD FINISHINGS

Satin and lacquered brass front plate U proﬁle Lock case in galvanized steel

Chrome-plated bolt

ACCESSORIES

2 galvanised steel striking plates for top locking points Art. 71-72

Fixing screws

CYLINDER NOT INCLUDED

OS0 OLV OCL ONS OGR OGM * * * ATTENTION! STRIKE PLATES SET NOT INCLUDED * * * SPECIFY THE TYPE IN THE ORDER m a x 3 3 m a x 3 3 32 19 5 2 6 10 3 0 0 6 0 0 10 8 E 26 3 1 8 5 6 8 1 8 4 1 0 4 1 13 2 6 10 1 5 1 5 5 1 5 2 1 , 5 3 5 3 9 9 , 5 10 22 9,5 2 6 0 0 69 21 m a x 3 7 9 4 4 6 1 1087-E1087-F 1087-G1087-H 1x t.62 1x t. 1x t.62 1x t. 1x t.60/O 1x t. 1x t.60/O 1x t.

Upper and lower frontal dead bolts Permanently engaged cylinder drive STANDARD FINISHINGS

Satin and lacquered brass front plate U proﬁle

Lock case in galvanized steel Chrome-plated bolt ACCESSORIES Fixing screws

FINITURA DI SE RIE DOTAZIONE 2 Turns Bolt and

3 Locking

Latch

points

CYLINDER NOT

OS0 OLV OCL ONS OGR OGM 1088-E1088-F 1088-G1088-H 1x t.62 t. 1x t.62 t. 1x t.60/O t. 1x t.60/O t. m a x 3 3 m a x 3 3 32 19 5 2 3 0 0 6 0 0 10 8 E 26 3 1 8 5 6 8 1 8 4 1 0 4 1 13 5 1 2 6 10 5 2 1 5 4 6 1 2 6 0 0 3 5 3 9 9 5 69 9 4 21 m a x 3 7 5 1 5 3 5 9 6 5 5 19 19 9 4 m a x 3 7 10 22 4 6 1 9,5 9,5 21 * * * * TTENTION! STRIKE PLATES SET NOT INCLUDED * * * SPECIFY THE TYPE IN THE ORDER

INCLUDED

FINITURA DI SERIE

DOTAZIONE

2 Turns

Bolt and Latch

5 Locking points

Top and bottom bolt

Upper and Lower frontal dead bolts

Permanently engaged cylinder drive

STANDARD FINISHINGS

Satin and lacquered brass front plate U proﬁle Lock case in galvanized steel

Chrome-plated bolt

ACCESSORIES

1 galvanised steel ﬂoor socket for bottom locking point Art. 78

2 galvanised steel striking plates for top locking points Art. 71-72

Fixing screws

CYLINDER NOT INCLUDED

OS0 OLV OCL ONS OGR OGM * * * ATTENTION! STRIKE PLATES SET NOT INCLUDED * * * SPECIFY THE TYPE IN THE ORDER 1089-E1089-F 1089-G1089-H 1x t.62 t. 1x t.62 t. 1x t.60/O t. 1x t.60/O t. m a x 3 3 m a x 3 3 32 19 5 2 3 0 0 6 0 0 10 8 26 3 1 8 5 6 8 1 8 4 1 0 4 1 13 5 1 2 6 5 2 1 , 5 4 6 1 3 5 3 9 9 5 9 4 m a x 3 7 5 1 5 3 5 9 6 5 5 19 19 9 4 m a x 3 7 4 6 1 9,5 9,5 69 21 E m a x 3 7 21 10 10 6 2 6 0 0 10 22 21 21 m a x 3 7

points

Upper and lower frontal dead bolts

Permanently engaged cylinder drive

STANDARD FINISHINGS

Galvanised steel frontal ﬂat plate (mm 1600 round edge)

Lock case in galvanized steel Chrome-plated bolt

ACCESSORIES

UNIQUE galvanized steel striking plate Art. 84 (mm 1600 round edge)

Fixing screws

FINITURA DI SE RIE DOTAZIONE

2 Turns Bolt and Latch 3 Locking

NOT

ZB * * * ATTENTION! STRIKE PLATES SET NOT INCLUDED * * * SPECIFY THE TYPE IN THE ORDER 1091-B 1091-C 1091-D 1091-E 1x t.62 t. 1x t.62 t. 1x t.60 t. 1x t.60 t. 3 22 1 8 2 , 5 3 5 5 2 1 , 5 5 2 5 1 2 6 5 1 4 , 5 3 5 1 8 2 5 10 19 19 19 8 6 8 8 5 3 1 m a x 3 3 m a x 3 3 1 8 4 8 2 4 21 m a x 3 7 9 4 69 9 4 m a x 3 7 32 E 26 1 6 0 0 10 13 9,5 9,5 7 7 6

CYLINDER

INCLUDED

FINITURA DI SE RIE

DOTAZIONE

2 Turns

Bolt and Latch

3 Locking points

Upper and lower frontal dead bolts

Permanently engaged cylinder drive

STANDARD FINISHINGS

Galvanised steel frontal ﬂat plate (mm 2400)

Lock case in galvanized steel Chrome-plated bolt

ACCESSORIES

UNIQUE galvanized steel striking plate Art. 84S (mm 2400)

Fixing screws

CYLINDER NOT INCLUDED

* * * ATTENTION! STRIKE PLATES SET NOT INCLUDED * * * SPECIFY THE TYPE IN THE ORDER 1091/S-B 1091/S-C 1091/S-D 1091/S-E 1x t.62 1x t.62 1x t.60 1x t.60 22 19 3 5 5 2 1 5 5 2 5 1 2 6 5 1 4 , 5 3 5 10 19 8 6 8 8 5 3 1 m a x 3 3 m a x 3 3 1 8 4 1 0 4 1 21 m a x 3 7 9 4 9 4 m a x 3 7 32 E 26 10 13 9,5 9,5 3 69 2 4 0 0 7 6 5 , 5 3 9 9 5 3 0 0 6 0 0 ZB

FINITURA DI SERIE

DOTAZIONE

Central lock with gear movement with torque reduction unit

2 Turns

Bolt and Latch

Permanently engaged cylinder drive

STANDARD FINISHINGS

Lock case in galvanized steel

Chrome-plated bolt

ACCESSORIES

Fixing screws

Spare part for Art. 1086 - 1087 - 1088 - 1089 - 1091

8 5 3 1 6 8 M A X 3 2 M A X 3 2 E 26 32 5 2 3 1 5 1 2 6 2 4 1 8 4

Finiture - Finishings

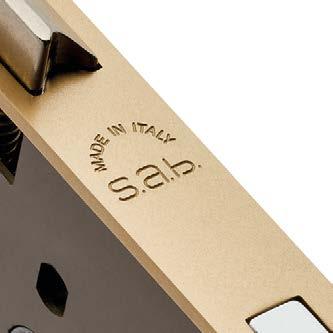

SATIN AND LACQUERED BRASS

OLV

OTTONE LUCIDO VERNICIATO POLISHED AND LACQUERED BRASS

OGR

OTTONE BRONZATO GRAFFIATO

ANTIQUE BRONZED BRASS

OCL

OTTONE CROMATO

LUCIDO

BRIGHT CHROME-PLATED BRASS

ONS

OTTONE NICHELATO SATINATO

SATIN NICKEL-PLATED BRASS

OGM

OTTONE BRONZATO

GRAFFIATO OPACO

ANTIQUE BRONZED BRASS MATT

BLK

NERO OPACO MATT BLACK

Made in Italy

wwwwww.sabserrature.sabserrature.it.it

VERNICIATO ORO GOLD VERNICIATO BRONZO BRONZE VERNICIATO
