House 24 - Schedule of Finishes

Page 1

1: House 24
Estate at
No. Finish Specification Image 1 Floors 1.1 Timber hardwood flooring Egineered oak timber flooring, 14/3x190x1900mm or 15/4x240x1900mm or similar approved. 1.2 Tiles: Bathrooms Porcelain tile, natural “in & out” (R10 A+B), 1200x600mm Basalto Gris or similar approved Tiles: Scullery Porcelain tile, natural “in & out” (R10 A+B), 1200x600mm Basalto Gris or similar approved Tiles: Main bathroom Natural stone tile, 1200x600mm Casablanca Granite or similar approved 1.3 CarpetsTufted cut pile carpet, Belgotex Mantra 201 - Aqueous or similar approved Date:
1
Appendix
Kerzner
Leeukoppie
2024/04/11 Schedule of Finishes - House 24

1.4 Tiles: Exterior

Porcelain tile, natural “in & out” (R10 A+B), 1200x600mm Basalto Gris or similar approved

1.5 Skirting at timber floors Oak skirting to match engineered oak flooring or similar approved

1.6 Skirting at tiled floors Tile skirting to match floor tile, to architect's detail

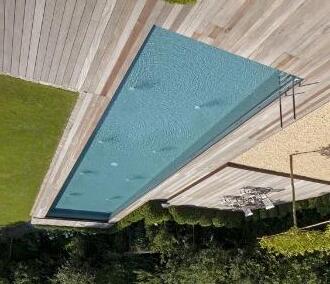

1.7 Pool surrounds

Porcelain tile, natural “in & out” (R10 A+B), 1200x600mm Basalto Gris or similar approved

1.8 Garage floorGrano screed

Appendix 1: House 24
Kerzner Estate at Leeukoppie
2

Kerzner Estate at Leeukoppie

1.9 Hard landscaping Landscaping and cement pavers in combination, to landscape architect's specification

1.10 DrivewayCabrico 200x180x73mm rustic blend - clay pavers or similar approved

2

2.1

2.2

2.3

1: House 24
Appendix
Wall Finishes Internal brickwork1 Coat cement plaster & 1 coat cretestone, painted to spec External brickwork1 Coat cement plaster, textured painted to spec with vertical v-joints
3
Stone wallsBrickwork with 150mm Malmesbury Shale stone cladding, or similar approved

4 Wall Tiling

4.1 Splashback tiles kitchen

Engineered stone splashback to match kitchen counter top, Eezi Quartz Bianco Calacatta or similar approved

4.2 Splashback tiles scullery

Ceramic tile, Prissmacer Whites Blanco matt rectified 300x600mm tile between counter top and overhead units or similar approved

4.3 Bathroom walls

Porcelain tile, natural “in & out” (R10 A+B), 1200x600mm Basalto Gris to selected walls or similar approved

4.4 Main en-suite bathroom walls

Natural stone tile, 1200x600mm Casablanca Granite to selected walls or similar approved

5 Ceilings

5.1 SoffitSuspended concrete slab to smooth exposed concrete finish

5.2 CeilingsGypsum board, skimmed and painted

5.3 Cornice Shadow line cornices

Appendix 1: House 24
Estate at Leeukoppie
Kerzner
4
N/A

5.4 Concealed lightingLED light strip within shadow line or inlay as per architect's detailN/A

Aluminium windows & doors

6.1 WindowsPowder coated aluminium frame to manufacturers detail, colour to be confirmed

6.2 Doors Powder coated aluminium frame to manufacturers detail, colour to be confirmed

6.3 GlazingDouble glazing on all windows, excluding at butt joints, to be single glazing

6.4 Ironmongery Flush pull handles to sliding doors and windows, cylinder claw locks to all sliding doors. Standard aluminium epoxy coated handles to top hung windows N/A

6.5 SkylightsDouble glazing to all skylights

7 Timber Doors

1:
24
Appendix
House
Kerzner Estate at Leeukoppie
6
5

Kerzner Estate at Leeukoppie

7.1 Front door

Solid oak frame to architect's detail, solid hardwood pivot door, fixed glazed sidelight, custom designed to architect's detail

7.2 Internal doors

7.3 Internal garage door

Oak liner with shadow line detail, semi-solid core with oak veneered flush panel doors

Semi solid timber door fire rated 1/2 hour N/A

7.4 Garage door

Automated sectional overhead hardwood timber or aluminum door to arch approved spec

7.5 Ironmongery

8 Joinery

Stainless steel hinges, 3 lever cylinder locks and Oro&Oro satin nickle lever with round rose

8.1 Kitchen unitsRefer to Lusso Kitchen Finishes Schedule

Appendix 1: House 24
6

8.2 Kitchen tops & splashback Refer to Lusso Kitchen Finishes Schedule

8.3 SculleryRefer to Lusso Kitchen Finishes Schedule

1: House 24
Appendix
Kerzner Estate at Leeukoppie
7

8.4 Scullery tops & splashback

Refer to Lusso Kitchen Finishes Schedule

8.5 VanitiesRefer to Lusso Bathroom Finishes Schedule

Refer to Lusso Bathroom Finishes Schedule

Refer to Lusso Bathroom Finishes Schedule

8.6 Bedroom cupboards

Doors to be duco sprayed MDF with soft closers and finger grip handles, carcass to be melamine with impact edging

8.7 Fireplace unit Fireplace unit clad large format sintered porcelain tile, 6mm Xtone Glem White Nature with oak-veneered drawer fronts or similar approved

N/A

8.8 TV / Fireplace unit Painted unit with recesses for TV and fireplace if specified

N/A

1:
Appendix
House 24
Kerzner Estate at Leeukoppie
8
Appendix 1: House 24
Estate at
Kerzner
Leeukoppie
8.9 FireplaceClosed combustion built-in fireplace, Lacunza 800 Silver
9
8.10 Braai unitStainless steel braai unit with sintered porcelain tile counter top

9 Plumbing & Sanitary ware

9.1 WC'sRefer to Yourspace Bathroom Finishes Schedule

9.2 WC'sRefer to Yourspace Bathroom Finishes Schedule

9.3 Main en-suite mixerRefer to Yourspace Bathroom Finishes Schedule

9.4 Main en-suite basins

9.5 En-suite basin mixer

Refer to Yourspace Bathroom Finishes Schedule

Refer to Yourspace Bathroom Finishes Schedule

9.6 En-suite basinsRefer to Yourspace Bathroom Finishes Schedule

Appendix 1: House 24
at
Kerzner Estate
Leeukoppie
10

9.7 Guest WC basinRefer to Yourspace Bathroom Finishes Schedule

1:
24
Appendix
House
Kerzner Estate at Leeukoppie
11

9.8 Main en-suite bathRefer to Yourspace Bathroom Finishes Schedule

9.9 Main en-suite bath free-standing mixer

Refer to Yourspace Bathroom Finishes Schedule

9.10 Main en-suite shower

Hand shower and mixer

Refer to Yourspace Bathroom Finishes Schedule

Refer to Yourspace Bathroom Finishes Schedule

Shower trapRefer to Yourspace Bathroom Finishes Schedule

9.11 En-suite 2,3 & 4 shower

Refer to Yourspace Bathroom Finishes Schedule

Shower mixerRefer to Yourspace Bathroom Finishes Schedule

Shower trapRefer to Yourspace Bathroom Finishes Schedule

Appendix 1: House 24 Kerzner Estate at Leeukoppie
12

9.12 AccessoriesRefer to Yourspace Bathroom Finishes ScheduleN/A

9.13 Heated towel railRefer to Yourspace Bathroom Finishes Schedule

9.15 Shower walls & doors Refer to Yourspace Bathroom Finishes ScheduleN/A

1:
24
Estate at
Appendix
House
Kerzner
Leeukoppie
13

9.15 Kitchen prep bowl sink

9.16 Kitchen prep bowl mixer

Refer to Lusso Kitchen Finishes Schedule

Refer to Lusso Kitchen Finishes Schedule

9.17 Scullery sinkRefer to Lusso Kitchen Finishes Schedule

9.18 Scullery & laundry sink mixer

Refer to Lusso Kitchen Finishes Schedule

9.19 Laundry sinkRefer to Lusso Kitchen Finishes Schedule

Appendix 1: House 24
at
Kerzner Estate
Leeukoppie
14

10 Appliances

10.1 Built-in appliancesRefer to Lusso Kitchen Finishes Schedule

10.2

Refer to Lusso Kitchen Finishes Schedule

10.3

Refer to Lusso Kitchen Finishes Schedule

10.4

Refer to Lusso Kitchen Finishes Schedule

10.5

Refer to Lusso Kitchen Finishes Schedule

Appendix 1: House 24 Kerzner Estate at Leeukoppie
15

10.6 Appliances freestanding

Refer to Lusso Kitchen Finishes Schedule

10.7 Refer to Lusso Kitchen Finishes Schedule

10.8 Refer to Lusso Kitchen Finishes Schedule

11 Roof

11.1 Planted roofs Planter trays with water-wise plants to landscapers specification to selected roof areas

11.2 Flat roofs 50mm Iso Board insulation or similar approved, to be covered with a layer of 19mm stone aggregate

Appendix 1: House 24 Kerzner Estate at
Leeukoppie
16

12 Balustrade

12.1 Frameless glass balustrade

Frameless glass balustrade to comply with NBR or stainless steel balustrade to architcets approval

13 Pool

13.1 PoolFibreglass pool lining, colour to architect's spec

13.2 TilingWhite mosaic band 200mm high at water level

13.3 FenceClearvu fence 1200 mm high to estate requirements

14 Paint 14.1 Internal plastered walls Washable acrylic paint, Plascon Double Velvet or similar approved, as per architect's specification and colour

1:
24
Appendix
House
Kerzner Estate at Leeukoppie
N/A
Ceilings
All 14.3 Concrete walls Clear matt masonry primer to concrete walls All
Exposed exterior timber Untreated All
Interior timber elements
oil product All 17
All 14.2
White pure acrylic to rhino board ceilings
14.4
14.5
Treated with water-based timber

15 Post Box & Signage

15.1 SignageHouse number post as required by Kerzner Estate

16 Landscaping

16.1 Planting & irrigationPlanting by landscaper, as per landscape architect's designN/A

*The developer reserves the right to change any of the items listed on the schedule, for another equal or similar, as per Architect's choice

*Images are representative of the finish and not an actual rendering or photograph. The completed project may vary slightly to these images
