Nowadays, more and more middle-aged people are suffering from insomnia, as life for the middle-aged is stressful indeed. For one thing, as they are the backbones of their companies, they have plenty of things to do at work. And they usually have to work overtime. For another, they have to take great responsibilities at home, for their aged parents need to be supported and their little children need to be brought up. That's why they don't have enough time to relieve their stressed. Escaping from city is one from other choices. Building a home on the mountain to relax at weekend day with family might help them to change the life environment. The greenery can reduce physiological and psychological stress compared with mental work.
1 VACATION HOME
MONDOULKIRI PROVINCE
21m Villa ON THE MOUNTAIN

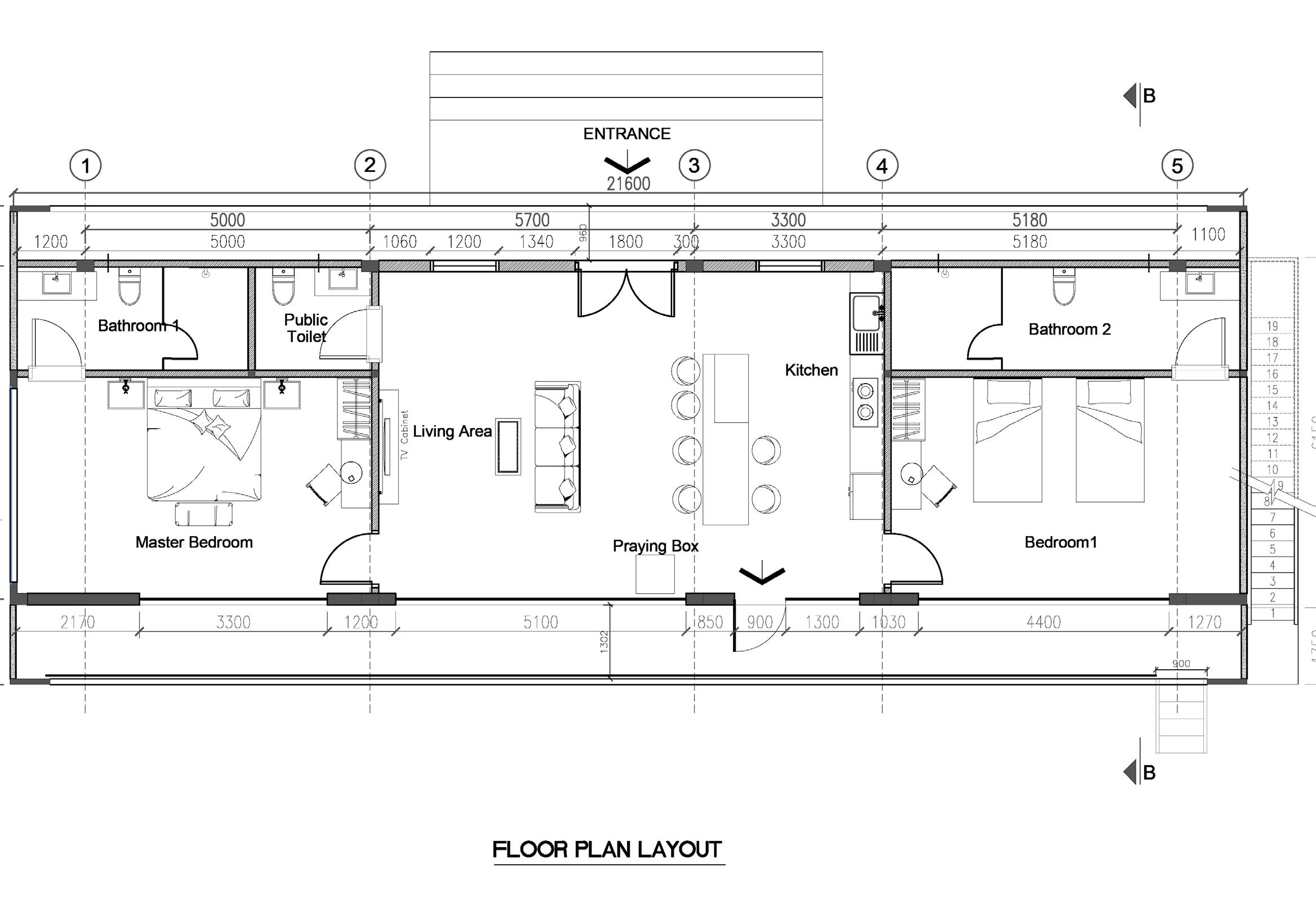

On the summit of the mountain, the villa was designed of 181m2 approximately. It contains a livingroom, a kithen, 2 bedrooms and 3 bathrooms. The combination of kitchen and living room is in the middle which separates the two bedrooms, one is master bedroom and other one is children room. The rear elevation faces the best view of greenery.

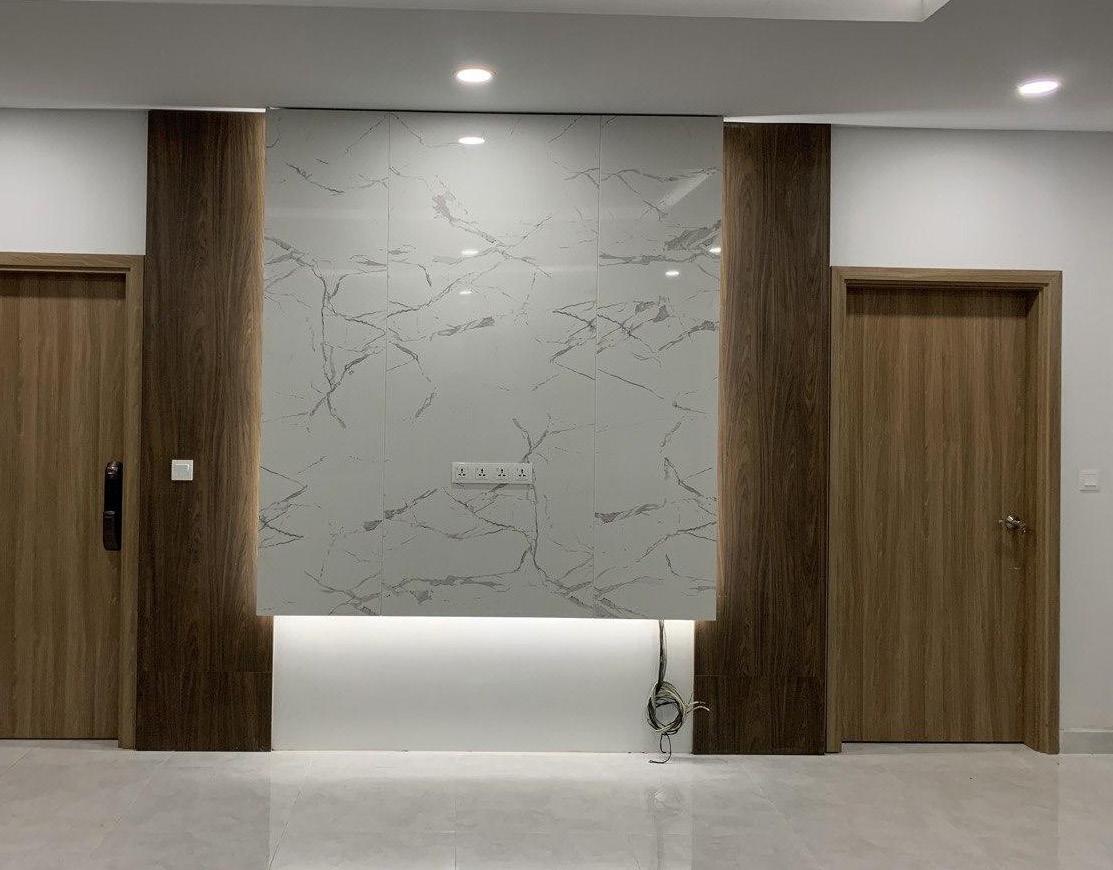

The livingroom was design with marble and wood separated the bathroom door and master bedroom door. The doors are the same dimension so the concept doesn' t want to expose the public toilet.

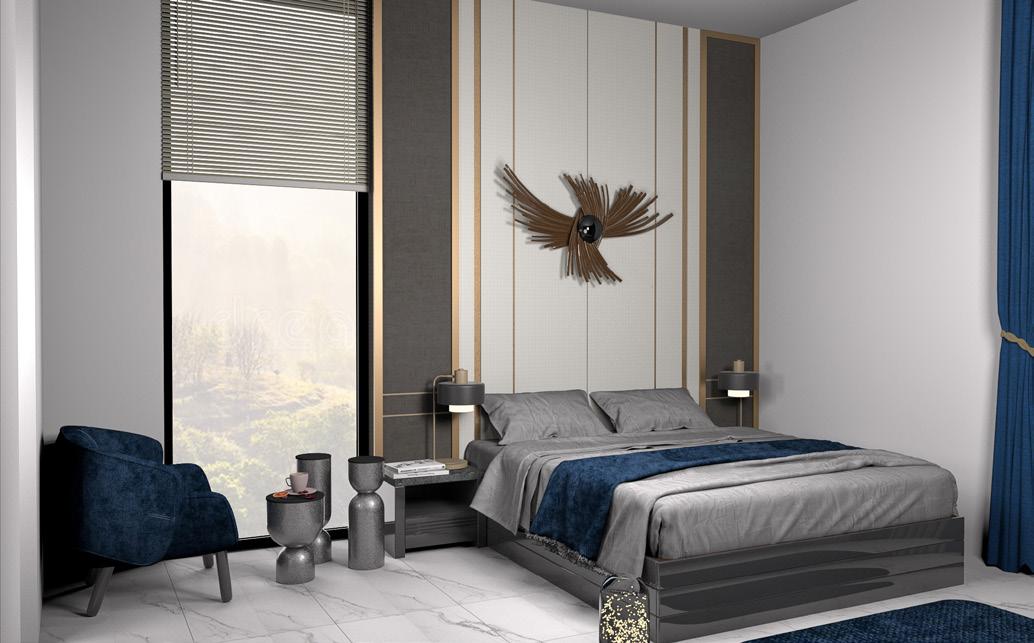

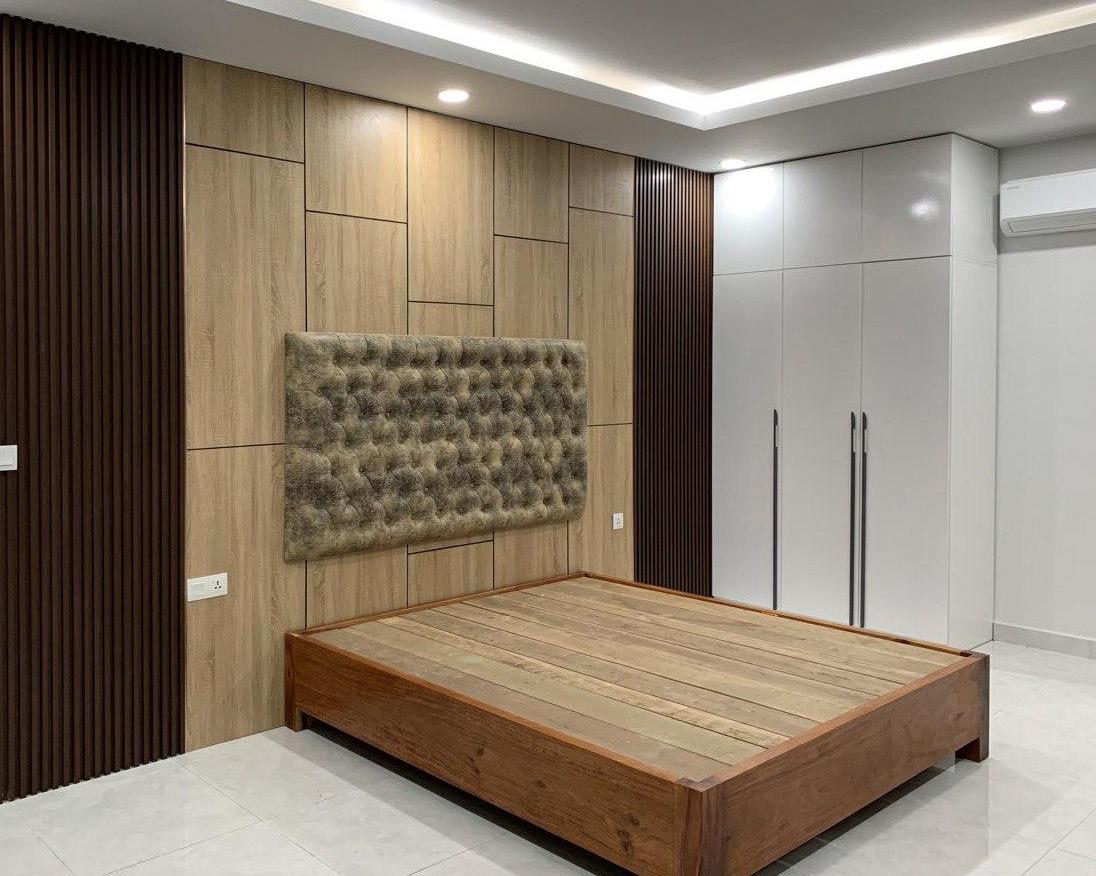

The bedroom was design with plastic grill and wood facing the glasses which can see the view from room and the behind is bathroom.
Kitchen with white color and an island standing between kitchen cabinet and sofa. Acessing to the rear balcony was location at kitchen with glass door and also has a praying box near the that d
VACATION
CLASSIC HOME MONDOULKIRI PROVINCE
Modern house is really popular, but classic one looks fancy and stunning. A classic vacation house was built on another summit of mountain.The vacation house was built for a family to relax and enjoy life at country side with greenery view.All functions were included.
2
comes up with ground floor and first floor. Ground floor layout plan contains living area, a living room for family, dry kitchen, 3bedrooms and one maid room.
While first floor have livng area in the middle two bedrooms which one is masterbedroom. Each room has a bathrrom. The living area can access to rear balcony while master bedroom and bedroom4 accesses to front balcony.
DESIGNED CHECKEDCALCULATEDBY:BY:BY:DRAWNBY: Signature iD-N DATE: REVISION:PROJECT: DRAWING : FILE NAME: REMARKS CHECKED BYSCALE APPROVED TECHINCALBY: TEAM: 0 1/... CONTRACTOR: Maid Room1 Corridor 24 23 16 1314 09 08 05 PublicToilet w N E Storage Bathroom 2 GR.FL Villa MDK Layout A ACCBB Bedroom1 Dry Kitchen Living Room and Piano Bedroom 1 Living and Dinning Hall Bedroom Bedroom32Living Room and Piano DESIGNED BY: DRAWN BY: Signature DATE: REVISION:PROJECT: REMARKS CHECKED BYSCALETECHINCAL TEAM: 1/... CONTRACTOR: 29 28 23 22 17 12 08 07 06 02 01 w N S E 1st.FL Villa MDK Layout A ACCBB FLOOR LAYOUT
TheDOCUMENTATIONPLANfloorlayoutplan
One of first floor interior was designed with marble. it's at the first floor livingroom. The design was used two marble colors, white in the middle with reflected light and the black one beside the white marble.
BE SOOTHING BUT SUMPTUOUS
For those who demand complete privacy, the villa comes with a style of living that is soothing yet sumptuous. The villa is size of 22.2m x 34.1m for groun floor and fist floor of 7.2m x 34.1m used area and there are three large balconies.
Master bedroom tv stand on the first floor was designed using white marble with aluminium grill and the black marble in middle. Behind the white marble was reflected light and beside was MC cabinet.
3 Vacation Home KOMPONG
In order for a vacation home to be classified as a residence, it must offer basic living accommodations including sleeping space as well as cooking and bathroom facilities. The home must also be used for personal purposes. A two stories vacation house was built near to sea located in Kompong som province. SOM PROVINCE

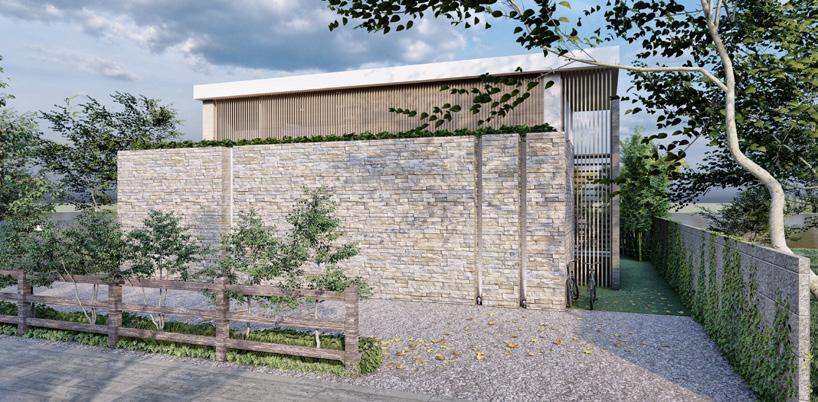

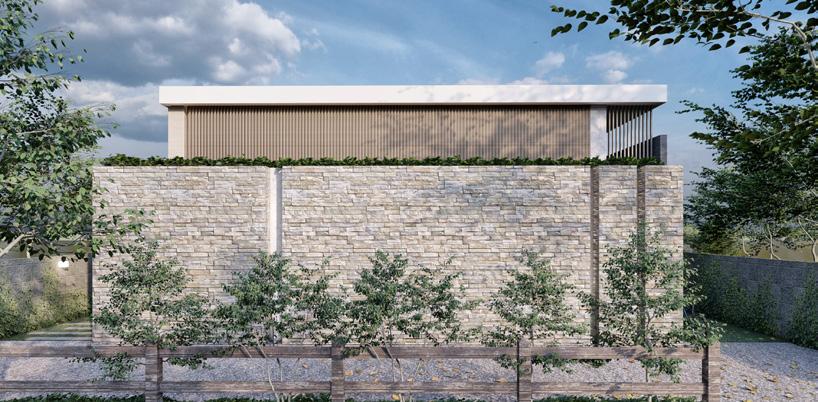

A modern box-shaped house designed simply using main materials being concrete, real wood and natural stone. The house is located in the middle of a large plot. Quiet and perfect forThisrelaxing.project
in a semi-villa concept, with the feel of hope that users of this building get a pleasant experience on their vacation.The vacation home is equipped with 3 bedrooms, 4 bathrooms, guest living area and family living area, and a dinning area while fully equipped kitchen is outside the house. The entrance uses wood materials to create a homey and comfortable villa vibes. The wood materials also gives a warm impression for the user. Exposed marble, natural stone walls, and earth tone materials also dominate both the interior and exterior of the house.The zoning of this building is divided into 3 parts, public, semi-private, and private areas.The parking is at the left side of the house which has access from dinning area to parking. The owner wants to have 2 living area one is for guest and other for their family. The first floor for their privacy, there are two bedrooms which separated by stair. The living room is opened space which open from ground floor to roof providing an extraodinary space, as well as a long curtain and molding. All bedrooms have enough light from window and glasses. bedrooms design to be modern with glass window nearby.All areas gathered in this house can be connected to each other, with indoor and outdoor areas that are also integrated, so that family warmth can be felt in the house with the feel of being on vacation.
VACATION HOME
DRAWING FRONT ELEVATION CAR GARAGEDCBAE DRAWING GROUND FLOOR
CabinetTVCloset FAMILY LIVING DINNINGAREA R=187.5BasinWash GUEST LIVING AREA 1 2 3 4 TV Cabinet TV CabinetExtendedCORRIDORSlab BEDROOM 1BEDROOM 2 1 2 3 4 DCBAE VOID DRAWING FIRST FLOOR
Summer house are designed to serve as secondary homes and are usually small and accommodating.Summer homes have central, open living areas, few or many bedrooms suitable for a couple or family with lots of friends.
4 Summer Home KANDAL PROVINCE
INTERIOR TheDOCUMENTATIONDESIGNinteriorwas designed so many options based on owner needs. All bedrooms, livingroom, dinning area, bathrooms obtain enough light from the outside. OPTIONS The two-level house the river which has Three bathroom on shading on the first are many options to option 1, this summer function as home stay a living room, a small room is in the middle are divided in master has a mini garden near bathroom. At the rear
house is situated at the center of the lot, in a manner that each level enjoys a spacious yard. The house entrance is at the rear facing to pool in front. The house contains 3 bedroom on the ground floor and dining area living area is on the first floor and 4 bathroom. on the ground floor has open roof which direct light can be shine into it. Front elevation using natural stone is stunning and wood first floor. Rear has a pool in front of 3 bedrooms. While swiming you can enjoy the view of river. BEFORE, the design was agree, there to provide to owner. summer house was design only the ground floor, so it stay which has small kitchen. The layout plan contain small kithcen, 2 bedrooms and 2 bathrooms. the living middle which entrance also in the middle as well. Rooms master bedroom and normal bedroom. Master bedroom near the bathroom. All of them has open space in the rear elevation there is a pool to enjoy view of river. Option 2, the one level house was design functioning as home stay which has entrance at front middle of the house. At the entrance, it has mini garden along walk side. The layout plan contains a livingroom, small kithcen, two bedrooms, two bathrooms and a swiming pool outside the house. The living room separated 2 bedroom. Each bathroom has open space in the middle of bathroom. At the rear elevation there is a pool to enjoy view of river.
OPTIONS
Shophouse commonly found throughout the historic cities of SE Asia, this housing type can be used for both business and living. Classic and simplicity are the key features of design.
5 Shophouse KOMPONG SOM PROVINCE
LIVING AREA 6000 4100 4000 4100 1800 1000 4100 4000 4100 1000 850 1200 1100 1200 850 1000 4100 4000 4100 1000 850 1200 1100 1200 850 4100 4100 700 800 1100 DESIGNED CALCULATEDBY:BY:DRAWNBY: Signature SHEET N DATE: REVISION:DRAWINGPROJECT:: REMARKS CHECKED BY:SCALETECHINCAL TEAM:CONTRACTOR: CALCULATED BY: DRAWN BY: Shop House Option 3 5000
The main characteristics of the design for sales in Cambodia are modernity and simplicity, which represent the dynamism of daily living. Modern interior design is characterized by straight, clean lines and a focus on natural light. While preserving a clear feeling of separation between privacy for habitation and openness for conducting business, large windows and floor to ceiling panorama windows not only enable nature serve as a backdrop for the interior but also let in an abundance of natural light.
Design for this shophouse was 12.2 m × 5 m, with a front yard of 6 m and a rear yard of 1.8 m. There are 3 floors: the first floor, the second floor, and the ground floor. One bathroom is located on the ground floor, which is designated for business use only. The first floor is designated for living and features a kitchen, dining area, and one bedroom with a bathroom within. On the second story, there are two bedrooms and two bathrooms, one of which is the master bedroom. There is a 6 m parking spot in the front yard, making it simple to operate a business there.
The design of elevation combines with glass and classic design to look stunning and gorgeous. To design that we, architects, design 2 options for owner, as see in figures, one looks classic with molding and another one look simplicity with less molding.
SHOPHOUSE
Nowadays, people are stressed about their work, so they tend to spending time relax. Some people build their own vacation house and some prefer staying in bungalow resort to enjoy view of mountain or sea. This bungalow resort was located in Mondoulkiri province. PROVINCE
6 Mondoulkiri Resort MONDOULKIRI
AVALON BY MOSAIC
People tend to spend their times enjoying with nature.The design process inevitably started with an appreciation of the existing values and spirit of the place. This resort is included bungalows, camping platform, firepit, restuarant, swimming pool and parking area. All bungalows are on the summit of the mountain facing to the greenary. In master plan, there are 14 bungalows, 12 camping platforms, 4 firepit, a restaunrant, a swimming pool near the restaurant. The bungalow has placed along the curve of mountain as well the camping platform. The restaurant on the top mountain nearby the infinitive pool. the lower mountain is for playground for people to take people or their children to enjoy the playground. Parking area is on the other side of mountain. 1200
120 1700 120 2000 120 1700 120 8000 110014402400 1100 2350 4075 120 2000 1000 5000 7202000 FLOOR900PLAN1200900720 2000
The bungalow was built of 9m x 8m with 4m front yard. One bungalow has two bedroom and two bathroom.It made of wood, glass and concret. Front handrail using steel structure. The interior finishes of the guest areas continue the same color palette of exterior by using wood.
