Two Birds With One Stone

Located on a gently sloping site in Brussel, the Prince Baudouin school and kindergarten need an extension. On the other side, the little farmhouse stands isolated. By adding the new extentsion to the existing, the site is united with three distinct plazas and houses shared usages by the community, school and kindergarten.

Collabrate with Clemens Trautwein Studio: Mechtild Stuhlmacher TU Berlin 2022 Winter

kindergarden ground floor section A-A

kindergarden courtyard

kindergarden multi-purpose hall

kindergarden dining hall

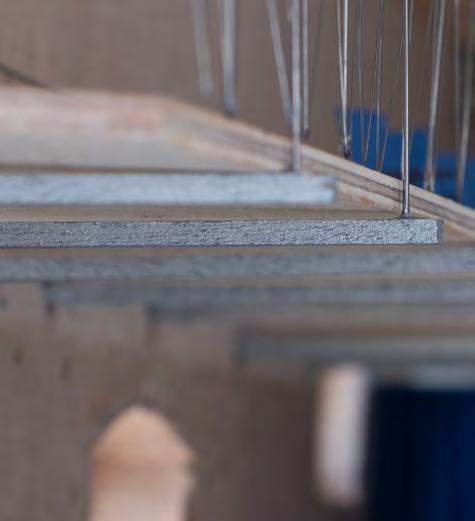

Hayloft

Transformation of a stable in Bleesern, Germany

Collabrate with Clara Harbecke, Jadwiga Skalska Studio: Mechtild Stuhlmacher TU Berlin 2023 Summer

Dachziegel Bierberschwanz Verband Dachlattung

Dachsparren Holz 40 x 15 cm

Hohlkörperplatte Holz mit integrierter Schalldämmung 22cm

Detail Aufhängepunkt

Stahlrohr ⌀ 25cm

Stahlrohr ⌀ 45 cm

Ringbalken Stahlbeton bewährt

Handlauf Holz ⌀ 5cm

Holzbalken

Hohlkörperplatte Holz mit integrierter Trittschalldämmung 12cm

Stahlträger quadratisches Hohlprofil 20 x 20 cm

Auflagertasche in Bestandsmauerwerk 25cm x 25cm

Fugue

In music, a fugue is a compositional technique in two or more voices, built on a subject. The repetition and variation of the subject, played by the different voices, generate the development of both the harmony and the melody.

Collabrate with Alberto Galofre, Nil Pallarès, Bernat Rehues Studio: Juhani Pallasma, Josep Bunyesc, Queralt Garriga ETSAB Barcelona 2020 Winter

bathroom storage kitchen living room bedroom balcony practical space compact installation cross ventilation visual comfort private zone connect to nature

wall composition

CLT oor + lightframe walls and ceiling small big narrow landscape solid wall OSB + isolation+ OSBInterior wooden façade + OSB OSB

ventilated facade

Roof Detail

- Chapa metálica - Retícula bidireccional - Capa transpirable - Tablero OSB - Entramado ligero - Barrera de vapor - Acabado interior - Acabado interior - Barrera de vapor - Entramado ligero - Tablero OSB - Capa Transpirable - Retícula bidireccional - Acabado exterior

1 1 2 3 4 5 7 6 8 9 10 2435678 Ceiling composition 1. Plywood panel 2. Vapour Barrier 3. Wooden lightframe 4. Isolation material (24cm) 5. OSB panel 6. Waterproof breathable membrane 7. Gutter 8. wooden frame 9. Metallic sheet 10. Ridge cover Wall composition 1. OSB panel 2. Vapour Barrier 3. Wooden lightframe 4. Isolation material (16cm) 5. OSB panel 6. Waterproof breathable membrane 7. Wooden frame 8. Façade wooden strips

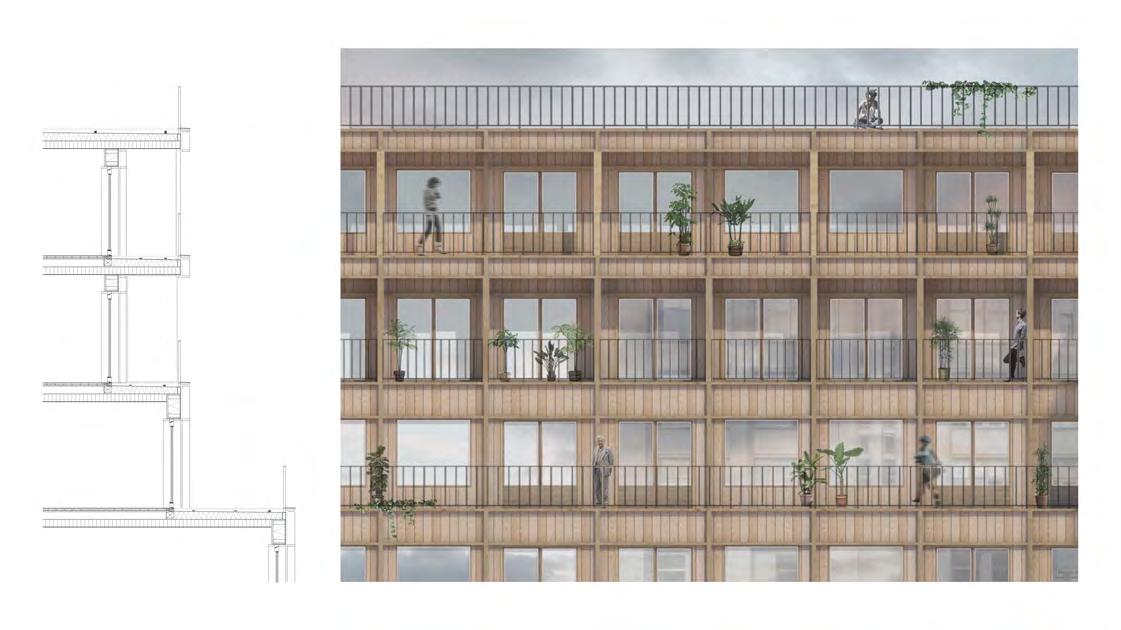

Living in Backyard of Haus der Statistik

Social housing in the backyard of Haus der Statistik tries to answer the question how could city life also develop vertically. These are architecturally formulated in different housing typologies from very private to very public character.

Collabrate with Jesse Puhan-Schulz Studio: Eike Roswag-Klinge TU Berlin 2021 Winter
