n two earlier American Iron Magazine installments we upgraded the performance on my 1993 883 Sportster with carburetor, breathing, and i suspension mods courtesy of Roland Sands Design, Dynojet, Freedom Performance exhaust, and ProAction shocks. For this article we shift from performance to aesthetic and comfort with a new handlebar and risers, some nice end caps, and an instrument package relocation kit.

This Sporty has seen its fair share of handlebars over the past 25 years, most being installed with little forethought. When I brought the bike to Motorious Speed Shop in San Bruno, California, owner/ operator Colin Winter shook his head in disbelief, as he laughingly asked

Article By: Jenny Lefferts And Photos By: Daniel Furon

what I had been thinking when I installed the outdated, POS bars that were currently on the bike.

“They were gifted to me by a friend,” I replied sheepishly.

“Proves the old saying,” Colin continued, “You get what you pay for.”

But his eyes lit up with apparent approval when I pulled out the replacement—a gloss black Thrashin’ Supply mid-rise handlebar. My intentions were to mate the handlebars with a set of 4-1/2” Chubby risers by Wild 1. Agreeing with my selections, Colin further suggested we dump the hideous stock speedo/instrument package in favor of a Joker Machine Speedo Relocator Kit. Not only would this step sanitize the rats nest of wires, it would also radically alter the appearance of the Sporty since the speedometer would now hang off the left-side fork tube.

Working through the Joker Machine catalog, I became enamored with the company’s black steering stem nut and matching fork tube caps—they would go well in complementing the black bars and risers.

Tools/Supplies Used:

• 3/4” socket • 15/16” socket • 23mm socket • 1/4” Allen wrench • 6mm Allen wrench • Red and blue threadlocker • Soldering iron • Torque wrench (ft-lbs. and in-lbs.) • Gooden-Tite riser bushings

Starting with the stock risers, handlebar, and hand controls removed, Colin applies Blue Loctite to the Joker steering stem nut and uses a 15/16” socket to install it.

Colin removes the stock riser bushings using a hammer and drift to punch the metal sleeve from the center and then removes two rubber expansion halves.

Gooden-Tite replacement riser bushings along with their billet cap washers provide improved vibration resistance and are easily installed by hand into the bushing cavities from the top and bottom of the upper triple clamp. By first installing the top handlebar clamp on the risers, Colin ensures the 4-1/2” Chubby Risers by Wild 1 remain in alignment during bolt-up.

Using red threadlocker on the riser bolts, Colin installs the stock 1/2” riser bolts into the Chubby Risers through the freshly installed bushings.

He uses a 3/4” socket to torque the riser bolts to 40 ft-lbs.

After lifting the front end of the bike to remove all the weight off the front forks, Colin carefully and slowly removes the top caps from the fork tubes. Make certain to have them covered since they are under spring pressure. Using a 23mm socket, Colin installs the Joker Machine fork tube caps by carefully applying downward pressure and slowly tightens the caps to 11–22 ft-lbs.

Using a 1/4” Allen wrench, Colin removes the handlebar top clamp. Then he sets the new bar, aligning the knurls on the bar with the machined channels in the risers.

Before tightening the four sockethead bolts on the top clamp, we adjust the bars for comfort. Using the 1/4” Allen wrench, Colin tightens the socket-head bolts to 150 in-lbs., making sure the gaps are even from front to rear.

The relocator bracket for the speedometer has a series of indicator lights along the case perimeter (neutral turn indicator, oil pressure, etc.) with existing wiring protruding from the bracket that must be integrated with the bike’s original warning lights wiring.

Colin uses the wiring diagram supplied by Joker Machine to aid in matching color-coded wires between the bike and the speedo relocator bracket. Since the bracket was Colin uses the wiring diagram supplied by Joker Machine to aid in matching color-coded wires between the bike and the speedo relocator bracket. Since the bracket was actually designed for 1996 and later, Colin had to custom fabricate a link between the ’93 OEM harness and the bracket.

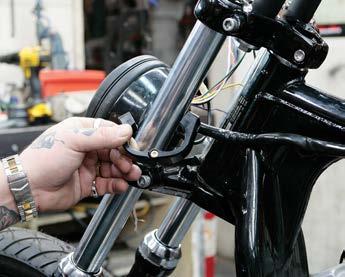

Colin takes the clamp for the speedo relocation bracket and places it around the upper fork tube between the upper and lower triple trees. Colin threads the included bolt through the clamp into the threaded hole on the relocation bracket and tightens it securely using a 6mm Allen wrench.

Colin screws a SAMDO GPS-enabled odometer (purchased for $60 from Amazon) into the relocation bracket. The odometer starts at zero as there is no way to reprogram it.

Colin attaches the blue wire from the speedometer and the black ground wire from the joker machine speedometer bracket together using an eyelet. This will then be attached to the upper fork tree where the factory ground wires are attached. Here’s the new view from the cockpit. Watch for our next install, when we add hand controls, switches, and cables to the handlebar.

Thrashin Supply Mid Bend Bar #0601-4144, $149.95 818/626-8350 ThrashinSupply.com

Wild 1 4.5” Chubby Risers #W0526 Chubby, $125.95 714/536-5869 Wild1Inc.com

Joker Machine Sportster Steering Stem Nut #10-011B, $46.95 Speedometer Side Mount #10-301B, $224.95 909/596-9690 JokerMachine.com
