COMMERCIAL SHOPPING MALL 1 HIGH-RISE CORPORATE OFFICE 7 SUSTAINABLE RIVERFRONT DEVELOPMENT 13 SLUM REDEVELOPMENT 21
COMMERCIAL SHOPPING MALL 1
2
COMMERCIAL SHOPPING MALL 3 SITE AREA : 8370 sq.m SITE LOCATION : 100 ft road, Pondicherry.Mudaliyarpet, FSI : 1.5 FSR : 50% OSR : 10% Height Restriction : 33m Max. Buildable Area : 12,444sq.m SITE PLAN The Main Objective of this Design is to Understand the DCR and its applications and also the Space planning. The Main Challenge is this Design Problem was to solve the Complexity in arrangement of the Columns and Service Cores. N
COMMERCIAL SHOPPING MALL 4 FORM EVOLUTION FLOOR PLANS
COMMERCIAL SHOPPING MALL 5 FLOOR SECTIONPLANS SECTION A-A’ A A’ GROUND FLOOR LEVEL 0 m 1st BASEMENT FLOOR LEVEL -2.70 m 2nd BASEMENT FLOOR LEVEL -5.40 m PLINTH LEVEL +1.20 m FIRST FLOOR LEVEL +6.05 m SECOND FLOOR LEVEL +10.9 m THIRD FLOOR LEVEL +15.75 m PARAPET LEVEL +20.6 m
COMMERCIAL SHOPPING MALL 6 ELEVATION WEST SIDE ELEVATION
7 HIGH-RISE CORPORATE OFFICE
8
HIGH-RISE CORPORATE OFFICE 9 FORM EVOLUTION SITE PLAN GREEN GARDENROOFPODIUMFASCADEGARDENVERTICAL N SITE AREA : 13,450 sq.m SITE LOCATION : Congress Road,Chennai.Ground,Mount FSI : 6.5 FSR : 30% OSR : 10% Height Restriction : 100 Max. Buildable Area : 90,000sq.m SETBACKFRONT : 20m REAR : 20m SIDE : 20m NO. OF FLOORS : 20 FLOOR HEIGHT : 4.5
HIGH-RISE CORPORATE OFFICE 10 FLOOR PLANS GROUND FLOOR PLAN (+ 0.60 m) FIRST FLOOR PLAN (+ 5.10 m)

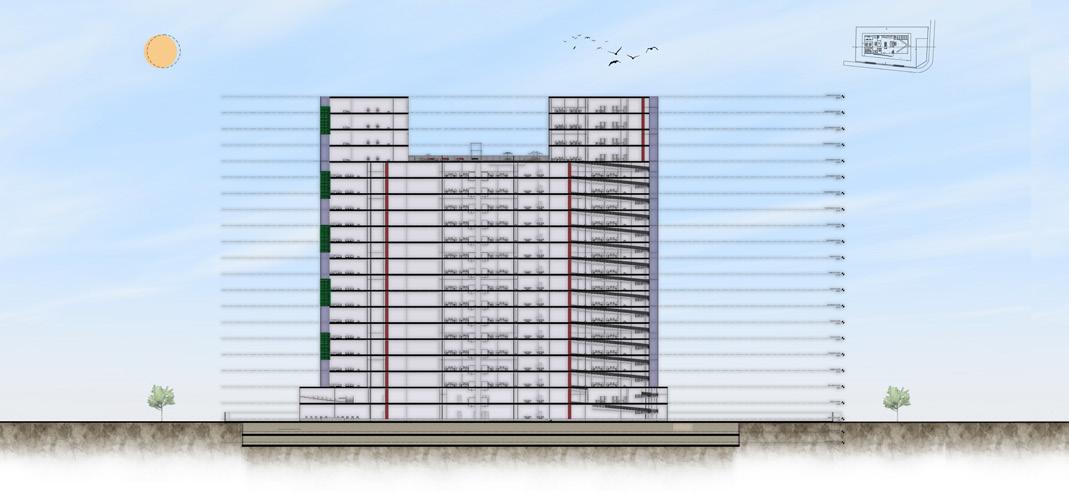

HIGH-RISE CORPORATE OFFICE 11 THIRD FLOOR PLAN (TYPICAL UPTO 17th FLOOR) SEVENTEENTH FLOOR PLAN (TYPICAL UPTO 20th FLOOR) SECTION A-A’ KEY PLAN SECTION
HIGH-RISE CORPORATE OFFICE 12

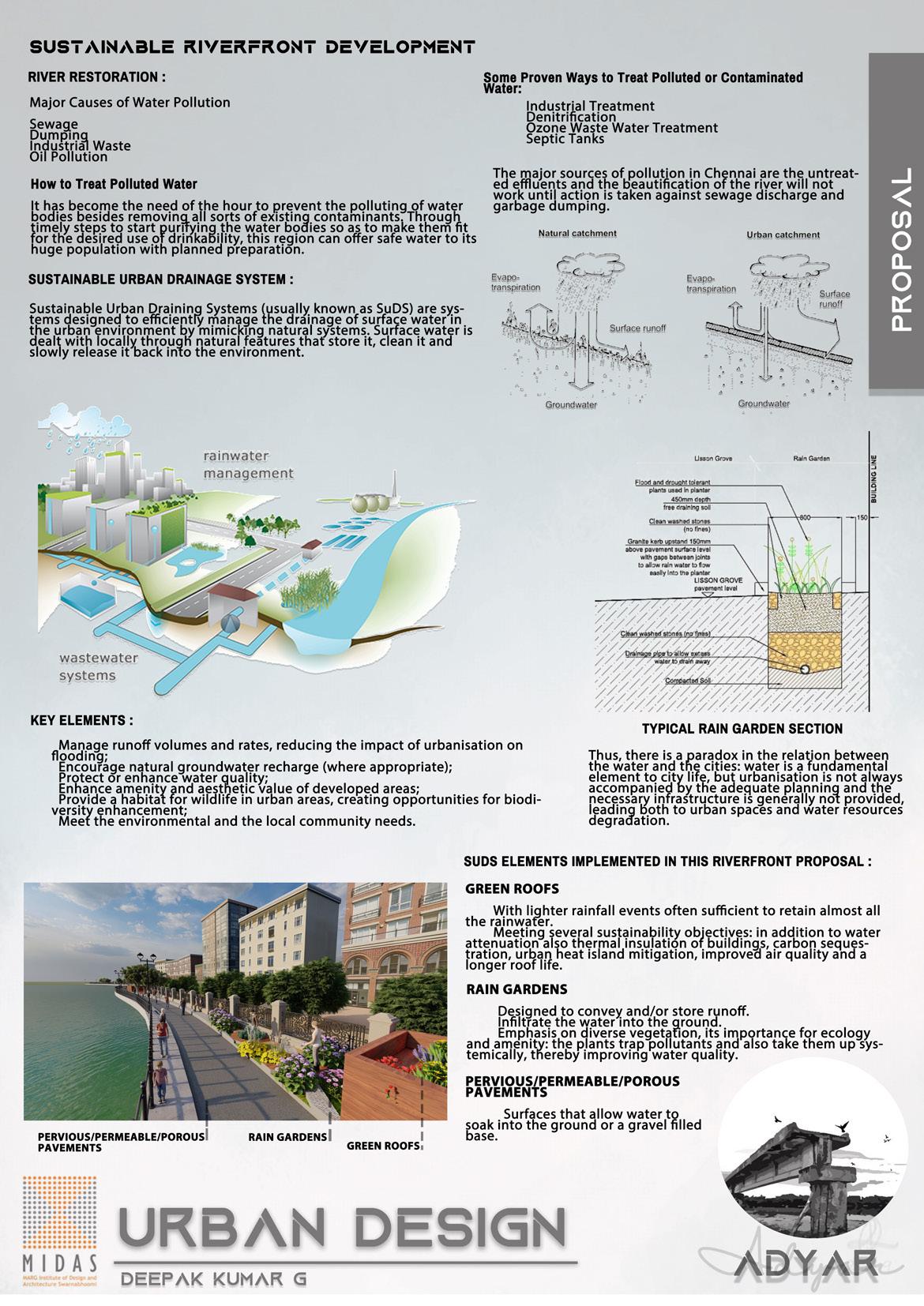

13 SUSTAINABLE RIVERFRONT DEVELOPMENT
14
15
16
17
18
19
20
21 SLUM REDEVELOPMENT
22
SLUM REDEVELOPMENT 23 MASTER PLANLEGEND 1 - Site Entry 2 - OSR 3 - STP and Transformer Yard 4 - Parking 5 - Market 6 - Primary Health Centre 7 - Community Centre 8 - Anganwadi 9 - Primary School 10 - Playground 11 - O.A.T 12 - Kids Play Area 13 - Garden 14 - Market 15 - Housing Unit Cluster 1 16 - Housing Unit Cluster 2 17 - Housing Unit Cluster 3 18 - Housing Unit Cluster 4 19 - Recreational Space 20 - Future Expansion 21 - O.A.T 21 17 2019 Adyar This is the Master Plan of the site. The To tal Area of the Site is 27 Acres. It is proposed as Two Phase Project. Although I Propsed a Full Master plan, I have taken only half of the site (10.7 Acres) as My Main Site. It is Going to be considered as the Phase one of the Project.
SLUM REDEVELOPMENT 24 1 2 3 4 5 15 10 11 12 16 19 13 14 7 8 9 6 18 Beach Bay of BengalAdyar River Srinivasapuram Beach Road BusPattinapakkamPromenadeEstateForeshoreTerminus Scale : 1: 1750 N NEARBYTRANSPORTATIONAMENITIES HOSPITALS INSTITUTIONS Airport : Chennai International Airport at 16km. Bus Stop: Srinivasapuram Bus Depot at 500m. Railway Station: Light House MRTS Station: 2.9km Private Hospital at 800m BSS Hospital at 1.4km Apollo Spectra at 1.6km Billroth Hospital at 1.8km St.Lazarus Middle School at 850m Santhome Higher Secondary School at 1.9km St.Bed’s Anglo Indian Higher Secondary at 1.3km
SLUM REDEVELOPMENT 25 SITE PLAN Scale : 1: 750 N
SLUM REDEVELOPMENT 26 SITE STUDY Bay of Bengal Secondary Road Primary Road Adyar River Site Area BusPattinapakkamTerminus Adyar Beach Location : Srinivasapuram,Adyar,Chennai Site Area : 43,428 sq.m (10.7 Acres) O.S.R : 10% ( 4300 sq.m) Typology : Slum Redevelopment F.S.I : 2 ( for Residential Units) Ground Coverage : 75% Max. Permissible Height : 15m Topography : Plain Site slightly leaning towards Sea and River Side Climate : Tropical wet and Dry Climate Total Builtup Area : 15,270 sq.m Housing Units Type 1 Module : 4500 sq.m / Block Type 2 Module : 720 sq.m / Block Individual Cluster : 120 sq.m / Cluster Primary School : 710 sq.m Anganwadi : 90 sq.m Primary Health Centre : 260 sq.m Market : 700 sq.m Community Centre : 550 sq.m HousingParking Units : One two wheeler parking per Unit,Total 266 Two wheel er Parking Primary School : 55 Two wheeler Parkings Primary Health Centre : 5 Two wheeler Parkings,One Ambulance Parking Market : 12 Bike Parkings, 12 Car Parkings Community Centre : 8 Bike ParkHousing Units Type 1 Module : 66 Houses per Block Type 2 Module : 24 Houses per Block Individual Cluster : 4 Houses per Cluster Total : 266 Housing Units
SLUM REDEVELOPMENT 27 PLANNING CONCEPT Open Courtyard Spaces FORM EVOLUTION PROTOTYPE - 1 LEGO HOUSINGBLOCKSUNITS PROTOTYPE - 2 MODULE-1 MODULE-2 MODULE-3 Lego pieces can be assembled and connected in many ways to construct objects, including vehicles, buildings, and working robots. Anything constructed can be taken apart again, and the pieces reused to make new things. In my Housing Design, I have De signed three Modules of Houses. I have clustered these three modules by arranging them one above another like in a lego toy. It helps me to design a Housing Units with more Open Spaces and Courtyard Spaces. Each has its own small courtyard/ backyard Spaces. By Interconnecting these open spac es it became a one large Open Space, which can be used by the users for the various recreational activities like inter action, community bonding,playing,etc..
SLUM REDEVELOPMENT 28 FLOOR PLANS LEGEND & AREA STATEMENT CLUSTER ONE - GROUND FLOOR PLAN CLUSTER ONE - FIRST FLOOR PLAN 36.134.5m m 63.8 m 63.8 mm49.4m52.6 m8.9 m18.2m15.2 Living Room - 7.5 sq.m BedRoom - 7.6 sq.m Kitchen - 2.8 sq.m BathRoom- 1.9 sq.m Backyard - 7.5 sq.m This is the 1st Type of Module,where the single cluster has total of 66 Housing Units. Each Floor has 22 Dwelling Units Totally 6 No. of Module 1 present in the overall Site. KEY PLAN KEY PLAN LEGEND & AREA STATEMENT Living Room - 7.5 sq.m BedRoom - 7.6 sq.m Kitchen - 2.8 sq.m BathRoom- 1.9 sq.m Backyard - 7.5 sq.m
SLUM REDEVELOPMENT 29 FLOOR PLANS SECTION & ELEVATION CLUSTER ONE - FRONT ELEVATION CLUSTER ONE - SECTION A-A’ CLUSTER ONE - SECOND FLOOR PLANKEY PLAN KEY PLAN A LEGEND & AREA STATEMENT Living Room - 7.5 sq.m BedRoom - 7.6 sq.m Kitchen - 2.8 sq.m BathRoom- 1.9 sq.m Backyard - 7.5 sq.m m49.4 34.5 m m8.9 63.8 m m15.2 GROUND FLOOR LEVEL 0 PLINTHm LEVEL +0.45 LEVELSECONDLEVELFIRSTmFLOOR+3.45mFLOOR+6.45mROOFTOPLEVEL+9.45mPARAPETLEVEL+10.45m
SLUM REDEVELOPMENT 30 FLOOR PLANS SECTION & ELEVATION CLUSTER TWO - FRONT ELEVATION CLUSTER TWO - SECTIONCLUSTERA-A’TWO - SECOND FLOOR PLAN CLUSTER TWO - GROUND FLOOR PLAN CLUSTER TWO - FIRST FLOOR PLAN KEY PLAN A A’ A’ m7.67.6m7.6m 7.6 m 37.4 m 37.4 m m33.4m33.4 8 m m8 8 m m8 This is a 2nd Type of Module,where the single cluster has total of 24 Housing Units. Totally 8 No. of Module 2 present in the overall Site. LEGEND Living KitchenBedRoomRoomBathRoomBackyard/Terrace KEY PLAN GROUND FLOOR LEVEL 0 m PLINTH LEVEL +0.45 m FIRST FLOOR LEVEL +3.45 m SECOND FLOOR LEVEL +6.45 m ROOFTOP LEVEL +9.45 m PARAPET LEVEL +10.45 m
SLUM REDEVELOPMENT 31 RENDERED VIEWS
SLUM REDEVELOPMENT 32 RENDERED VIEWS
WORKING DRAWINGS 33 A B C 12345 3.40002.0006 5.3070 2.3850 7.6969 3.0000 3.0000 2x1.5 1x1. 3.0000 2.1506 2.2514 3.0000 ELECTRICAL LAYOUT +2.45m+1.20m +3.45m STAIRCASE SECTION STAIRCASE GROUND FLOOR1.0000PLAN1.0000 STAIRCASE3.00003.0000 SECTION STAIRCASE GROUND FLOOR1.0000PLAN1.0000 3.00003.0000 15 16 18 19 20 +2.45m+1.20m 19 15 16 18 19 20 +0.60m STAIRCASE SECTION STAIRCASE GROUND FLOOR PLAN STAIRCASE FIRST FLOOR PLAN 1.0000 1.0000 3.00003.0000 2.0000 DINNINGFOYERLIVINGAREAKITCHENUTILITIES BEDROOM PARKINGTOILET BALCONYBEDROOMMASTER BEDROOMTOILET RELAXINGAREA GROUND FLOOR FIRST FLOOR 4x3.5 1.8x1.3 0.76922.1324 A B C A B C 12345 12345 D4 D5 3 WD5 WD6 WD7 VT1 WD10 WD17 9.1400 12.1900 3.3720 10.6720 7.9220 5.2714 3.40002.5000 2.00062.0500 WORKING DRAWINGSHEET NO 2 +2.45m+1.20m 12 20DINNINGFOYERLIVINGAREAKITCHENUTILITIES BEDROOMPARKING BALCONYBEDROOMMASTER BEDROOMTOILET RELAXINGAREA GROUND FLOOR FIRST FLOOR 2.5x2.5 2.5x1.3 1x1.8 4x3 0.76922.1324 A B C A B C 12345 12345D1 D21312101114 15 16 17 18 19 20 1176289191817161514 WD1 WD4WD2 WD8 WD9 WD12WD13 WD16WD14 VT2 9.1400 12.1900 3.3720 10.6720 7.9220 5.2714 3.40002.5000 2.00062.0500 WORKING DRAWINGSHEET NO 2 +0.60m N DINNINGFOYERLIVINGAREAKITCHENUTILITIES BEDROOMPARKING BALCONYBEDROOMMASTER BEDROOMTOILET RELAXINGAREA GROUND FLOOR FIRST FLOOR 3x3.5 1x1.8 3x2 0.76922.1324 A B C A B C 12345 12345MD D3 1476 15 16 17 18 19 20 101111413WD5WD4WD3WD2 WD12WD13 9.1400 12.1900 3.3720 10.6720 7.9220 5.2714 3.40002.5000 2.00062.0500 AR8721 - ARCHITECTURAL DESIGN DETAILING ALL DIMENSIONS IN METERS NAME : G.DEEPAK KUMAR REG.NO : 311217251013 STUDIO : 4 - A COLLEGE : MIDAS ELECTRICAL DRAWINGSHEET NO 4 20 ELECTRICAL LAYOUT ELECTRICAL SYMBOLSFAN SB DB CALLING BELL CEILING LIGHTS SWITCH BOARD WALL MOUNTED LIGHT COMPOUNDA.C.DISTRIBUTIONTUBELIGHTBOARD15AMPS5AMPSWALLLIGHTSTELEVISIONPOINTPOINT20AMPSWALLLIGHTSCHANDELIER SB SB SB SB SB SB SB SB SB SB SB SB N DINNINGFOYERLIVINGAREAKITCHENUTILITIES BEDROOM PARKINGCOMMON BALCONYBEDROOMMASTER BEDROOMTOILET RELAXINGAREA GROUND FLOOR FIRST FLOOR 3x3.5 2.5x1.3 0.76922.1324 A B C A B C 12345MD D1 D3 14 15 16 17 18 19 20 103 13WD5WD4WD3 WD12WD13 9.1400 12.1900 3.3720 10.6720 7.9220 5.2714 3.40002.5000 2.00062.0500 AR8721 - ARCHITECTURAL DESIGN DETAILING ALL DIMENSIONS IN METERS NAME : G.DEEPAK KUMAR REG.NO : 311217251013 STUDIO : 4 - A COLLEGE : MIDAS ELECTRICAL DRAWINGSHEET NO 20 ELECTRICAL LAYOUT ELECTRICALCOMPOUNDWALLSWITCHCEILINGCALLINGSYMBOLSFANBELLLIGHTSBOARDMOUNTEDLIGHTTUBELIGHTDISTRIBUTIONBOARD15AMPS5AMPSWALLLIGHTSTELEVISIONPOINTA.C.POINT20AMPSWALLLIGHTSCHANDELIER SB SB SB SB SB SB SB SB SB SB SB CENTRE LINE DRAWING ELEVATION - NORTH ELEVATION - EAST SECTION - EAST STAIRCASE DETAILED DRAWING TOILET DETAILED DRAWING STAIRCASE SECTIONSTAIRCASE - GROUND FLOORSTAIRCASEPLAN - FIRST FLOOR PLAN SECTION - SOUTHELECTRICAL DRAWING FIRST FLOOR FIRSTGROUNDFLOORFLOORGROUND FLOOR
INTERNSHIP OFFICE WORKS 34 APARTMENT - 307 ARCHITECTS Lewis Infrastructure Lewis Tech Park, Nandi Durga RoadN S E W NORTHPROJECT DRAWING PLANELECTRICALTITLEAPARTMENT307INFRALEWISGLORIOUSA1 FOR APPROVAL VOID CUT ABOVEOUT&BELOW A - 307 3'7"x8'11" 6'5"x5'2" 3'0"x19'9" SOFA CUM BED SHELFBOOK 4X2 STUDY STUDY4X2 4X26.5X12.9STUDY STUDY ROOM TAP SLIGHTLY TO 5'4" SLIDING DOOR SMALL HAND WASH SINK PREFERABLY CORNER TYPE SINK 6 AMP SWITCH FOR WALL FAN SHIFT LIGHT POINT FURTHER BY 6 INCHES MAIN DOOR OPENING TO RIGHT RESTING TO WALL AFTER OPENING THREE 6 AMPS SOCKETS PREFERABLY 2'6"FROM THE FLOOR ALIGNED CENTRALLY TO THE WALL THREE 6 AMPS SOCKETS PREFERABLY 2'6"FROM THE FLOOR ALIGNED CENTRALLY TO THE WALL SHIFT UPS POINT HERE SINK WITHOUT DRAIN PLATE 4' SLIDINGWITHWINDOWGRILL GLASS & MOSQUITONEEDMESHACVENT WITH AC POWER POINT SOCKET AT BOTTOM CONTROLSMOVEINNERSTUDYBEAMROOMTOINNER6&HALFFEETSWITCHESOUTSIDEMOVESWITCHHERE THREE 6 AMP SOCKETS AT THE BOTTOM FOR STUDY ONE 6AMP SOCKET AT THE BOTTOM SOCKETS FOR STUDY CONTROLS WITH ONE 6 AMP SOCKET ONE 6 AMPSTANDSOCKETLAML THREE 6 AMP SOCKETS AT THE BOTTOM FOR STUDY ONE 6AMP SOCKET AT THE BOTTOM ROUGH GRANITE 2'X1' 2' FROM THE FLOOR SIDE 6 INCHES APART 12/6 AMPS 3 SOCKETS 6 INCHES APART ONE 6 AMPS SOCKET FOR WALL MOVED 5 INCHES INSIDE VOID CUT 3'0"x19'9"ABOVEOUT&BELOW A12'6"x8'11"DINING1519.38006SFTLIVING18'9x11'10" BED 11'6"x9'10"ROOMBEDROOM12'6"x9'7" TOILET TOILET TOILETSITOUT3'11"x3'11"SITOUT6'1"x4'2" KITCHEN8'3"x8'11" 3'1"x8'11" STUDY 13'10"x13'11"BED10'7"x7'5"ROOMROOM WORKAREA 3'SITOUT11''X3'11'' T O L E T 7'5'' X 3'11'' 3'SITOUT11''X3'11'' T O I L E T 7'5'' X 3'11'' P P E S A R E R U N N I N G @ F A L S E C E L N G L V L KITCHEN8'3"x8'11" 3'1"x8'11"WORKAREA PIPES RUNNING IN 150mm THICK UPSTAND KITCHEN8'3"x8'11" 3'1"x8'11"WORKAREA PIPES RUNNING IN 150mm THICK UPSTAND TEOT T O L E DRAINAGET LAYOUT - 01 2.4 X 13.53 BHK DELUXE TELOT T O L E WATERSUPPLYT LAYOUT - 01 2.4 X 13.5 3 BHK DELUXE P P E A R E R U N N N G @ F A L S E C E N G L L N KEY LEGENDPLAN& ABBREVIATIONS: NTS LGL-LV-003 PLUMBING DRAWING 10-12-2020DATE DRG NO GLORIOUS A -1 CHKD RM JOB NO :107Y20DRAWN LEWISKK INFRASTRUCTURE PROJECTS PVT.LTD GOOD FOR CONSTRUCTION KEY PLAN - 3BHK DELUXEDRAINAGE LAYOUT - 3BHK DELUXE TOILET WATERSUPPLY LAYOUT - 3BHK DELUXEDRAINAGETOILETLAYOUT - 3BHK DELUXEWATERKITCHENSUPPLY LAYOUT - 3BHK DELUXE KITCHEN PLAN TYPICAL : ELECTRICAL LAYOUT PLUMBING LAYOUT
INTERNSHIP OFFICE WORKS 35 RENDERED VIEWS
INTERNSHIP OFFICE WORKS 36
37 INTERNSHIP OFFICE WORKS RENDERED VIEWS
MISCELLENEOUS WORKS 38 DIGITAL ILLUSTRATIONS
