AVTOBAZA Ground-Based Executive ELINT System

Ground-Based Executive ELINT System

Mission

The Avtobaza ELINTsystem is designed to detect airborne side-looking radars, air-toground fire-control radars and low-altitude flight control radars, as well as to provide intelligence data for the 1L125M APUR.

Max ELINT range, km up to 150 Radar detection frequency range, MHz 8,000 - 17,544 Operational envelope, deg: in azimuth 360

in elevation for A, B/V bands 18 / 30

Target detection/data transmission-to-APUR delay,microsec 500

Number of emitting target bearings (at 15 tgt/s flow) Probability of radar type classification up to 60 0.8

Into/out-of-action time, min Power consumption, kW not more than 25 not more than 12

Crew 4 Composition

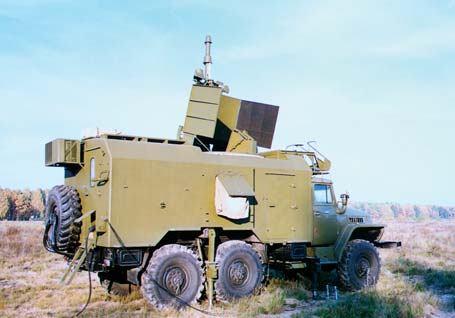

• equipment vehicle based on the Ural-43203 chassis with the K1.4320 van • ED2x16-T230P-1VAS electric power generator in the K1.4320 van on the Ural4310 chassis

The ELINT system displays on the TV screen acquired targets with data on their direction finding, angular coordinates (azimuth and elevation), radiation signal parameters (carrier frequency, duration, pulse repetition frequency) and radar type classification (sidelooking, fire control, low-altitude flight control radar). The APUR automated jamming control system is fed with target data (frequency band number according to frequency assignment of jamming systems, type of emitting radars and their angular coordinates) via cable at a range of up to 100 metres.
