Architectural Portfolio I
Aliff Danial 2017 - 2022
Prepared by :
Aliff Danial bin Shamsul Akmal
Bachelor of Science (Hons) Architecture Universiti Teknologi Mara (UiTM) 2022.
All rights reserved to me.
I dedicate this achievement to whoever that always believes in me, always push me to become the best version of myself , especially to the people who were there, burning the midnight oil together with me and always supporting me from behind. Thank you for being a part of my meaningful journey in finding my own strength and voice.
All of academic works are supervised and endorsed by respected lecturers in Universiti Teknologi Mara (UiTM) Puncak Alam, Malaysia. All rights reserved to me.
Without you guys, this works would not be materialised.
A.D
Content
00 Profile
01 Curricular Vitae
02 Academic Works
Selected
Sem08:
Sem07:
works:
PRADA(+)
Concrete Jungle Personal Profile Software Proficiency Personal Skills Participation Language Interest Project Involved & Working Experience
Education
Universiti Teknologi Mara (UiTM)
Bachelor of Science (Hons) Architecture (2017-2021)
CGPA: 3.17 (Completed with Dean’s List Award)
SMK Zon R1 Wangsa Maju (2012-2016)
SPM 6A 2B+
I am an architecture graduate Part I RIBA (Royal Institute of British Architects) and designer based in Kuala Lumpur, Malaysia.
Graduated with Bachelor of Science (Hons) Architecture in Universiti Teknologi Mara (UiTM), well-equipped with architectural knowledge, understanding and thinking, as well as technical skills in construction and project management.
I am interested in working in team where I can be a part of, or to lead a team where I can contribute my thoughts and efforts. To learn new skills is my priority, where I can grow and adapt in all kinds of environ ment to widen my experiences as an architect/designer. My interest is to explore in any kind of architectural projects, experimentation, research, and criticism. I see architecture as a form of knowledge where it has power to shape a better future for the people.
I am passionate to expand my knowledge as an architect/designer to perform well in managing project in order to complete my journey until I become a Part III Professional Architect.
Aliff Danial bin Shamsul Akmal Kuala Lumpur, Malaysia ialiffdanial@gmail.com +60 11 6163 6311
MAPSM Accreditation for Universiti Teknologi Mara (UiTM) Organizer NIU Architectural Festival Winner - Best Movie Award / Director KROMA Architectural Festival Runner Up - Best Movie Award / Screenwriter #KitaTerangi Universiti Tenaga Malaysia (UNITEN) As Tutor - teaching participants the basic sketching technique and basic architectural drawing. BERKAT Archi-Iftar with Archisa Organizer / Design Team Re:Define Architectural Workshop Participant / Head of Media Team HIKMAH Architectural Review Organizer / Design Team 2019 KUL: An Architectural Study on Urban Context (a publication) Head of Publication Team RIBA Accreditation for Universiti Teknologi Mara (UiTM) Organizer
Autodesk AutoCAD Autodesk Revit Trimble SketchUp Graphicsoft Archicad Adobe Photoshop Adobe Illustrator V-Ray for SketchUp Vectorworks Lumion - Begineer Enscape Teamwork Creativity & Problem Solving Presentation Writing and Communication Sketch & Hand-drawing Model Making Art & Graphic Design Photography Malay (native) - Fluent in writing, reading and communication. English - Good in writing, reading and communication. AsSaffa Design Practice (Internship) // Feb 2020 - Oct 2021 Scope of Work : + Assisted senior architect in various stages of projects and complexity. + Assisted project architect for building plan submission. + Involved in site visit and inspection. Project Involved : East Klang Valley Expressway (EKVE) Masjid Ara Damansara Renovation, Selangor. ProHAWK Office Renovation, Kuala Lumpur. Luxury Hotel Pulau Besar, Johor. MBPJ Smart Centre, Petaling Jaya. Gamuda Gardens Toll Plaza, Rawang. Kuantan Flyover Bridge, Pahang. Dewan PPAS, Ampang.
Nov 2021 until now (1 year)
Scope of Work :
Assisted senior architect in various stages of projects and complexity.
Involved in design schematic phase and proposal preparation.
Produced feasibility study, site analysis and site synthesis.
Produced technical drawings for tender, submission and construction.
Produced 3D model and rendering for design proposal.
Design involved masterplan, urban & space planning, exterior, interior as well as architecture presentation.
Involved in site inspection and CCC submission.
Project Involved :
Sekolah Kebangsaan Seri Pahlawan, Kuantan, Pahang.
Taman Sri Muda Shoplots, Klang.
Decathlon Store Renovation, Shah Alam.
Locca Cafe, Tamarind Square.
Lurah Bilut Farm, Pahang.
Helistar Hangar, Kota Bharu, Kelantan.
IPC Shopping Center Renovation, Selangor.
Azlin
Jamlus
Architect
(Assistant Architect)
//
+
+
+
+
+
+
+
02 Academic Works.
Proposed a Corporate Innovative and Exhibition Hub. Kuala Lumpur, Malaysia. Semester 08.
Supervised and endorsed by: Ar. Abdullah Shahdan Ar. Rohaidzad Rashid
Synthesis
MIN 650M MIN/400M MIN 600MRAJA CHULAN egend SITE Legend C Site

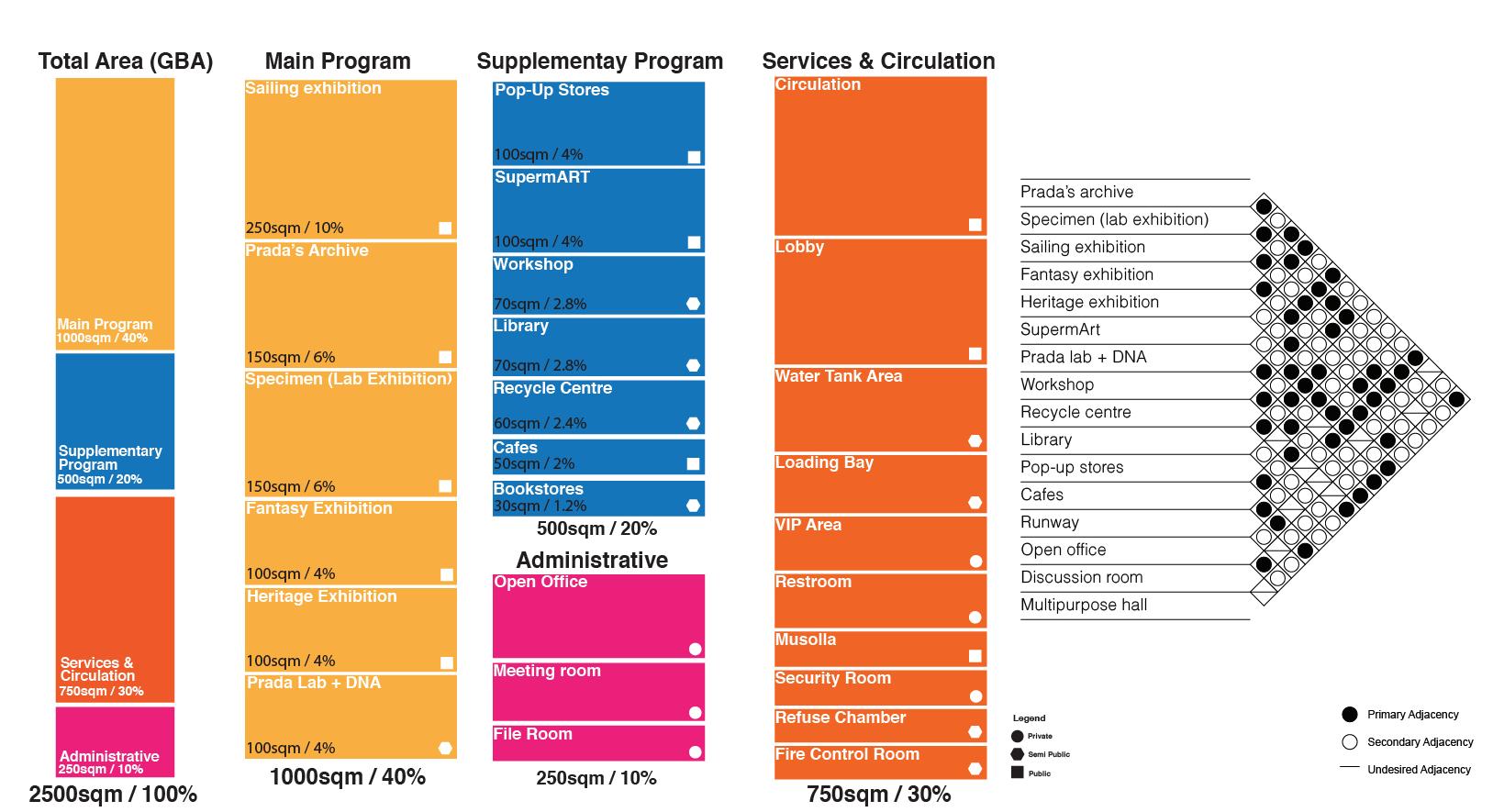

Schedule of Accommodation (SoA) & Matrix Diagram
Keywords
Timeline
Preliminary Theories

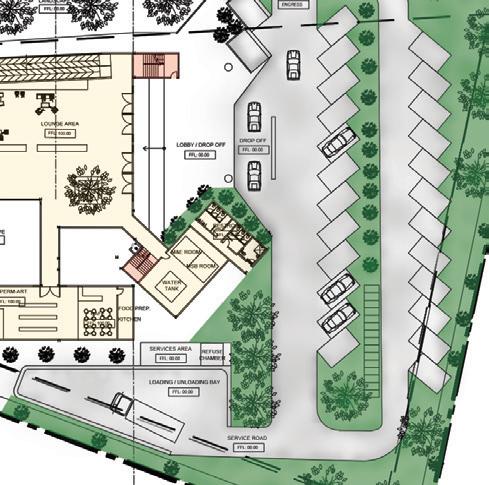

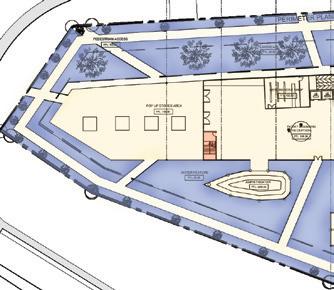

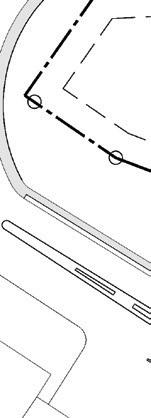

4 BAYAN TREE KUALA LUMPUR PULLMAN HOTEL KUALA LUMPUR JLN CONLAY n.t.sSITE PLAN 1 JLNRAJACHULAN PAVILLION RESIDENCES X X’ Y Y’ n.t.sGROUND FLOOR PLAN 2 n.t.sFIRST FLOOR PLAN

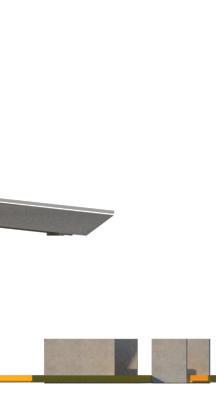

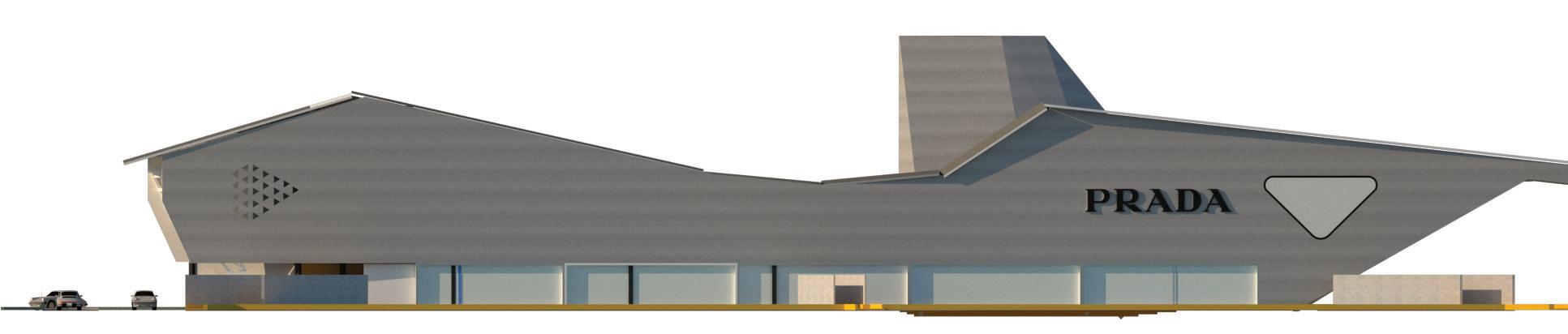

n.t.sFRONT ELEVATION n.t.sRIGHT ELEVATION 1:200 LEFT ELEVATION n.t.sREAR ELEVATION n.t.sLEFT ELEVATION 1:200REAR ELEVATION 1:200SECTION X-X FASHION RUNWAY ARCHIVE EXHIBITION LOBBY LOUNGE AREA / OPEN LIBRARY SAILING EXHIBITION TICKET COUNTER POP-UP STORES & GATHERING AREADROP OFF PRADA LAB SUPERM-ART SPECIMEN EXHIBITION ARCHIEVE EXHIBITION WALKWAY LOUNGE AREA ENTRANCE OPEN LIBRARY AREA n.t.sSECTION Y-Y
SECTION Y-Y
6 78 FASHION SHOW RUNWAY 1 2 3 4 PRECEDENT STUDY PRADA FASHION SHOW PRECEDENT STUDY PETER EISENMEN, HOLOCAUST MEMORIAL FONDAZIONE PRADA EXHIBITION SPACES STEEL CONSTRUCTION PUBLIC SPACE PRECEDENT STUDY MYRA, SCHOOL OF BUSINESS // ARCHITECTURE PARADIGM PRECEDENT STUDY FOSTER AND PARTNER VIEUX PORT PAVILLION KL EXPERIMENTAL AND UNUSUAL 5 6 7 PRECEDENT STUDY MASJID AMIR HAMZAH, WIYOGA NURDIANSYAH WATER FEATURE PERMEABILITY PLANNING PRECEDENT STUDY CHURCH IN BARENDRECHT, MVRDV PRECEDENT STUDY SILK CENTRE, LOUIS KAHN 8 PASSIVE DESIGN STRATEGY PRECEDENT STUDY DEEP OVERHANG PASSIVE COOLING STRATEGY SERVES AS LANDMARK AXIS, DATUM, FREE FLOW PRECEDENT STUDY MATERIALITY ALUMINIUM COMPOSITE PANEL SECTIONAL PERSPECTIVE N.T.S 1 2 3 4 DOUBLE GLAZED GLASSTO MINIMIZE NATURAL LIGHTING DURING THE DAY, REDUCE HEAT. DEEP OVERHANG CREATES SHADING AREA AND COUNTER DIRECT SUNLIGHT PASSIVE COOLING DESIGN WATER FEATURE AS A PART OF DESIGN ELEMENT AND TO PRODUCE COOL AIR AND WIND. ADAPTIVE REUSETHE USAGE OF USED MATERIAL, SUSTAINABLE APPROACH SUSTAINABLE THE USAGE OF GRASS PAVERS FOR PARKING AREA OPEN PLANFREE FLOW & SENSE OF DIRECTION 5
“Fashion
Runway”
“Specimen
Exhibition”
“Red Ramp”
“Archive
Exhibition”
“Lounge Area”
“Sailing
Exhibition”
1 DETAILED SECTION - SPECIFICATIONS FEATURE CEILING TO INTERIOR BAY SECTION n.t.sAY

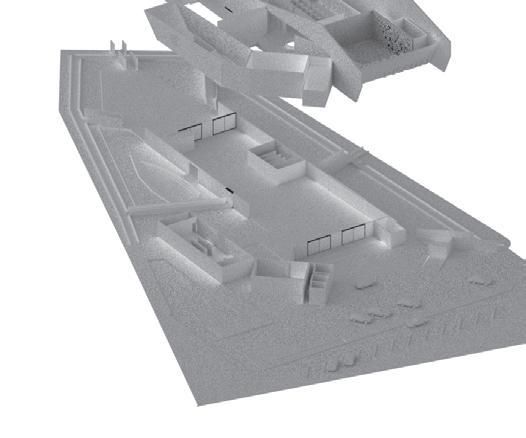

EXPLODED PERSPECTIVE - CONSTRUCTION GROUND FLOOR FIRST FLOOR STEEL STRUCTURE & POST AND BEAM CONSTRUCTION METAL DECK ROOFING FIRE REGULATION REQUIREMENTS FIRE ACCESS FIRE STAIRCASE FIRE STAIRCASEPLACE OF ASSEMBLY ELECTRICAL & AIR CONDITIONING PLUMBING, SANITARY DISTRIBUTION FLOW AIR-COND AIR-COND M&E ANDMSB ROOM AIR-COND AIR-COND WATER TANK DIRECT SUPPLY TO CAFE MH1 MH2 MH3 DISCHARGE TO MAIN SEWERAGE PIPELINE TAP FROM MAIN WATER SUPPLY PIPE

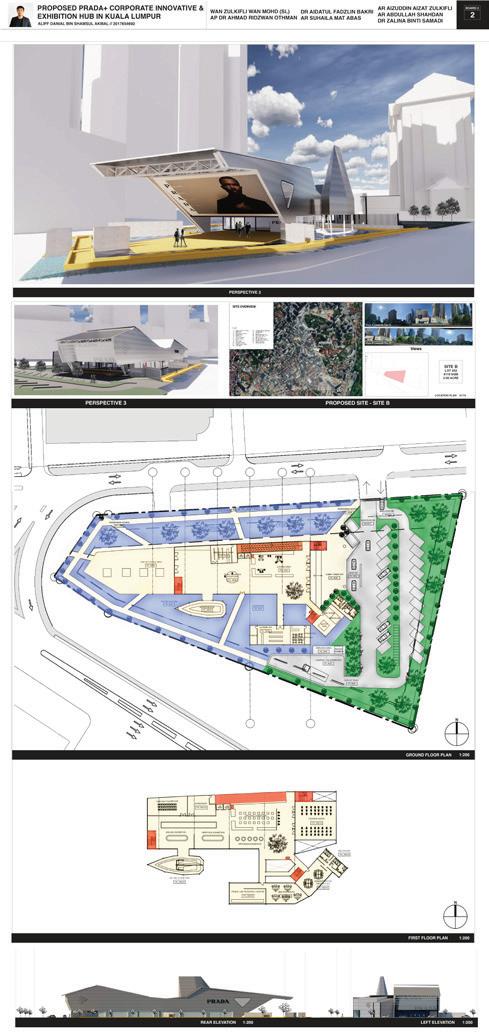

Board Compilation. 2523 mm x 1782 mm.
Proposed a Co-Living Housing for Architects. Bukit Jelutong, Selangor. Semester 07.
Supervised and endorsed by: Assoc. Prof. Dr. Esmawee Hj. Endut Ar. Hj. Embong Mohamad Ar. Yuszamri Che Aman
Design Brief DESIGN STATEMENT
An integration of housing typology with nature to produce an healing environment within healing community to solve housing issues related to mental health well-being among architects by experimenting with programme and design theory to enchance the possibility of the proposed housing scheme.
AIM
To design a Co-Living housing by introducing a healing environment that suit local context to raise awareness on mental well-being among architects.
OBJECTIVE
To design an healing environment and retreat environment
To produce a healthy individual and community
To educate architects about the importance of design
WHAT
A proposal project of Concrete Jungle: Housing for Architects
WHY
To heal depressed architects due to work pressure and work stress
To produce a new housing scheme for creative-minded society.
To raise awareness on mental health well-being
WHERE
Bukit Jelutong, Shah Alam, Selangor.
WHO Multidisciplinary Architects
TARGET USER
SOLO ARCHITECT
COUPLE ARCHITECT Andra x Zaha Architect x Fashion Designer FAMILY ARCHITECT Charles x Ray x Daughter Architect x Painter
Rams Architect x Product Designer
CONCEPT DIAGRAM DESIGN ISSUES
DESIGN THEORIES
SCHEDULE OF ACCOMONDATION LIST OF PROGRAMME MATRIX OF POSSIBILITIES SITE SYNTHESIS
A A’ B B’ Legend: 1. Visitor Parking 2. Lobby 3. Sub-basement 4. Healing Garden 5. Water Feature 6. Urban Park 7. Disabled Parking 8. TNB 9. Refuse Chamber Ground Floor Plan 1:250 1. 1. 8. 9. Ingress 7. 2. 3. 5. 5. 6. 2. Engress
Housing Type A Plan Eldest Architect 90 sqm // 1:100 Housing Type C Plan Single Architect 90 sqm // 1:100 Housing Type B Plan Family Architect 127sqm // 1:100 Legend: 1. Living Room 2. Zen Garden 3. Dry Kitchen 4. Bathroom 3. 3. 1. 1. 2. 4. 4. 5. 2. 5. 5. 4. 1. 3. 6. 6. 7. 25 sqm 7. 10 sqm 15 sqm 5 sqm 14 sqm 18 sqm 7 sqm5 sqm 20 sqm 5 sqm 14 sqm 11 sqm 11 sqm 11 sqm 10 sqm 18 sqm 10 sqm 8 sqm 10 sqm 7. 5. Bedroom 6. Study Room 7. Creative Space HOUSING UNIT TYPE
REAR ELEVATION nts LEFT ELEVATION nts FRONT ELEVATION nts RIGHT ELEVATION nts SECTION A-A’ nts SECTION B-B’ nts
Sustainable Features
Concrete Jungle
Modular
Open Working Space
Elevated Floor
Maximise
Courtyard
Urban Farm
Maximise the green area
Sustainable in assemble, dismantle and to add new unit in future.
Maximise natural lighting and natural ventilation. - Stack effect.
Produce fresh vegetables and food for daily usage.
natural ventilation as passive design strategy.
Encourage interaction among residents.
Modular ConstructionBox SystemModular StructureModular Component Roof ConstructionRoof Covering (Aluminium Sheet and Metal Deck roof.Post and BeamSolar Panel Modular housing unit connected to transfer beam 18mm fiber cement board Corner Post Top Beam, Top Cross Beam 0.5mm Ceiling Board Corner Fittings Light Gauge Joist Framing Building Construction Illustrated, Francis DK Ching Top Beam to Joist Connection Aluminium Window Bottom Beam, Bottom Cross Beam Conventional ConstructionPost BeamPrecast Concrete ColumnPrecasr Concrete BeamPrecast Concrete SlabConcrete FoundationPrecast StaircasePrecast Lift Core Walls Axonometric Section // nts Sectional perspective of housing units // nts Exploded Axonometric Diagram of Housing Unit I mplementation of IBS Construction

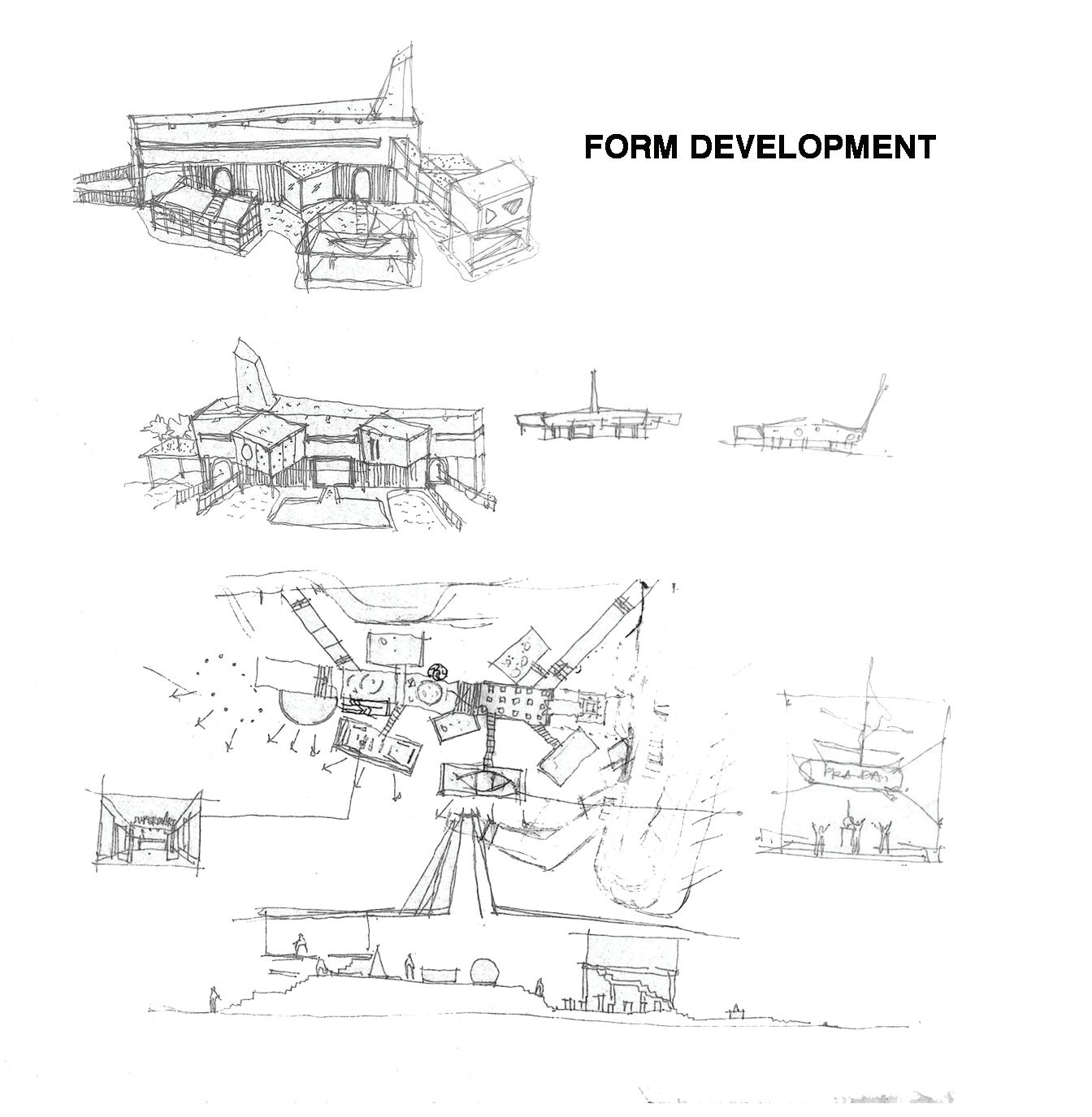

Conceptual sketch 297 mm x 420 mm.
Conceptual sketch on housing unit
mm x 420 mm.

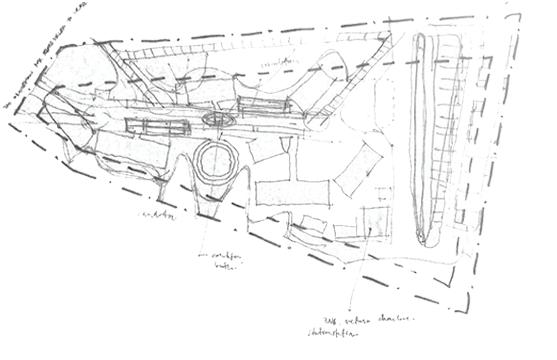

Conceptual sketch on overall form 297 mm x 420 mm.
Conceptual sketch on spatial experience
mm x 420 mm.
297
297
Board Compilation. 2523 mm x 1782 mm.
03 Practice
Azlin Jamlus Architect. Assistant Architect.
01. A Proposal of Primary School - Sekolah Rendah Seri Pahlawan. Kuantan, Pahang, Malaysia. Client: Kementerian Pelajaran Malaysia (KPM).
Project stage: Design Phase
Type of project: A masterplan of school development (20 acre of land).
Azlin Jamlus Architect. Assistant Architect.
02. Helistar Hangar for Helicopter
Kota Bharu, Kelantan, Malaysia.
Client: Helistar Resources Sdn Bhd.
Project stage: Design phase - Tender Phase - Construction phase Type of project: A renovation project
Azlin Jamlus Architect. Assistant Architect.

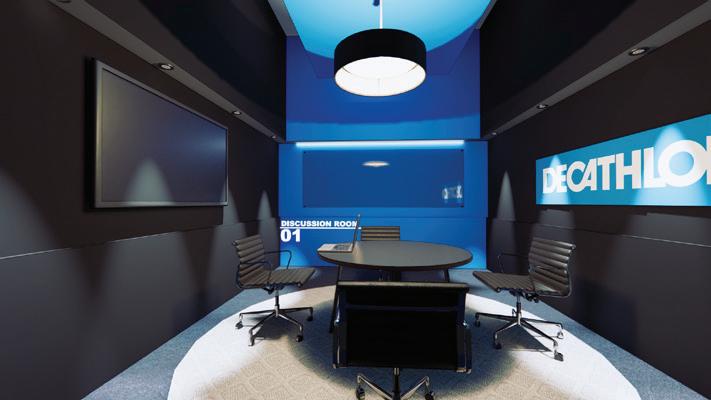

03. A Proposal for Renovation of Decathlon Shah Alam
Shah Alam, Selangor, Malaysia.
Client: Decathlon Malaysia
Project stage: Design phase
Type of project: Interior renovation project
Assaffa
01. A Proposal of An Additional Beautification of Flyover Bridge
Pahang,
Client:
Design Practice. Semester 06 - Internship.
Malaysia.
JKR Malaysia.
Assaffa
02. A Proposal of Small Luxury Hotel in Pulau Besar & Pulau Lang Tengah Johor, Malaysia.
Client: Private.
Design Practice. Semester 06 - Internship.
03. Gamuda Gardens Toll Plaza Design
Rawang, Selangor, Malaysia.
Client: Gamuda Gardens.
Assaffa Design Practice. Semester 06 - Internship.

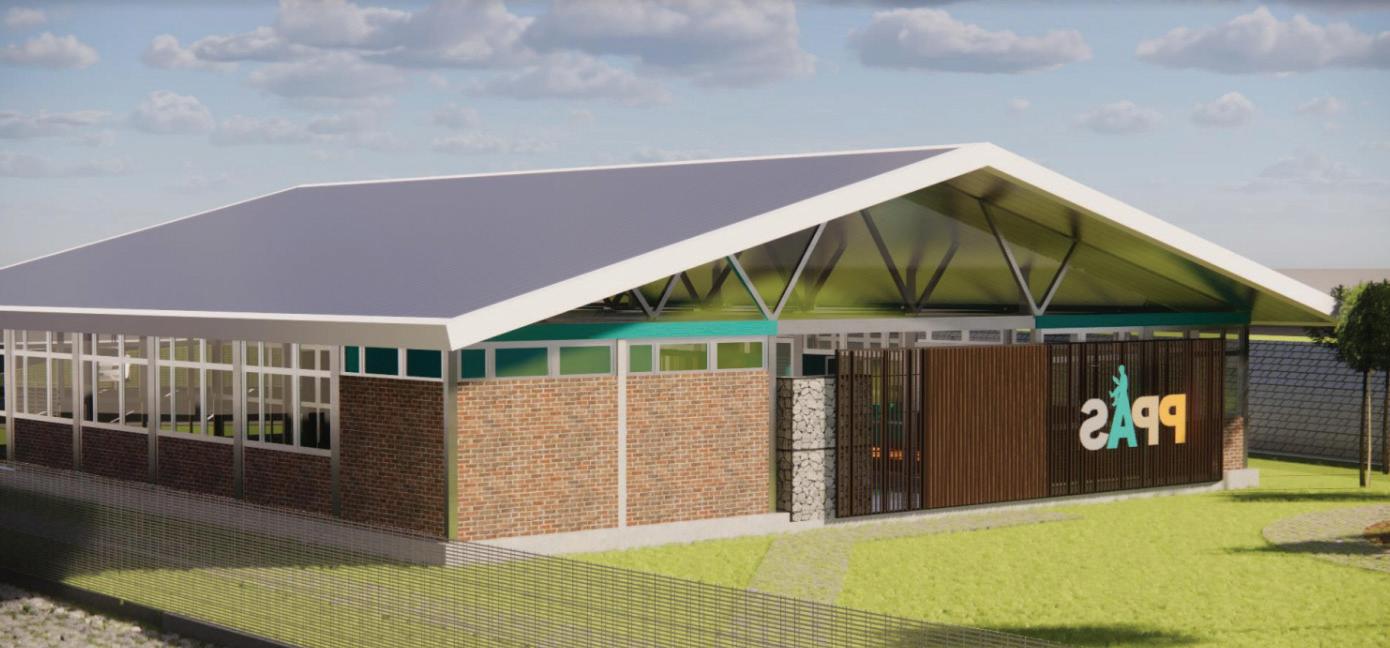

04. Perbadanan Perpustakaan Awam Selangor (PPAS) Library
Ampang, Selangor,
Client: Majlis Perbandaran
Jaya
Assaffa Design Practice. Semester 06 - Internship.
Malaysia.
Ampang
(MPAJ)
05. ProHAWK Management Office
Hospital Wanita & Kanak-Kanak, Kuala Lumpur, Malaysia.
Client: Konsortium ProHAWK Sdn Bhd
Assaffa Design Practice. Semester 06 - Internship.
04 Others.
Design atelier of graphic works, artwork and architecture. Works include art direction, brand identitiy, exhibition, publication and digital design. Based in Kuala Lumpur, Malaysia.
NORM/AAA consists of Aliff Danial, Aiman Ridzuan and Ammar Haziq, all majored in architecture seeking to narrate future brands and products visually.
Works:
1. Rumah Tijani
2. The Daily Dendeng
3. Viracle V Mask
Design
01 Rumah Tijani. Interior
02 The Daily Dendeng. Branding
03 Viracle V Mask. Branding
Is a design practice focusing on providing parallels that challenge the context of established architectural idea.
Constant/Variable is simply the depiction of rapidly evolving world that is made up of varied and succesive orders.
C/V consists of Aliff D. , Ammar H. , Aiman R. , A. Aiman, Izzat H. , all majored in architecture, working collectively as a team.
Research / Think tank / Architecture criticism.
Read more on https://constantvariablestudio.blogspot.com/
Majlis Ilmu
-/~ Research
“Majlis Ilmu” is a depiction of a perfect school environment that theoretically can provide an ideal design solution for Malaysia’s education structure in the future. A coalescence of (1) formal and (2) informal ways of learning is entailed to achieve this holistic learning experience. Informal environments allow formal spaces to flex and evolve, stimulating for deeper connection, more-artistic inno vation, and limitless discovery that both enhance formal learning exchanges and encourage independent exploration and collaboration.
Submitted and selected for Kami-Mereka (Top 9 Selected Ideas 2021). More on blogspot.
An Object of No Place
-/~ Musing
When it comes to architecture without context; it’s not necessarily just about attention-seeking and extraordinary structures. The design intention can be used to create new trends and design languages, not only in terms of aesthet ics, but also as part of a sustainable or radical movement.
This write up is beyond doubt an attempt to widen the spectrum of the term’s definition by exploring its potential within the context of our subject matter...
More on blogspot.
A Souvenir From the West
-/~ Musing
While we can ponder the various reasons as to why the people respond to modernity - what about the opposite? Attempts for modernized versions of the traditional heritage - where do we go from here? We had a conversation with En Nizam, a local craftsman in Sabak Bernam, Selangor whose motivation and passion is rooted in the Malay Traditional Heritage. He shared with us a few thoughts of his own, some inspirations and most of it reflections...
More
on blogspot.
Small Practices; In
with
&
-/~ Screening
A full-length screening of 9 architects (from Malaysia & Japan) sharing their thoughts on small practices.
Malaysia: No-to-Scale*, WHBC Architects, Studio Karya, Normal Architecture, CODA.
Japan: Atelier Kazuki Wakahara, Design Team Architects, Atelier Ryo Abe, Satoshi Okada.
A collaboration project with Suburbia Projects & Shapeshifts.
Supported by Japan Foundation Kuala Lumpur and The Asia Center
Conversation
Malaysian
Japanese Architects (2022)
.
C/V x
Suburbia Projects
x
Shapeshifts
The Godown, Kuala Lumpur.
MUKA Coffee, Kuantan.
Mano Plus, Penang.
Is a Fundraising Project to raise donation and awareness about the impor tance of education access for all, especially for refugees. To provide safety and proper education for their better future.
I was assigned as Tutor, to teach and to share my expertise to refugees on basic art knowledge and drawing technique, as well as basic architectural drawing/sketching.
Organised in Universiti Tenaga Nasional, Malaysia (UNITEN). 2018.
