2021 Product Catalog

Page 1

PRODUCT CATALOG

TABLE OF CONTENTS 92 102 168128 176 156178 3804 84 dECOLuxe Solid Acrylic Functional Hardware (114-129) Decorative Hardware (102-113) Color Options (170) Sample Kits & Products (178)Finish Options (177) Color Options (160-163) °elusion Glass (166) Glass Options (158) Glass Shelving (140-145) °eCubed Shelving Systems (130-135) °eCubed Shelving Ladder (136-139) Element Designs Home (172) Showroom Design Center (180-183) Accessories (174) Color Options (94) Edge Finishes (96) Hardware Shelving Systems Glass Markerboards Specialty Contract Coating Backpainted Glass 98 Hinges (99) Glass Options (100) Frameless Glass Doors Samples Our Story Aluminum Frame Cabinet DoorsSliding Door Systems 146 Configurations (154-155) Profiles (148-151) Base Systems About Us (4) Profile Collection (40) Sustainability (6) Finishes (42) Inspiration Gallery (8-37) Profile Detail (44-75) Inserts (76-83) Large Sliding Doors (86) Small Sliding Doors (88) Divider Rails (90) GOLA Channels (120-127) Base System Cuffs (152-153)

4

Combining sustainability and regionally sourced materials has always been at the core of what we do and the products we make. Our manufacturing facility is located in Charlotte, NC and every product is hand built by our extremely talented and skilled team of craftspeople.

SUSTAINABLY MADE IN THE USA ABOUT US

We provide premium, contemporary aluminum, glass, and dECOLuxe acrylic surfacing materials and components. Our custom products include cabinet doors, backpainted glass, markerboards, sliding door systems, shelving and hardware solutions. Our unrivaled selection of finishes, colors, and exceptional standards in both production and customer care is what makes us one of the most sought after North American suppliers for residential and commercial spaces.

OUR PRODUCTS ◄ back to table of contents 5

– Mike Uebersax, President & CEO of Element Designs

SUSTAINABILITY

In addition to the materials we use, the way in which we manufacture our products has evolved to become much more sustainable and eco-conscious. This is something we continuously strive to work towards and as the available resources grow, they are giving us the ability to make a significant impact in the preservation of our planet. We will continue to innovate the ways in which we produce our products and hope you can join us on our mission to leave this world a better place than we found it.

6

When defining what it means to be sustainable; the material, product, and/or process must have not only a low impact on the environment itself but it must possess characteristics that by definition help prolong and sustain it’s lifecycle. At Element Designs, sustainability has always been at the core of what we do and the products we make. Some of the key materials we use, including aluminum and glass are naturally and inherently sustainable. Other materials like our dECOLuxe Solid Acrylic were sought out specifically because it is not only made from 100% recycled acrylic, but it is also 100% recyclable.

We live on a planet that has a limited ecosystem and what we do has a large impact on our environment. This means that having a sustainable business is imperative to your survival as a company.

None of our products contain VOC’s. Our backpainted glass process uses environmentally safe water based paint. Zero chemicals or toxins are released from our products, there is zero effect on indoor air quality.

◄ back to table of contents 7

Facility

During manufacturing, dECOLuxe uses less water and generates less CO2 than standard cast acrylic sheets. It is also VOC (Volatile Organic Compound) and HFC (Hydrofluorocarbon) free.

We encourage the reusing and repurposing of all aluminum doors. This is easily done by replacing components within and around existing aluminum doors and frames. Glass

Our packaging materials are regionally sourced. To protect our products in transit we use corrugated edge wrapping and honeycomb foam alternative, which are made from 100% recycled cardboard. For void fill we use biodegradable plastic air fill. Within our production space and company office we recycle all cans, glass, plastic bottles and paper products. We also actively promote the importance of environmental responsibility and are proud to sponsor a recycling center for our industrial park.

Unusable glass generated during manufacturing is reused in asphalt production. Our glass materials and products are 100% recyclable. Acrylic Element Designs is the exclusive fabricator of dECOLuxe Solid Acrylic for North America. It is made of 100% recycled acrylic and is 100% recyclable, using PMMA (Polymethyl Methacrylate) which is the only plastic that can be recycled back to its original raw material: Monomer.

We offer full-service reclamation on all of our products. Instead of discarding them or throwing them away, we encourage our customers to return products for complete and proper recycling at no charge.

All of our glass material contains at least 20% post industrial recycled content. The architectural resin used for our 3FORM® inserts also yields a high percentage of post industrial recycled material.

Aluminum extrusion waste generated during manufacturing is taken to a local metal recycling facility here in Charlotte, NC. Our aluminum materials and products are 100% recyclable.

Aluminum All aluminum products are manufactured using materials from regional suppliers in an effort to reduce our carbon footprint. Our aluminum products are exceptionally durable, have an extremely long lifespan and are virtually maintenance free.

Aluminum Frame Doors: AF003 Profile in Bronze Matte Finish with Bronze Clear Glass Inserts Shelving Systems: °eCubed Shelving Systems in Bronze Matte Finish GOLA Aluminum Channels in Bronze Matte Finish Base Systems: BS001 Profile and Cuff in Bronze Matte Finish KITCHEN Featured Products 8

◄ back to table of contents INSPIRATION GALLERY 9

10

Images Courtesy of Bellmont Cabinet Designed by Lydia Huffman Built by Romar Homes

Aluminum Frame Doors: AF010 Profile in Onyx Finish with Grey Clear Glass Inserts and Black Backpainted °elusion Borders KITCHEN Featured Products ◄ back to table of contents INSPIRATION GALLERY 11

Aluminum Frame Doors: AF001 Profile in Onyx Finish with Low Iron Satin Glass Inserts Shelving Systems: °eCubed Shelving Systems in Onyx Finish KITCHEN Featured Products 12

◄ back to table of contents INSPIRATION GALLERY Images Courtesy of Dura Supreme 13

Images Courtesy of Tiffany Braker

14

Aluminum Frame Doors: AF001 Profile in Brushed Stainless Finish with White Matte Backpainted Glass Inserts KITCHEN Featured Products ◄ back to table of contents INSPIRATION GALLERY 15

Aluminum Frame Doors: AF012 Profile in Bronze Matte Finish with

Bronze Clear Glass Inserts CLOSET Featured Products 16

◄ back to table of contents Images Courtesy of Top Notch Cabinets INSPIRATION GALLERY 17

Images Courtesy of California Closets Michigan All Rights Reserved 18

Aluminum Frame Doors: AF004 Profile in Graphite Finish with Low-Iron Clear Glass Inserts CLOSET Featured Products ◄ back to table of contents INSPIRATION GALLERY 19

Aluminum Frame Doors: AF010 Profile with Mirror Inserts (Left) Aluminum Frame Doors: AF010 Profile with Mirror Inserts (Right) CLOSET Featured Products 20

Images Courtesy of Wellborn Cabinet◄ back to table of contents INSPIRATION GALLERY 21

Intereriors 22

Images Courtesy of M Lahr Homes & Ted Maines

Aluminum Frame Drawer Fronts: AF010 Profile in Natural Aluminum Finish with Bronze Gloss Backpainted Glass Inserts BATHROOM Featured Products ◄ back to table of contents INSPIRATION GALLERY 23

Base Systems: BS002 Profile in Brushed Stainless Finish GOLA Aluminum Channels in Brushed Stainless Finish BATHROOM Featured Products 24

◄ back to table of contents INSPIRATION GALLERY Images Courtesy of Van Arbour Design 25

Images Courtesy of Norcia Fine Cabinetry 26

dECOLuxe Solid Acrylic Doors in Cobalt Blue Aluminum Frame Doors: AF003 Profile in Brushed Stainless Finish with Satin Glass Inserts RESIDENTIAL Featured Products ◄ back to table of contents INSPIRATION GALLERY 27

Aluminum Frame Doors: AF003 Profile in Onyx Finish with Bronze Clear Glass Inserts Backsplash: Black Matte Backpainted Glass RESIDENTIAL Featured Products 28

◄ back to table of contents INSPIRATION GALLERY Images Courtesy of DAP Designs & M Lahr Homes 29

Images Courtesy of Element Designs 30

10mm Clear Glass Tabletop with a Customer Provided Base with Specialty Contract Coat in Gold (right) Shelving Systems: °eCubed Shelving Ladder in Gold Finish with Customer Supplied Shelves (left) RESIDENTIAL Featured Products ◄ back to table of contents INSPIRATION GALLERY 31

Image Courtesy of OFS, an OFS Brands Company 32

Aluminum Frame Doors: AF002 Profile in Natural Aluminum Finish with White Gloss Backpainted Glass Inserts OFFICE Featured Products ◄ back to table of contents INSPIRATION GALLERY 33

Images Courtesy of Element Designs 34

Base Systems: BS001 Profile in Chalk Finish with a Custom Color Backpainted Glass Top Shelving Systems: °eCubed Shelving System in Onyx (Black Matte) Finish with Clear Glass Shelves OFFICE Featured Products ◄ back to table of contents INSPIRATION GALLERY 35

Image Courtesy of West End Interiors 36

Shelving Systems: °eCubed Shelving Systems in Modern Brass Finish with Customer Supplied Shelving RETAIL Featured Products ◄ back to table of contents INSPIRATION GALLERY 37

ALUMINUM FRAME CABINET DOORS 38

of EuroCraft Cabinets Image

ALUMINUM FRAME CABINET DOORS 39

Our custom created hand built aluminum frame cabinet doors are a modern addition to residential and commercial interiors. Whether kitchen cabinet doors, office furniture doors, bathroom drawer fronts, closet storage, or sliding door systems, our aluminum frames are made to our customer’s specifications and include all functional and decorative hardware borings. Our aluminum frames come in an incredible variety of finishes, which provide endless design options when paired with our premium glass, mirror, and other custom insert options. With no minimum order quantities and quick lead times, our contemporary aluminum frame doors and drawer fronts are ideal for both remodeling and new construction projects. We offer traditional European hinges which are easily incorporated into any casework applications. We also offer integrated hinges which utilize specially engineered AIR technology to create a sleek look without any visible hardware. Courtesy Courtesy Courtesy Designer: Joeiny Muttini

AF003 Brushed Stainless, Low-Iron Clear GlassAF013 Bronze Matte, Bronze Clear Glass AF004 Gold, Low-Iron Clear Glass Image

of Top Notch Cabinets ◄ back to table of contents Image

of California ClosetsBoston

AL UMINUM DOOR PROFILES AF005AF001 AF006AF002 AF007AF003 AF009AF004 AF010 AF012 AF013AF011AF015 AF016 AF210AF014 40

CLICK ANY DOOR TO LEARN MORE ABOUT THAT PROFILE FEATURES & BENEFITS • 16 profile options in 14 finishes • Over 50 insert options • Custom manufactured to size (+/- 1mm) • No minimum order quantities • Quick lead time • Expedited shipping available upon request • Fully assembled and ready to install • Limited lifetime warranty • Tempered safety glass • Sustainably made in the USA ◄ back to table of contents ALUMINUM FRAME CABINET DOORS 41

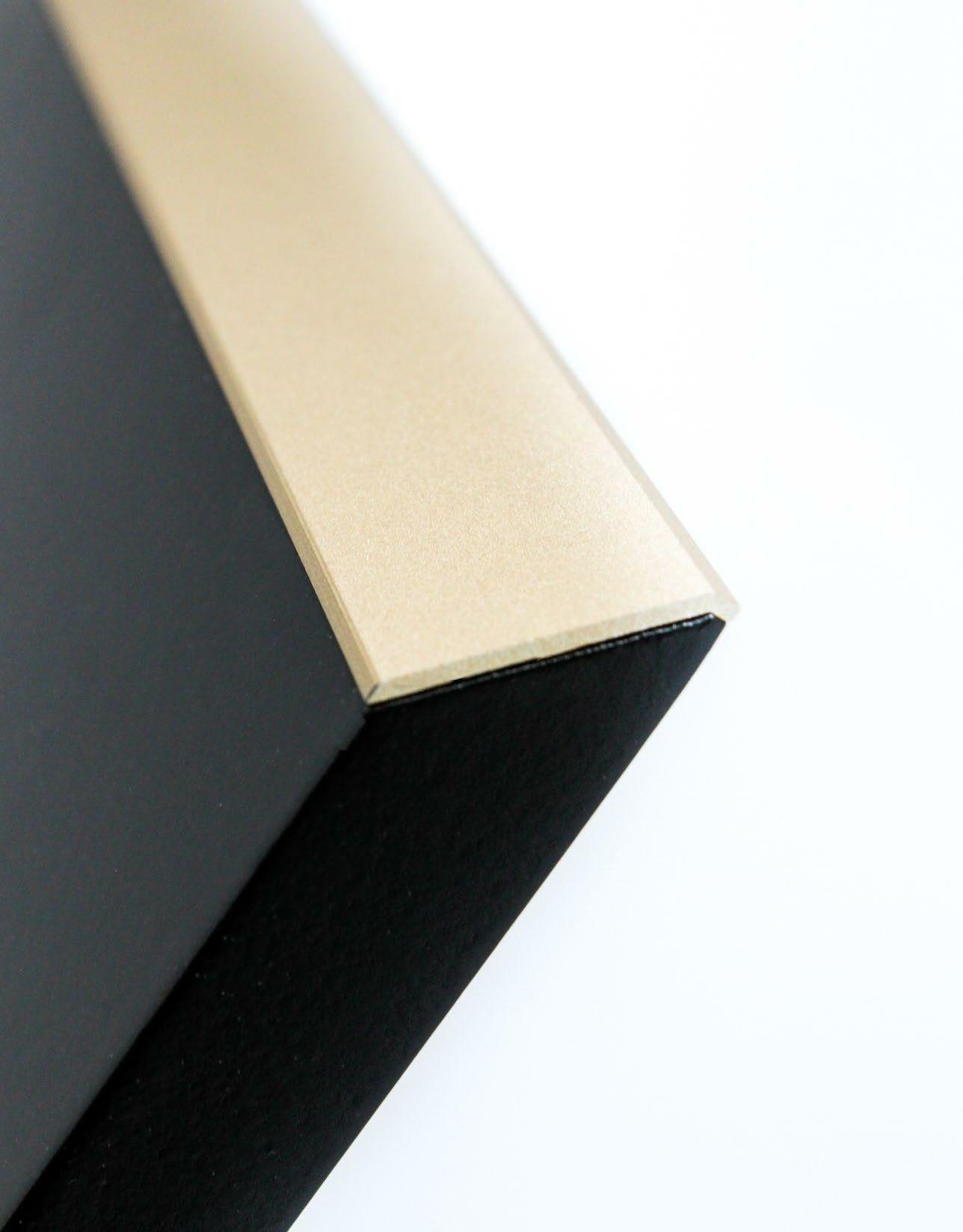

AL UMINUM FINISHES chalk (CK) brushed stainless (S) luxe bronze (LB) graphiteblack(GR)(B)onyx (X) (black matte) copper (CP)arctic silver (AS) bronze matte (BZM) natural aluminum (N) modern brass (MB) gold (GLD) ANODIZED FINISHES COATED FINISHES 42

Element Designs offers various options in both anodized and coated finishes that are available on any aluminum products.

COATED FINISHES Fingerprint & scratch resistant Sustainable water-based coating Consistent finish without orange peel effect Sustainably made in the USA back to table of contents

ALUMINUM FRAME CABINET DOORS 43

Element Designs specialty coated finishes give you unrivaled design possibilities. The selections are timeless and trendsetting. They are available on almost all of our products from aluminum frame doors to decorative hardware, giving you the ability to create a perfectly coordinated interior space. All our coated paint finishes are water based with zero effect to indoor air quality. Our products are sustainably made in the USA. For more information on our sustainability initiatives, please visit us online at element-designs.com.

Image Courtesy of Dura Supreme AF001 PROFILE 44

(19mm)3/4” 13/16” (20.5mm) AF001 • Maximum width & height = 60” (1524mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 10 sf • NOT recommended for drawer fronts • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole can be drilled through the frame ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF001 in Onyx Finish with Low-Iron Satin Glass Inserts HINGE INFORMATION AF001 profile utilizes special narrow frame European hinges: • Blum self close full 15mm overlay aluminum door hinge: H73T550A • Blum self close full 17mm aluminum door hinge: H71T950A • Blum Blumotion soft close full 15mm aluminum door hinge: H71B950A • Salice self close full 19mm aluminum door hinge: HC2Z6A99 • More options available - contact Element Designs for details 45

Image Courtesy of MasterBrand Cabinets AF002 PROFILE 46

13/16” (20.5mm) 2 (54mm)1/8”5/16”(8mm) AF002 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole locations must be specified at time of order if insert is tempered glass HINGE INFORMATION AF002 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF002 in Natural Aluminum Finish with Low-Iron Satin Glass Inserts 47

AF003 PROFILE Image Courtesy of Element Designs 48

13/16” (20.5mm) 2 (54mm)1/8” AF003 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole can be drilled through the frame HINGE INFORMATION AF003 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF003 in Graphite Finish with Bronze Clear Glass Inserts 49

Image Courtesy of California Closets All Rights Reserved AF004 PROFILE 50

13/16” (20.5mm) 1 (45mm)3/4”9/16”(14mm) AF004 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole locations must be specified at time of order if insert is tempered glass HINGE INFORMATION AF004 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF004 in Natural Aluminum Finish with Low-Iron Clear Glass Inserts 51

Image Courtesy of Jim Bishop AF005 PROFILE 52

13/16” (20.5mm) 1 (45mm)3/4” AF005 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole can be drilled through the frame HINGE INFORMATION AF005 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF005 in Brushed Stainless Finish with Thatch 3Form® Inserts 53

Image Courtesy of Paramount Woodworking AF006 PROFILE 54

13/16” (20.5mm) 2 (54mm)1/8” AF006 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with flat edge polish • Only available with backpainted glass and mirror inserts • Handle hole locations must be specified at time of order if insert is tempered glass HINGE INFORMATION AF006 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF006 in Brushed Stainless Finish with Slate Gloss Backpainted Glass Inserts and Low-Iron Satin Glass with Slate Backpainted Glass °elusion Border Inserts 55

Image Courtesy of Wellborn Cabinet AF007 PROFILE 56

13/16” (20.5mm) 2 (70mm)3/4” AF007 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 6.75” (172mm) • Maximum square footage = 24 sf • Ideal for use with AVENTOS HF Hinges (no visible hinge plates through glass) • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole can be drilled through the frame HINGE INFORMATION AF007 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF007 in Brushed Stainless Finish with Satin Glass Inserts 57

AF009 PROFILE Image Courtesy of Ducasse 58

13/16” (20.5mm) 2 (63.5mm)1/2” AF009 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 6.25” (159mm) • Maximum square footage = 32 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 6mm (.236”) with seamed edge • 4mm (.157”) available only with special gasket • Handle hole can be drilled through the frame HINGE INFORMATION AF009 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF009 in Natural Aluminum Finish with Clear Glass Inserts & Custom Etching 59

AF010 PROFILE Image Courtesy of Woodmode 60

13/16” (20.5mm) 2 (54mm)1/8” AF010 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with flat edge polish • Only available with backpainted glass and mirror inserts • Handle hole locations must be specified at time of order if insert is tempered glass HINGE INFORMATION AF010 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF010 in Natural Aluminum Finish with Custom Color Backpainted Glass Inserts & Custom Color Glass Magnetic Markerboards 61

Image Courtesy of Masterbrand AF011 PROFILE 62

3/4” (19.05mm) 2 (57.2mm)1/4” AF011 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole can be drilled through the frame HINGE INFORMATION AF011 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF011 in Chalk Finish with Low-Iron Satin Glass Inserts 63

Image Courtesy of Top Notch Cabinets AF012 PROFILE 64

AF012 • Fully concealed hinges located in upper and lower door cor ners • Door profile utilizes Salice AIR Hinges • Ideal for clear glass doors where cabinet interior is visible • Maximum height = 84” (2134mm) • Maximum width = 24” (610mm) • Maximum door weight = 44 lbs (20 kg) • Minimum width =5.5” (139.7mm) • Minimum height = 5.5” (139.7mm) • Maximum square footage = 14 sf • NOT recommended for drawer fronts or lift up door applications • IMPORTANT: Door thickness = 1” (26mm) DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole locations must be specified at time of order if insert is tempered glass. HINGE INFORMATION AF012 profile utilizes Salice AIR Hinges ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF012 in Bronze Matte Finish with Bronze Clear Glass Inserts 65

AF013 PROFILE Image Courtesy of Battle Associates, Inc 66

AF013 ◄ back to table of contents • Fully concealed hinges located in upper and lower door cor ners • Door profile utilizes Salice AIR Hinges • Ideal for clear glass applications where cabinet interior is visible. • Not recommended for drawer fronts and lift up applications • Maximum height = 84” (2134mm) • Maximum width = 24” (610mm) • Maximum door weight = 44 lbs (20 kg) • Minimum width =5.5” (139.7mm) • Minimum height = 5.5” (139.7mm) • Maximum square footage = 14 sf • Door thickness = 3/4” (18mm) DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole locations must be specified at time of order if insert is tempered glass. HINGE INFORMATION AF013 profile utilizes Salice AIR Hinges natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF013 in Chalk Finish with Clear Glass Inserts 67

AF014 PROFILE Image Courtesy of Element Designs 68

AF014 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole locations must be specified at time of order if insert is tempered glass HINGE INFORMATION AF014 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CLK)black(B)chalk(CK) ALUMINUM FRAME CABINET DOORS Pictured: AF014 in Graphite Finish with Reeded (Horizontal) Glass Inserts 69

AF015 PROFILE Image Courtesy of Element Designs 70

AF015 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole can be drilled through the frame HINGE INFORMATION AF015 profile utilizes standard 35mm cup screw-on hinges: • Blum 35mm cup hinge: H71T5550 • Blum Blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF015 in Gold Finish with Grey Satin Glass Inserts 71

AF016 PROFILE Image Courtesy of Garcia Cabinet Makers 72

◄ back to table of contents AF016 • Maximum width & height = 96” (2438mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 24 sf • NOT recommended for drawer fronts • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with seamed edge • Handle hole locations must be specified at time of order if insert is tempered glass HINGE INFORMATION AF016 profile utilizes special narrow frame European hinges: • Blum self close full 15mm overlay aluminum door hinge: H73T550A • Blum self close full 17mm aluminum door hinge: H71T950A • Blum blumotion soft-close full 15mm aluminum door hinge: H71B950A • Salice self close full 19mm aluminum door hinge: HC2Z6A99 • More options available - contact Element Designs for details natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF016 in Brushed Stainless Finish with White Matte Backpainted Glass Inserts 73

Image Courtesy of Amadas Coach AF210 PROFILE 74

natural aluminum (N) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS AF210 • Maximum width & height = 96” (2438.4mm) • Minimum width & height = 5.5” (140mm) • Maximum square footage = 16 sf • Contact Element Designs for dimensions exceeding these guidelines DESIGN GUIDELINES INSERT SPECIFICATIONS • 4mm (.157”) with flat edge polish • Only available with backpainted glass and mirror inserts on door front • Handle hole locations must be specified at time of order if insert is tempered glass HINGE INFORMATION AF210 profile utilizes standard 35mm cup screw-on hinges: AF210 doors will need additional hinges due to door weight. Please use our door weight calculator to determine hinge requirements. • Blum 35mm cup hinge: H71T5550 • Blum blumotion 35mm cup hinge: H71B3550 • Salice 35mm cup hinge: HC2P9A99 • More options available - contact Element Designs for details Aluminum Frame Doors: AF210 Profile in Chrome Finish front back 75

ALUMINUM FRAME DIVIDER RAILS Image Courtesy of The Cabinet Design Studio 76

COMPATIBLE WITH THE FOLLOWING PROFILES: • AF001 • AF003 • AF005 • AF007 • AF009 • AF011 • AF013 DESIGN GUIDELINES • Divider rails provide an additional design option for cabinet doors to create the appearance of multiple panes • Rails can run either horizontally or vertically • Multiple inserts may be used per door with divider rails • Rail measures 3/4” (19mm) wide ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) ALUMINUM FRAME CABINET DOORS Pictured: AF013 in Onyx Finish with Onyx Finish Divider Rails & Clear Glass Inserts 77

STANDARD & PREMIUM GLASS & MIRROR INSERTS low-iron clear satin grey clear low-iron satin reeded bronze clear listralmirrord clear bronze satin bronze obscuremirror grey satingrey obscuremirrorlow-iron obscuremirror low-iron mirror DESIGN STANDARDGUIDELINESGLASS& MIRROR PREMIUM GLASS & MIRROR • Glass inserts are 5/32” (4mm) thick • Etched and patter ned side of glass faces in • Glass is tempered safety glass without tempered logo which is available upon request • Mirror inserts are not tempered but include safety backer • Listral d has a maximum height of 84” (2133mm) • Reeded (vertical) has a maximum height of 84” (2133mm) • Reeded (horizontal) has a maximum height of 60” (1524mm) 78

◄ back to table of contents ALUMINUM FRAME CABINET DOORS 79

BACKPAINTED GLASS INSERTS STANDARD BACKPAINTED GLASS Our backpainted glass comes in 10 standard colors which are offered in both matte and gloss finishes. We also offer 178 non standard colors, and can color match or create any custom color. navy gloss white gloss bronze matte cream matte sand mattenavy matte white matte blush gloss mist gloss slate gloss bronze gloss cream gloss sand gloss blush matte mist matte slate matte aqua gloss aqua matte black gloss black matte DESIGN GUIDELINES • High quality water based paint on low-iron glass • All glass is tempered safety glass without a tempered logo which is available upon request • 178 non-standard and custom colors available • High end fur niture quality finish with complete opacity • All backpainted glass comes with light grey protective painted backer 80

3FORM ® INSERTS 3FORM® ARCHITECTURAL RESIN DESIGN GUIDELINES 3FORM® is the award-winning manufacturer of one-of-a-kind textiles with timeless textures made of eco-friendly materials for the architecture + design industry. Their resins are adaptable, durable, sustainable, and modern. • Inserts are 5/32” (4mm) thick • Sandstone finish on front and back • Resin inserts contain organic materials and may vary in color and density due to natural conditions starcrossedshadowstrandiron mari glintseamlessgoldswept gold weld silver kathalifossilgrayleafswept silver struck pure lineaensignivory quattro carbon thatch wisp silver ◄ back to table of contents ALUMINUM FRAME CABINET DOORS 81


& Flitch Woodworks 82

GLASSLUSIONINSERTS Courtesy of Burl

E

Image Courtesy of Simmons & Co • Opaque backpainted border around perimeter of glass • Ideal for aluminum frame profiles AF006 and AF010 • Ideal for low-iron clear, low-iron satin, bronze clear, bronze satin, grey clear, and grey satin glass options • Some glass options may affect border color, recommended to order sample • Standard border width = 2 1/4 " (57mm) • Custom border sizes also available • 10 standard and 178 non-standard colors • Custom color matching available • High end fur niture quality paint finish with light grey protective painted backer border • Matte side faces in when using satin glass unless otherwise specified • Glass inserts are 5/32" (4mm) thick DESIGN GUIDELINES ◄ back to table of contents ALUMINUM FRAME CABINET DOORS PROFILE & FINISH EXAMPLES AF006 profile in brushed stainless finish with clear glass insert & black °elusion border AF010 profile in onyx finish with low-iron satin glass insert & black °elusion border Pictured Left: AF010 Onyx Profile with Grey Clear Glass & a Black °elusion Border Pictured Top of Page: AF010 Bronze Matte Profile with Low-Iron Clear Glass & a Custom Sized Bronze °elusion Border 83

Wellborn Cabinet

Pictured:

DOORSLIDINGSYSTEMS Courtesy of


AF010 Profile in Chrome Finish with Mirror Inserts 84

Glass ◄ back to table of contents SLIDING DOOR SYSTEMS 85

AF003 Natural Aluminum, Satin Glass, Divider RailsAF003 Natural Aluminum, Clear Glass AF007

White

Our sliding door systems are the perfect addition to closets, pantries, offices, cabinets and furniture designs. Sliding doors are custom manufactured to size (+/- 1mm) and arrive with hardware preinstalled (if applicable). Sliding door systems can be fully customized with your choice of aluminum frame profile, finish and insert options including glass, mirror, and dECOLuxe. These systems can also be built with divider rails to create a multiple pane appearance using the same insert type or you may combine different insert options for a truly custom design. No minimum order quantities, quick lead times. Sustainably made in the USA. Natural Aluminum, Backpainted

LARGE SLIDING DOORS Image Courtesy of California Closets Tampa All Rights Reserved 86

◄ back to table of contents SLIDING DOOR SYSTEMS natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) • Large Floor Sliding System, top guide and bottom track • Floor-to-ceiling and inset casework applications • Multiple planes of motion • Inset or sur face mount track • Door weight capacity: 110 lbs • Soft close mechanisms available • Max door height 96" • Contact Element Designs for dimensions exceeding these guidelines • Compatible with all insert options DESIGN AVAILABLEGUIDELINESPROFILE OPTIONS: AF005AF002AF006 AF007AF003 AF004AF009 AF010 AF011 AF015 AF210AF014 Pictured: AF004 Profile in Natural Aluminum Finish with Low-Iron Satin Glass Inserts 87

SMALL SLIDING DOORS Image Courtesy of California Closets All Rights Reserved 88

◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) • Small Sliding System, top and bottom track • Single or by-pass sliding doors use sur face mount or inset track. • Door weight capacity: 66 lbs • Max door height 77" • Compatible with all insert options DESIGN GUIDELINES AF005AF001 AF006AF002 AF007AF003 AF009AF004 AF010 AF011 AF015 AF016 AF014 AVAILABLE PROFILE OPTIONS: Pictured: AF004 Profile in Brushed Stainless Finish with Satin Glass Inserts SLIDING DOOR SYSTEMS AF210 89

RAILS Image Courtesy of California Closets Madison All Rights Reserved 90

DIVIDER

◄ back to table of contents • Divider Rails can be used with sliding doors to provide additional design options. • Rails can run either horizontally or vertically • Multiple inserts may be used per door with divider rail • Divider rails measure 25/32” (20mm) wide • Contact Element Designs for panel height and width limitations with divider rails DESIGN DIVIDERGUIDELINESRAILS-SLIDING DOORS COMPATIBLE WITH THE FOLLOWING PROFILES: • AF001 • AF003 • AF005 • AF007 • AF009 • AF011 • AF013 natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) Pictured: AF003 in Natural Aluminum Finish with Satin Glass Inserts & Cobalt Blue dECOLuxe Solid Acrylic Inserts SLIDING DOOR SYSTEMS 91

92

SOLIDdECOLuxeACRYLIC

dECOLuxe Solid Acrylic combines luxury and decor with eco-friendly materials. Made from 100% recycled acrylic and is 100% recyclable. dECOLuxe is available in 8 beautiful colors in both 4mm and 18mm thickness. Colors options include alpine white, anthracite, black, cobalt blue, light grey, stone grey, turquoise, and white. dECOLuxe is waterproof and UV resistant. It works beautifully as both cabinet doors and drawer fronts. Ideal spaces include kitchens, both indoor and outdoor, garages, and more.

White dECOLuxe Alpine White dECOLuxe ◄ back to table of contents DECOLUXE SOLID ACRYLIC 93

Stone Grey dECOLuxe, Integrated PullsAlpine

ACRYLIC DOORS &DRAWER FRONTS

Image Courtesy of Kabi 94

◄ back to table of contents alpinelightwhitegrey anthracitestonegrey turquoiseblack cobalt whiteblue COLOR FEATURESOPTIONS&BENEFITS • dECOLuxe solid acrylic sheet size is 39.37" x 118.11" (1m x 3m) • Available in 4mm and 18mm thickness • 8 color options • High gloss, reflective finish • Waterproof and UV fade resistant • Optional integrated finger pulls • Doors and drawer fronts are custom manufactured to size (+/- 1mm) • Quick lead time • No minimum order quantities • Made out of 100% recycled acrylic • 100% recyclable DECOLUXE SOLID ACRYLIC Pictured: AF003 Profile in Natural Aluminum Finish with Satin Glass Inserts & Turquoise dECOLuxe 95

96

◄ back to table of contents • Available in 4mm and 18mm thickness • Acrylic size sheet is 1m x 3m (39.37” x 118.11”) • High gloss finish on all sur faces • Matching edge banding is available in all colors EDGE FINISH OPTIONS INTEGRATED PULL OPTION 18 mm 18 mm 18 mm 18 mm straightstraightedge curved1mm 2mm 3mm DESIGN GUIDELINES 18 mm 3 mm 3 mm 18 Rmm=15mm Pictured: Stone Grey dECOLuxe DECOLUXE SOLID ACRYLIC 97

Image Courtesy of Phil Kean 98

GLASSFRAMELESSDOORS

in Low-Iron Clear Glass FRAMELESS

Frameless glass doors add modern transparent style to a variety of residential and commercial spaces. These doors are available in six glass options which seamlessly highlight retail spaces, office interiors, kitchens, closets, and more. They can be custom manufactured to accent any design, from traditional to contemporary. Frameless glass doors include pre-mounted glass door plates for CRISTALLO Hinges by Blum. Doors can be easily fabricated for use with your choice of decorative hardware. Doors GLASS DOORS 84"

HINGE TYPE CRISTALLO with Blumotion Element Designs is the EXCLUSIVE supplier of the Blum CRISTALLO Hinge in the United States.

DESIGN GUIDELINES • Maximum width & height =

(1219mm) • Minimum width & height = 5.5" (102mm) • Maximum square footage = 14 sf • Thickness is 6mm ( 1/4 ") • Glass is always flat edge polished • NOT recommended as drawer fronts • Standard glass options available include: low-iron clear, low-iron satin, clear, satin, grey clear, and bronze clear • Contact Element Designs for dimensions exceeding recommended maximums

◄ back to table of contents

FRAMELESS GLASS DOORS Pictured Left: Frameless Glass

99

100

◄ back to table of contents FRAMELESS GLASS DOORS GLASS OPTIONS FRAMELESS GLASS DOORS Pictured (Left & Above): Frameless Glass Doors in Low-Iron Clear Glass Image Courtesy of California Closets Portland Designer: William Sedlar low-ironclear grey clear bronzeclearlow-ironsatin clearsatin Standard Glass 101

DECORATIVE HARDWARE

102

Element Designs’ decorative hardware is a beautiful modern collection of pulls and knobs that have been hand selected to coordinate with almost any contemporary casework application. Our decorative hardware is available in all twelve aluminum finish options including both anodized and coated. This makes them the perfect accent to match any of our other aluminum products. Beveled PullBar Pulls Knobs ◄ back to table of contents Finger Pulls Recessed Pull DECORATIVE HARDWARE 103

FINGER PULLS

104

DESIGN GUIDELINES ◄ back to table of contents • Sleek wrap around finger pull design • Mounts to back of cabinet door or drawer front • W idth: 9⁄ 16 " (15mm) Height: 1 ¹¹⁄ 16 " (42mm) • Length = 3" (76.2mm) natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) Flush mount door fabrication available upon request. (not available with AF010 profile) .197 [5.00] .354 [9.00] .591 [15.00] [15.00]1.654 DECORATIVE HARDWARE 105

106

&HANDLESBARPULLS

◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B)• P1-76S Length: 5 5/16” (3” c. to c.) • P1-192S Length: 9 15/16” (7 9/16” c. to c.) • P1-320S Length: 15” (12 9/16” c. to c.) Brushed stainless is only available in the folllowing sizes: LENGTH OPTIONS • P1-127 Length: 7 3/8” (5” c. to c.) • P1-190 Length: 9 13/16” (7 1/2” c. to c.) • P1-250 Length: 12 13/16” (9 13/16” c. to c.) • P1-380 Length: 17 5/16” (14 15/16” c. to c.) • P1-640 Length: 27 9/16” (25 3/16” c. to c.) • P1-880 Length: 37” (34 5/8” c. to c.) The following sizes are available in every finish except stainless: DECORATIVE HARDWARE 107

KNOBS 108

◄ back to table of contents K001K006K008 K005K007K009w = 16mm (5/8”) h = 21mm (13/16”) w = 16mm (5/8”) h = 21mm (13/16”) w = 16mm (5/8”) h = 21mm (13/16”) w: 14mm (9/16”) h: 23mm (7/8”) w: 14mm (9/16”) h: 23mm (7/8”) w: 14mm (9/16”) h: 23mm (7/8”) natural aluminum (N) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) DECORATIVE HARDWARE 109

110

RECESSED PULLS

R1-96 R1-160 DESIGN GUIDELINES: R1-96 • R1-96 Recessed Pull - Flush mounted into aluminum frames or other door materials • 105.5mm (4.15”) overall length, 96mm c.to c. • 2 screws included • For use with AF003, AF007. AF009 and AF011 profiles DESIGN GUIDELINES: R1-160 • R1-160 Recessed Pull - Flush mounted into aluminum frames or other door materials • 170mm (6.69”) overall length, 160mm c.to c. • 2 screws included • For use with AF003, AF007. AF009 and AF011 profiles ◄ back to table of contents natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) DECORATIVE HARDWARE 111

BEVELED PULLS

112

◄ back to table of contents DESIGN GUIDELINES • Used to create an integrated handle on wood doors • Adds subtle design detail with anodized or coated finishes • Length options: in 120” (3048mm), 90” (2286mm) • Custom lengths available upon request • Machining available for custom lengths • Available in all anodized and coated finishes • Not for use with aluminum frame doors natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) DECORATIVE HARDWARE 113

F HARDWAREUNCTIONAL 114

Element Designs’ decorative hardware is a beautiful modern collection of pulls and knobs that have been hand selected to coordinate with almost any contemporary casework application. Our decorative hardware is available in all twelve aluminum finish options including both anodized and coated. This makes them the perfect accent to match any of our other aluminum products. AIR HingeAVENTOS HF Lift System Concealed Hinge ◄ back to table of contents FUNCTIONAL HARDWARE 115

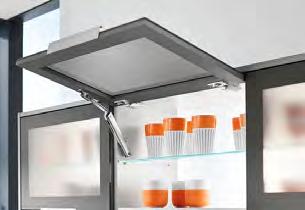

AVENTOS HK-XS - Stay Lift single door front that lifts upward; uses hinges and cabinet side lift mechanism

AVENTOS HK-Top - Stay Lift single door front that lifts upward; uses easy install cabinet side lift mechanism

AVENTOS HL - Lift Up single door front that lifts up parallel to the cabinet

BLUM AVENTOS LIFT HARDWARE Blum AVENTOS lift hardware offers a wide variety of door opening options to suit many design needs. We offer the following lift hardware: HF - Bi-Fold, HL - Lift Up, HS - Up and Over, plus HKTop, HK-XS, and HK-S Stay Lift systems.

Online support for ordering AVENTOS hardware is available through the AVENTOS Wizard within our online ordering portal, elementONLINE. For more information on how to use the AVENTOS Wizard and other features within elementONLINE please visit our website.

AVENTOS HS - Up and Over single door front that swings over the top of the cabinet

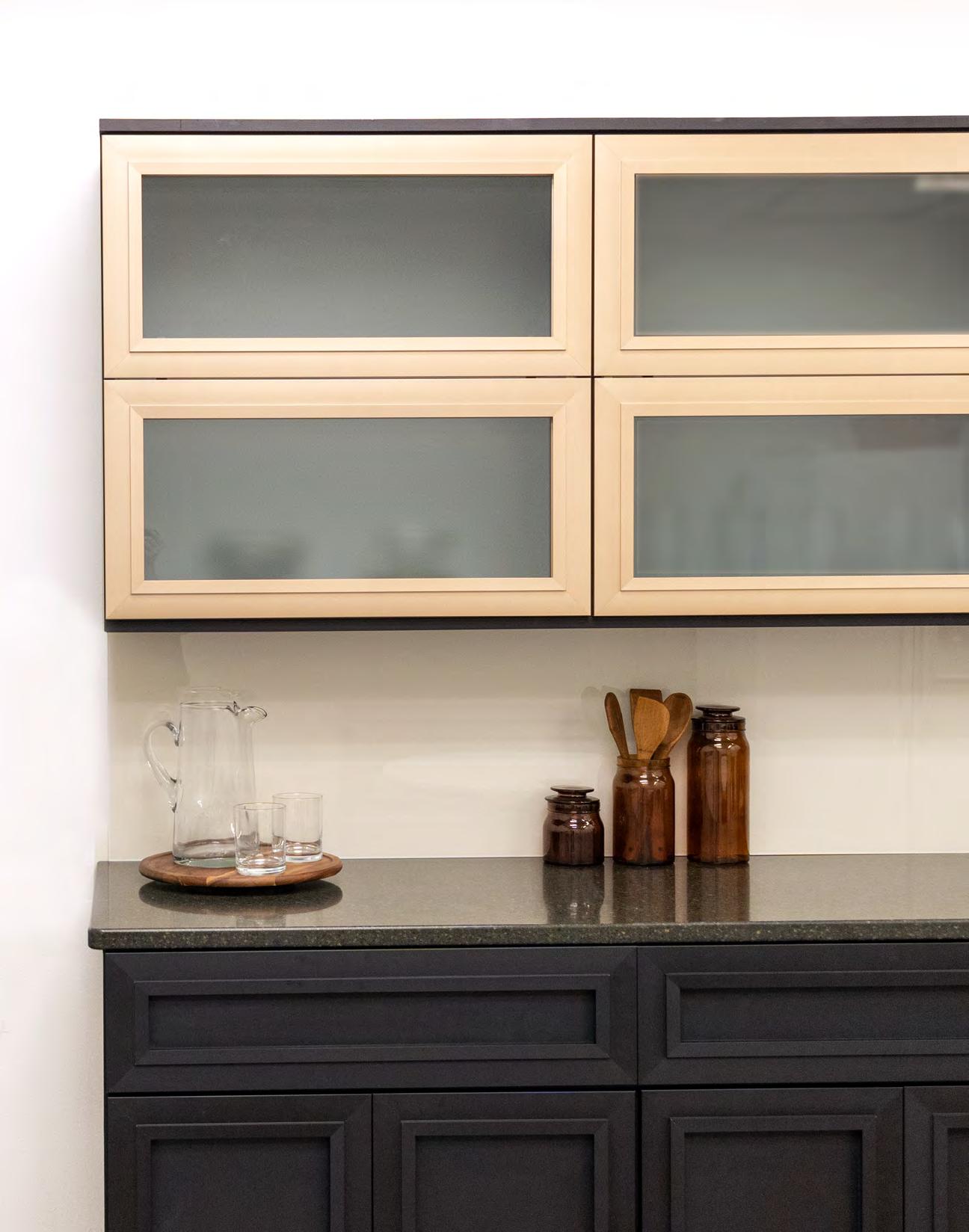

AVENTOS HF - Bi-Fold two part door front that folds in the center when opening

AVENTOS HK-S - Stay Lift single door front that lifts smaller doors upward; uses cabinet side lift mechanism

BLUM HARDWARE

116

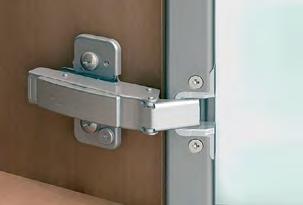

Blum® 35mm Cup Hinge straight arm, 120°, self close back to table of contents

BlumBLUMOTION®35mm Cup Hinge straight arm, 110°, soft close with deactivation switch

BLUM HINGES

Frame Hinge straight arm, 95°, 15mm overlay, soft close with deactivation switch

FUNCTIONAL HARDWARE 117

For additional Blum hardware options visit element-designs.com

Blum® Narrow Frame Hinge straight arm, 120°, 15mm overlay, self close

We are proud to offer an extensive selection of Blum concealed European hinges to meet your functional hardware needs. Visit our website to see the entire collection of hinges and plates.

BlumBLUMOTION®Narrow

Salice NarrowPush-to-OpenFrameHinges Nickelpush-to-open(Shown) or Titanium Finish

SALICE HARDWARE

*Magnetic push hardware also available for push-to-open hinges

*Magnetic push hardware also available for push-to-open hinges Salice Push-to-Open Wide Frame Hinges Nickelpush-to-open(Shown) or Titanium Finish

118

We are proud to offer an extensive selection of Salice concealed, European hinges to meet your functional hardware needs. Visit our website to see the entire collection of hinges and plates.

Salice Silentia Wide Frame Hinges soft close, free-swing Nickel (Shown) or Titanium Finish

SALICE HINGES

Salice Silentia Narrow Frame Hinges soft close, free-swing Nickel (Shown) or Titanium Finish

SALICE AIR HINGES

The Salice AIR Hinge is installed directly into the top and bottom of the cabinet, making it virtually invisible and ideal for glass cabinet doors. Salice AIR Hinges are available only on aluminum door profiles AF012 and AF013. Salice AIR Hinge Nickelsoft-closeorTitanium (Shown) Finish Salice AIR Hinge push-to-open, free-swing Nickel (Shown) or Titanium Finish *Magnetic push hardware also available for push-to-open hinges ◄ back to table of contents FUNCTIONAL HARDWARE 119

Pictured:

GOLA CHANNELS

GOLA J-Channel & C-Channel in Gold 120

Image Courtesy of Essence Cabinets

GOLA

open and

aluminum

into

concealed

and

GOLA channels are a simple way to achieve hardware-free cabinetry not only with their sleek design, but without additional fabrication required during the manufacturing of both cabinet doors and drawer fronts. profiles are easily installed cabinets with brackets. The spacer channels provide ample room for fingertips so that the doors and drawer fronts themself can be used to close instead of exposed handles pulls.

C-Channel, Gold FinishAluminum Spacer Single & Double, Stainless Nickel Finish J-Channel & C-Channel, Stainless Nickel Finish ◄ back to table of contents GOLA CHANNELS 121

J-CHANNEL Image Courtesy of Van Arbour Design 122

◄ back to table of contents GOLA ALUMINUM J-CHANNEL (GC-8006) DESIGN GUIDELINES • Length options: 90” (2286), 120” (3048) • Custom cut-to-size lengths available upon request • For necessary mounting components, including open and closed end caps, see the GOLA technical manual which can be found on our website Mounts inside of cabinet, under countertop to provide space for fingers to reach the back of cabinet door or drawer front. natural aluminum (N) stainless nickel (SN) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) Pictured: GOLA J-Channel & C-Channel in Stainless Nickel Finish GOLA CHANNELS 123

C-CHANNEL 124

◄ back to table of contents GOLA ALUMINUM C-CHANNEL (GC-8007) DESIGN GUIDELINES Mounts inside of cabinet, between drawer fronts or doors to provide space for fingers to reach the back of cabinet door or drawer front. • Length options: 90” (2286), 120” (3048) • Custom cut-to-size lengths available upon request • For necessary mounting components, including open and closed end caps, see the GOLA technical manual which can be found on our website natural aluminum (N) stainless nickel (SN) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) Pictured: GOLA C-Channel in Gold Finish GOLA CHANNELS 125

VERTICAL & UPPER CABINET CHANNEL 126

◄ back to table of contents GOLA DOUBLE VERTICAL CHANNEL (GC-8059) GOLA SINGLE VERTICAL CHANNEL (GC-8074) DESIGN GUIDELINES • Length options: 90” (2286), 105” (2667) • Custom cut-to-size lengths available upon request • For necessary mounting components, see the GOLA technical manual which can be found on our website GOLA UPPER CABINET CHANNEL (GC-1730) natural aluminum (N) stainless nickel (SN) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) Pictured: GOLA Single Vertical Channel & Double Vertical Channel in Stainless Nickel Finish Vertical Channels mount vertically in the center between two cabinet doors to provide space for fingers to reach behind doors for easy opening. GOLA CHANNELS 127

128

SYSTEMSSHELVING

Element Designs’ shelving systems provide fully integrated and complete storage solutions for residential and commercial spaces. Our modern shelving designs combine contemporary style and exceptional materials into elegant easy-to-install units. Our °eCubed Shelving Systems can be built around existing wood shelving along with a variety of our glass shelving options, including standard, backpainted, custom color backpainted, °elusion and more. °eCubed Shelving System, Brushed Stainless°eCubed Shelving Ladder, Onyx °eCubed Shelving System, Onyx ◄ back to table of contents SHELVING SYSTEMS 129

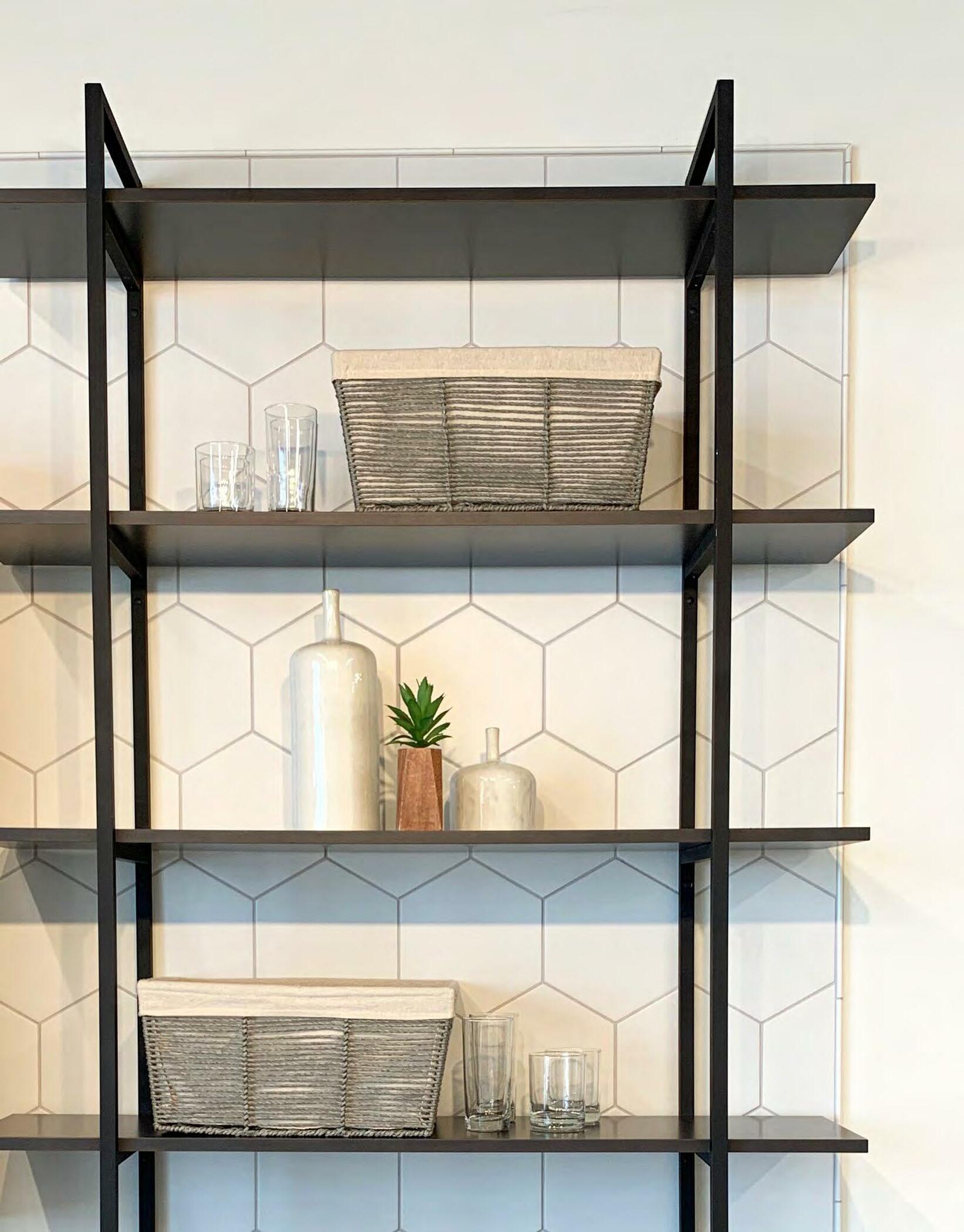

SHELVING°eCUBED SYSTEMS 130

◄ back to table of contents DESIGN GUIDELINES • Shelves can be inset to rest on the interior aluminum framing itself or they can lay on top of the aluminum framing covering the entire shelf depth • Sizing requirements are based on each configuration • Additional depth support required every 48" • Shelf thickness of 6mm recommended when inset • Standard glass options include: low-iron clear, low-iron satin, clear, satin, grey clear, and bronze clear • °eCubed aluminum shelving frames are compatible with any existing or customer supplied shelf material (not supplied by Element Designs) • Caps or leveling feet also available, specify when ordering • Shelving units will ship fully or partially assembled • Contact Element Designs for mounting recommendation natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) Pictured: °eCubed Shelving System in Modern Brass Finish with Low-Iron Clear Glass Shelves SHELVING SYSTEMS 131

°eCUBED SHELVING SYSTEM CONFIGURATION EXAMPLES: 1notierdivider 1 divider 2 dividers 3 dividers 2 tiers 3 tiers 4 tiers Pictured: °eCubed Shelving System in Onyx Finish with Low-Iron Clear Glass Shelves All configurations shown are available in various widths, heights and depths. Please refer to the Shelving Systems Technical Manual on our website for configuration details and part numbers. Shelving systems are completely customizeable. Please contact us and include a drawing or illustration of the desired structure. 132

Image Courtesy of E.W. Kitchens◄ back to table of contents SHELVING SYSTEMS 133

Image Courtesy of Dura Supreme 134

◄ back to table of contents Pictured: °eCubed Shelving System in Onyx Finish with Low-Iron Clear Glass Shelves low-ironclear grey clear bronzeclearlow-ironsatin clearsatin Standard Glass • All standard glass used for shelving is 6mm thick with flat (polished) edges • Backpainted Glass shelves are also available in all standard, non-standard, & custom color options in both gloss and matte finishes °eCUBED GLASSASSEMBLYCOMPONENTSSHELFOPTIONS 25/32"20 20 25/32" 1/16"1.5 25/32"20 20 25/32" 1/16"1.5 20 25/32" 25/32"2027.515/64" 51. 1/16" 20 25/32" 25/32"2027.515/64" 51. 1/16" 53/64"21 21 53/64" 53/64"21 21 53/64" vertical tubing horizontal tubing horizontal shelf tubing 15 19/32"max.26 1/32"1 9 23/64" aluminum leveler end cap 15 19/32"max.26 1/32"1 9 23/64" SHELVING SYSTEMS 135

SHELVING°eCUBED

LADDER

Pictured:

°eCubed Shelving Ladder in Gold Finish with Customer Provided Shelves 136

Image Courtesy of Element Designs

The °eCubed shelving ladder is a series of aluminum framed wall brackets that are completely customizeable to meet any specific size requirements. The ladder design creates a modern take on open shelving. Unlike traditional floating shelf products, the ecubed ladder has a higher weight capacity which accomodates more application needs. In addition to offering several glass shelving options, these are also compatible with existing or customer provided shelving including non-glass material.

SHELVING SYSTEMS 137

◄ back to table of contents DESIGN GUIDELINES • Unique ladder design allows shelves to sit across depth of wall bracket • Ladders can be built to accomidate 2 - 8 shelves • Compatible with any shelf material (not supplied by Element Designs) • Easy to install • Ships fully assembled, Installation hardware included • Additional options include wood shelf mounting holes • Sustainably made in the USA natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) • °eCubed Shelving Ladders are available in custom configurations with various widths, heights and depths • Shelving configuration and individual ladder size will determine the number of wall brackets required to complete the shelving unit LADDER CONFIGURATIONS

Image Courtesy of Bellmont Cabinets 138

glass ◄ back to table of contents wood* laminate* *these materials are not provided by Element Designs. Pictured: °eCubed Shelving Ladder in Onyx Finish with Customer Provided Shelves SHELVING SYSTEMS °eCubed shelving ladders can be used with a variety of shelving options. The aluminum frame brackets are incredibly strong and they have been designed to support shelving made from wood, stone, laminate, and glass. COMPATIBLE SHELVING greylow-ironclearclear low-ironbronzeclearsatin clearsatin Glass Shelving Options - 6mm, 10mm, & 12mm Glass Shelving Options - 6mm only • All glass comes with flat (polished) edges • 6mm, 10mm, & 12mm backpainted glass shelves are also available • Backpainted glass options include all standard, non-standard, and custom color options in both gloss and matte finishes 139

GLASS SHELVES

Image Courtesy of Wood-Mode 140

glass is

◄ back to table of contents

GLASS SHELVES

mounting methods. Our glass can be used with any of our shelving systems or it can be used with an existing customer application. standard glass backpainted glass aluminum framed glass °elusion glass DESIGN GUIDELINES • Available in 6mm (1/4”), 10mm (3/8”) and 12mm (1/2”) thickness • Custom manufactured to any size • Glass options include: standard, backpainted, aluminum, & °elusion. • Flat (polished) edge • Tempered safety glass • Sustainably made in the USA Pictured: Glass Shelves in Low-Iron Clear Glass SHELVING SYSTEMS 141

any

aluminum frames to create a perfect shelving solution. All glass shelves are custom manufactured to size and can be mounted using standard

application. As a versatile

Glass is an elegant and extremely durable shelving product that is ideal for shelving shelving material, also available with shelf

greylow-ironclearclearbronzelow-ironclearsatin clear satin GLASS STANDARDSHELVESGLASS OPTIONS 6MM ONLY OPTIONS 6MM, 10MM, & 12MM OPTIONS DESIGN GUIDELINES • Available in 6mm (1/4”), 10mm (3/8”) and 12mm (1/2”) • Glass shelves can be custom cut to any size • Flat (polished) edge • Tempered safety glass 6mm clear glass 142

aqua gloss blush gloss bronze gloss mist gloss slate gloss cream gloss white gloss sand gloss bronze matte mist matte slate creammattematte white matte sand matte aqua matte blush matteblack gloss navy gloss black matte navy matte STANDARD COLOR OPTIONS DESIGN GUIDELINES • Available in 6mm (1/4”), 10mm (3/8”) and 12mm (1/2”) • Gloss or matte finish • Low-iron glass for color clarity • 10 standard colors, 178 non-standard colors, & custom color match available • High end fur niture quality paint finish with light grey protective backer 10mm white matte backpainted glass ◄ back to table of contents GLASS BACKPAINTEDSHELVESGLASS OPTIONS SHELVING SYSTEMS 143

DESIGN GUIDELINES • Minimum width = 6.25” (159 mm) • Maximum width/ length = 96”(2438 mm) • 75 lb weight capacity per square foot • Shelf supports recommended for shelves over 30” • Mounts with standard shelf pins ALUMINUM FRAME EL002, natural aluminum finish, with 6mm satin glass insert EL002 1 1/4” (31.8mm) 1/2” (12.7mm) 1 1/4” (31.8mm) (12.7mm)1/2” GLASS ALUMINUMSHELVESFRAME OPTIONS 144

◄ back to table of contents DESIGN GUIDELINES • Standard backpainted °elusion border is 2 1/4” (57mm) • Also available in custom border sizing • 10 standard colors, 178 non-standard colors, & custom color match available • High end fur niture quality paint finish with light grey backer • Fully opaque, high end fur niture quality finish on transparent or satin glass insert types • Available in 6mm (1/4”), 10mm (3/8”) and 12mm (1/2”) • Gloss or matte finish. 6mm clear glass with black backpainted °elusion border GLASS ELUSIONSHELVESGLASS OPTIONS SHELVING SYSTEMS 145

BASE SYSTEMS 146

Element Designs’ base systems are a sleek, modern and unique product solution for all types of cabinet and furniture designs. They are used primarily as a base for kitchen islands, bathroom vanities, cabinets, tables, desks, and also as standalone open shelving solution. Layouts include various standard configuration options. Custom configurations are also available. Our aluminum frame base systems come in 30mm (1 3/16”) and 50mm (2”) width aluminum frame square tubing. They are available in all our anodized and coated finish options. Support solutions include leveling feet, casters, and end caps. Decorative cuff is also available for base systems designed with leveling feet or caps. BS001, Brushed StainlessBS002, Onyx BS001, Natural Aluminum ◄ back to table of contents Image Courtesy of Wellborn Cabinet Image Courtesy of Wellborn Cabinet BASE SYSTEMS 147

BS001 Image Courtesy of Element Designs 148

BASE SYSTEMS - BS001 ◄ back to table of contents SUPPORT OPTIONS noneend capleveling footcaster 2” (50mm) (50mm)2” Our larger base system design, BS001, is a 50mm aluminum profile. All 12 finish options, both anodized and coated are available for the hollow aluminum square tube extrusion making up each base system. Every configuration is hand built to custom size specifications. We offer 4 support options and weight capacities vary for each. Please see our Base Systems Technical Manual on our website for more. Pictured: BS001 Profile in Brushed Stainless with Caster natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) BASE SYSTEMS 149

BS002 Image Courtesy of Van Arbour Design 150

BS002 ◄ back to table of contents 1 3/16” (30mm) (30mm)3/16”1 Our smaller base system design, BS002, is a 30mm aluminum profile. All 12 finish options, both anodized and coated are available for the hollow aluminum square tube extrusion making up each base system. Every configuration is hand built to custom size specifications. We offer 4 support options and weight capacities vary for each. Please see our Base Systems Technical Manual on our website for more. SUPPORT OPTIONS noneend capleveling footcaster Pictured: BS002 Profile in Brushed Stainless with End Cap natural aluminum (N) brushed stainless (S) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) BASE SYSTEMS 151

152

BASE SYSTEM CUFFS

BASE SYSTEM CUFFS ◄ back to table of contents BS001 • BS-Cuff-50 • Square cuff measures 2 5/16” x 2 5/16” (60mm x 60mm) • Available in coated finishes to match or accent your base system structure • Not available in brushed stainless BS002 • BS-Cuff-30 • Square cuff measures 1.5” x 1.5” (38mm x 38mm) • Available in coated finishes to match or accent your base system structure • Not available in brushed stainless 2 5/16” (60mm) 1 1/2” (38mm) (60mm()5/16”2 (38mm)1/2”1 Pictured: BS001 Profile in Onyx Finish with Base System Cuff natural aluminum (N) bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CK)black(B) BASE SYSTEMS 153

BASE SYSTEM LAYOUT EXAMPLES

H D W H D W1W base 1.0 basecustom1.1 2.1 acustom 2.0 b 154

Min. H = 6” Max. H = 16” Min. D = 12” Max. D = 48” Min. W = 12” Max. W. = 48” Min. H = 6” Max. H = 16” Min. D = 12” Max. D = 48” Min. W = 12” Max. W. = 72” Min. W1-W2 = 12” Max. W1-W2 = 48”

◄ back to table of contents BASE SYSTEMS 155

Min. H = 16” Max. H = 16” Min. D = 12” Max. D = 48” Min. W = 24” Max. W. = 48” Min. H1= 6” Max. H1 = 24” Min. W1= 12” Max. W1 = 48” DW H H1 W1 base 2.1 custom 1.1

Min. H = 16” Max. H = 16” Min. D = 12” Max. D = 48” Min. W = 12” Max. W. = 48” Min. H1= 6” Max. H1 = 24” H D W H1 base 2.0

BACKPAINTED GLASS & GLASS MARKERBOARDS 156

Our backpainted glass is available in ten standard colors, 178 non-standard colors as well as custom color match options. It is ideal for backsplashes, tabletops, countertops, shelving and more. All backpainted glass is tempered and utilizes lowiron glass for color clarity. Available in 4mm, 6mm, 10mm, and 12mm thickness’s making it perfect for any application. It is also available in standard gloss and matte finishes. Backpainted glass by adds beautiful detail to residential and commercial interiors.

Element Designs

White Gloss Glass Magnetic MarkerboardMocha Gloss Backpainted Glass Custom Color Gloss Backpainted Glass ◄ back to table of contents Image Courtesy of California Closets Tampa Bay All Rights Reserved BACKPAINTED GLASS & GLASS MARKERBOARDS 157

DAP Designs & M Lahr Homes 158

GLASS Image

BACKPAINTED Courtesy of

• Minimum width and length for flat (polished) edge is 4” (101.6mm)

• Maximum size for 6mm, 10mm, & 12mm is 60” x 120” (1524mm x 3048mm)

• Available with custom designs and logos. Options include stencilling or digital printing, additional fees apply.

Seamed Edge   Flat Edge     Gloss Finish     Matte Finish     Pictured: Low-Iron Clear Glass Pictured: Clear Glass 159

Pictured Left: Backsplash in Black Matte Backpainted Glass Glass Thickness EdgeworkSize Tolerance (metric) 4mm (5/32”) Seamed +1.6mm, -1.6mm 4mm (5/32”) Polished +0, -1.6mm 6mm (1/4”) Seamed +1.6mm, -1.6mm 6mm (1/4”) Polished +0, -3.2mm 10mm (3/8”) Polished +0, -3.2mm 12mm (1/2”) Polished +0, -3.2mm 4mm (5/32”)6mm (1/4”)10mm (3/8”)12mm (1/2”)

◄ back to table of contents DESIGN GUIDELINES

• Maximum size for 4mm is 48” x 96” (1219mm x 2438mm)

• Inter nal Effects and custom shape fabrication is available; cut-outs only available with a seamed (unpolished) edge. Not recommended for applications where the glass is exposed. flat (polished) seamed (unpolished)

BACKPAINTED GLASS & GLASS MARKERBOARDS

• Custom color matching requires sample approval. Additional fees apply.

160

BACKPAINTED GLASS COLOR OPTIONS ◄ back to table of contents STANDARD COLORS Our backpainted glass comes in 10 standard colors which are offered in both matte and gloss finishes. navy gloss white gloss bronze matte cream matte sand mattenavy matte white matte blush gloss mist gloss slate gloss bronze gloss cream gloss sand gloss blush matte mist matte slate matte aqua glossaqua matte black glossblack matte Custom color matching is available in both gloss and matte finishes for all major paint manufacturer color selections, and customer provided samples. Custom colors require sample approval. Additional fees apply. CUSTOM COLORS BACKPAINTED GLASS & GLASS MARKERBOARDS Pictured: Backpainted Glass in White Gloss & White Matte 161

BACKPAINTED GLASS NON-STANDARD BACKPAINTED GLASS We offer 178 non-standard colors in both gloss and matte finishes. Samples are recommended but not required. Additional fees may apply. 162

BACKPAINTED GLASS & GLASS MARKERBOARDS 163

164

BACKPAINTED GLASS & GLASS MARKERBOARDS 165

E LUSION GLASS Image Courtesy of California Closets All Rights Reserved 166

◄ back to table of contents • Maximum size for 6mm, 10mm, 12mm is 60” x 120” (1524mm x 3048mm) • Minimum dimension able to be Flat Polished is 4” (101.6mm) • Contact Element Designs for dimensions exceeding these guidelines • Fully opaque, high end fur niture quality finish on transparent or satin glass insert types • Available in 6mm, 10mm or 12mm glass. Thickness border available in any of our standard, non-standard or custom colors • Standard painted border = 2 1/4” (57mm) • Custom painted border dimensions available upon request DESIGN GUIDELINES °elusion glass has a sleek, backpainted glass border that creates a dramatic frame effect. °elusion glass is a beautiful glass top surface that is ideal for displays, closet islands, countertops, tabletops, shelving, and more. °elusion glass can be used on a variety of glass types and the backpainting color options are available in our standard, non-standard, and custom color options.

GLASS & GLASS MARKERBOARDS Pictured: Glass Countertop with Custom Backpainted °elusion Border 167

BACKPAINTED

GLASS MARKERBOARDS Image Courtesy of Element Designs 168

GLASS & GLASS MARKERBOARDS

◄ back to table of contents • Custom manufactured to size (+/- 1mm) • Maximum size is 48” x 120” • Available in gloss or writable matte • Magnetic or non-magnetic options available • All edges will be flat edge polished • Custom designs and logo printing available • Custom colors require sample approval and fees may apply • Wall mounting hardware (Z-Clip) is included, orientation must be specified • Magnetic markerboards can be used with rare earth neodymium magnets only • Magnetic markerboard accessory kits also available • Magnetic glass can be used as an insert option on our aluminum frame cabinet doors • QUICK SHIP PROGRAM AVAILABLE FOR STANDARD SIZES DESIGN GUIDELINES

Custom glass markerboards by Element Designs combine backpainted glass with a magnetic backer to create beautiful and functional work surfaces. Unlike other writable surfaces, glass is a durable surface which will not fade or ghost over time making it the premium markerboard product. Available in virtually any size and any color, our backpainted glass markerboards elevate any commercial or residential interior space. White Gloss Glass Markerboards

169

Pictured:

BACKPAINTED

Image Courtesy of GEIGER 170

◄ back to table of contents MOUNTING METHOD Z-clip mounting cleat is pre-installed on all boards. Z-clip mounts to wall. BACKPAINTED GLASS & GLASS MARKERBOARDS STANDARD COLOR OPTIONS aqua gloss blush gloss bronze gloss mist gloss slate gloss cream gloss white gloss sand gloss bronze writablematte mist writablematte slate writablematte cream writablematte white writablematte sand writablematte aqua writablematte blush writablematteblack gloss navy gloss black writablematte navy writablematte also available in 178 non-standard colors & custom colors Pictured: Sand Writable Matte Glass Markerboards 171

Image Courtesy of 7 Level Home

172

ELEMENT HOME GLASS MARKERBOARDS

Pictured: Medium White Gloss Glass Markerboard

◄ back to table of contents Our Element Home glass markerboards are affordable, quick ship glassboards, available in standard sizes and select colors. DESIGN GUIDELINES • Tempered safety glass • Magnetic backer optional • Gloss or writable matte finish • Pre-Installed mounting Z-clip cleat • Installation instructions included • 36” x 24” and 48” x 36” boards have z-clip mounting cleats installed in both directions and can be hung vertically or horizontally • White boards (gloss and writable matte) have 2 day lead time • All other color boards (gloss and writable matte) have quick lead times small: 18” X 18”medium: 36” X 24” (horizontal or vertical) large: 48” x 36” (horizontal or vertical) STANDARD SIZES BACKPAINTED GLASS & GLASS MARKERBOARDS COLOR OPTIONS aqua gloss blush gloss mist gloss white glosssand glossmist writablematte white writablemattesand writablematte aqua writablematte blush writablematteblack glossblack writablematte HOME ® 173

GLASS &ACCESSORYMARKERBOARDKITSMARKERTRAYS Image Courtesy of Element Designs

174

Pictured: Blush Writable Matte Glass Markerboard with Gold Magnetic Markerboard Tray

brushed stainless modern brass natural aluminum bronze matte chalk gold

BACKPAINTED GLASS & GLASS MARKERBOARDS 175

Combining both form and function, our magnetic markerboard trays are a super simple accessory that adds a touch of style to any of our magnetic glass markerboards. The magnetic attachment makes the tray easily removable. Our magnetic marker trays are 18” in width and come in 6 finishes.

We have two accessory kits now available. The starter kit includes four rare earth pawn magnets, a magnetic eraser (which includes 3 refill pads), and a small all-board cleaner. The standard kit includes eight rare earth pawn magnets, a magnetic eraser (which includes 3 refill pads), and a large all-board cleaner. Magnetic glass markerboards are only compatible with rare earth (neodymium) magnets.

ACCESSORY KITS

◄ back to table of contents

standard kit - black starter kit - black standard kit - white starter kit - white MAGNETIC MARKERBOARD TRAYS

Image Courtesy of Studio TK 176

SPECIALTY COATING

CONTRACT

◄ back to table of contents

WHAT

IS SPECIALTY CONTRACT COATING? Element Designs’ specialty coating is now available as a service for customer provided parts. Our water-based coating is an environmentally friendly finish available in a variety of metallic and matte finishes. The durable, scratch-resistant coating can be applied to a variety of materials including aluminum, steel, and plastic. Contact your Element Designs sales representative for more information. SPECIALTY CONTRACT COATING bronze matteonyx(BZM)(X) modern brass (MB) luxe bronze (LB) copper (CP) arctic silver (AS) gold graphite(GLD)(GR)chalk(CLK)black(B) Pictured Left: Customer Ocasional Tables Coated in Gold, Arctic Silver, & Copper Specialty Finishes Pictured Above: Desk Trim Components Coated in Onyx Specialty Finish Image Courtesy of GEIGER 177

SAMPLE KITS & PRODUCTS 178

ELEMENT DESIGNS’ ONLINE SAMPLE STORE Element Designs’ offers a vast array of standard sample products including sample kits and individual product, frame, finish and glass samples. All samples are available for purchase on our online sample store store.element-designs.com. ◄ back to table of contents Inspiration Kit dECOLuxe Kit Designer Kit CLICK HERE TO VISIT THE SAMPLE STORE.ELEMENT-DESIGNS.COMSTORE ONLINE SAMPLE STORE 179

SHOWROOM DESIGN CENTER • 12 sample doors (pre-installed): an assortment of our most popular styles of aluminum frame cabinet doors and dECOLuxe® doors. See page 181 for detailed door listing • 15 aluminum frame profile corner samples in natural aluminum • 50+ insert samples (28 insert samples can be displayed at a time. Additional inserts can be stored inside SDC cabinet) • 12 aluminum finish samples • Frameless glass door sample with CRISTALLO hinge plate installed • Magnetic glass markerboard 4” x 4” sample • dECOLuxe 18mm solid acrylic color block sample • 6mm, 10mm, & 12mm backpainted glass 4" x 4" samples • Base system sample & cuff • Product Catalog • Authorized Showroom Design Center listing on our website upon completion of our showroom registration form here THE DISPLAY MEASURES 24” X 24” X 76”H AND INCLUDES Replacement samples can be ordered directly from our online sample store Showroom Design Center products can be found HERE LOOKING TO UPDATE YOUR SDC? REFER TO OUR PRODUCT UPDATE CHECKLIST HERE PRICE = $2750.00 WITH FREE SHIPPING & PACKAGING (US ONLY) Our Showroom design center is a unique rotating pedestal display that includes 12 sample doors, all profile corner samples, finish samples and insert samples to illustrate our aluminum frame doors, dECOLuxe solid acrylic doors, solid glass doors, backpainted glass, markerboards and aluminum frame base system programs. 180

SAMPLE DOOR DETAILS All doors measure 12” x 15” and are attached to pedestal using Blum hinges. • AF002MB (moder n brass finish) with navy matte backpainted glass insert • AF002N (natural aluminum finish) with reeded glass insert • AF003S (brushed stainless finish) with clear glass insert • AF004BZM (bronze matte finish) with bronze clear glass insert • AF006BZM (bronze matte finish) with bronze obscure (satin) mirror insert • AF006AS (arctic silver finish) with white matte backpainted glass insert and flush mount P3-42 pull • AF010X (onyx finish) with °elusion black backpainted border on grey clear glass insert • AF011N (natural aluminum finish) with clear glass insert • AF014GLD (gold finish) with low-iron satin glass insert • AF015GR (graphite finish) with clear glass insert • dECOLuxe solid acrylic door with integrated pull • AF0210S (natural aluminum finish) with mirror insert DOORS INCLUDED ◄ back to table of contents SHOWROOM DESIGN CENTER 181

ALUMINUM DOOR SAMPLE DETAIL • All 12 aluminum frame door profile corner samples which include: AF001, AF002, AF003, AF004, AF005, AF006, AF007, AF009, AF010, AF011, AF012, AF013, AF014, AF015, AF016 • All cor ner samples have an attached j-hanger making it easy to install them on the display • 6 metallic finish samples including: arctic silver, copper. gold, graphite, luxe bronze, and modern brass. • 3 matte finish samples including: black, bronze matte, chalk, and onyx • 2 anodized finish samples including: natural aluminum, and brushed stainless. • All finish samples come with an attached j-hanger for easy installation on the showroom design center display • All 10 standard backpainted glass colors in both gloss and matte which are: aqua, black, blush, bronze, cream, mist, navy, sand, slate, and white. • 3For m® insert samples including: swept gold, swept silver, starcrossed shaddow, strand iron, weld silver, struck pure, mari seamless, kathali gray, ensign, glint gold, fossil leaf, linea ivory, quattro carbon, thatch, wisp silver • Standard glass & mirror samples include: low-iron clear, low-iron satin, clear, satin, mirror, listral D, reeded, grey clear, bronze clear • Premium glass & mirror samples include: bronze obscure (satin), grey obscure (satin), bronze obscure (satin) mirror, grey obscure (satin) mirror, low-iron mirror, low-iron obscure (satin) mirror ALUMINUM DOOR CORNER PROFILES FINISH SAMPLES INSERT SAMPLES 182

ADDITIONAL SAMPLES INCLUDED • Inspiration kit (Our complete aluminum door sample kit) • Alpine white 18mm dECOLuxe® sample block with curved integrated pull (4” x 4”) • 12mm, 10mm and 6mm white backpainted glass samples (4” x 4”) • Frameless glass door mini sample with adhered CRISTALLO door plate (4” x 4”) dECOLuxe Color Block Sample6mm, 10mm, & 12mm Backpainted Glass Samples Base System Sample & Cuff Frameless Glass Sample DoorStorage Cabinet CLICK HERE TO VISIT THE SDC PAGE ON OUR SAMPLE STORE.ELEMENT-DESIGNS.COMSTORE 183

184

◄ back to table of contents ELEMENT CONTACTDESIGNS Needwww.element-designs.com(877)info@element-designs.com332-3396samples?Visitouronline store at Charlotte,235store.element-designs.comCromptonStreetNC28273 @elementdesignsinc 185

v.01.22 Visit us online element-designs.comat

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
