FULL TRANSPARENCY FOR YOUR GLASS PROJECTS
UNDERPROCESSING
The Ninfa glass balustrades by Faraone are synonymous with experience, comfort and safety for outdoor environments such as balconies, terraces, poolside fencing, fences; and for indoor environments such as stairways, galleries and walkways.
15/16” (74 mm)
Ninfa 6
Ninfa 106
Maior Colors, a range of aluminium and glass railings that not only perform the function of protection, but also convey emotion through transparency and colour.
Profiles in aluminum silver color / NK1 painted with polyester resin-based powders, thickness: 60 micron.
Maior Colors
Colors
Alba Magic

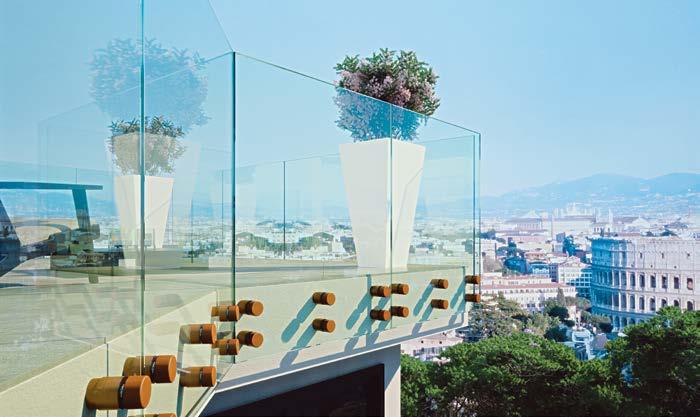

The first and only glass railing with point fixing to have passed all tests up to 300kg/m (200kg/m + 50%).
Alba Colors Inox C/ Inox Q
Alba stainless steel series, elegant and safe, ideal for making your balustrades and indoor stairs.
Alba inox mini
The smallest of the family
• Alba Inox Mini, perfect for making your environment even more fine.

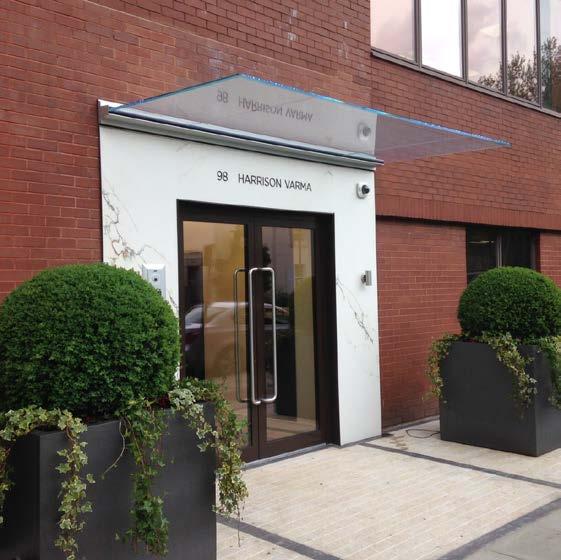

Faraone glass canopies are the elegant and standard-compliant solution for multiple uses.
They can give character to the building by performing a protective function for doors and windows or be applied for sunscreen use.
Faraone canopies systems are designed to counteract static stress - snow load - and dynamic stress, due to wind force. The Faraone canopies are tested on a reinforced concrete beam, on solid masonry and on a steel beam, with relative chemical anchors depending on the intended use, obtaining the maximum possible safety.
In this way, Faraone can offer high-tech solutions that guarantee total coverage for every need.
maximum glass overhang: 3’ - 3 3/8” (100cm)
maximum glass overhang: 4’ - 11 1/16” (150cm)
Linea mini
Linea Maxi
SPAZIO GLASS AND ALUMINIUM PARTITION WALLS AND INTEGRATED DOORS. The ideal solution to remodel your environment in safety and transparency.
a complete system of aluminium profiles with minimal sections and numerous accessories for the easiest installation possible, complete with hydraulic hinges for the automatic closing of doors or with manual hinges.
Glass option: 3/8” monolithic or laminated
Glass option: 1/2” monolithic or laminated
ASSEMBLY EXAMPLE
GLASS HOLDER DIMENSION
1 5/16” (33 mm)
1 3/16” (30 mm)
SECTION Y1-Y1
GASKET
ART. AD-015
PROFILE
ART. P01
GASKET
ART. AD-017
GASKET ART. AD-014
BRACKET ART. AD-009-G
THICKNESS MM
PROFILE ART. P02
GASKET ART. AD-013
VIEW FROM THE INSIDE
