Workshop overview:

The high-performance design workshop was an immersive experience, combining group work sessions and informative lectures over a span of three to four days. With participants from diverse backgrounds, the workshop created a collaborative environment where various perspectives contributed to discussions. A standout feature was the inclusion of supervisory meetings, providing participants with valuable feedback and guidance from experts in high-performance building design. Hands-on activities and problem-solving exercises throughout the workshop promoted practical learning and application of design principles, fostering collaboration and deeper understanding among attendees.

Introduction:

Post-COVID-19, hybrid work models with fewer on-site employees have emerged. To accommodate this while balancing energy use, offices must be designed with integrated daylighting strategies that address conflicting objectives like occupant preferences, daylight availability, visual/thermal comfort, energy efficiency, and facade costs. Tackling these challenges requires a multidisciplinary, algorithmic workflow that systematically explores diverse parameter combinations to identify well-balanced solutions for lighting, heating, and related strategies.

This workshop focused on optimizing daylighting strategies as a crucial aspect of high-performance building design. Daylighting, the controlled admission of natural light into a building, plays a vital role in enhancing visual comfort, reducing energy consumption, and promoting occupant well-being. Participants explored concepts such as daylight availability, visual comfort metrics, and the integration of daylighting systems into architectural designs. Additionally, the workshop delved into energy considerations in architecture, emphasizing the significance of energyefficient strategies and the pursuit of net-zero energy buildings. Innovative approaches like inverse design, general morphological analysis, and biomimetic principles were discussed as potential pathways to achieve sustainable and high-performing building solutions.

Another critical aspect covered in the workshop was the application of multi-objective optimization techniques, such as genetic algorithms, to balance multiple performance criteria simultaneously. This approach enables designers to explore trade-offs and find optimal solutions that address energy efficiency, thermal comfort, and other objectives concurrently. Furthermore, the workshop highlighted the importance of resilience and climate-adaptive design concepts, recognizing the need for buildings to adapt to changing environmental conditions and mitigate the impacts of climate change. Emerging technologies and their potential to address emerging challenges in the built environment were also explored, underscoring the necessity for continuous innovation and the adoption of cutting-edge solutions in the pursuit of high-performance building design.

01 02 03 04 05 06 07

Hierarchically

Kinetic Façade

Para_Shade

Kinetic Façade

Brick Pattern

Kinetic Façade

Opti Persian Pattern Façade

Hierarchically Kinetic Façade

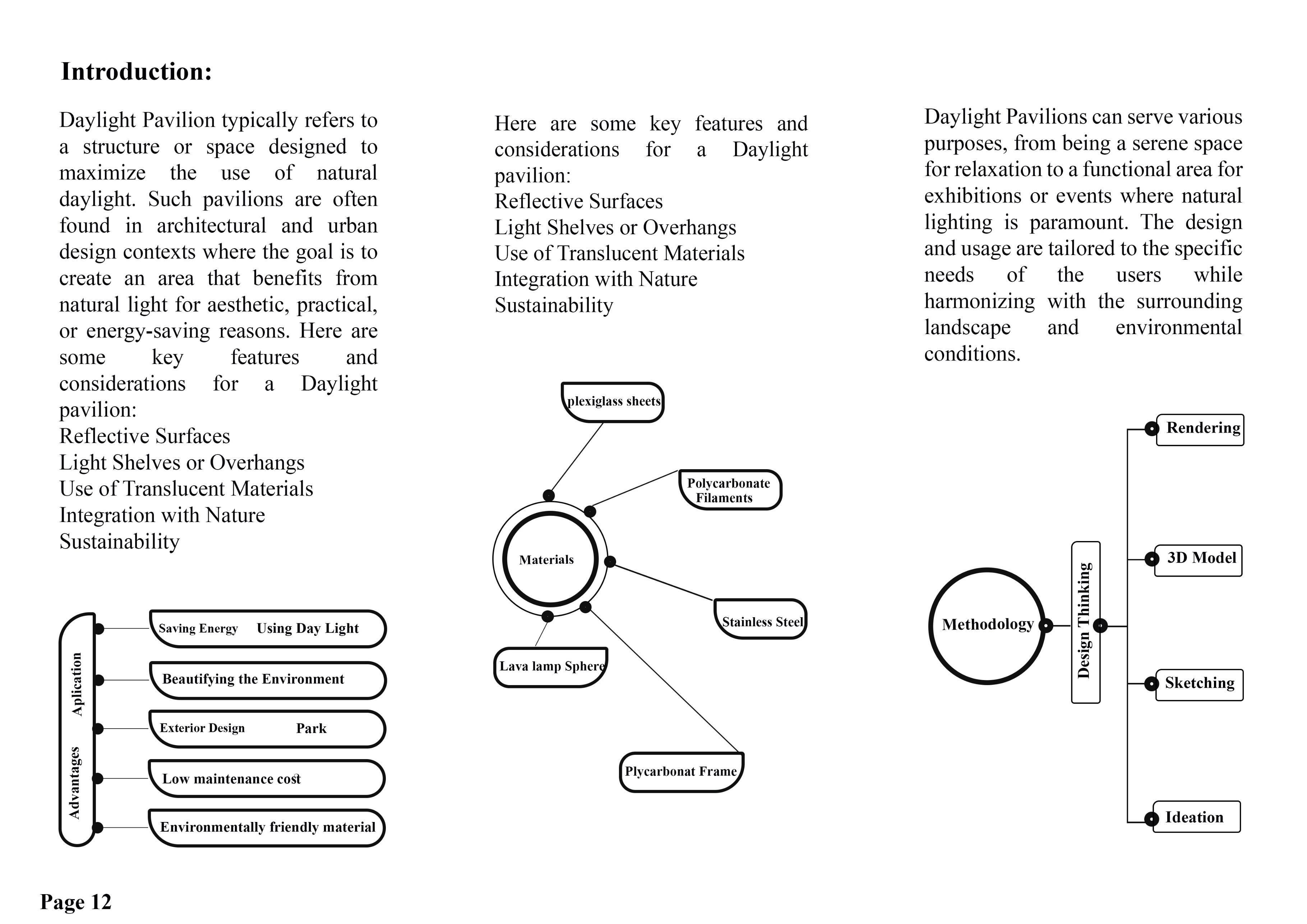

Opti Shade Based Design Flight Pavilion

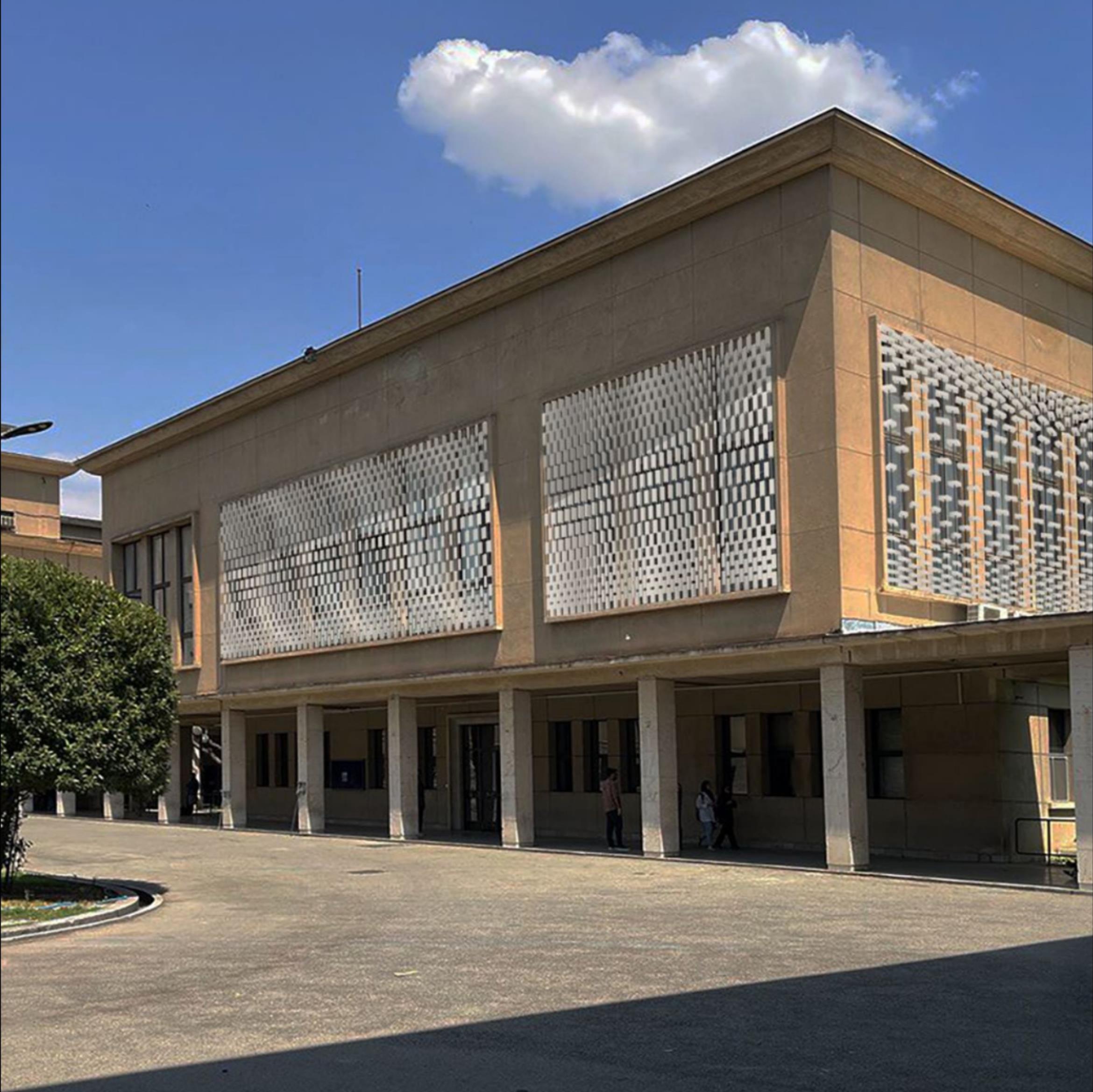

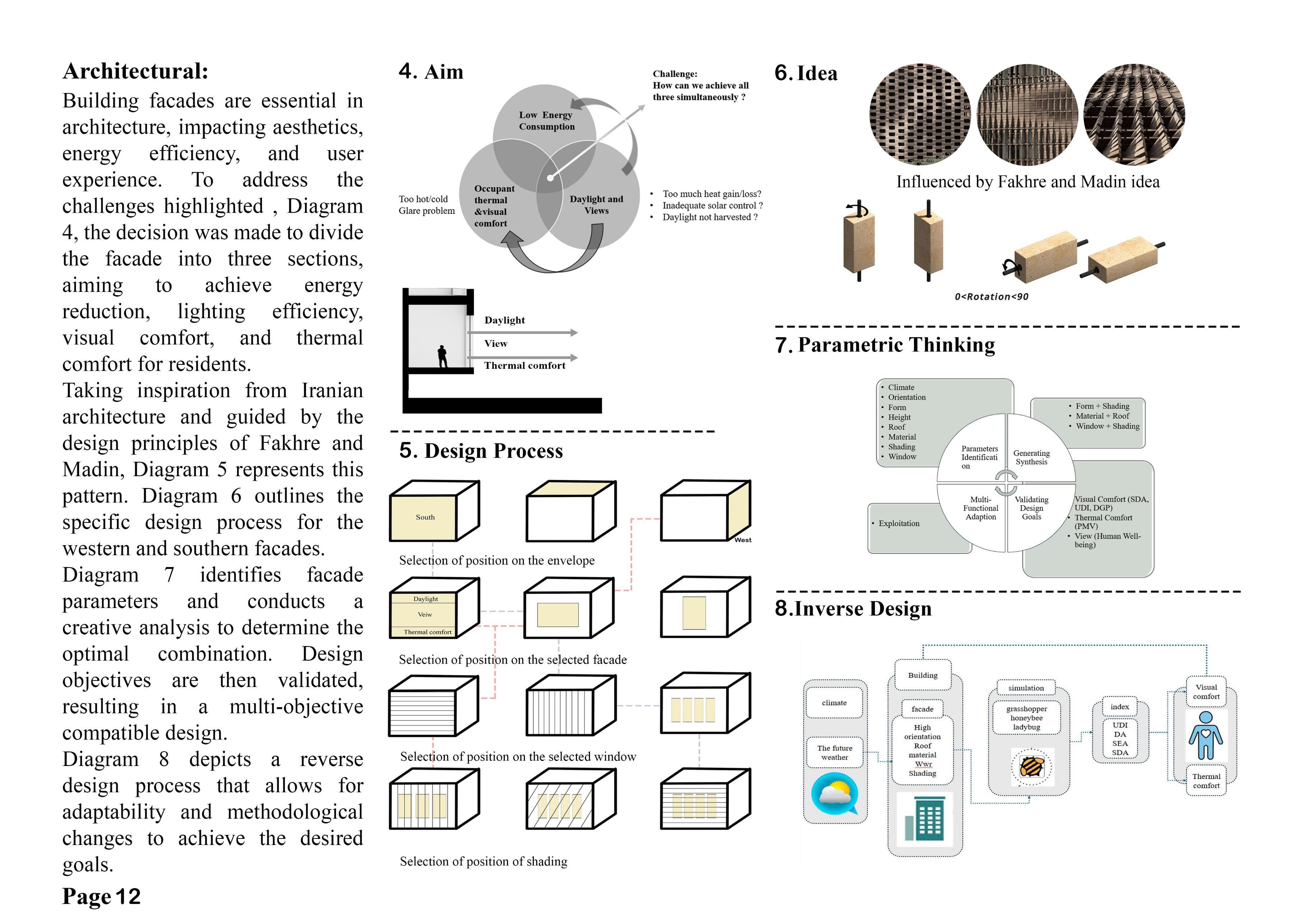

H

ierarchically Kinetic Façade

University of Tehran

Type :

Design and Renovation

Location:

Tehran, Iran

Mentor: SouroshTalai

Group Members :

Elnaz Ghafourian

Narges Felegari

Soroush hassanzadeh

Mehdi Jabarnia

Rojin Molaei

Roshanak Darbandi

Faezeh Naji seresht

Raha Sheikholeslami

Para_Shade Kinetic Façade

University of Tehran

Type :

Design and Renovation

Location:

Tehran, Iran

Mentors:

HosseinYavari

Mona Lavasani

Group Members :

Najme Fardi Pakdehi

Sara Savadian

Elham Habibi

Sogand Malekloo

SajjadYazdani

Mohammad Savei

Nazanin Rasekh Mahand

Brick Pattern Kinetic Façade

University of Tehran

Type :

Design and Renovation

Location:

Tehran, Iran

Mentor:

Fataneh Shoghi

Group Members :

MaryamAghelnezhad

Bahar Baghernejad

MotahareYazdekhasti

Mahsa Mirhosseini

Matine Safi

Opti Persian Pattern Façade

Tehran

Type :

Design

Location:

Tehran, Iran

Mentor:

Zahra Shirzadnia

Group Members :

DorsaAmiri

Somayeh Khojasteh

Soheil Soltaninejad

Hasti Beykpour

Site Analysis :

In a bustling area of Tehran, a plot of land is strategically situated with blocked access from the north and west. A comprehensive site analysis considered key factors like daylight factor, accessibility, and visibility to determine the best design approach.

The site benefits from ample sunlight from the south and east, showcasing scenic views of a nearby lake and lush trees. Accessibility is particularly favorable from the south and east directions, influencing the design choices.

After careful consideration, two layout options emerged: L-shaped and U-shaped configurations. The L-shaped design was ultimately chosen by the designer team for its blend of aesthetics, functional efficiency, and alignment with the site's unique environmental features.

Fig.1: Finding the best position on-site based on some factors :Average matrix, light, View from outside, Inward view, access

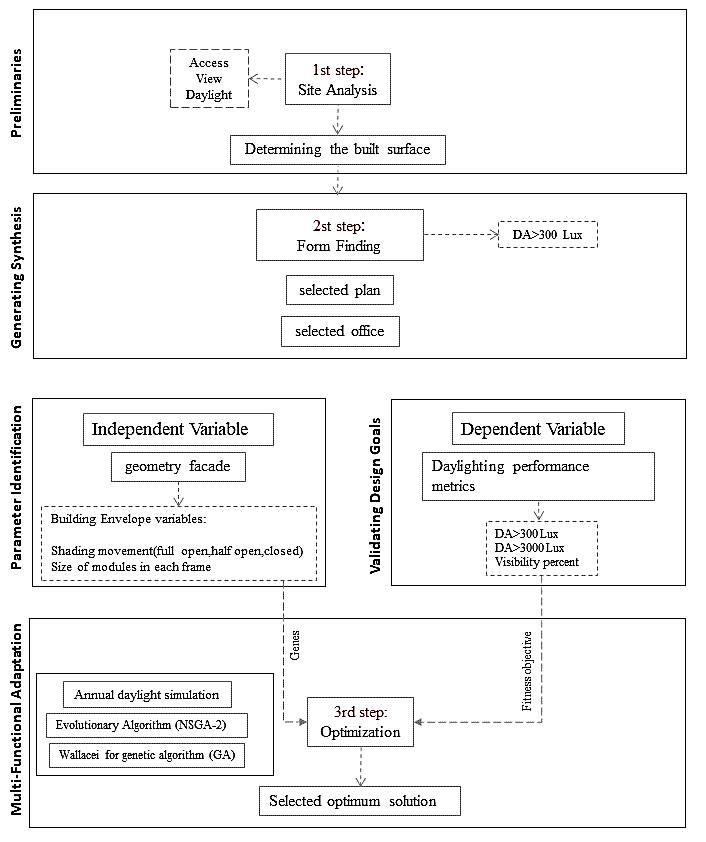

Fig.2: Work flow
