Fitting instruction - HB102

HB102 LARGE (A1008SS)

HB102 SMALL (A1008S)

PRODUCT DETAILS, TECHNICAL DETAILS AND FITTING INSTRUCTIONS

. . .

LARGE: 72 mm SMALL: 119 mm LARGE: 30 4 mm R12mm 50 mm 22 mm 4 mm LARGE: 130 mm SMALL: 68 mm SMALL: 27 38 mm 30 mm 22 mm Spindle: 8 x 8 mm LARGE: 72 mm SMALL: 119 4 mm LARGE: 130 SMALL: 68 mm 38 mm 30 mm 22 mm Spindle: 8 x 8 mm www.frostdenmark com

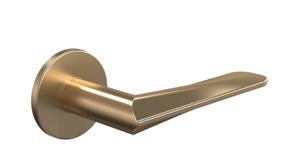

HB102 SMALL

lever handle, 2 pcs. a set

Stainless Steel AISI 304

Suitable for indoor and outdoor use

Length: 119 mm

Projection: 68 mm

Rose: Ø50 x 4 mm

Door Thickness: 40-69 mm

Spindle: 8 x 8 x 90 mm

Longer spindles available on request

Design: Bønnelycke mdd

HB102 LARGE

lever handle, 2 pcs. a set

Stainless Steel AISI 304

Suitable for indoor and outdoor use

Length: 130 mm

Projection: 72 mm

Rose: Ø50 x 4 mm

Door Thickness: 40-69 mm

Spindle: 8 x 8 x 90 mm

Longer spindles available on request

Design: Bønnelycke mdd

CLEANING AND MAINTENANCE

Stainless steel surfaces should be cleaned with a microfibre cloth, glass cleaner or other non abrasive and gentle agents.

ATTENTION:

Never use solvents or aggressive household cleaners like bleach, acids (e.g. descalers) or ammonia-based bathroom cleaner to clean the product. Steel wool and hard brushes can permanently damage the surface of the steel.

2

Stainless A1008SB Brushed Copper A1008SBOC Brushed Gold A1008SBMG Brushed Black A1008SBCB Polished Stainless A1008SP Polished Copper A1008SC Polished Gold A1008SGO Matt Black A1008SBL

Brushed

Stainless A1008SSB Brushed Copper A1008SSBOC Brushed Gold A1008SSBMG Brushed Black A1008SSBCB Polished Stainless A1008SSP Polished Copper A1007SSC Polished Gold A1008SSGO Matt Black A1008SSBL

Brushed

FITTING INSTRUCTIONS

Door thickness: 40-69 mm

When the set screw is tightened, a guide hole is punched in to the spindle.

Spindle: 90 mm Ø5x20 Plastic tube plug

Torx no. 15 Allen key 2 mm Rose key

Machine screw: M4x62 brake off Machine screw: M4x35

E2 2x M4x35 Torx no. 15 1 D D A B1 E1 F H E2 2x 1x 2x 2x 1x 2x C 1 D D B1 E1 F H E2 1x 2x 2x 1x 2x C 1 D A B1 E1 2x 1x 2x C 1 D A 1x 2x 2x 2x 1x 1x C 2x 4x 1x

Torx no. 15

WHAT IS IN

E F

Wood screw: ST4,5x16

THE BOX

DK - 8370 HADSTEN

T +45 8761 0032

info@frost.dk www.frostdenmark.com

facebook.com / FROSTdenmark

twitter.com / FROSTdenmark

instagram.com / FROSTdenmark

pinterest.com / FROSTdenmark

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording or any other information storage and retrieval system, without prior permission from FROST A/S. We reserve the right to make alterations to the models without prior notice.

FROST A/S BAVNE ALLÉ 32
